Dantherm ECOline – air handling system
Commercial air handling

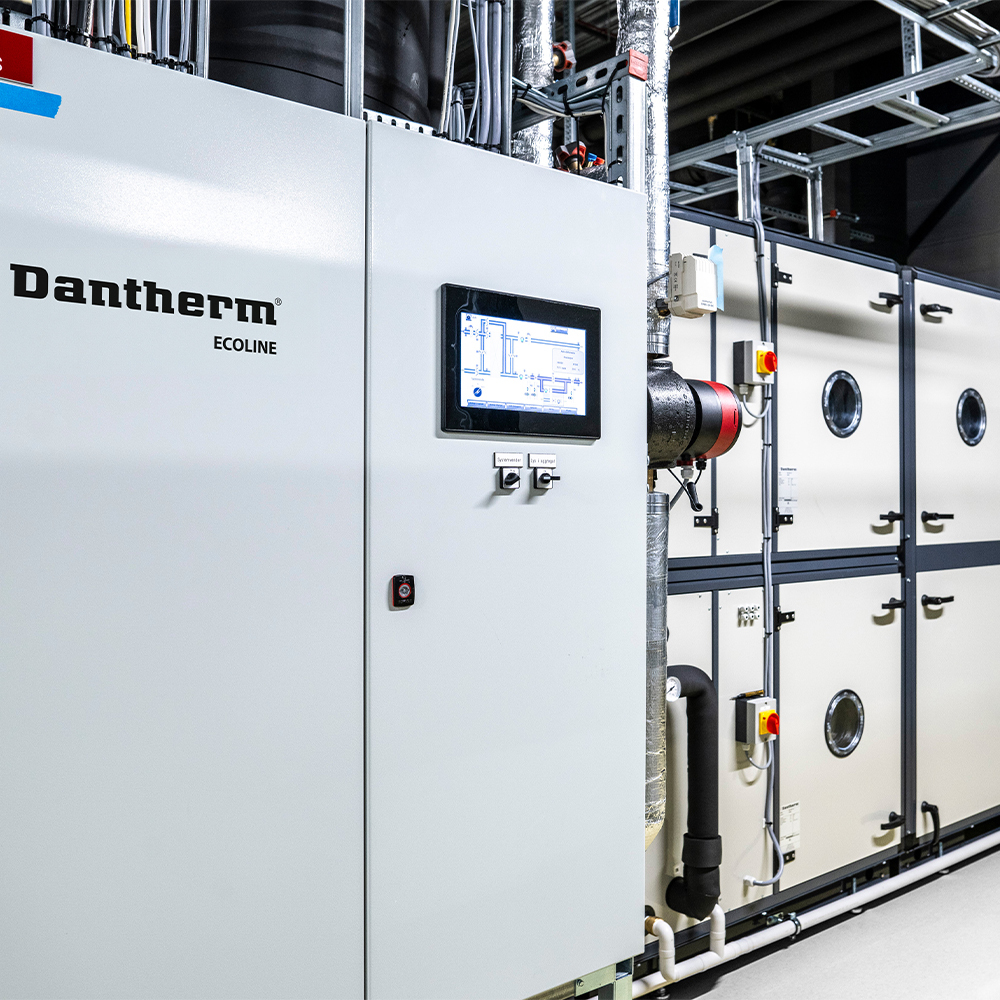

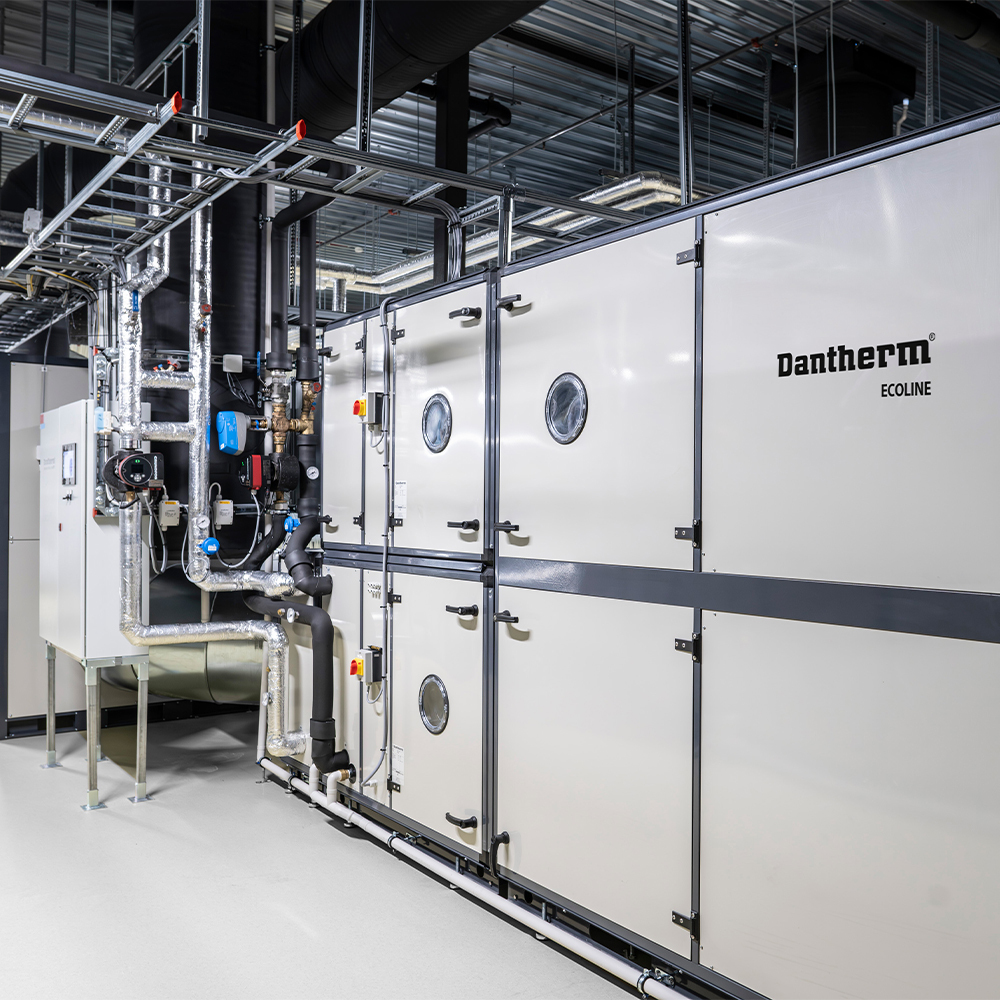

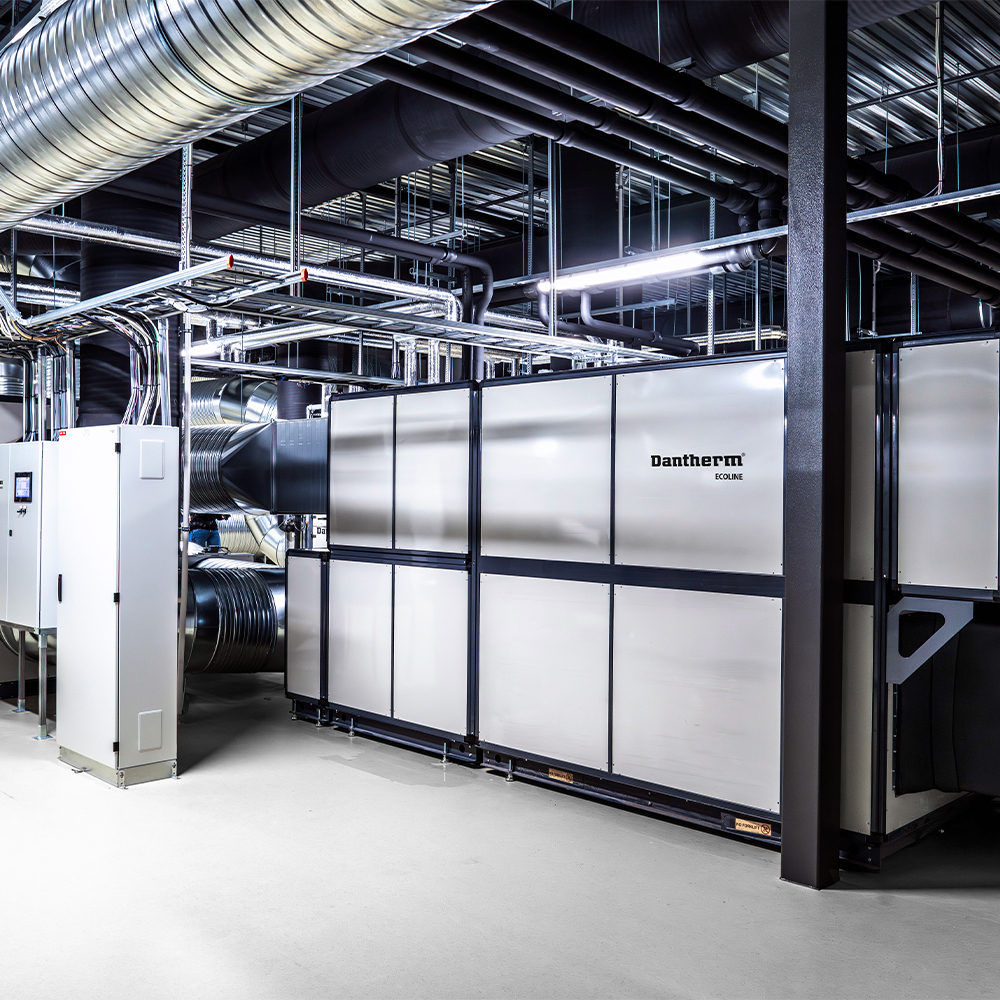

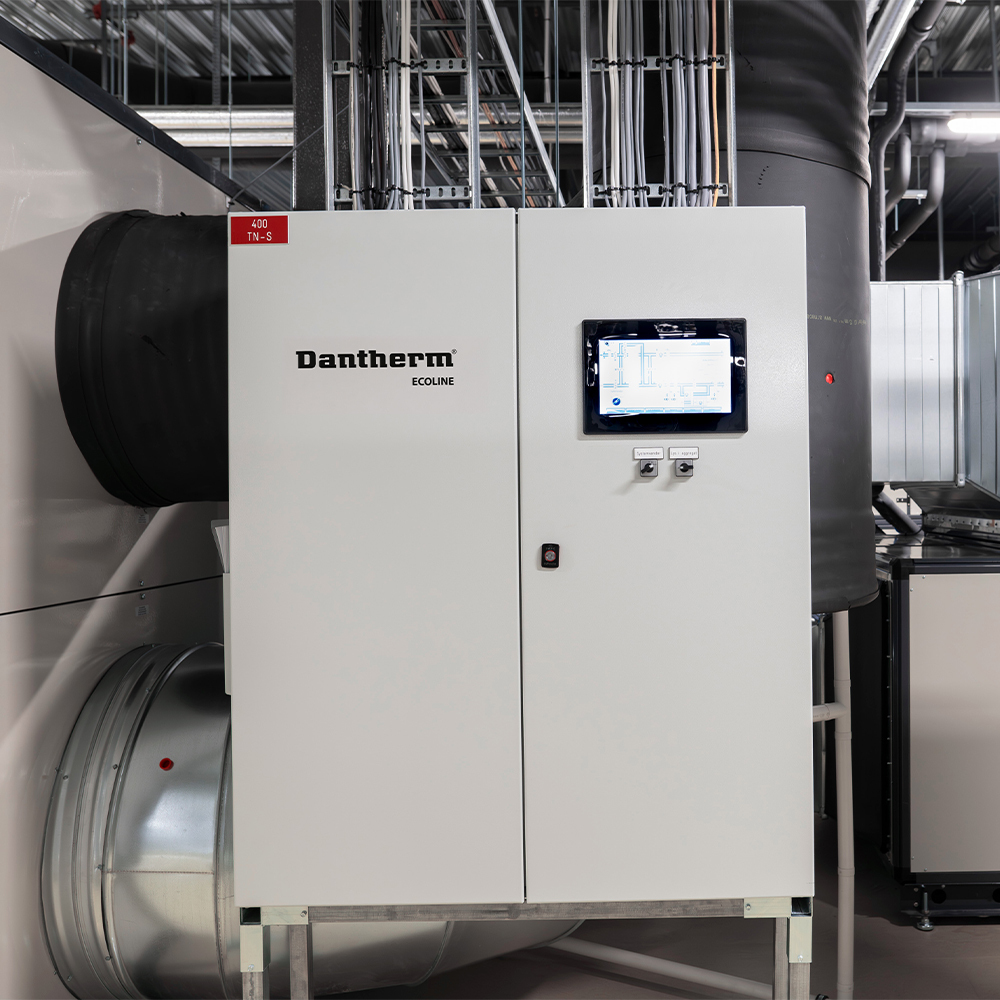

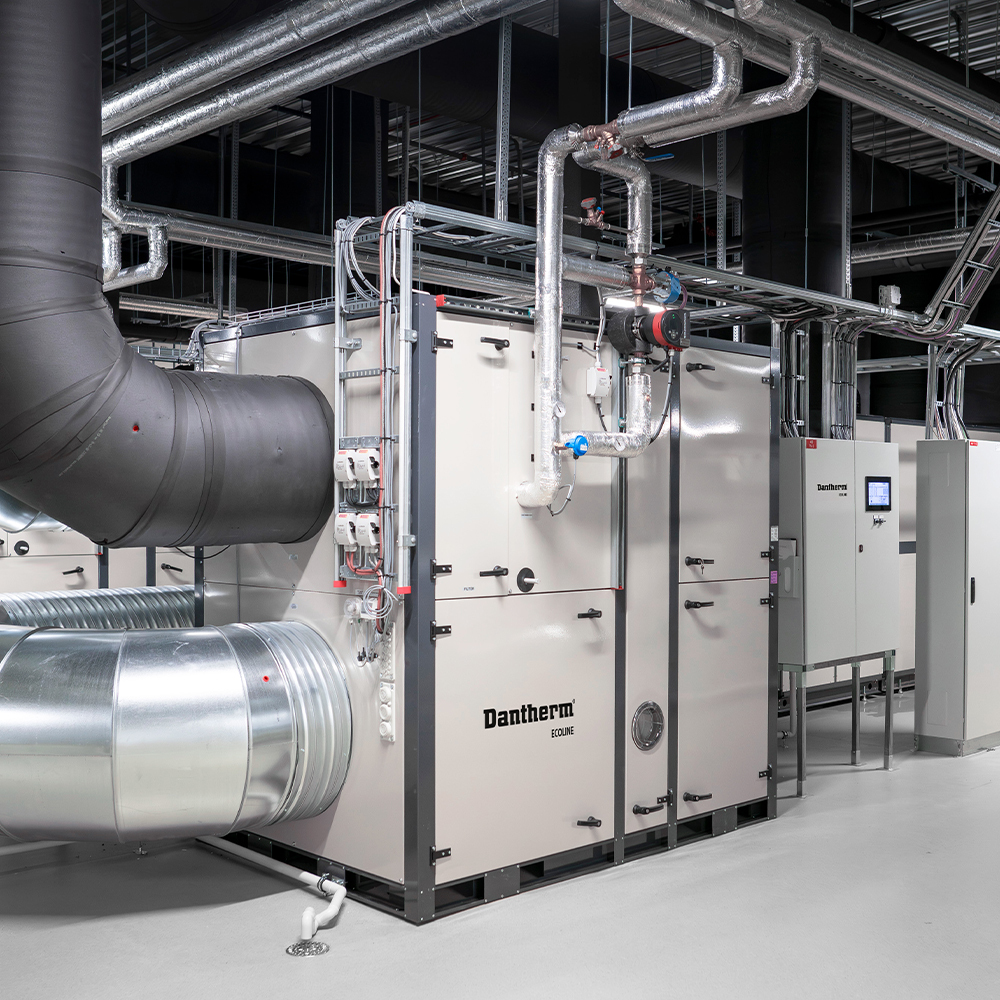

Dantherm ECOline offers ventilation, dehumidification, humidification, heating, and cooling integrated into a system. The exceptionally energy-efficient solution typically consists of the Dantherm DanX CF climate control unit with a counterflow heat exchanger with mixing section, EC fans, integrated cooling/heating coil, and a separate Dantherm SD adsorption dehumidifier. The system is equipped with autonomous control/automation in a separate electrical panel.
Dantherm Ecoline can be customised to utilise excess energy from other processes, resulting in additional savings and optimal energy utilisation.
Key features
-
100% climate control
-
Most energy-effective solution on the market
-
Less and easier maintenance
-
Simple and quick user-friendly installation
-
Customised to your needs
-
Functional and product warranty
-
Up to 50% lower operating costs than comparable solutions
The ventilation section:
This solution handles ventilation, necessary fresh air exchange, and air circulation in the premises to create consistent and optimal conditions. The proportion of fresh air can vary from 0-100% and is defined based on the requirements of each individual project and the requirements in different operating phases if the system has multiple modes of operation (day, night, occupancy, etc.).
The dehumidification section:
Multiple forms and stages of dehumidification can be utilised, as well as combinations of these methods:
- Dehumidification through moisture extraction in the counterflow heat exchanger in the DanX CF unit
- Dehumidification using chilled water and desiccant dehumidification
- Dehumidification using fresh air
The cooling section:
- Cooling using chilled water or direct expansion (DX) coils
- Cooling through heat recovery in the DanX CF unit
The heating section:
- Heat recovery in the DanX CF unit
- Electric or hydronic heating coil
- Excess heat from other process can be utilised
The humidifcation section:
- Humidification using evaporative or steam humidifiers
