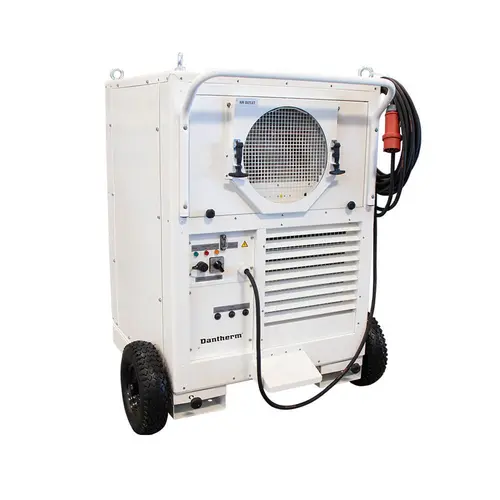

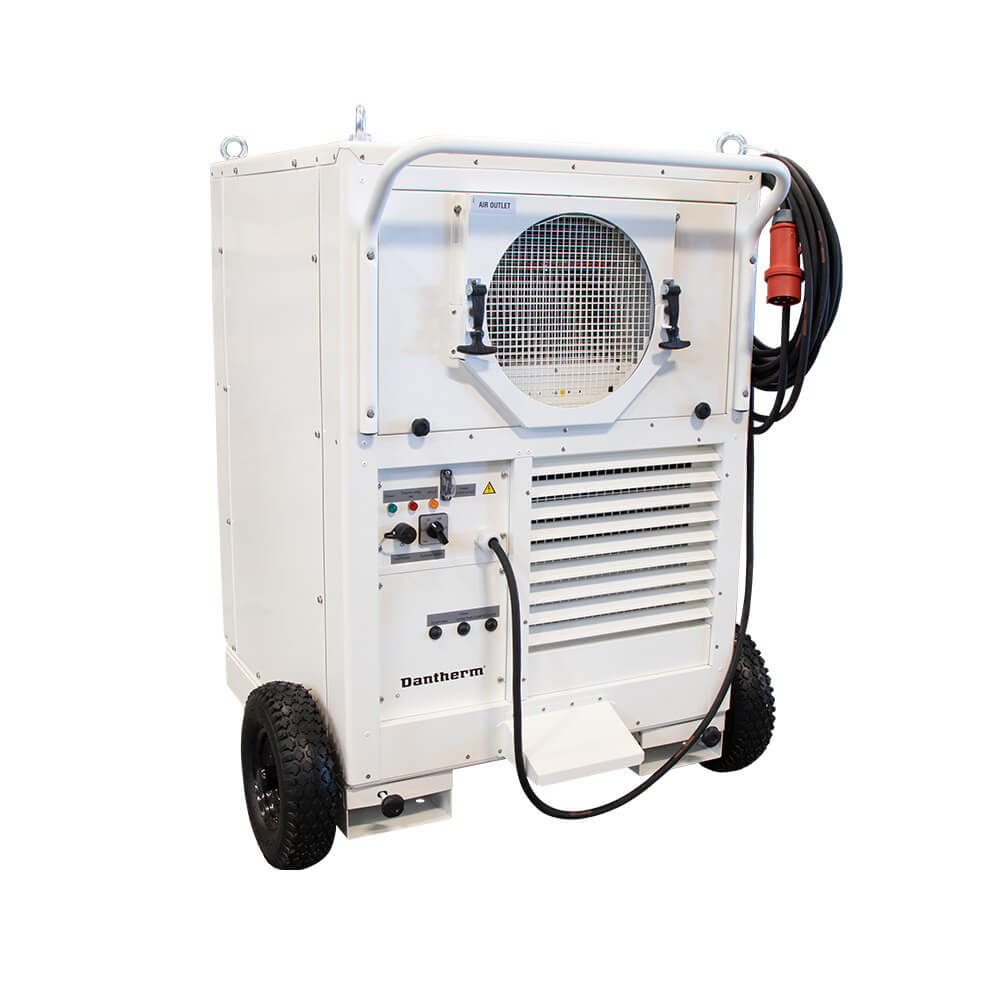

Dantherm AC-M7 MKII – tent cooler
Tent coolers
The AC-M7 MKII air-conditioner is a 7kW portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents. The AC-M7 is designed to be placed outside the tent with ducted supply and return air.
View our range of air cooling units and tent coolers suitable for all types of application and commercial purpose on any scale.
Interested?
Key features
-
Manufactured from hot dip galvanized and powder coated steel sheet
-
Can provide cooling at ambient temperatures up to +55°C
-
Connect to the mains power supply or a separate diesel generator through a 15m power cable with CEE plug
-
“VENT-only” option, allowing ventilation without cooling
-
Temperature control by a room thermostat placed inside the tent
-
Washable and easy removable coarse filters in front of internal air intake as well as in front of external air intake
-
Easy transportation, either by forklift, the four lifting hooks on top of the unit or with the two wheels
-
Setup and operation can be done by a single person
-
Removable wheels, which can be stowed on top of the unit
-
Adjustable fresh air intake
-
As operational range, heating: an option can be provided to operate between -32°C to +20°C
Product Specifications
Registered NSN number
Yes
-
Operating temperature range, cooling
+20 – +55
°C
Operating temperature range, heating
-20 – +20
°C
Air flow
2,500
m³/h
Sound level @ 1.5m
69
dB(A)
Protection class
IPX4
Refrigerant
R134a/3.0
Type/kg
Nominal cooling capacity
7.6
kW
Heating capacity (optional)
7.2
kW
Power supply
400/3ph/50
V/Hz
Max. running current, cooling/heating
7.2/13
A
Locked rotor amperage (LRA)
24
A
Max. power consumption cooling/heating
3,700/7,700
W
Hose connection
1 x 315 or 2 x 225
Ømm
Product size (h x l x w)
1150 x 796 x 756
mm
Weight
190
kg
Product Specifications (US)
Registered NSN number
Yes
Operating temperature range, cooling
+68 to +131
°F
Operating temperature range, heating
-4 to +68
°F
Air flow
1.471
SCFM
Sound level @ 1.5m
69
dB(A)
Protection class
3S
NEMA
Refrigerant
R134a/6.6
type/lbs
Nominal cooling capacity
25,900
BTU
Heating capacity (optional)
24,500
BTU
Power supply
400/3ph/50
V/Hz
Max. running current, cooling/heating
7.2/13
A
Locked rotor amperage (LRA)
24
A
Max. power consumption cooling/heating
3,700/7,700
W
Hose connection
1 x 12.4 or 2 x 8.9
Øin
Product size (h x l x w)
45.3 x 31.3 x 29.8
in
Weight
419
lbs
Accessories and consumables
Product code: 064409
Accessory for AC-M6, AC-M7 MKII, AC-M18, AC-M18 CBRN
Product code: 562409
Accessory for AC-M7 MKII
Product code: 295030
Accessory for VA-M15MKII, VA-M40MKII, AC-M7 MKII
Product code: 428436
Accessory for VA-M15MKII, VA-M40MKII, AC-M7 MKII
Product code: 428441
Accessory for AC-M6, AC-M7 MKII, AC-M11
Product code: 428443
Accessory for AC-M7 MKII, AC-M11
Product code: 295331
Accessory for VA-M15MKII, VA-M40MKII, AC-M7 MKII
Product code: 428442
Accessory for AC-M7 MKII
Product code: 323075
Accessory for mobile air conditioner and tent cooler
