Dantherm AC-M18 CBRN – tent cooler

Tent coolers
Dantherm climate solutions badge
Dantherm AC-M18 CBRN – tent cooler
Dantherm AC-M18 CBRN – tent cooler
Dantherm AC-M18 CBRN installed in a field hospital
Dantherm AC-M18 CBRN installed in a field hospital

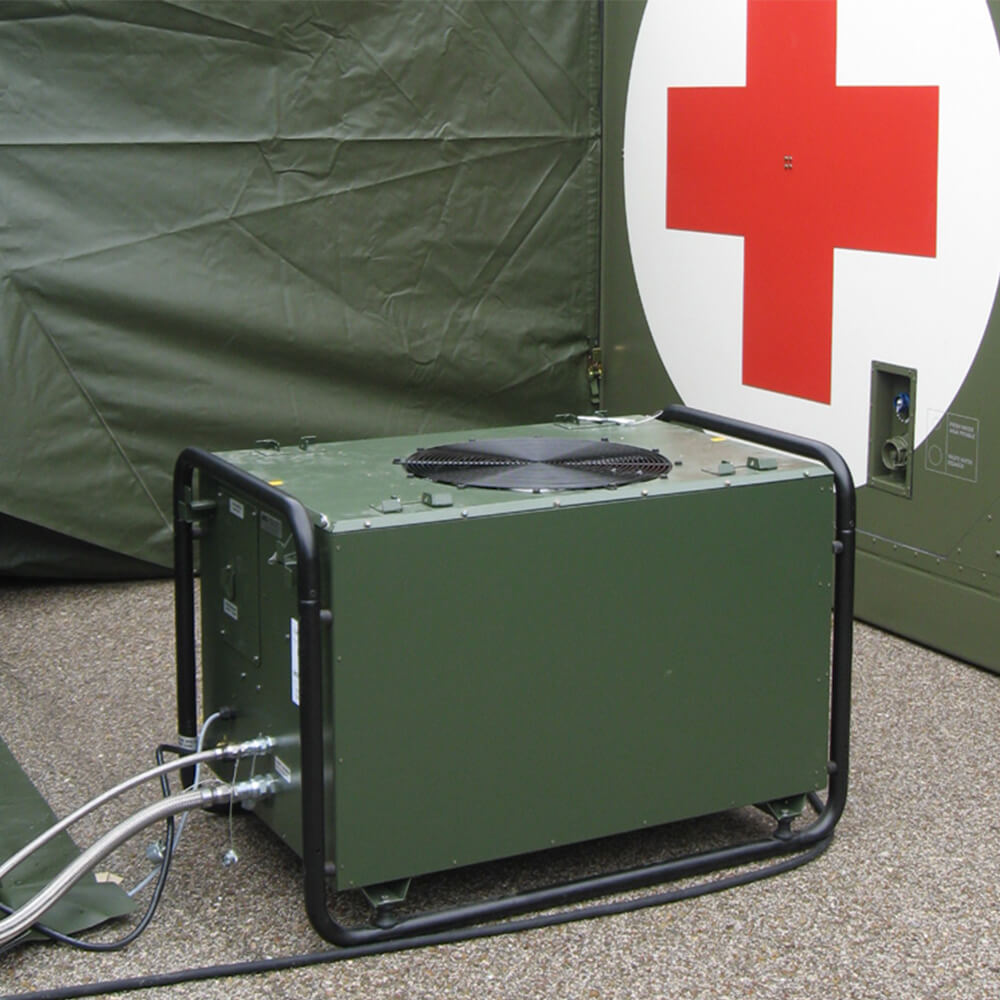

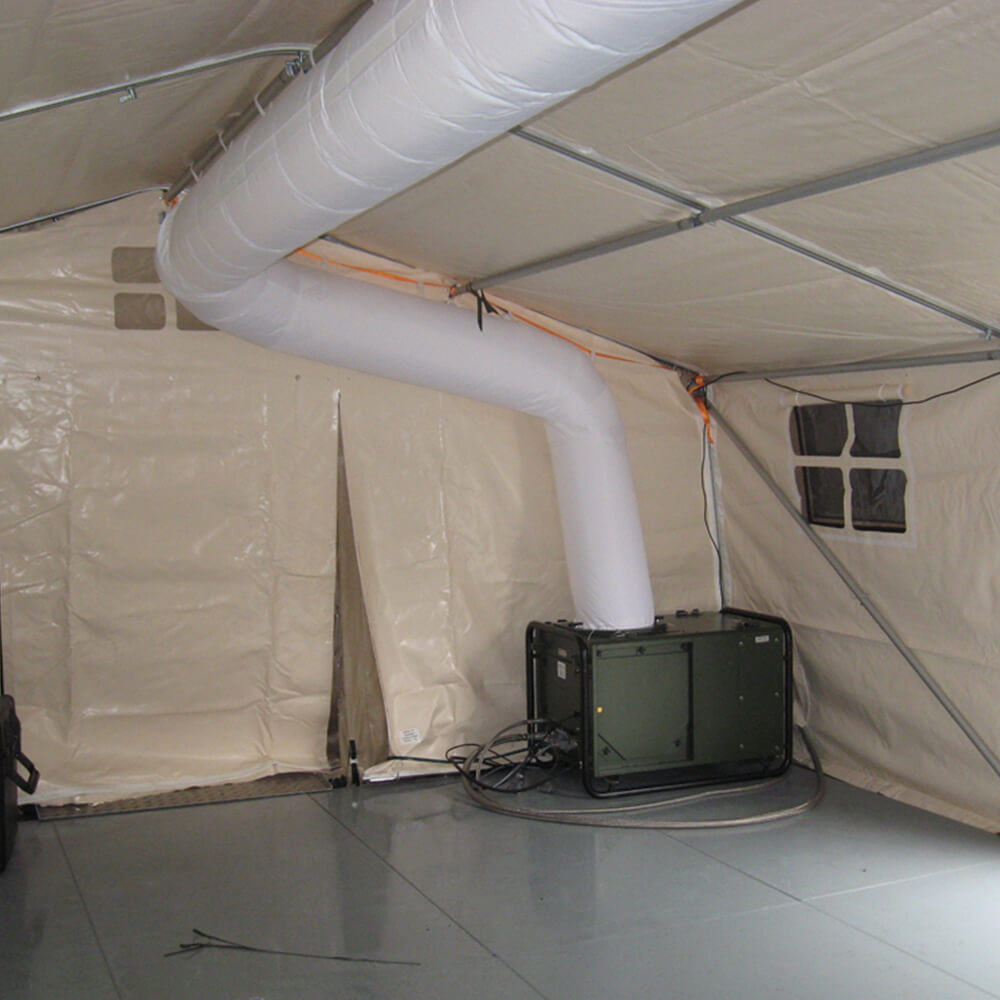

Dantherm AC M18 CBRN installation
Dantherm AC M18 CBRN installation

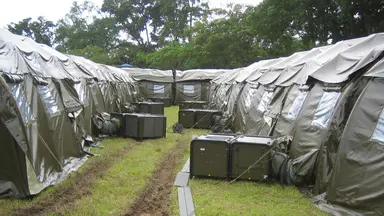

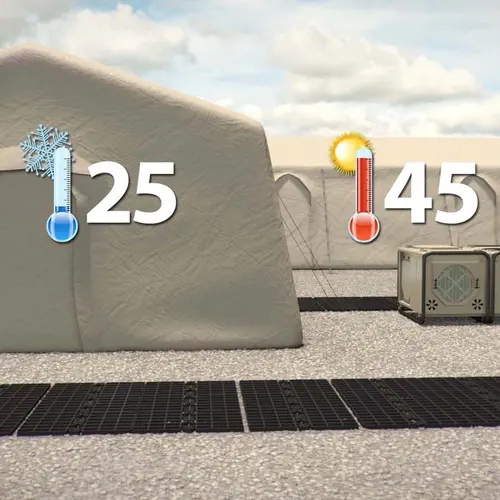

Dantherm climate solutions for field camps
Dantherm climate solutions for field camps

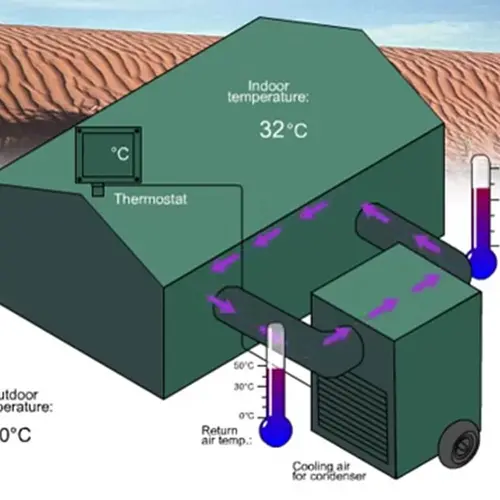

AC-M air conditioner animation
AC-M air conditioner animation

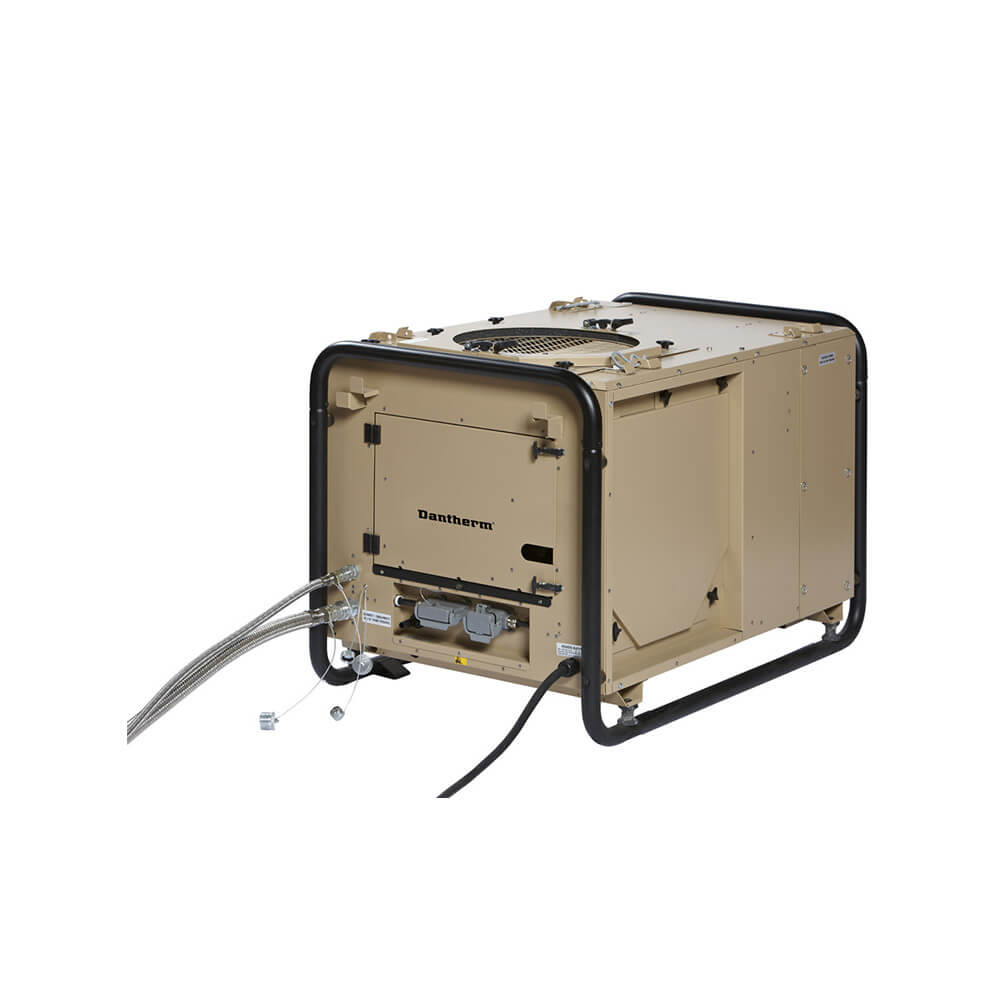

The AC-M18 CBRN air-conditioner is a portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents. The AC-M18 CBRN is a compact, light-weight aluminium unit built into a rigid steel frame. The air-conditioner is designed to operate on COLPRO applications with the evaporator module placed inside the shelter and the condenser module placed outside. The two modules are interconnected by refrigerant hoses and power cables.

The AC-M18 is designed for outside installation with ducted supply and return air. For field hospitals, where the need for filtration is higher than that of normal accommodation, a dual filtration system for the internal air path is available. The ACM 18 is also available as a split system for sealed applications (ACM 18 CBRN).

View our range of air cooling units and tent coolers suitable for all types of application and commercial purpose on any scale.

Interested?

Key features

  • The AC-M18 is built into a strong metal frame with insulated panels where relevant, powder coated
  • Top finish painting is standard sand colour
  • Scroll compressor for a high degree of reliability and low noise level
  • Automatic phase surveillance
  • Sequential start of units possible
  • HP/LP pressostat switches ensuring long compressor lifetime
  • Fresh air intake
  • Four way fork lift handling
  • Easy strap down on air cargo pallets and stackable (two units on top of each other)

Product specifications

Registered NSN number

Yes
-


Operating temperature range, cooling

+20 – +60
°C


Operating temperature range, heating

-32 – +20
°C


Air flow

2,500
m³/h


Sound level @ 1m

54
dB(A)


Protection class

IPX5


Refrigerant

R134a/3.7
Type/kg


Nominal cooling capacity

17.5/60,000
kW/Btu


Heating capacity (optional)

16/20
kW


Power supply

400/3ph/50
V/Hz


Max. running current, cooling/heating

18/26
A


Locked rotor amperage (LRA)

73
A


Max. power consumption cooling/heating

8,300/variable
W


Hose connection

400
Ømm


Product size (h x l x w)

(2x) 780 x 725 x 1140
mm


Weight

108/107
kg


Product specifications (US)

Registered NSN number

Yes


Operating temperature range, cooling

+68 to +125
°F


Operating temperature range, heating

-26 to +68
°F


Air flow

1.471
SCFM


Sound level @ 1m

59
dB(A)


Protection class

3S
NEMA


Refrigerant

R407


Nominal cooling capacity

60,000
BTU


Heating capacity (optional)

20,500/54,600
BTU


Power supply

3x208/60
V/Hz


Max. running current, cooling/heating

31/50
A


Locked rotor amperage (LRA) with softstarter

108
A


Max. power consumption cooling/heating

9,400/variable
W


Hose connection

15.75
Øin


Product size (h x l x w)

(2x) 30.7 x 28.5 x 44.9
in


Weight Indoor / outdoor

247 / 265
lbs


Accessories and consumables

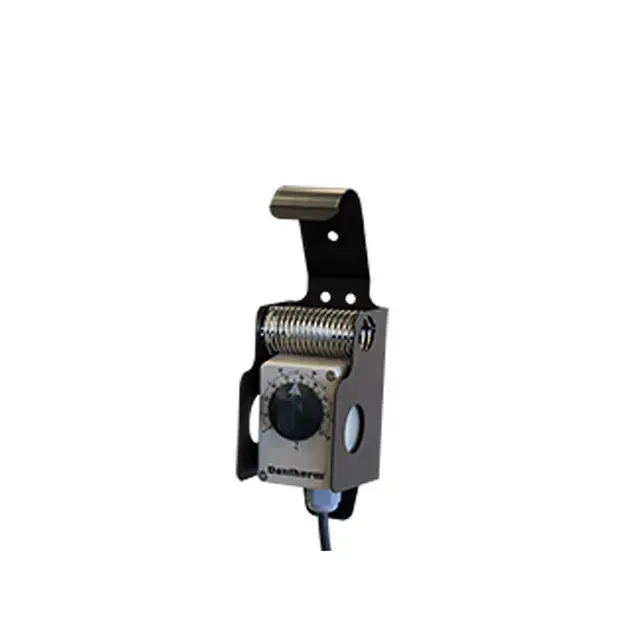

Dantherm Remote thermostat with cable 15m 064409
Dantherm climate solutions badge

Product code: 064409

Accessory for AC-M6, AC-M7 MKII, AC-M18, AC-M18 CBRN

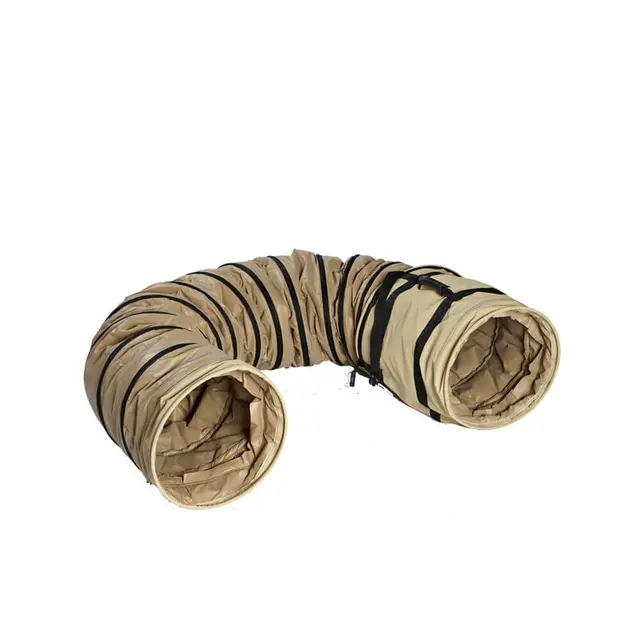

Dantherm Insulated flexible air duct 030774
Dantherm climate solutions badge

Product code: 030774

Accessory for AC-M18, AC-M18 CBRN

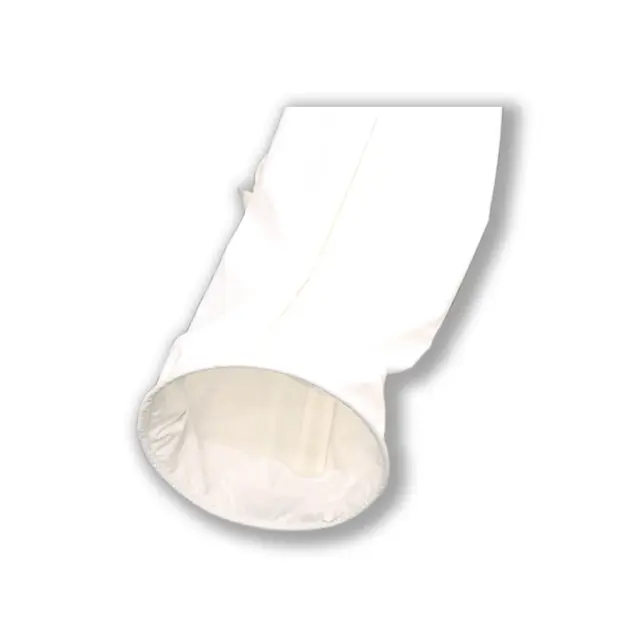

Dantherm Air distribution ducts 033224
Dantherm climate solutions badge

Product code: 033224

Accessory for AC-M18, M-18 CBRN

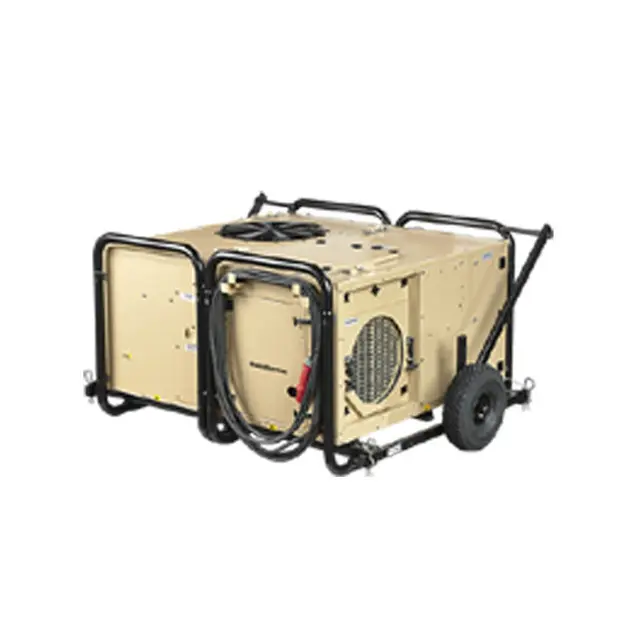

Dantherm Trolley with wheels 075770
Dantherm climate solutions badge

Product code: 075770

Accessory for AC-M18, AC-M18 CBRN

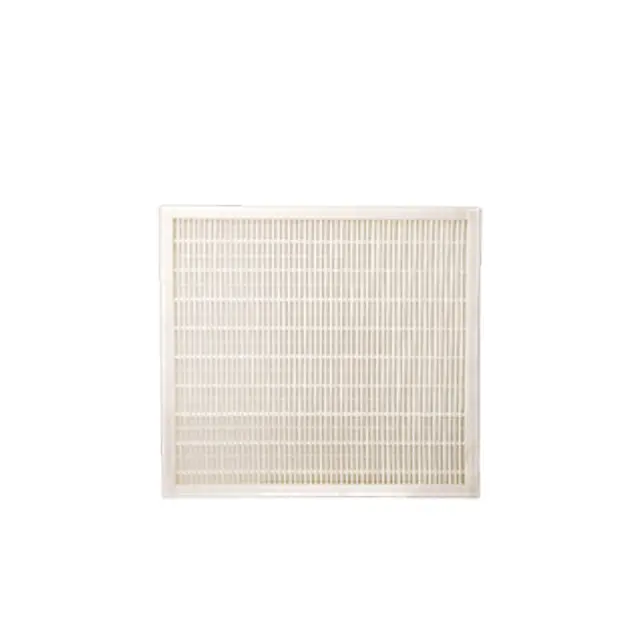

Dantherm F7 filter 090973
Dantherm climate solutions badge

Product code: 090973

Accessory for AC-M18, AC-M18 CBRN

Dantherm HEPA filter 323041
Dantherm climate solutions badge

Product code: 323041

Accessory for AC-M18, AC-M18 CBRN

Useful downloads

Where to Buy Icon

Looking to buy?

Get in touch and we will connect you with the right office or dealer.

Looking for Spares Icon

Looking for spares?

The direct route to spare parts for your equipment.

Looking for Servicing Icon

Looking for servicing?

Contact us for help in finding the right service professional near you.

Related products

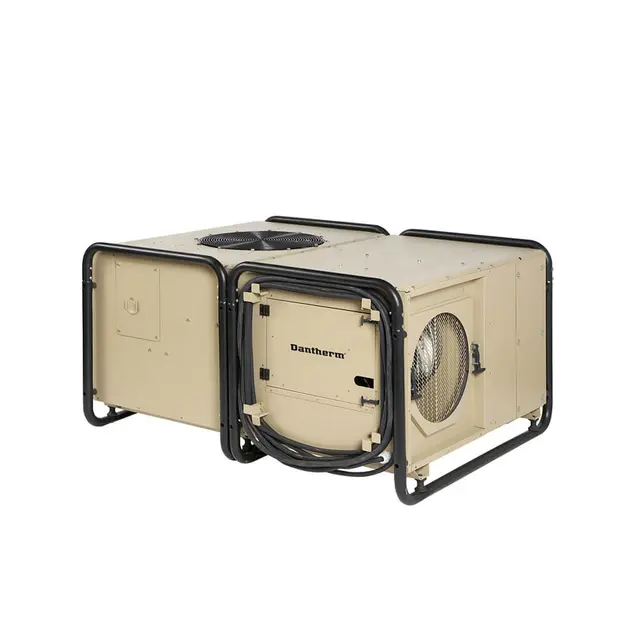

Dantherm AC-M18 – tent cooler
Dantherm climate solutions badge

Tent cooler

The AC-M18 air-conditioner is a portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents.

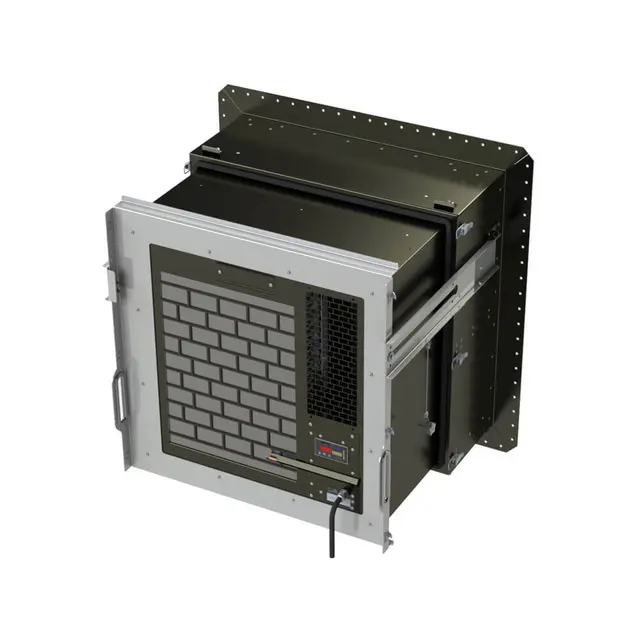

Dantherm AC-M10 – container cooler
Dantherm climate solutions badge

Container coolers

CBRN/COLPRO compliant air-conditioner with a cooling capacity of 10kW and a heating capacity of 4kW.

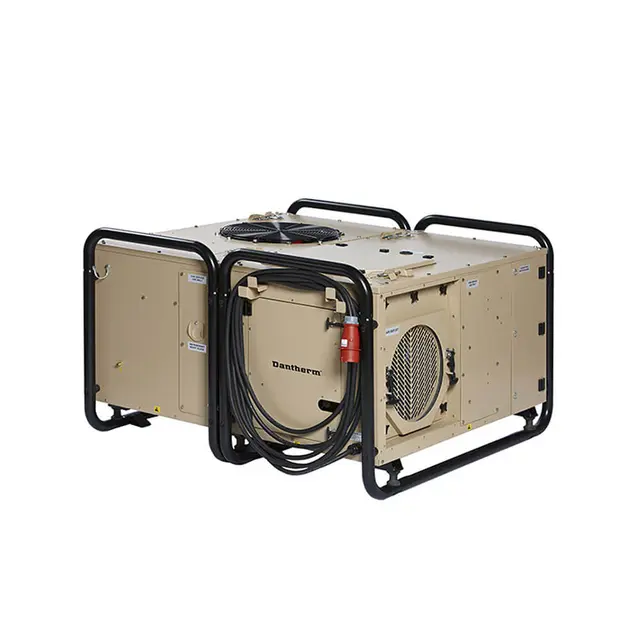

Dantherm AC-M11 – tent cooler
Dantherm climate solutions badge

Tent coolers

The AC-M11 air-conditioner is a portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents.

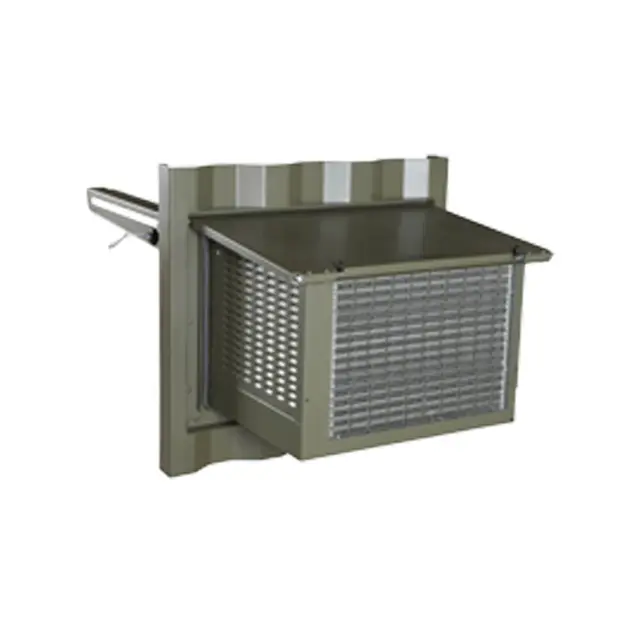

Dantherm AC-M5 MKII – container cooler
Dantherm climate solutions badge

Container coolers

CBRN/COLPRO compliant air-conditioner with a cooling capacity of 5kW and a heating capacity of 2kW.

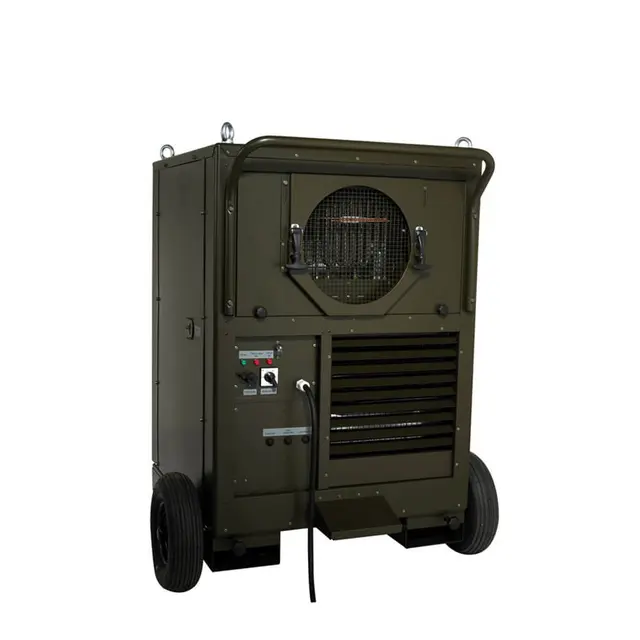

Dantherm AC-M7 – tent cooler with one opening
Dantherm climate solutions badge

Tent coolers

The AC-M7 MKII air-conditioner is a 7kW portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents.

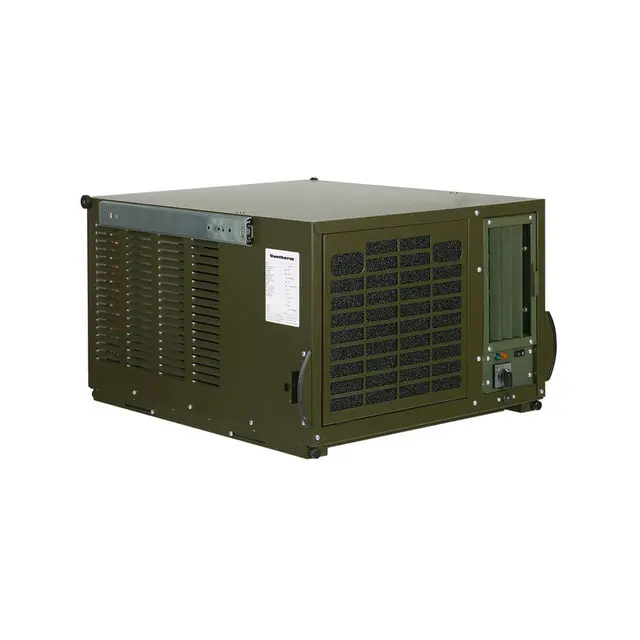

Dantherm AC-M5 MKI – container cooler
