Calorex I-PAC 50-100BHC – inverter swimming pool heat pumps
Large inverter heat pumps
Inverter technology allows for efficient control of the pool temperature, and the I-PAC BHC only uses what energy is needed when it is required. High efficiency with modulating step-less inverter compressor giving an average COP of 10.5 (I-PAC 100BHC) and 10.0 (I-PAC 50BHC).
View our range of swimming pool heat pumps today and find large pool heat pumps and small pool heat pumps suitable for all domestic and commercial purposes on any scale.
Calorex I-PAC 50 – inverter swimming pool heat pumps
|
Calorex I-PAC 100 – inverter swimming pool heat pumps
|
Calorex I-PAC 50 – inverter swimming pool heat pumps
|
Calorex I-PAC 100 front
|

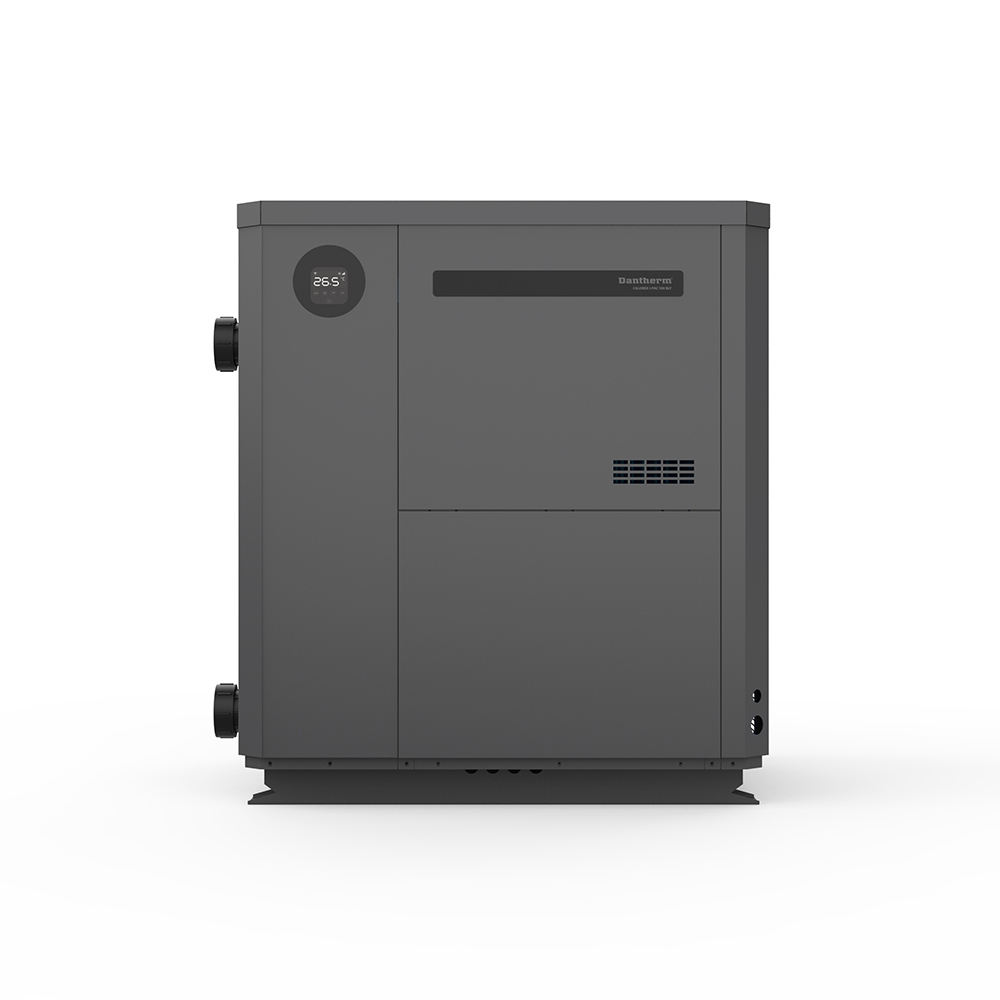

Calorex I-PAC 50 front
|
Calorex I-PAC 100
|
Calorex I-PAC 50
|
Key features
- 2 x more efficient than on/off heat pumps
- Inverter heat pump
- Titanium heat exchanger
- Fully automatic operation
- Comprehensive circuit protection
- Quiet efficient axial fans
- Weather proof construction
- Multifunction operation functions can be set to heating, heat/cool and cooling
- 10-12 dB(A) noise reduction compared to traditional on/off heat pumps, with 'Whisper Mode'
- ’Enhanced Vapour Injection’ technology for efficient operation, even on the hottest summer days
- Soft start-up
- Aluminium alloy
- 50/60Hz compatible
- Optimised for Gulf climate
- BMS Connectivity
- Built-in Wi-Fi module
- PoolTherm App
- The minimum security update period for I-PAC or I-PAC+ products is zero months
- The minimum security update period for the PoolTherm App aligns with warranty period of the connected product (5 years from date of sale of the connected I-PAC or I-PAC+ heat pump)
Applications
- Outdoor and indoor pools (Gulf and SE Asia)
- Hotel and spa pools
- Health clubs
- Wellness centres
- Therapy pools
Product specifications
| Specifications | Units | I-PAC 50BHC |
|---|---|---|
| Air temperature range | °C | 0-55 |
| Performance – air 27°C 80% RH, water 27°C | ||
| Heating capacity | kW | 60.2 |
| Average COP @50% speed | 10.5 | |
| Performance – air 15°C 70% RH, water 26°C | ||
| Heating capacity | kW | 40.1 |
| Average COP @50% speed | 7.0 | |
| Performance – air 45°C 80% RH, water 32°C | ||
| Cooling capacity | kW | 25.1 |
| Power supply | V/Hz | 400/3ph/50 |
| Rated input power | kW | 2.26-8.90 |
| Rated current input | A | 3.27-12.9 |
| Max. input current | A | 19 |
| Water flow | m3/h | 20-25 |
| Water Pressure Drop | kPa | 13 |
| Water connection | mm | 75 |
| Compressor | Inverter | |
| Heat exchanger | Titanium | |
| R410A gas weight/CO₂ equivalent | kg/t | 8.0/16.70 |
| Sound level @ 10m | dB(A) | 33-41 |
| Product size (l x w x h) | mm | 1020 x 1100 x 1260 |
| Weight | kg | 230 |
| Specifications | Units | I-PAC 100BHC |
|---|---|---|
| Air temperature range | °C | 0-55 |
| Performance – air 27°C 80% RH, water 27°C | ||
| Heating capacity | kW | 115.0 |
| Average COP @50% speed | 10.0 | |
| Performance – air 15°C 70% RH, water 26°C | ||
| Heating capacity | kW | 80.8 |
| Average COP @50% speed | 7.0 | |
| Performance – air 45°C 80% RH, water 32°C | ||
| Cooling capacity | kW | 50.3 |
| Power supply | V/Hz | 400/3ph/50 |
| Rated input power | kW | 4.68-17.5 |
| Rated current input | A | 6.78-25.3 |
| Max. input current | A | 38 |
| Water flow | m3/h | 40-50 |
| Water Pressure Drop | kPa | 25 |
| Water connection | mm | 110 |
| Compressor | Inverter | |
| Heat exchanger | Titanium | |
| R410A gas weight/CO₂ equivalent | kg/t | 16/33.41 |
| Sound level @ 10m | dB(A) | 33-44 |
| Product size (l x w x h) | mm | 2100 x 1090 x 1280 |
| Weight | kg | 448 |
Suitable for
- Leisure and recreation
- Swimming pools
