Calorex DH 334 – high temperature process drying

High temperature floor-standing process drying
Dantherm climate solutions badge

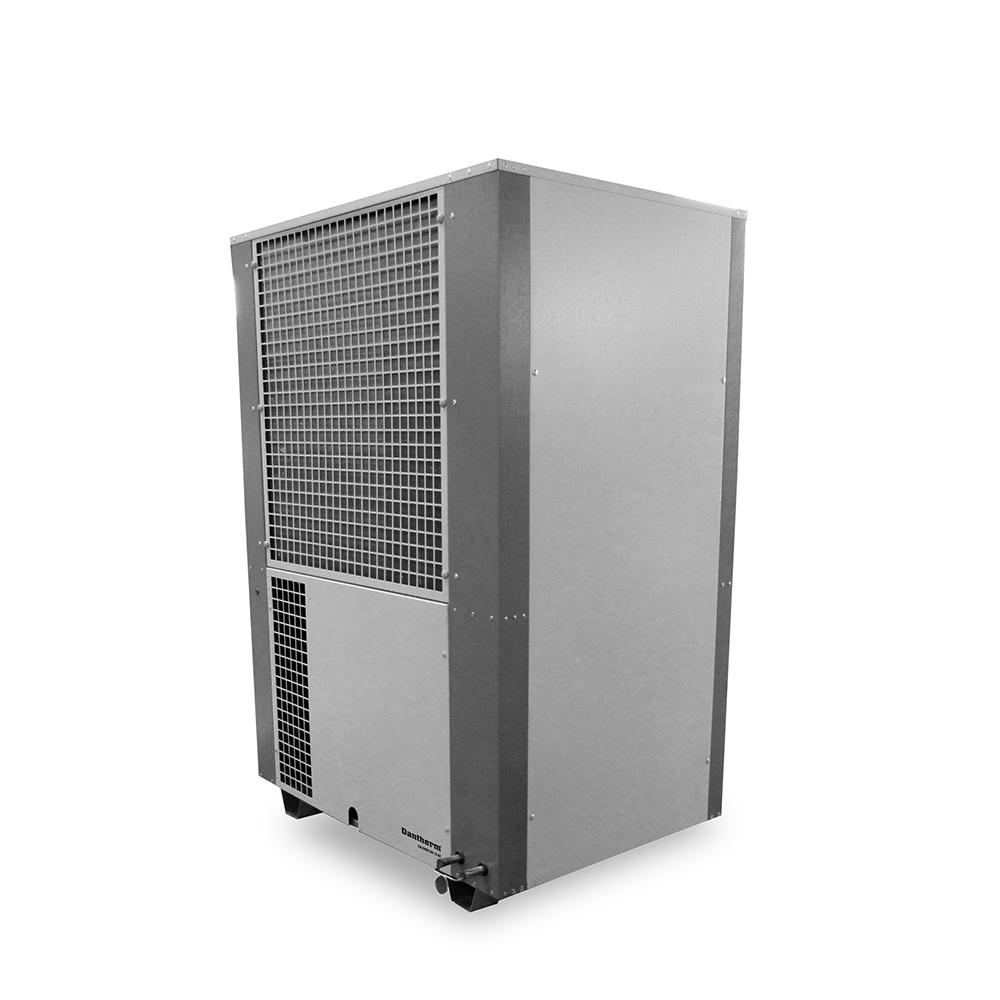

Calorex DH 334 – high temperature process drying
Calorex DH 334 – high temperature process drying

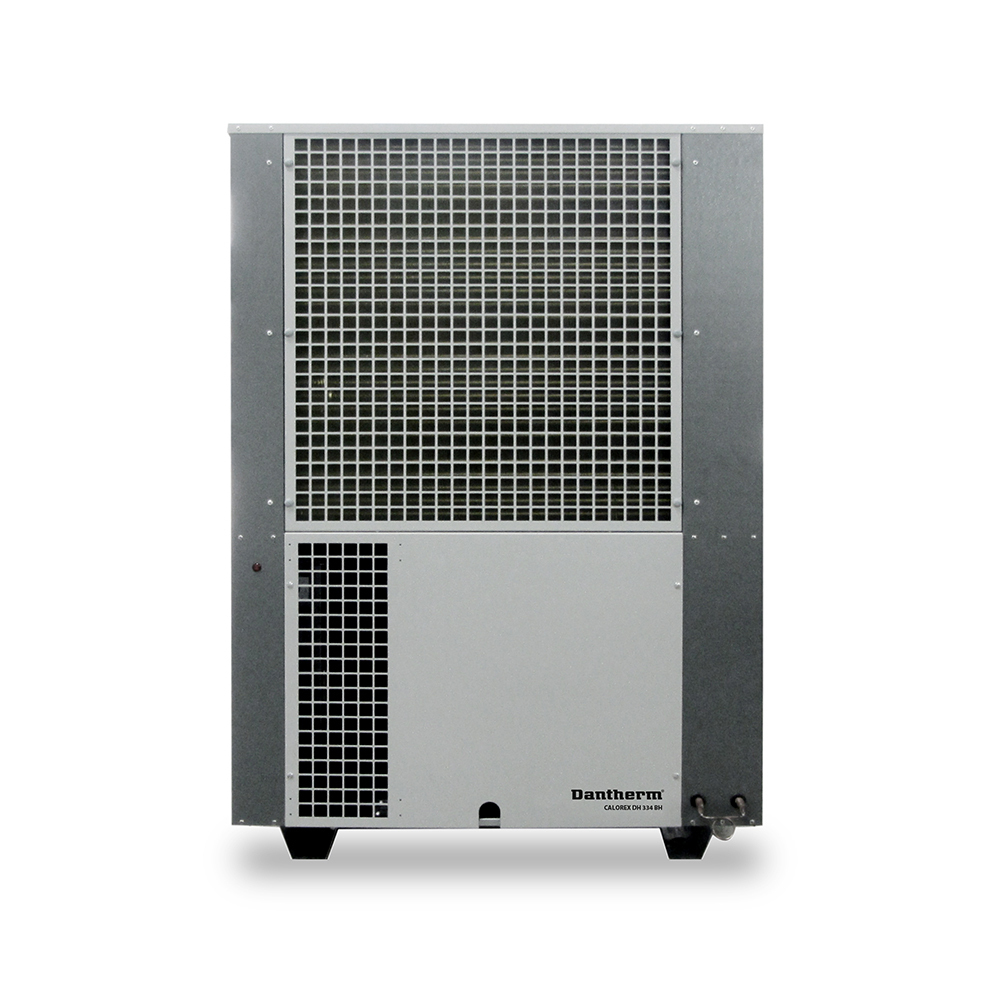

Calorex DH 334 front
Calorex DH 334 front

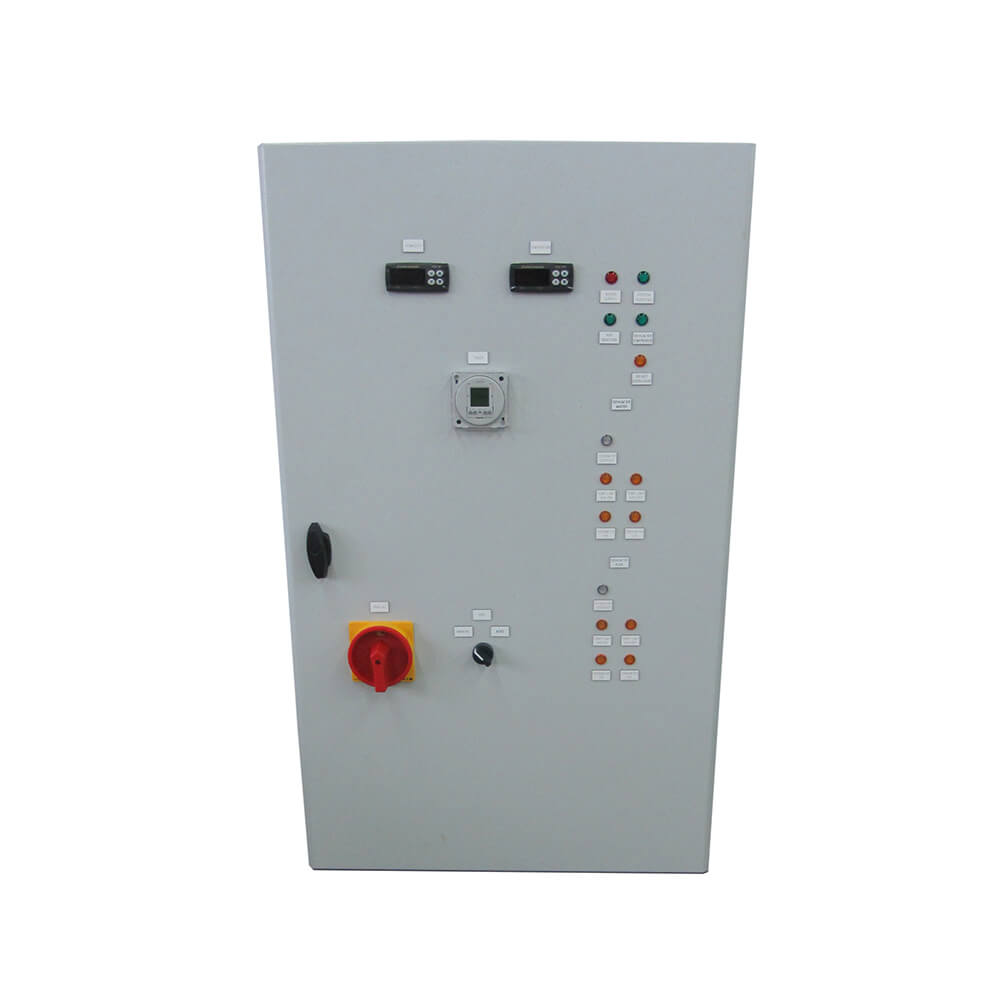

Calorex DH 334 control panel
Calorex DH 334 control panel

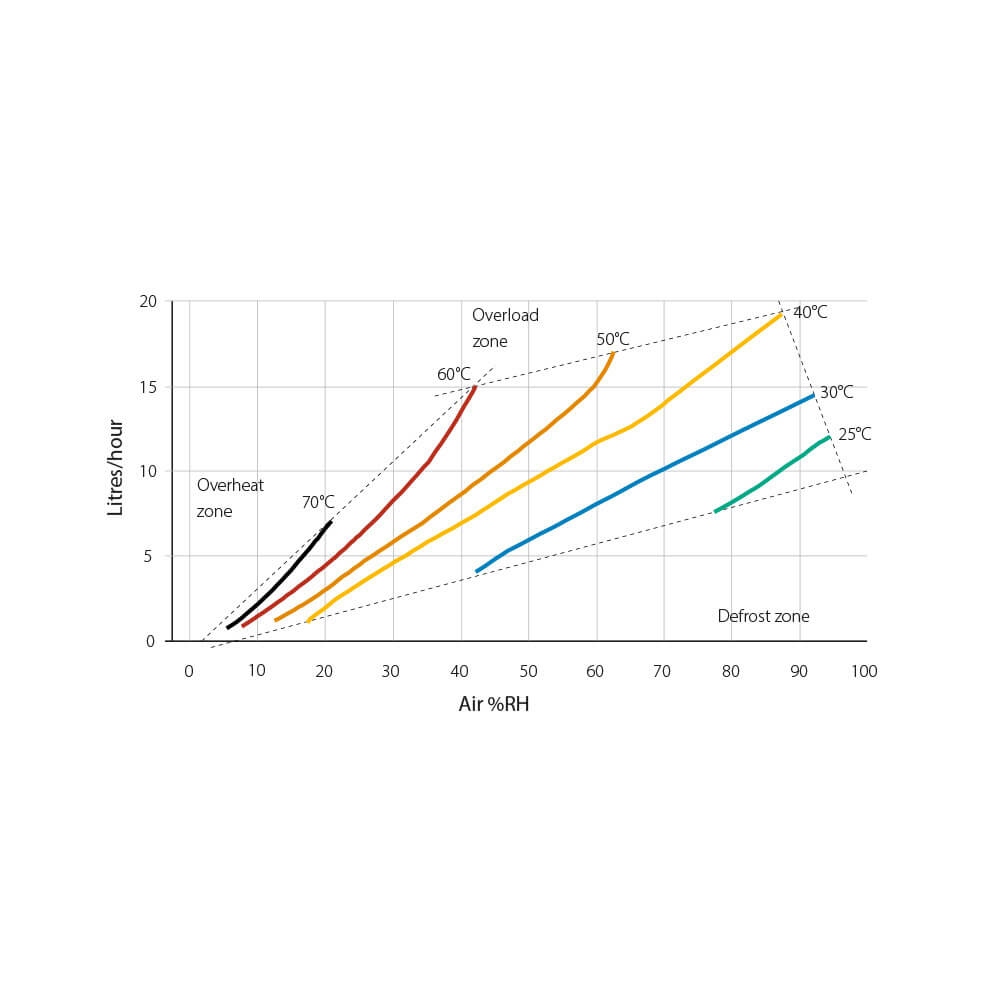

Calorex DH 334 performance data
Calorex DH 334 performance data

The DH 334 process dryer is excellent for rapid moisture removal, at low cost per litre removed. Using R134a refrigerant it can operate at higher temperatures than standard dryers, and the latent energy is reclaimed to reduce the overall power consumption. The energy consumption is further reduced as drying can take place at lower temperatures than traditional heating methods, lowering risk of heat damage, and improving product quality.

View our full range of high temperature process drying units and commercial dehumidifiers suitable for multiple applications and environments.

Interested?

Key features

  • Rapid moisture removal at lowest cost per litre extracted
  • Latent energy reclaimed to reduce power consumption
  • Drying at lower temperatures reduces risk of heat damage
  • Even drying improves product quality
  • Low maintenance

Options

  • Range of Calorex control panels
  • Air inlet filters

Product specifications

Operating temperature range

30-70
°C


Dehumidification @ 50°C/60% RH

360
l/24h


Heat to air via dehumidification

10
kW


Heat to air via resistance heaters and dehumidification

18.5
kW


Air flow

5,800
m³/h


External static pressure

Pa


Sound pressure level @ 3m

69
dB(A)


Power supply

400/3ph/50
V/Hz


Nominal power consumed

14.1
kW


Min. supply capacity

29
A


Max. supply fuse

35
A


Heater rating

9
kW


Heater FLA

12
A


Compressor LRA

72
A


R134a gas weight/CO2 equivalent

6/8.58
kg/t


Product size (w x d x h)

985 x 700 x 1476
mm


Weight

170
kg
