Calorex DH 150 – condensation dehumidifier

Large-capacity floor-standing dehumidifiers
Dantherm climate solutions badge

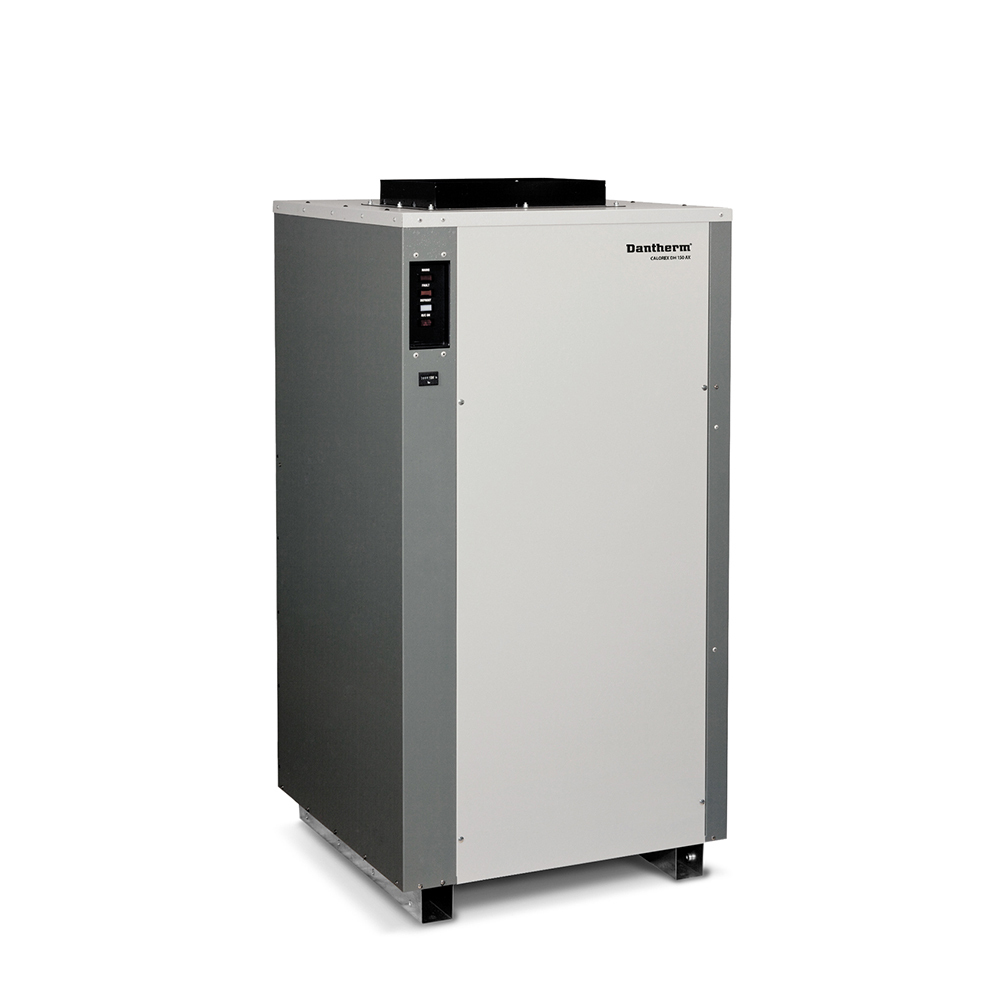

Calorex DH 150 – condensation dehumidifier
Calorex DH 150 – condensation dehumidifier

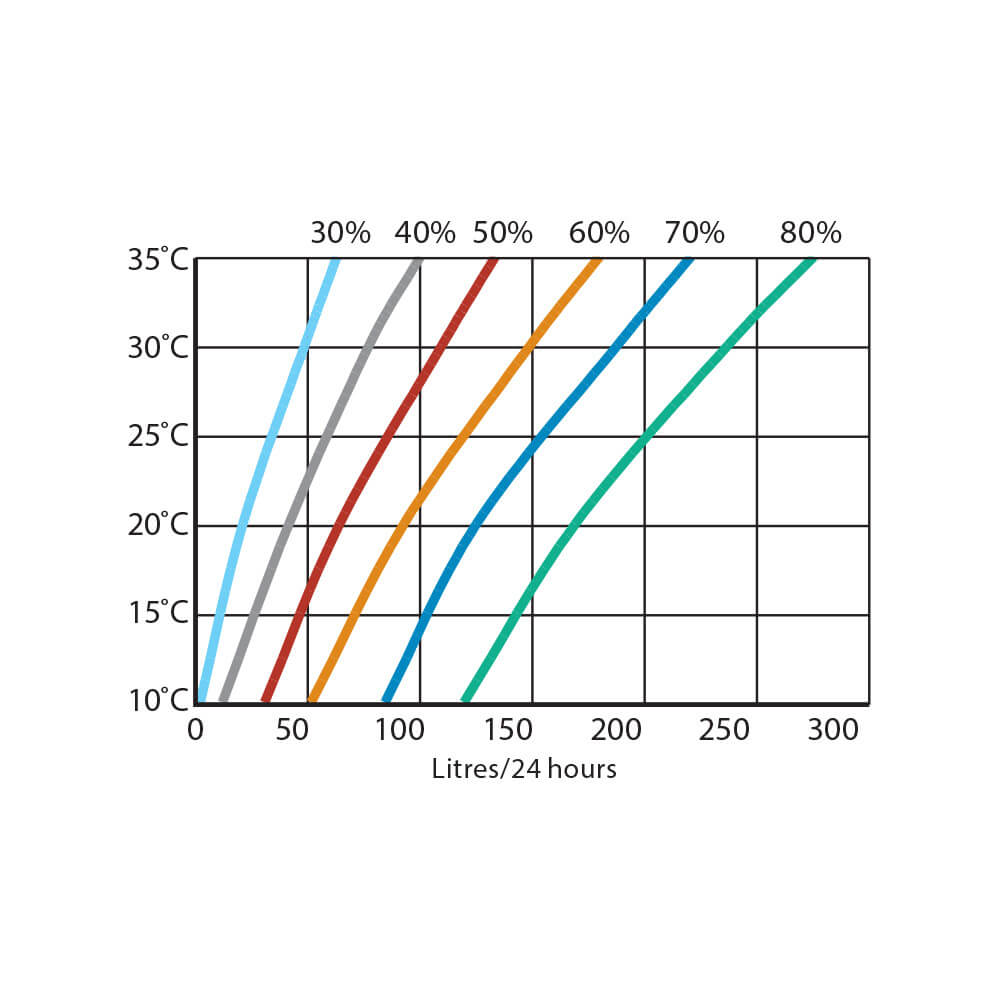

Calorex DH 150 performance data
Calorex DH 150 performance data
How to control humidity in data centres
How to control humidity in data centres

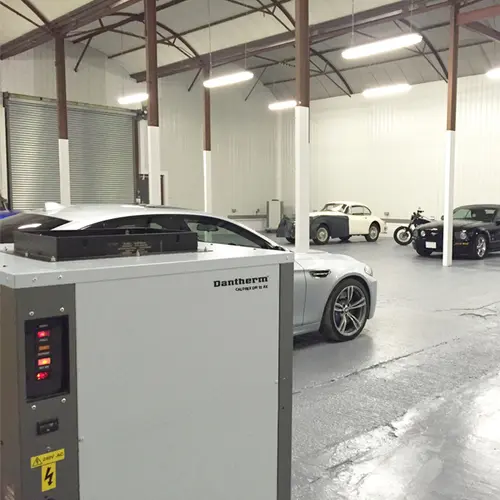

Calorex DH 150 installed in large car storage facility
Calorex DH 150 installed in large car storage facility

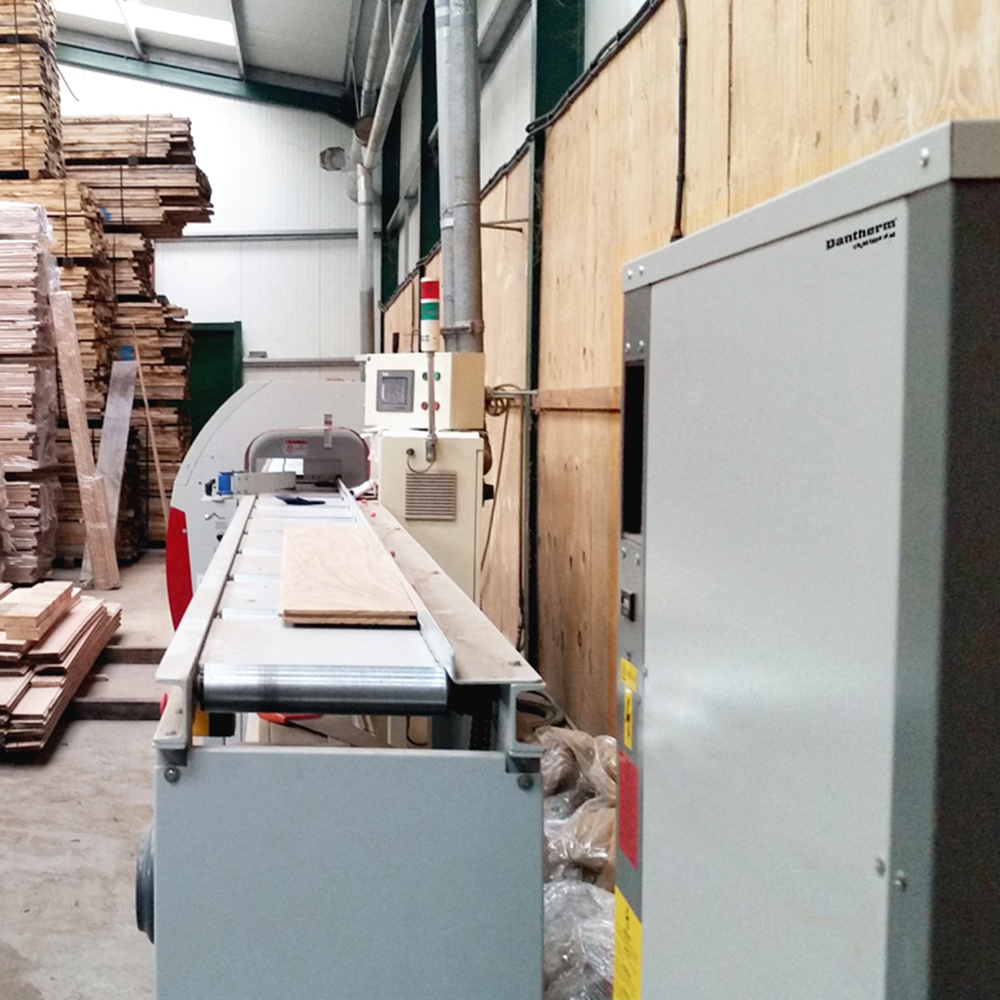

Calorex DH 150 Northwood Forestry
Calorex DH 150 Northwood Forestry

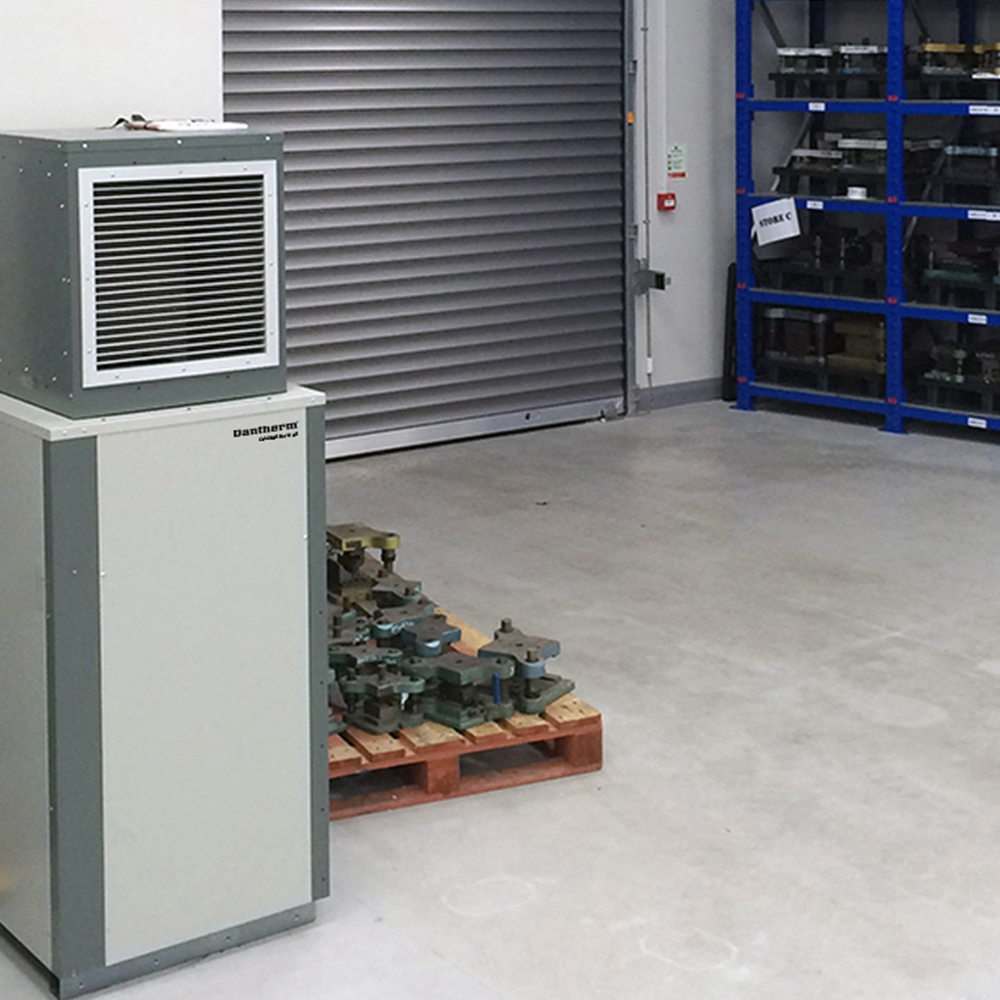

Calorex DH 150 metal parts storage
Calorex DH 150 metal parts storage

The DH 150 high-capacity floor-standing commercial dehumidifier is self-contained with fully automatic operation. With an integral humidistat and options for heating, you can be confident in your space being controlled to your needs. A 'constant flow' fan is standard for the DH 150-300, which self-regulates independent on the external pressure loss from ducts, grills, etc. This makes it ideal for warehousing and storage, substations and data centres.

View other condensation dehumidifiers or see our full range of commercial dehumidifiers suitable for multiple applications.

Interested?

Key features

  • Self contained with fully automatic operation
  • Integral humidistat
  • Constant flow fan – automatically adjusts to ducting
  • Polyester coated evaporator and condenser
  • Plastisol coated galvanised steel cabinet
  • Hot gas defrost for low temperature operation

Options

  • Return air filter
  • Top discharge box
  • Stainless steel casing

Product specifications

Operating temperature range

0-35
°C


Dehumidification @ 30°C/60% RH

150
l/24h


Heat recovered to air @ 30°C/60% RH

7.4
kW


Air flow

2,500
m³/h


Available static pressure

0-200
Pa


Sound pressure level @ 3m

58
dB(A)


Power supply

230/1ph/50
V/Hz


Nominal power consumption

2.3
kW


FLA (electrical)

21
A


Maximum supply fuse

30
A


LRA (compressor start)

86
A


Heater type

Top box electric
Optional


Heater output

9.0
kW


FLA (heater)

36
A


Maximum fuse size

50
A


R407c gas weight/CO2 equivalent

2.50/4.44
kg/t


Product size (w x d x h)

660 x 660 x 1313
mm


Weight

130
kg


Condensate drain size

¾ BSPM
'


Useful downloads
