Calorex DH 15 – condensation dehumidifier

Wall-mounted dehumidifiers

The DH 15 wall-mounted dehumidifier has a compact design for installation in small areas, making it an ideal solution for stairwells, corridors and changing rooms. Being fully self contained, with tamper proof controls is perfect for public buildings such as schools, museums and galleries.

View other condensation dehumidifiers or see our full range of commercial dehumidifiers suitable for multiple applications.

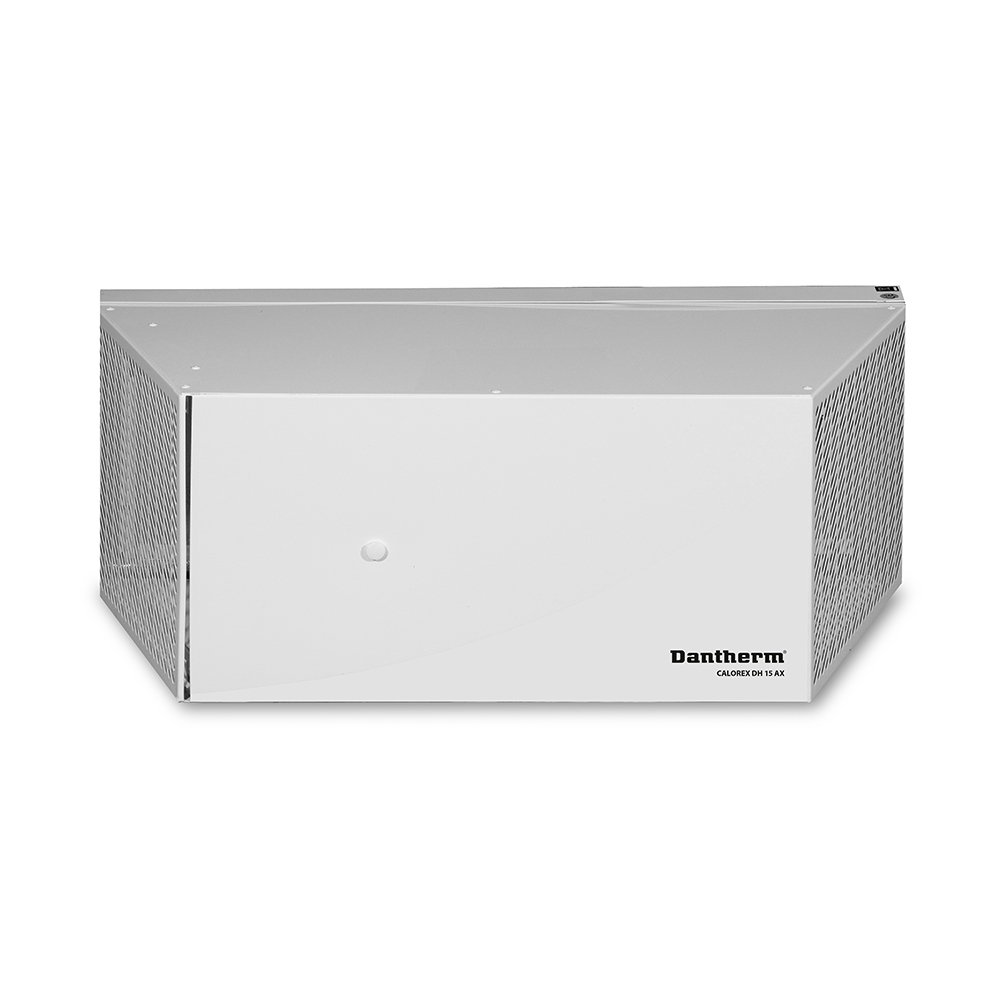

Calorex DH 15 – condensation dehumidifier
Calorex DH 15 – condensation dehumidifier

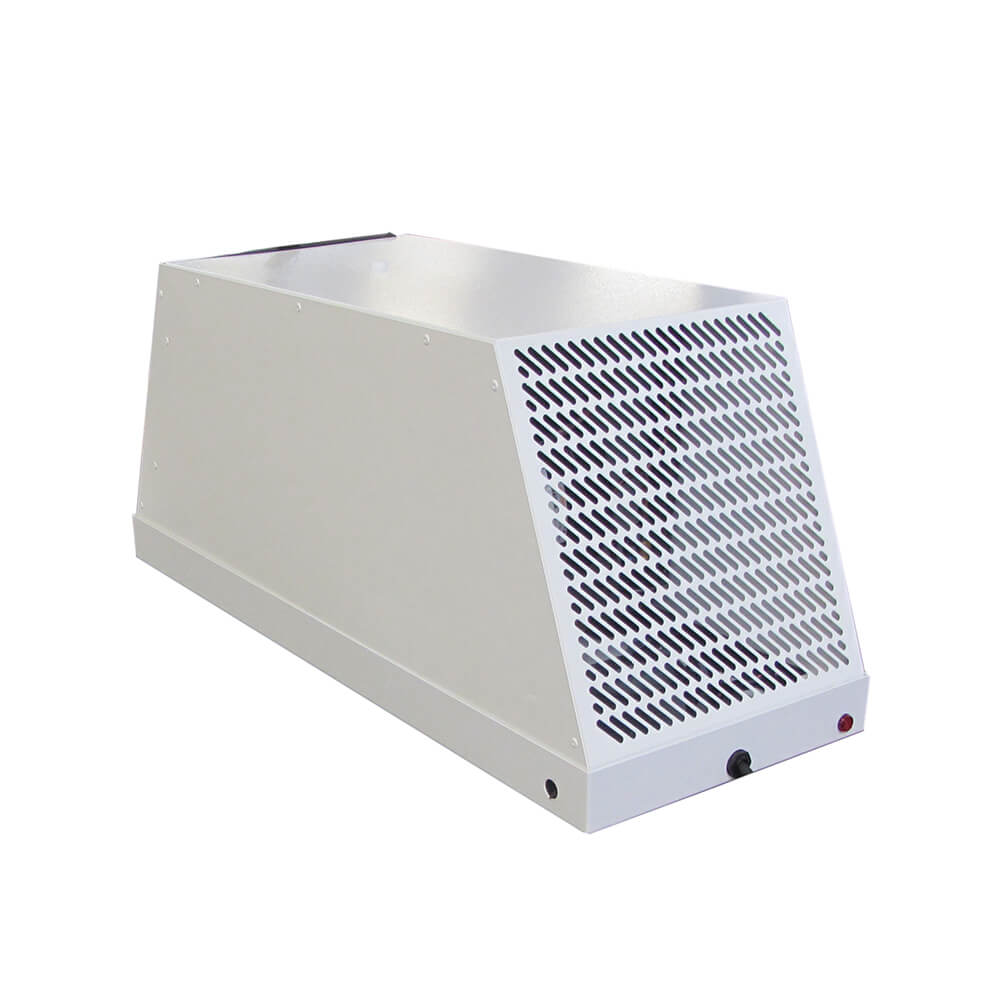

Calorex DH 15 industrial dehumidifier side view
Calorex DH 15 industrial dehumidifier side view

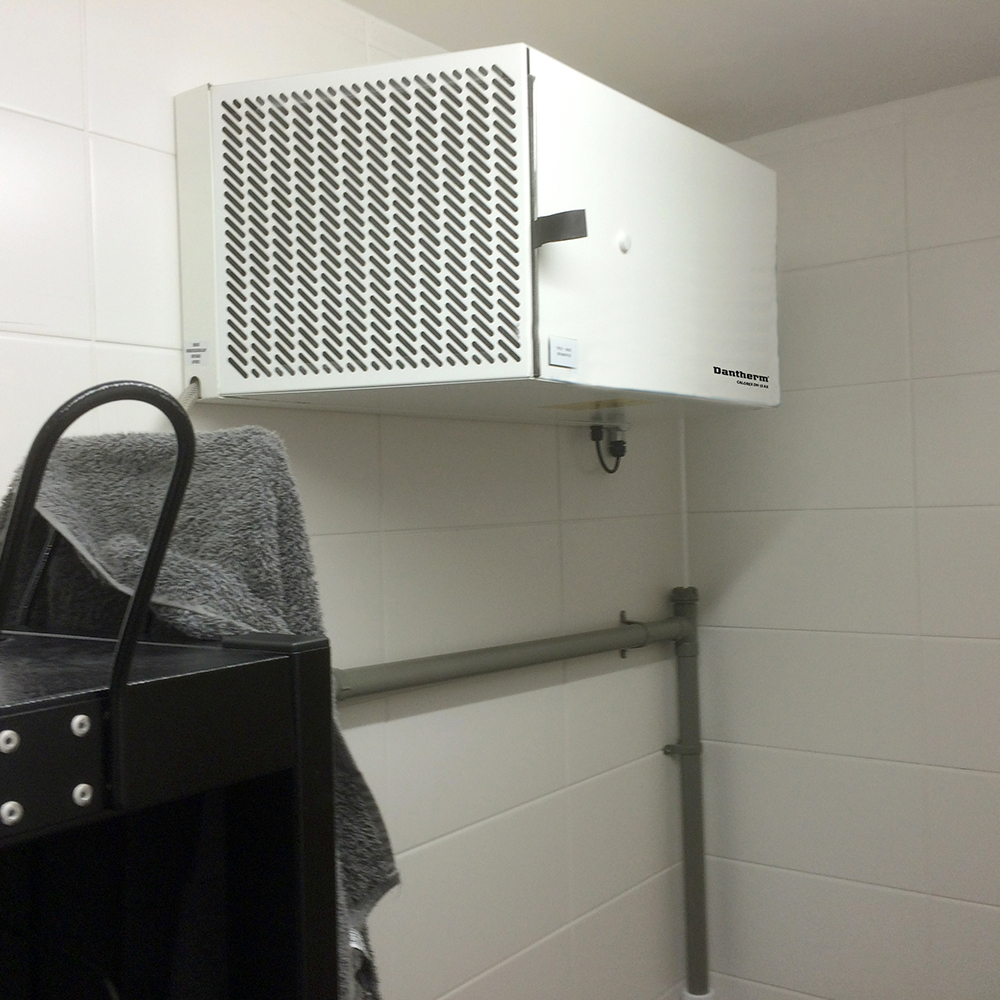

Calorex DH 15 industrial dehumidifier installed in a fire station drying room
Calorex DH 15 industrial dehumidifier installed in a fire station drying room

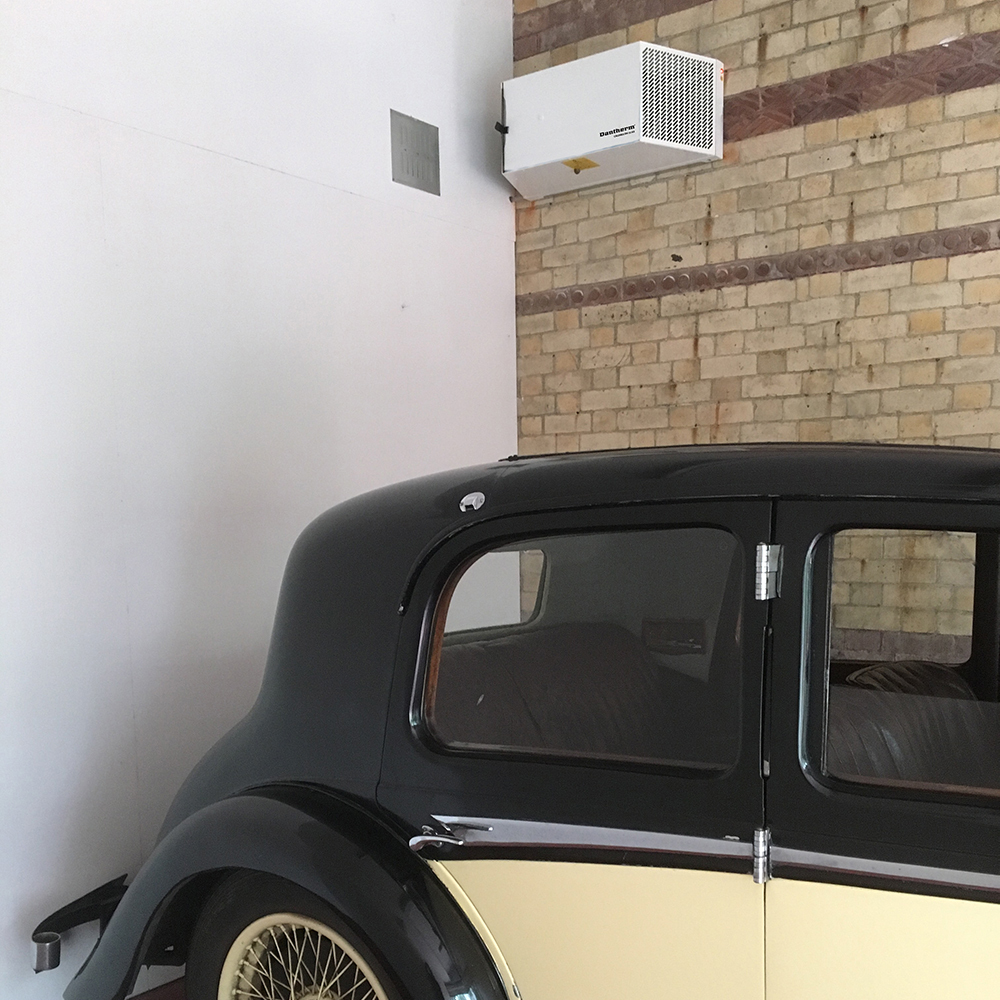

Calorex DH 15 dehumidifier installed in a classic car garage
Calorex DH 15 dehumidifier installed in a classic car garage

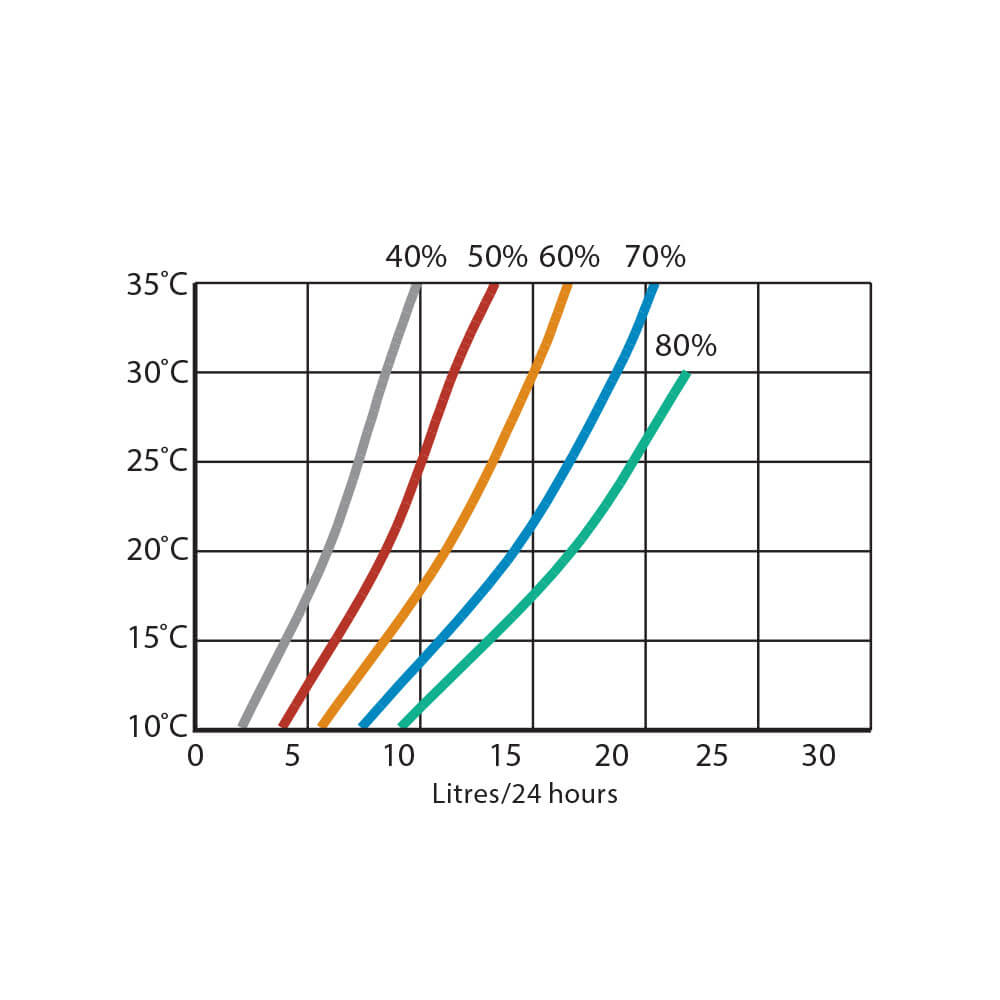

Calorex DH 15 performance data
Calorex DH 15 performance data

Key features

  • Compact design for installation in small areas
  • Self contained with fully automatic operation
  • Integral humidistat
  • Tamper proof controls
  • Epoxy polyester painted zintec steel cabinet
  • Hot gas defrost for low temperature operation
  • Air filter

Options

  • Through-the-wall version

Product specifications

SpecificationsUnitsDH 15
Operating temperature range
°C
0-35
Operating humidity range
% RH
40-95
Dehumidification capacity @ 20°C/60% RH
l/24h
11.0
Specific energy consumption @ 20°C/60% RH
kWh/l
0.62
Air flow
m³/h
225
Sound pressure level @ 3m
dB(A)
53
R407C gas weight/CO₂ equivalent
kg/t
0.34/0.6
Power supply
V/Hz
230/1ph/50
Power consumption @ 20°C/60% RH
kW
0.30
FLA
A
3.8
Maximum supply fuse
A
10
LRA (compressor start)
A
18
Heat recovered @ 20°C/60% RH
kW
0.8
Product size (w x d x h)
mm
825 x 363 x 320
Weight
kg
33
Condensate drain size, ID
mm
10

Suitable for

  • Archives and preservation
  • Classic car storage
  • Commercial buildings
  • Construction
  • Emergency services
  • Food and beverage
  • Heritage sites
  • Industrial, factories and production
  • Leisure and recreation
  • Military and aerospace
  • Museums and galleries
  • Pharmaceutical and scientific
  • Residential buildings
  • Warehouses and storage
  • Waterworks
