Calorex DH 15 – condensation dehumidifier

Wall-mounted dehumidifiers
Dantherm climate solutions badge

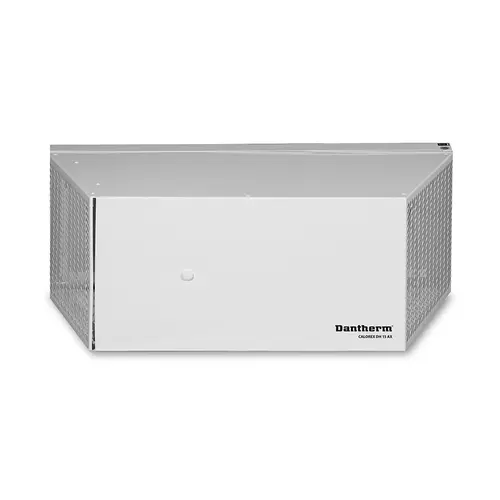

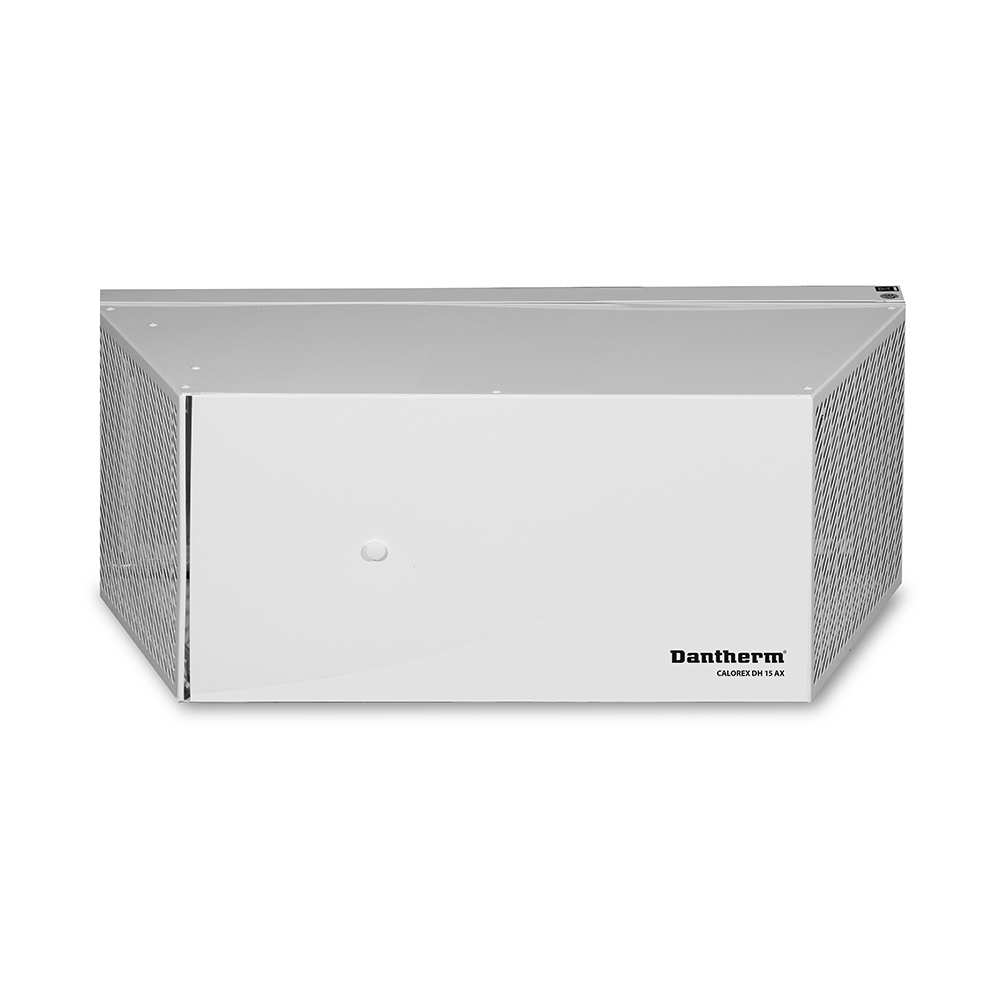

Calorex DH 15 – condensation dehumidifier
Calorex DH 15 – condensation dehumidifier

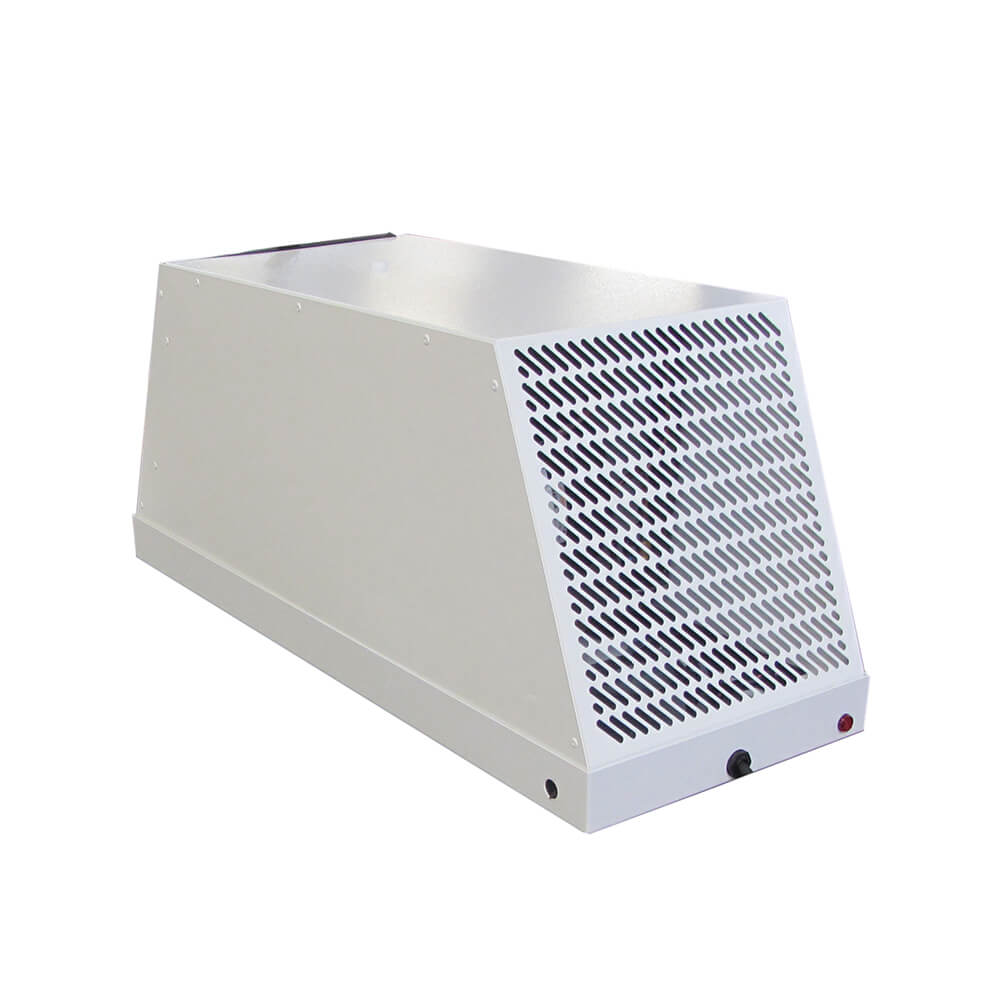

Calorex DH 15 industrial dehumidifier side view
Calorex DH 15 industrial dehumidifier side view

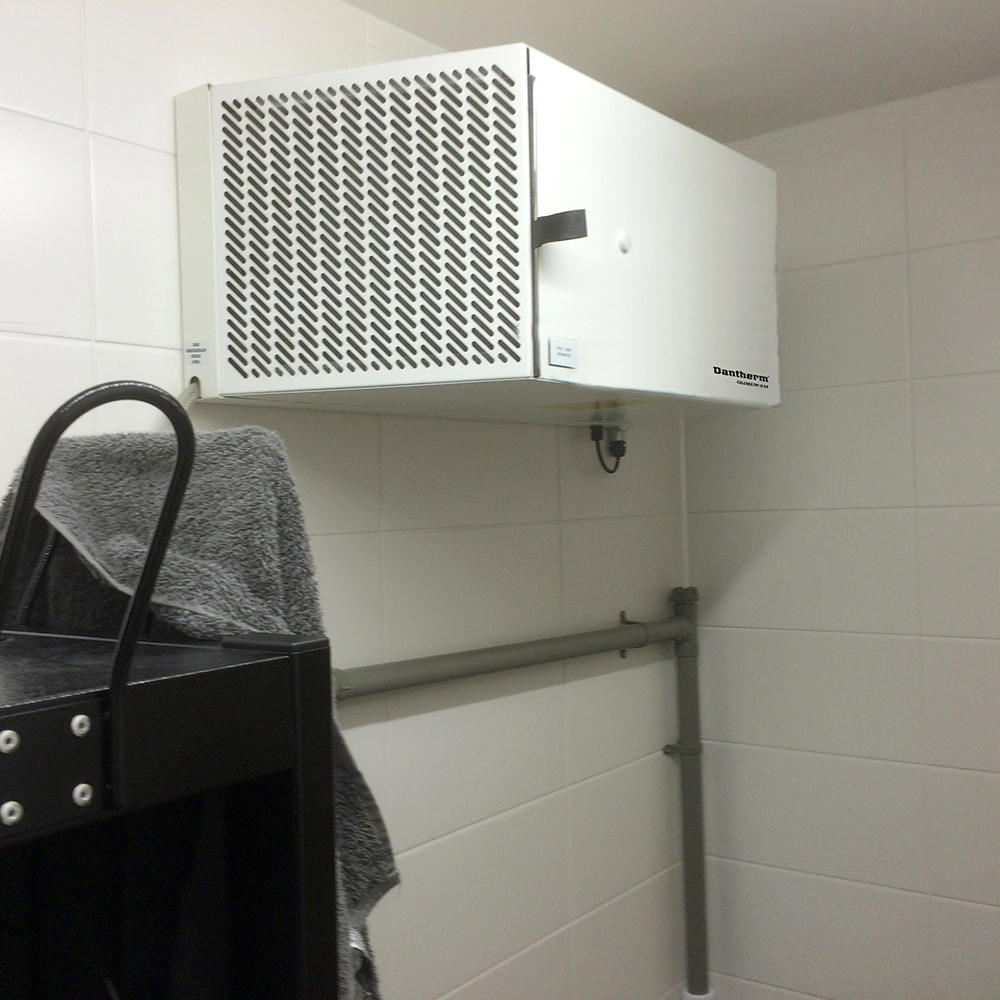

Calorex DH 15 industrial dehumidifier installed in a fire station drying room
Calorex DH 15 industrial dehumidifier installed in a fire station drying room

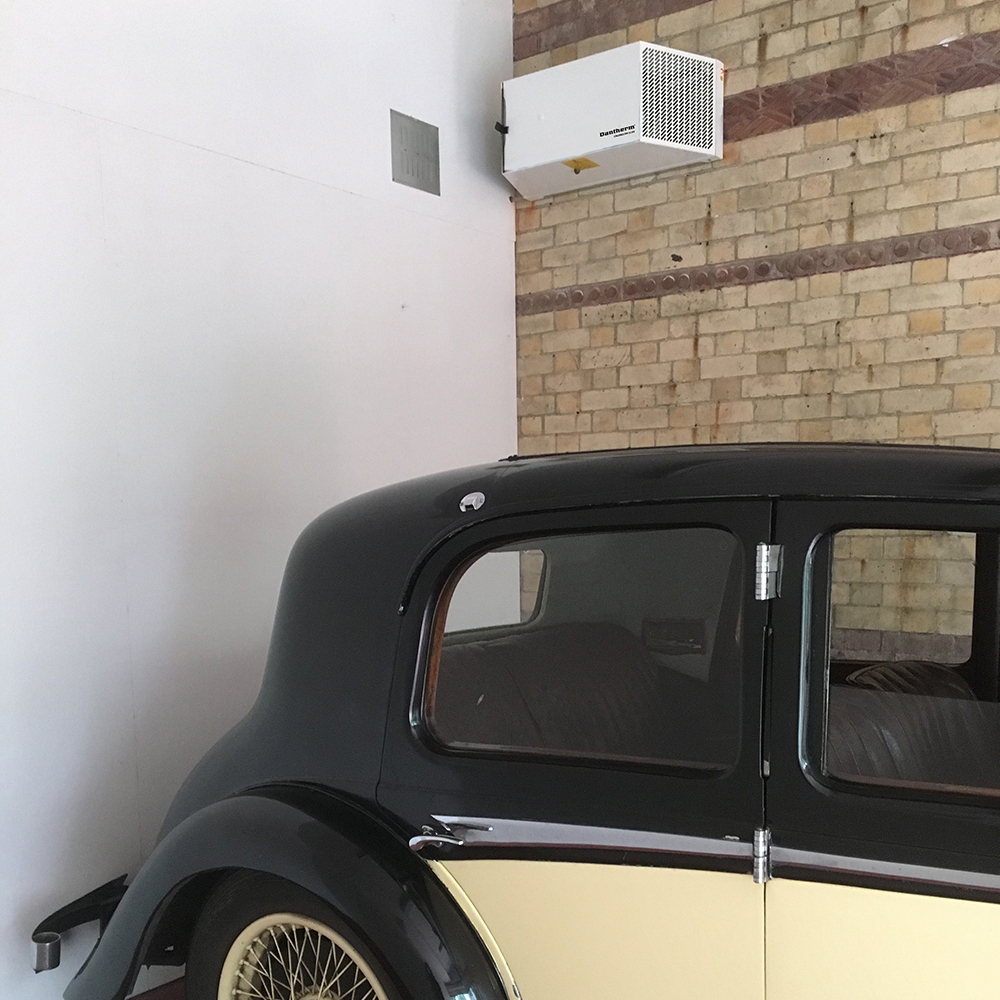

Calorex DH 15 dehumidifier installed in a classic car garage
Calorex DH 15 dehumidifier installed in a classic car garage

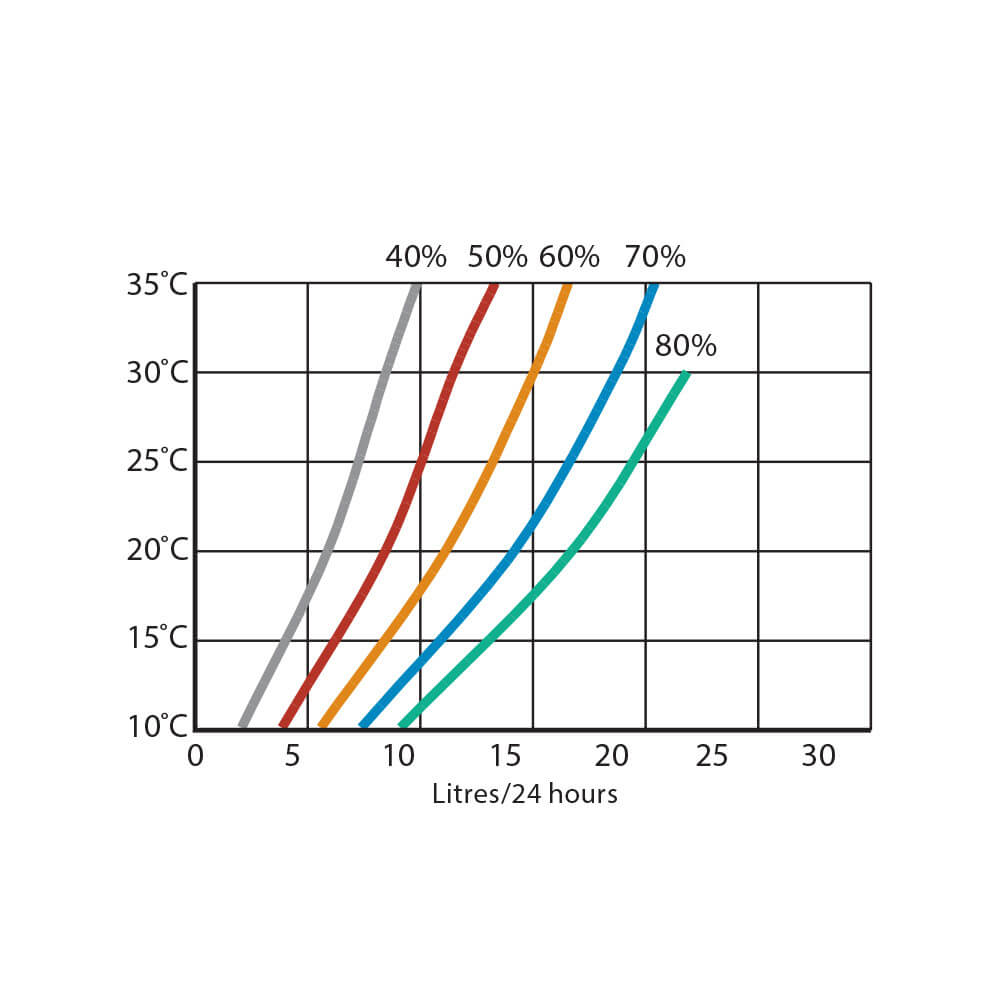

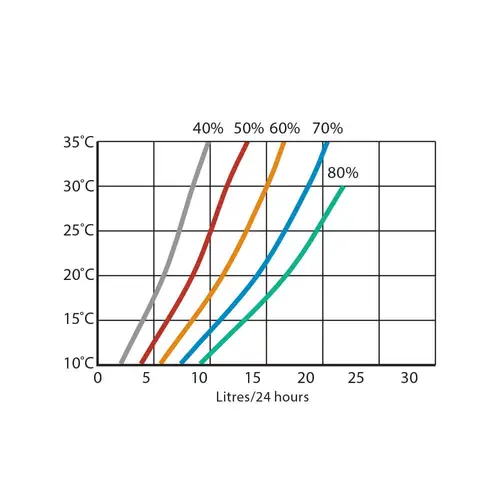

Calorex DH 15 performance data
Calorex DH 15 performance data

The DH 15 wall-mounted dehumidifier has a compact design for installation in small areas, making it an ideal solution for stairwells, corridors and changing rooms. Being fully self contained, with tamper proof controls is perfect for public buildings such as schools, museums and galleries.

View other condensation dehumidifiers or see our full range of commercial dehumidifiers suitable for multiple applications.

Interested?

Key features

  • Compact design for installation in small areas
  • Self contained with fully automatic operation
  • Integral humidistat
  • Tamper proof controls
  • Epoxy polyester painted zintec steel cabinet
  • Hot gas defrost for low temperature operation
  • Air filter

Options

  • Through-the-wall version

Product specifications

Operating temperature range

0-35
°C


Operating humidity range

40-95
% RH


Dehumidification capacity @ 20°C/60% RH

11.0
l/24h


Specific energy consumption @ 20°C/60% RH

0.62
kWh/l


Air flow

225
m³/h


Sound pressure level @ 3m

53
dB(A)


R407C gas weight/CO₂ equivalent

0.34/0.6
kg/t


Power supply

230/1ph/50
V/Hz


Power consumption @ 20°C/60% RH

0.30
kW


FLA

3.8
A


Maximum supply fuse

10
A


LRA (compressor start)

18
A


Heat recovered @ 20°C/60% RH

0.8
kW


Product size (w x d x h)

825 x 363 x 320
mm


Weight

33
kg


Condensate drain size, ID

10
mm


Useful downloads
