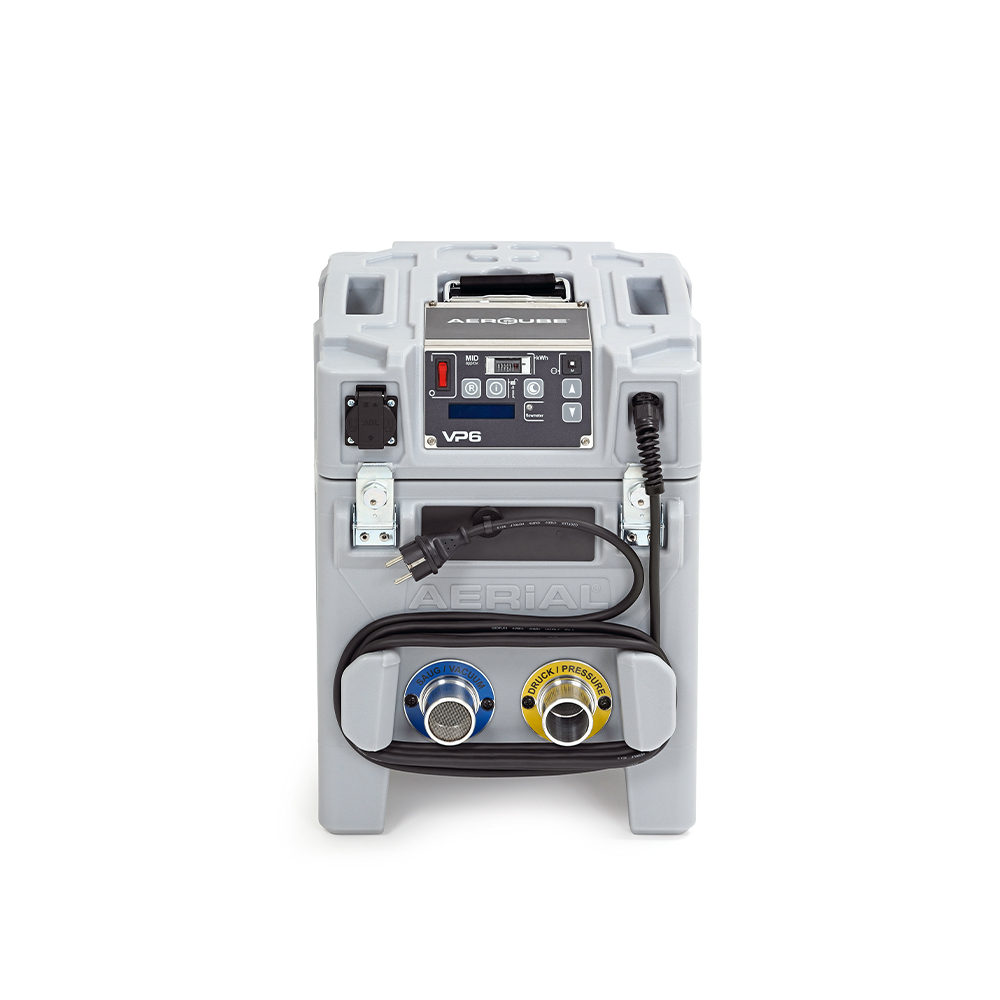

Aerial VP 6 – noise box with turbine
Turbine
The noise box VP 6 is light, versatile and powerful. The use of a brushless, variable turbine reduces the weight of the VP 6 by up to 50% compared with conventional noise boxes with lateral channel blowers. The multi-stage control of this unit provides precise power adjustment. The VP 6 reduces the amount of equipment needed as it replaces up to four different individual units.
View all of our professional water damage drying units or browse our full range of commercial dehumidifiers and dryers that are suitable for multiple applications and environments.
Aerial VP 6 – noise box with turbine
|

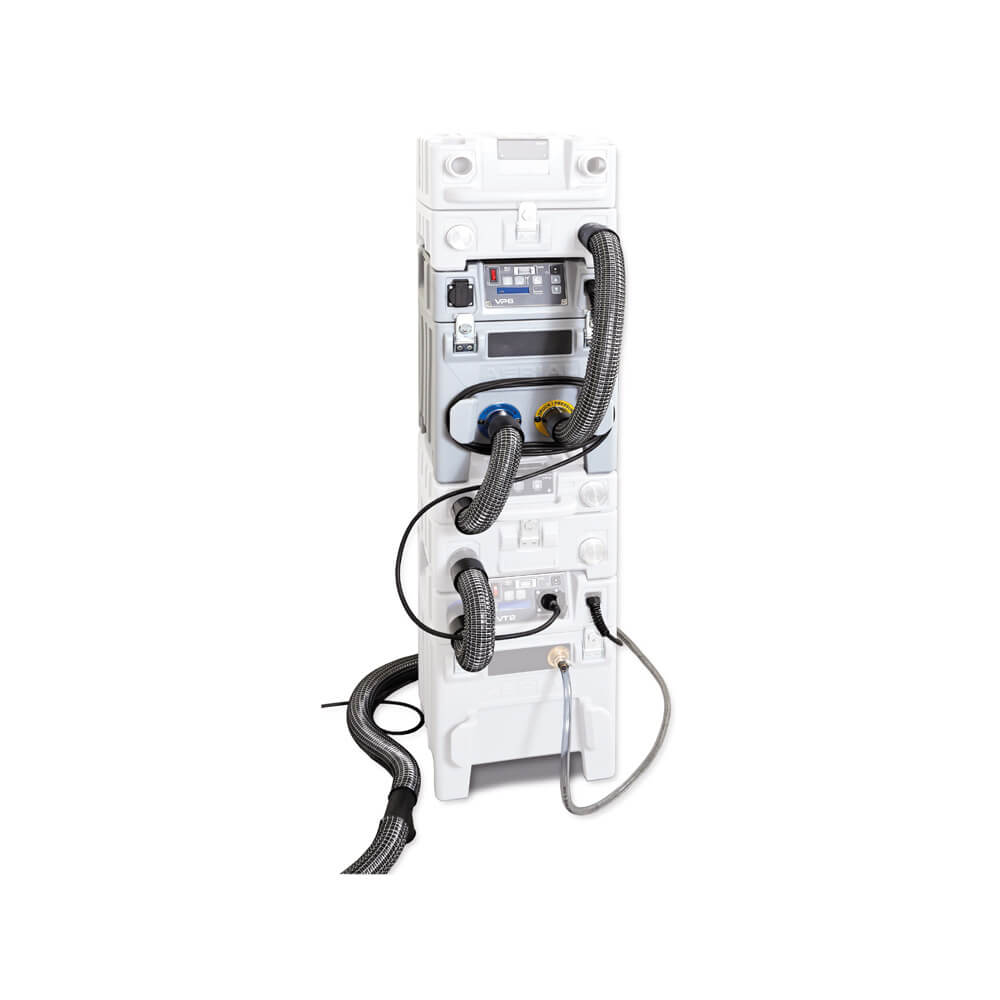

Aerial VP 6 installed the AERCUBE tower
|

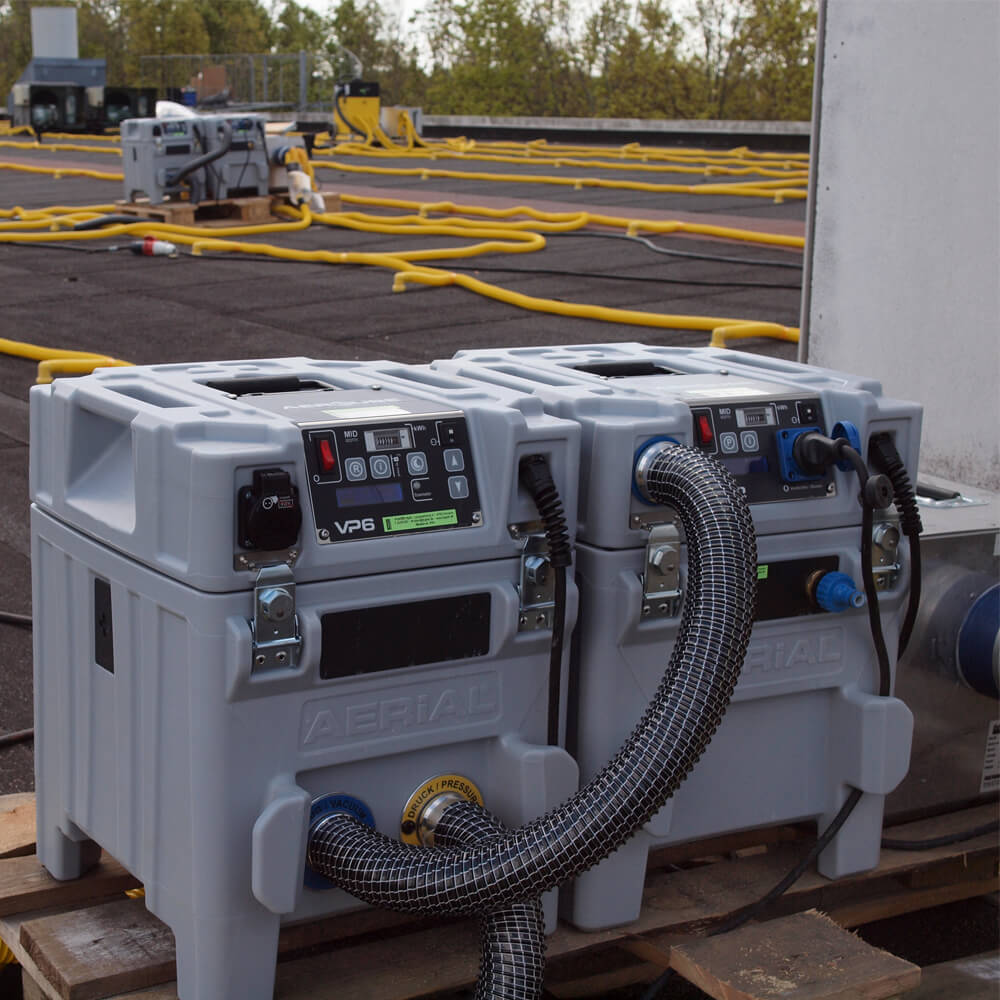

Aerial AERCUBE VP 6 roof top
|
Aerial AERCUBE drying technology system video
|
Aerial AERCUBE tower
|
Aerial AERCUBE tower with tubes
|
Aerial AERCUBE OEM colours
|
Aerial AERCUBE tower on a construction site
|
Key features
- Easy to open, clean and maintain
- Intelligent eDRY® control
- Encapsulated control panel
- Ergonomically friendly manual handling features
- Can be combined with all products from the AERCUBE® series
- Fix points for AERCUBE® lashing system
- The system is designed to deliver optimum performance using 50mm hoses with alternative 38mm hose fittings optional
- Built-in safety thermostat to protect against restrictions and over-heating
- Integrated cable reel with magnetic plug holder
- Auxiliary plug connection for powering other devices such as dryers and fans
- Integrated F7 filter to protect turbine from dust ingress
- Extremely robust, shock-resistant and UV-resistant plastic housing
- 5 year warranty on rotomoulded housing
Control/operation
- Easy-to-use electronics with full-text display
- Display device status and operation hours
- Bar graph and multi-colour LED to show the counter pressure
- On/Off-switch
- Appliance socket with fuse (max. 8A)
- Keylock
- Safety shut down in case of overload
Advantages
- Aerial VP turbines are available with your logo and in your colour – minimum order quantity, 15 pieces
- Energy consumption is displayed via the calibrated, non-resettable, MID-compliant energy meter
- High performance brushless 4-stage turbine
- Integrated silencer to minimise noise
- 4-stage turbine allows for a tailored solution
- Designed for drying insulated constructions, voids, and cavities
- Coarse filter at suction side
- Integrated Night Mode provides quieter running in occupied spaces
- Cavity drying up to 70m2
- Light weight (15kg)
Product specifications
| Specifications | Units | VP 6 |
|---|---|---|
| Blower type | Brushless high-performance turbine blower | |
| Air flow (free blowing) | Speed:m²/m³/h | 1/15/80 - 2/30/140 - 3/50/190 - 4/70/250 |
| Excess pressure | mbar | 270 |
| Low pressure | mbar | 220 |
| Motor power | W | 1,280 |
| Operating temperature range | °C | 0-38 |
| Power supply | V/Hz | 230/1ph/50 |
| Sound level @ 3m | dB(A) | 57 |
| Power cord | m | 4.5m with plug, heavy-duty version, (H07-cable) with magnet-holder for plug |
| Protection class | IP44 | |
| Product size (h x w x d) | mm | 507 x 390 x 455 |
| Weight | kg | 15 |
Suitable for
- Commercial buildings
- Construction
- Residential buildings
- Water damage restoration
- Waterworks
