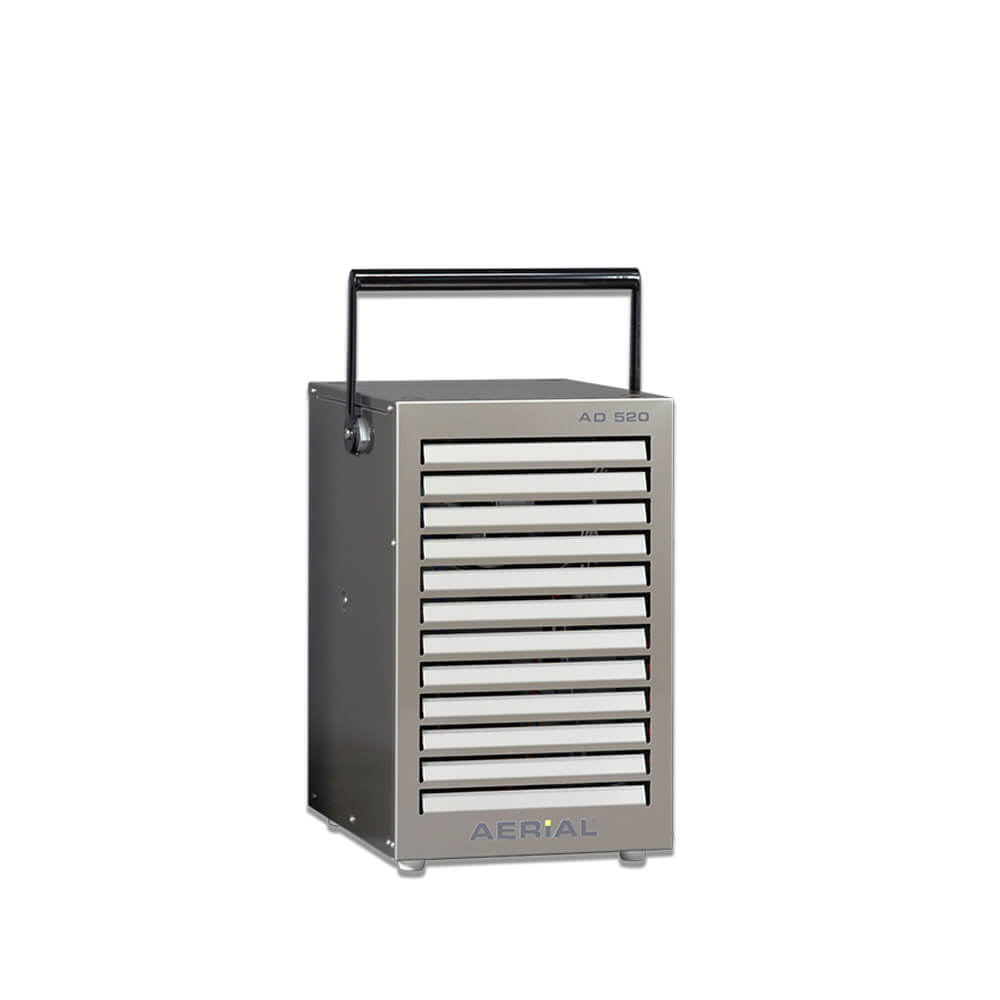

Aerial AD 520 – condensation dehumidifier
Condensation dehumidifiers
Universal, reliable and energy-saving condensation air dehumidifiers. Flexible options for accessories allow for tailor-made applications even in harsh conditions such as drying of structures in offshore wind farms or very hot countries. AD 520 dehumidifiers are light, compact, practical and portable units. They are equally popular for water damage restoration or for air dehumidification in commercial and private properties.
View other condensation dehumidifiers and professional water damage drying units or see our full range of commercial grade dehumidifiers suitable for multiple applications.
Aerial AD 520 – condensation dehumidifier
|

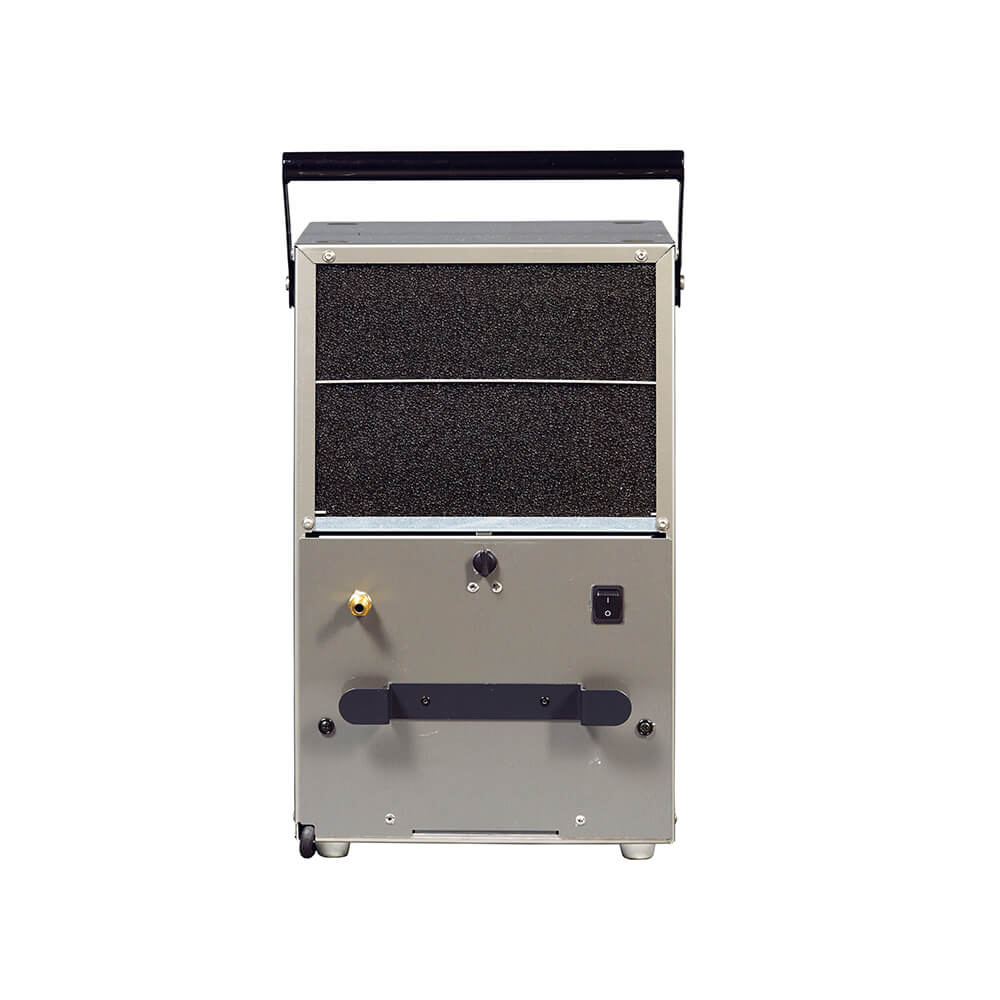

Aerial AD 520 pump kit
|

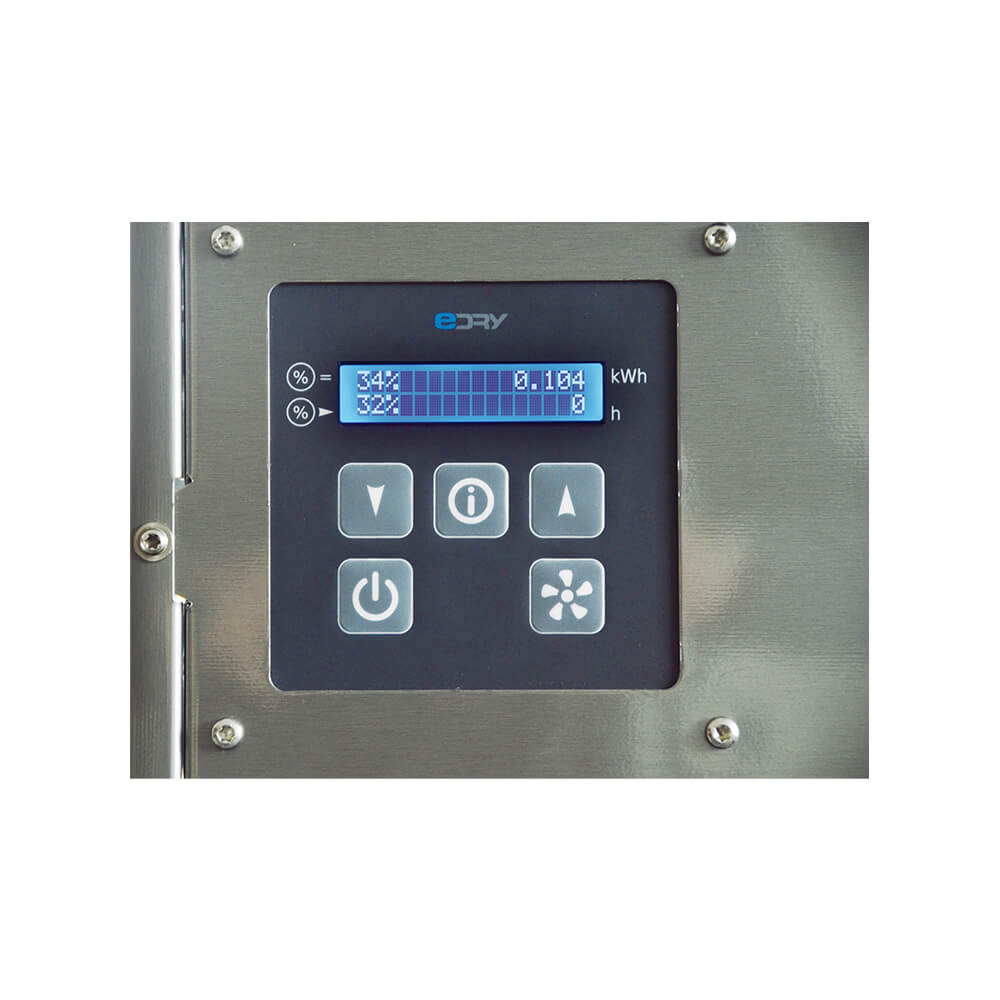

Aerial AD series e-dry control panel
|

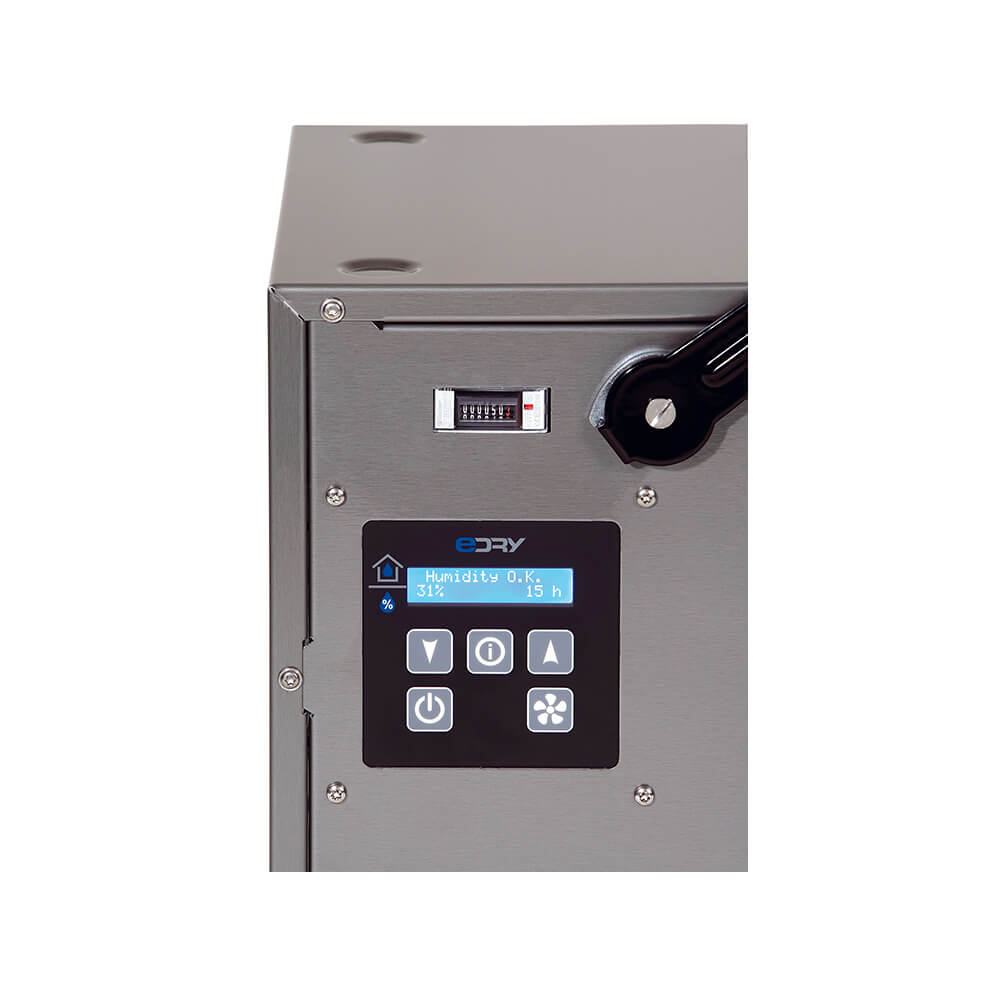

Aerial AD 520 AD 540 series e-dry control panel with handle
|

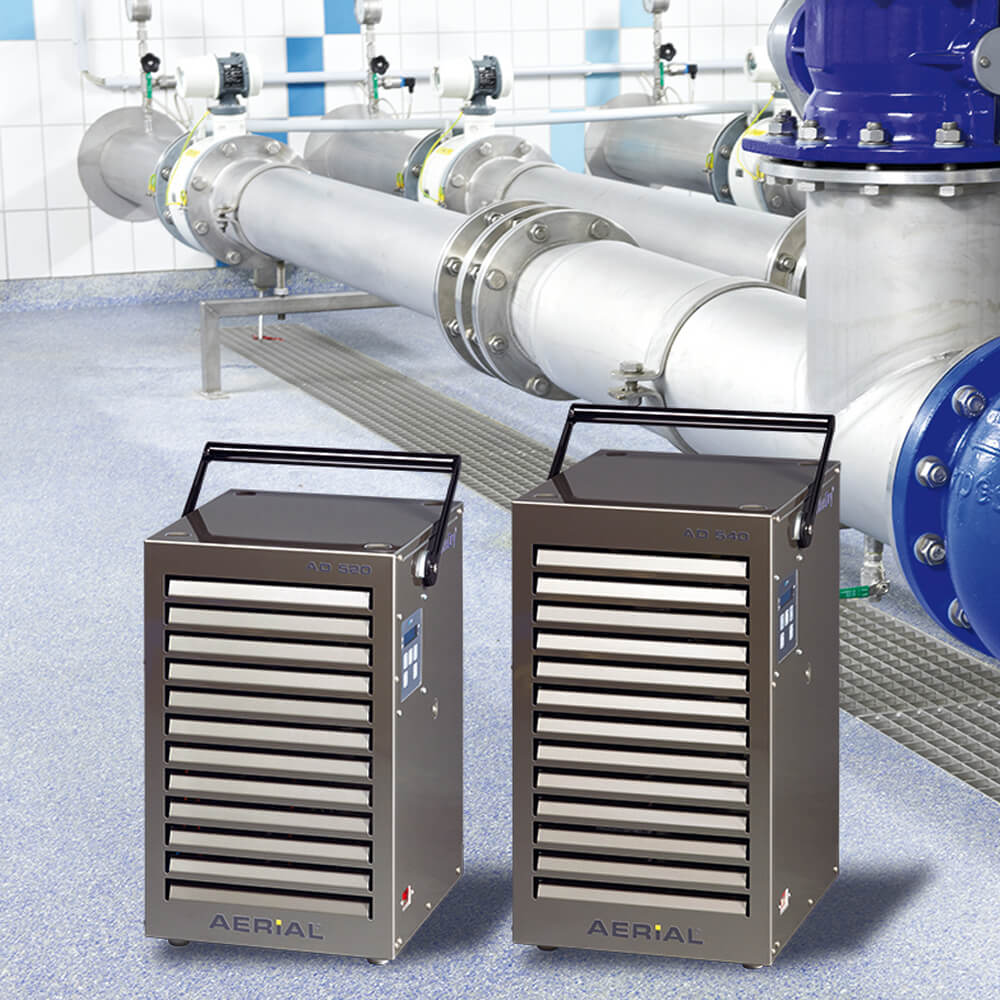

Aerial AD 520 and AD 540 waterworks application
|
Key features
- Case made of galvanized sheet steel, coated in stainless steel finish
- Intelligent eDRY® control
- Blue-Dry® technology
- Floor standing unit with rubber feet to provide stability
- Units can be stacked safely
- Collapsible handle for ease of storage
- Hermetically sealed rotary compressor
- 2-speed energy-efficient EC-axial fan for quiet and effective drying
- Maintenance-friendly refrigerant circuit with service connector
- Condenser and evaporator made of copper tubes with aluminium fins
- On-demand hot gas defrost system
Advantages
- Energy consumption is displayed via the calibrated, non-resettable, MID-compliant energy meter
- F-gas Directive (2020) compliant, reducing the use of HFCs to mitigate the effects of global warming
- Condensation principle (heat-pump technology with energy recovery)
- Suitable for heated rooms up to 200m3 and unheated rooms up to 150m3
Product specifications
| Specifications | Units | AD 520 |
|---|---|---|
| Capacity (30°C/80% RH)/Power consumption | l/24h/W | 19/315 |
| Capacity (20°C/60% RH)/Power consumption | l/24h/W | 8/230 |
| Capacity (15°C/70% RH)/Power consumption | l/24h/W | 8/215 |
| Air flow (speed I/II) | m3/h | 250/340 |
| Operating temperature range | °C | 5-34 |
| Operating humidity range | % RH | 35-95 |
| Max. power consumption | W | 315 |
| Power supply | V/Hz | 230/1ph/50 |
| Sound level | dB(A) | 46 |
| Condensate tank | l | 7 |
| Condensate drain | mm | 12 x 2 |
| Power cord | m | 4.5 with plug |
| Refrigerant | R1234yf | |
| Product size (h x w x d) | mm | 524 x 320 x 360 |
| Weight | kg | 17 |
Suitable for
- Archives and preservation
- Commercial buildings
- Construction
- Industrial, factories and production
- Rental companies
- Water damage restoration
- Waterworks
