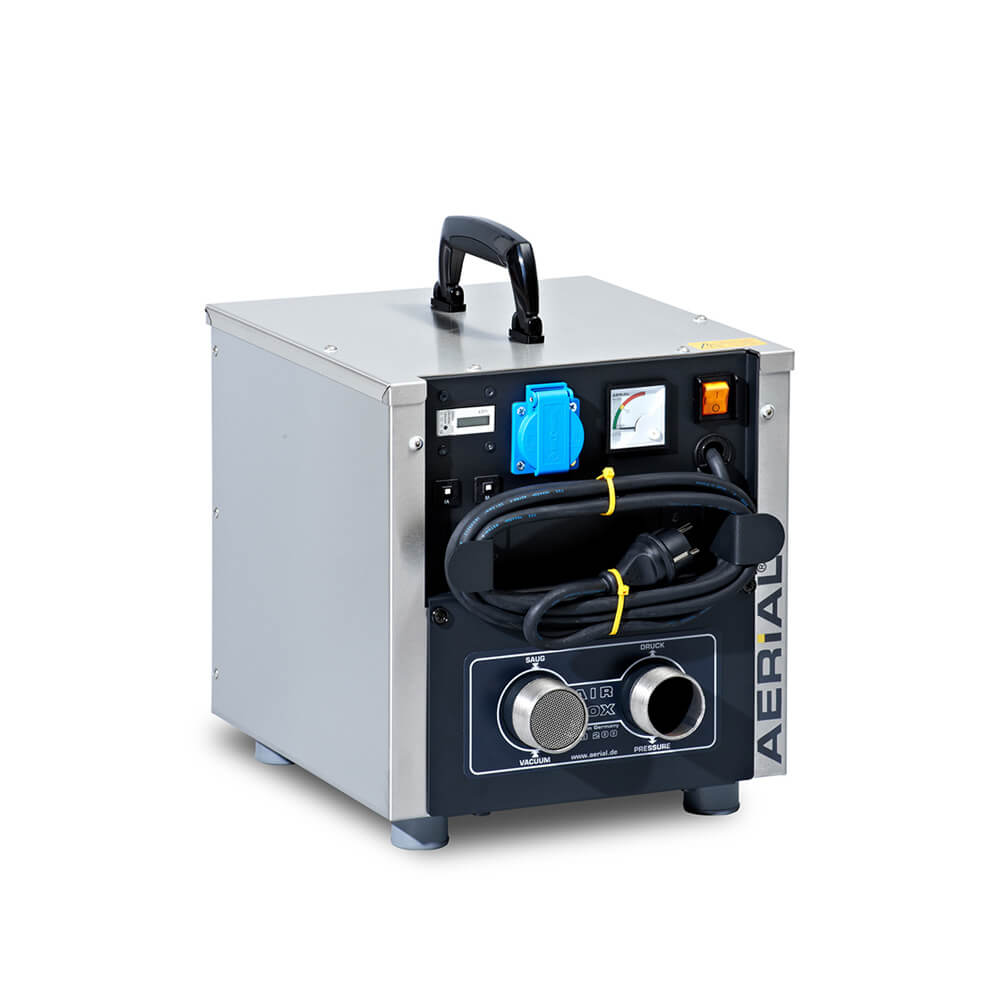

Aerial AB 200 – side channel blower
Side channel blower
The AB 200 is a ready to use side-channel blower with integrated vibration suppression and sound insulation, ideally suited for water damage restoration.
View all of our water damage drying units or browse our full range of commercial dryers that are suitable for multiple applications and environments.
Aerial AB 200 – side channel blower
|

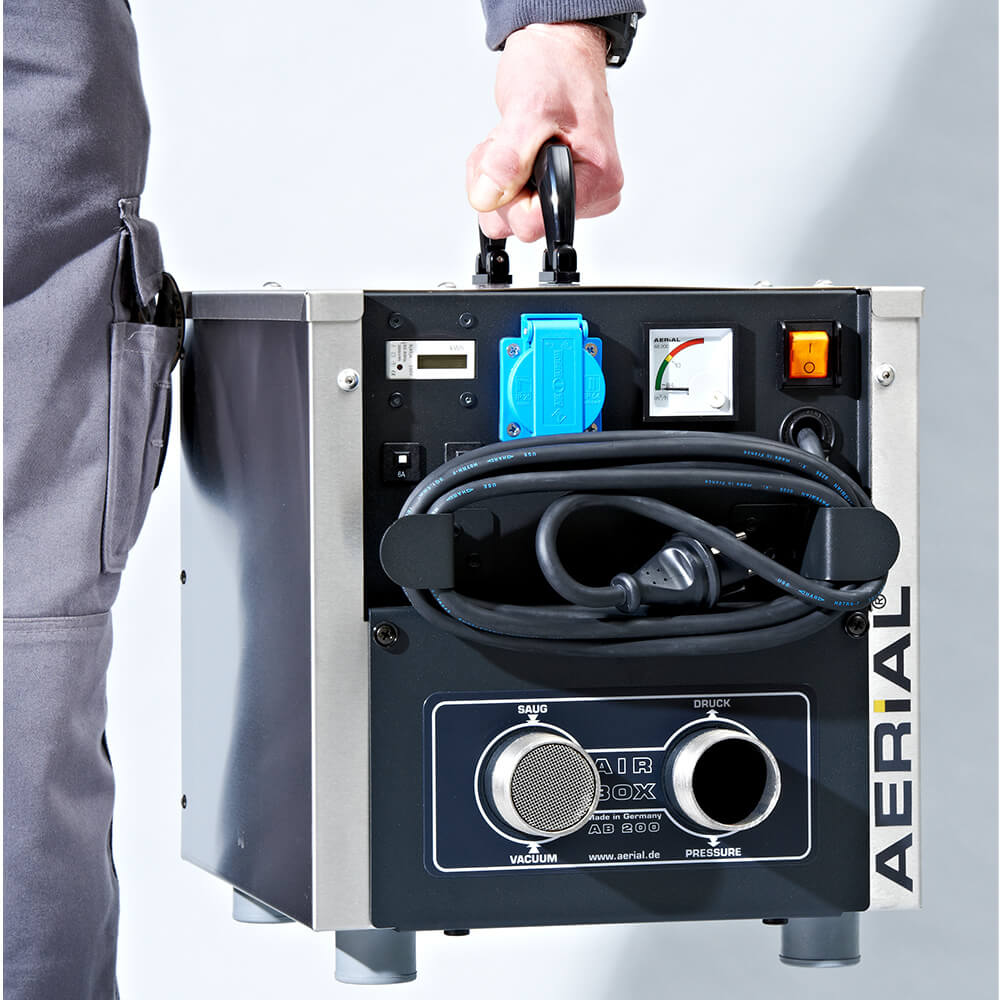

Aerial AB 200 easy to carry
|
Key features
- Case made of stainless steel
- Easy to service and maintain
- Rubber feet for installation on the floor or other flat surfaces
- Lightweight and easy to carry
- The system is designed to deliver optimum performance using 50mm hoses with alternative 38mm hose fittings optional
- Coarse filter at suction side
- Very quiet due to highly efficient sound reduction system
- Integrated cable retention
Control/operation
- On/Off-switch
- Amperemeter to show the counter pressure
- Device socket, fused 8A
- MID compliant energy meter
Advantages
- Energy consumption is displayed via the calibrated, non-resettable, MID-compliant energy meter
- Can be used for suction or positive pressure drying of insulated constructions
- Cavity drying up to 10-15m2
Product specifications
| Specifications | Units | AB 200 |
|---|---|---|
| Air flow | m³/h | 80 |
| Max. operating temperature range | °C | 0-38 |
| Max. pressure differential | ||
| Vacuum | mbar | 110 |
| Pressure | mbar | 130 |
| Noise level | dB(A) | <46 |
| Total power consumption | W | 400 |
| Power supply | V/Hz | 230/1ph/50 |
| Power cord | m | 4.5 with plug |
| Protection class | IP23 | |
| Pressure | mbar | 110/130 |
| Product size (h x d x w) | mm | 330 x 310 x 365 |
| Weight | kg | 19 |
Suitable for
- Commercial buildings
- Construction
- Water damage restoration
