Grupo Día eliminates mist and ice in freezer rooms with adsorption dehumidifiers

The challenge

In the pursuit of optimal quality and adherence to strict cold chain controls, Grupo Día encountered a common issue in logistics centres – warm air from loading docks moving into the freezer rooms. Although there is an antechamber between the dock and the chamber with controlled temperatures between 5ºC and 8ºC, it is not enough. Therefore, the result was mist, condensation, ice formation and slippery floors, jeopardising worker safety, causing equipment breakages, and hindering efficient picking processes. The challenge was to eliminate the issues and create a controlled environment in the freezer rooms at temperatures as low as -25ºC.

BEFORE THE UPGRADE

The solution

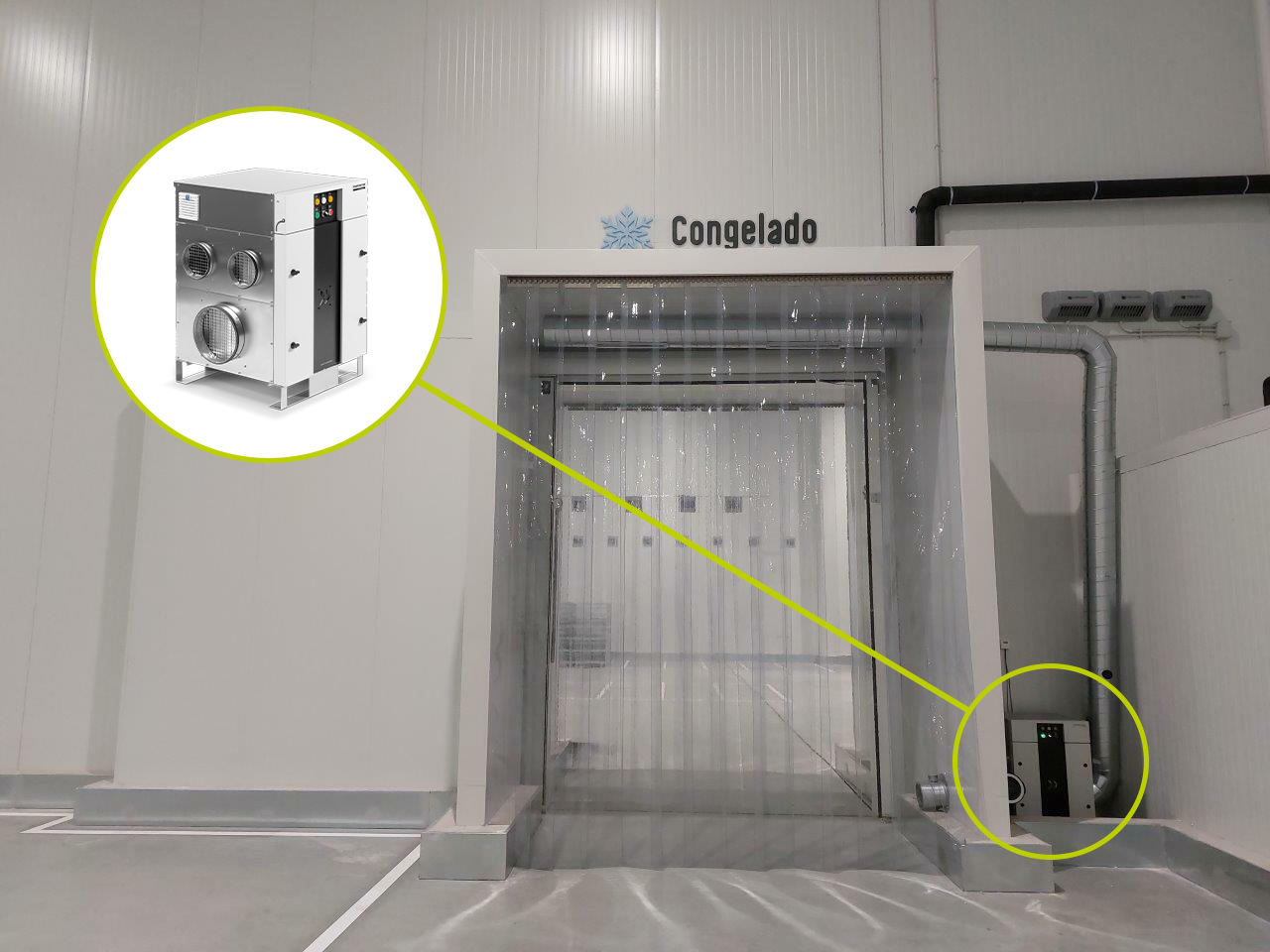

Dantherm Group's team of engineers conducted a thorough analysis of Grupo Día's logistics centre and proposed a turnkey solution utilising adsorption dehumidification technology. The chosen product, the TTR 1400 adsorption dehumidifier, offered the unique capability to reach dew points below -25ºC, preventing the formation of ice and mist. The technology, featuring a desiccant rotor and energy recovery, was tailored to the specific needs of Grupo Día's freezer rooms.

The installation process was seamlessly coordinated to ensure minimal disruption to the daily operations of the logistics platform. Additionally, a recommended SAS (airlock) was integrated to reduce the size of the dehumidifier, subsequently minimising power consumption and the overall investment.

AFTER THE UPGRADE

The result

The implementation of the adsorption dehumidifier TTR 1400 brought about transformative improvements for Grupo Día:

• Mist control and ice removal: The freezing rooms are free of mist and ice
• Occupational safety: Elimination of slippery floors reduces the risk of accidents
• Reduced maintenance: Breakage of doors, evaporator fans, and other equipment due to ice formation has been significantly reduced
• Energy savings: Reduced defrosting of cooling systems have led to notable energy savings
• Enhanced product storage: Improved quality of stored products, ensuring adherence to temperature standards
• Efficient picking: Elimination of code-reading errors during picking thanks to the absence of frost

TTR 1400 main features

• Dehumidification capacity: 177 kg / 24 hours (depending on ambient temperature)
• Air flow rate: 1,750 m3/h
• Versatility: High dehumidification capacity even at low temperatures, optionally usable from -20 °C
• Durability: Robust stainless steel housing and reliable silica gel adsorption rotor
• Customisation: Configurable air direction reversal and Duoventic Control for individual fan regulation
• Efficiency: Trisorp Dual TTR principle with separate ducting for process and regeneration air
• Additional features: Electric regeneration heating, filter control, and adaptability to various applications

Go to the product page for full specifications.

Grupo Día's commitment to quality and safety, coupled with Dantherm Group's expertise, resulted in a successful implementation that not only addressed the immediate challenges but also set the stage for continued operational excellence in their state-of-the-art logistics centre.
