Trotec XRS9012 – hydrogen detection meter

Hydrogen leak detector

The XRS9012 represents the current technological progress in the development of practice-optimised hydrogen leak detectors. This light, powerful and handy measuring device enables the quick, time- and cost-saving location of leaks.

Short reaction times, a high degree of reliability, low cross-sensitivity to other gases – these customer wishes were among our top priorities which we put into practice while developing the XRS System. The leak detector is designed to be carried as close to the body as possible. It comes with a carrying strap leaving you with both hands free to work. A practical detail for added safety.

For more information, please click on the catalogue.

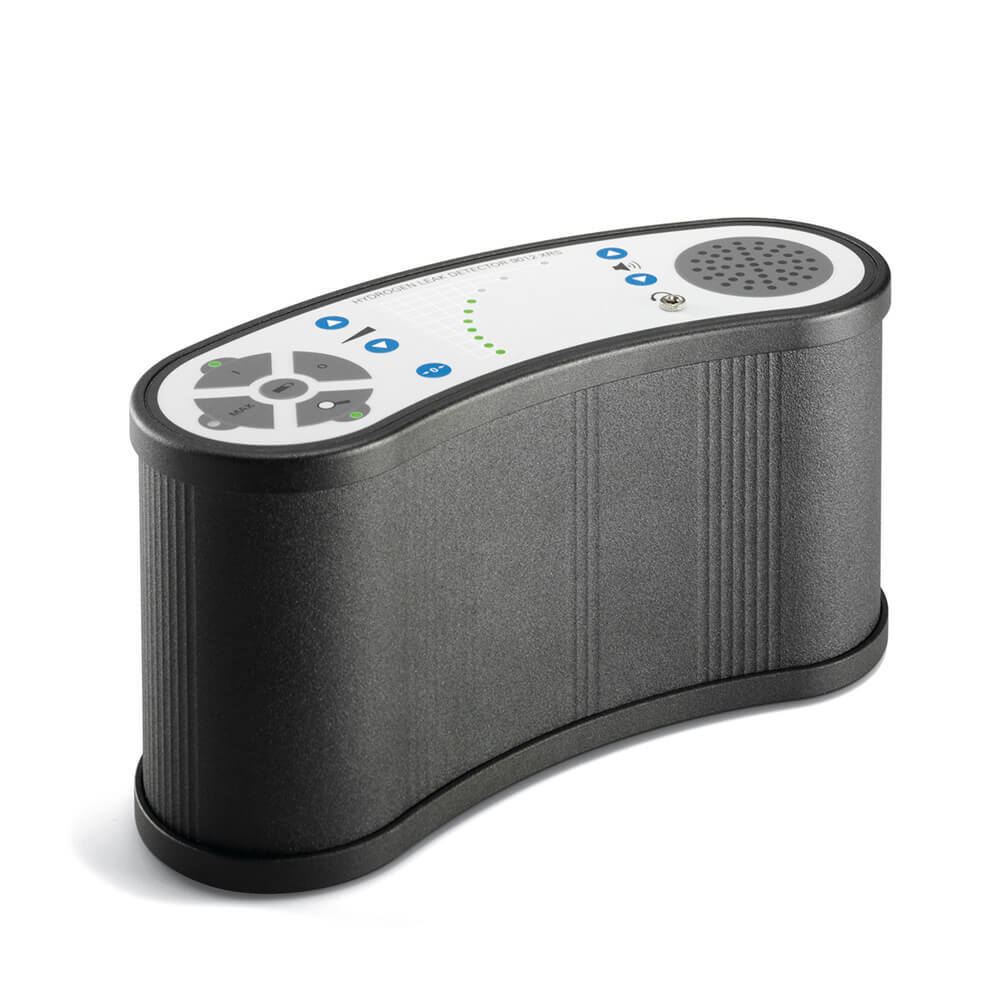

Trotec 9012 XRS main web
Trotec XRS9012 – hydrogen detection meter

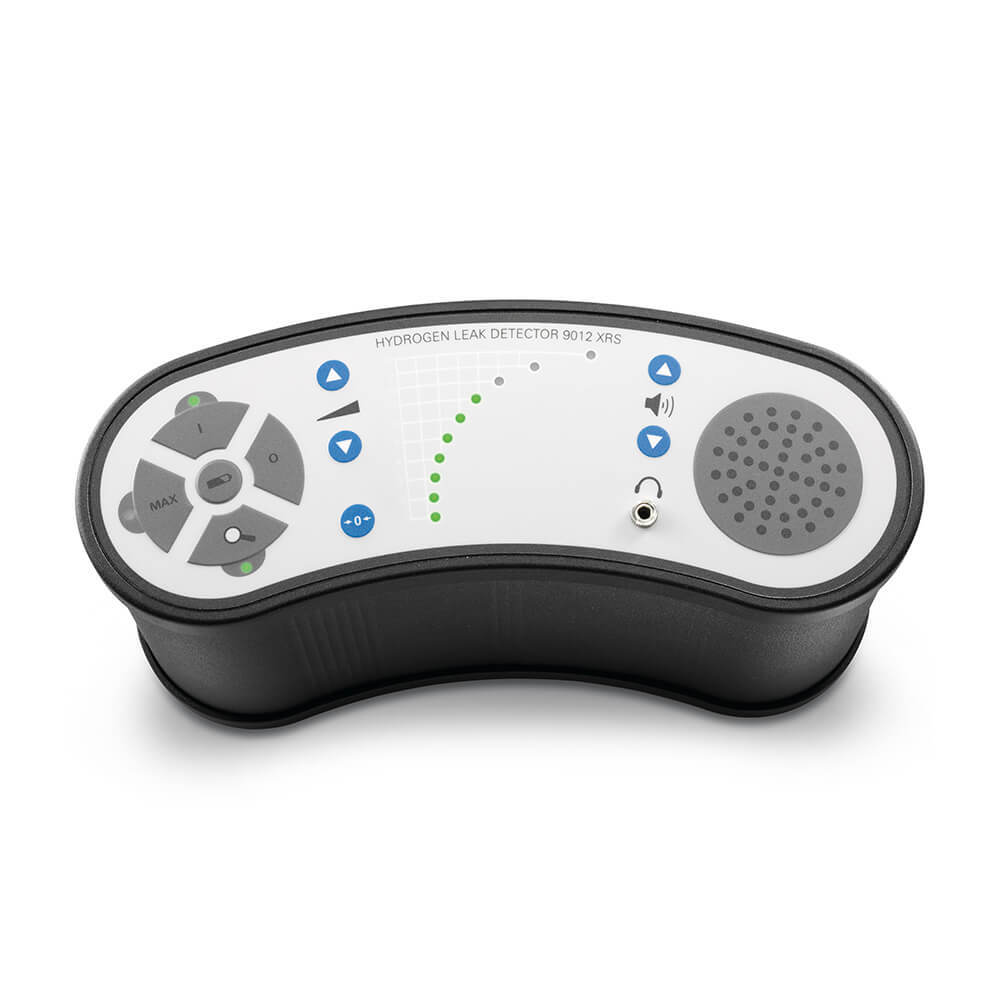

Trotec 9012 XRS above web
Trotec XRS9012 – hydrogen detection meter

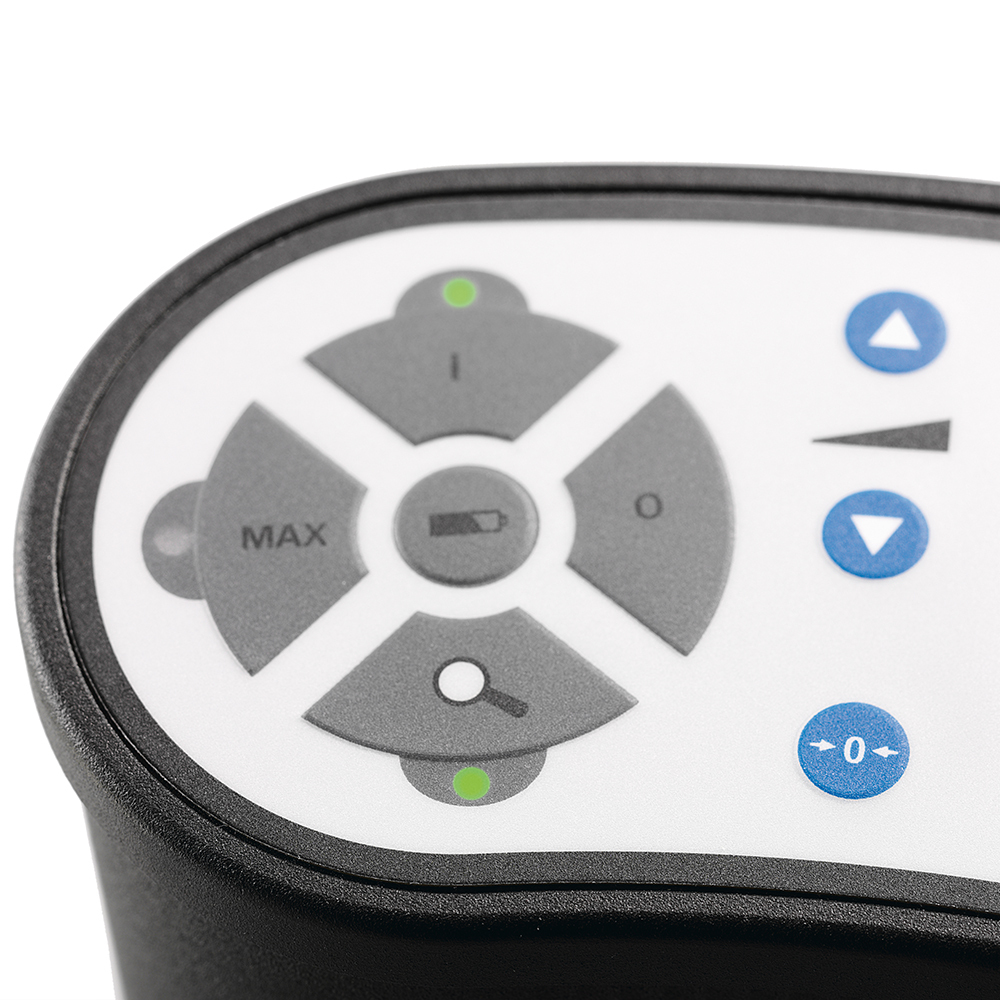

Trotec 9012 XRS detail web
Trotec XRS9012 – hydrogen detection meter

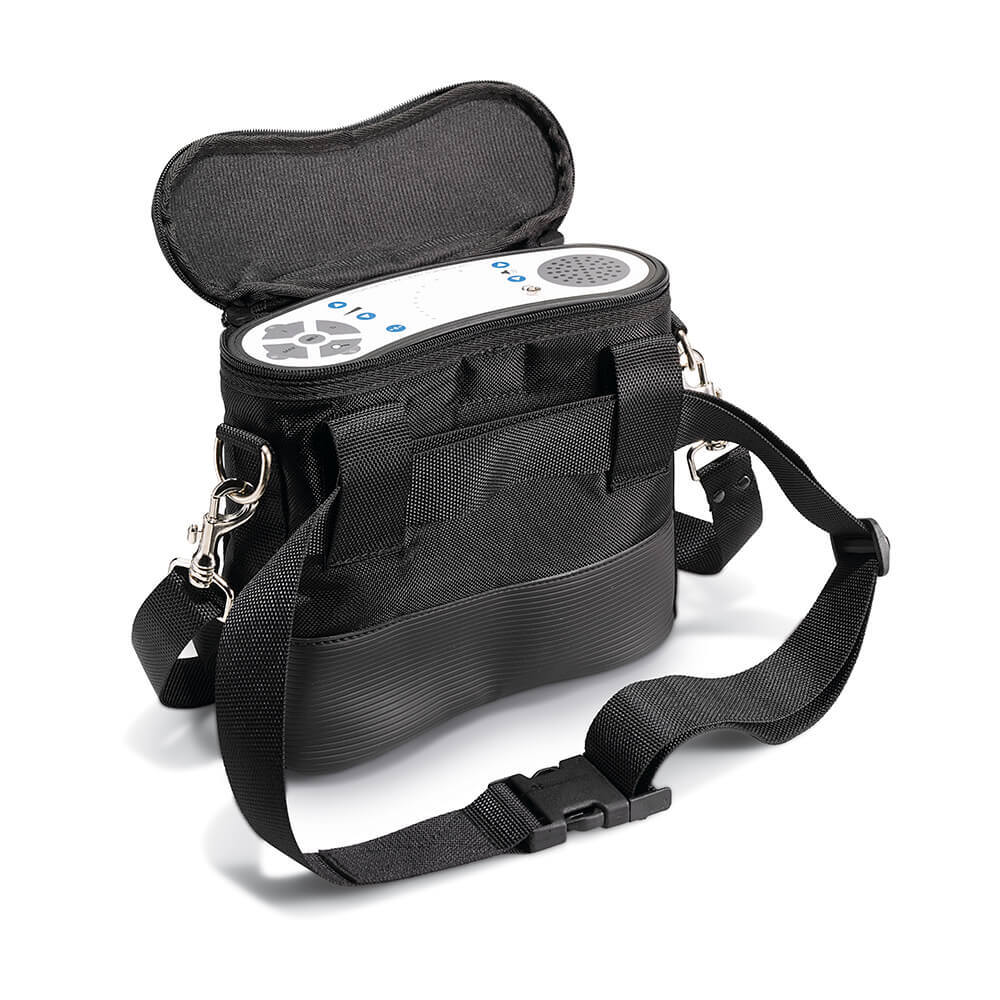

Trotec 9012 XRS bag open web
Trotec XRS9012 – hydrogen detection meter

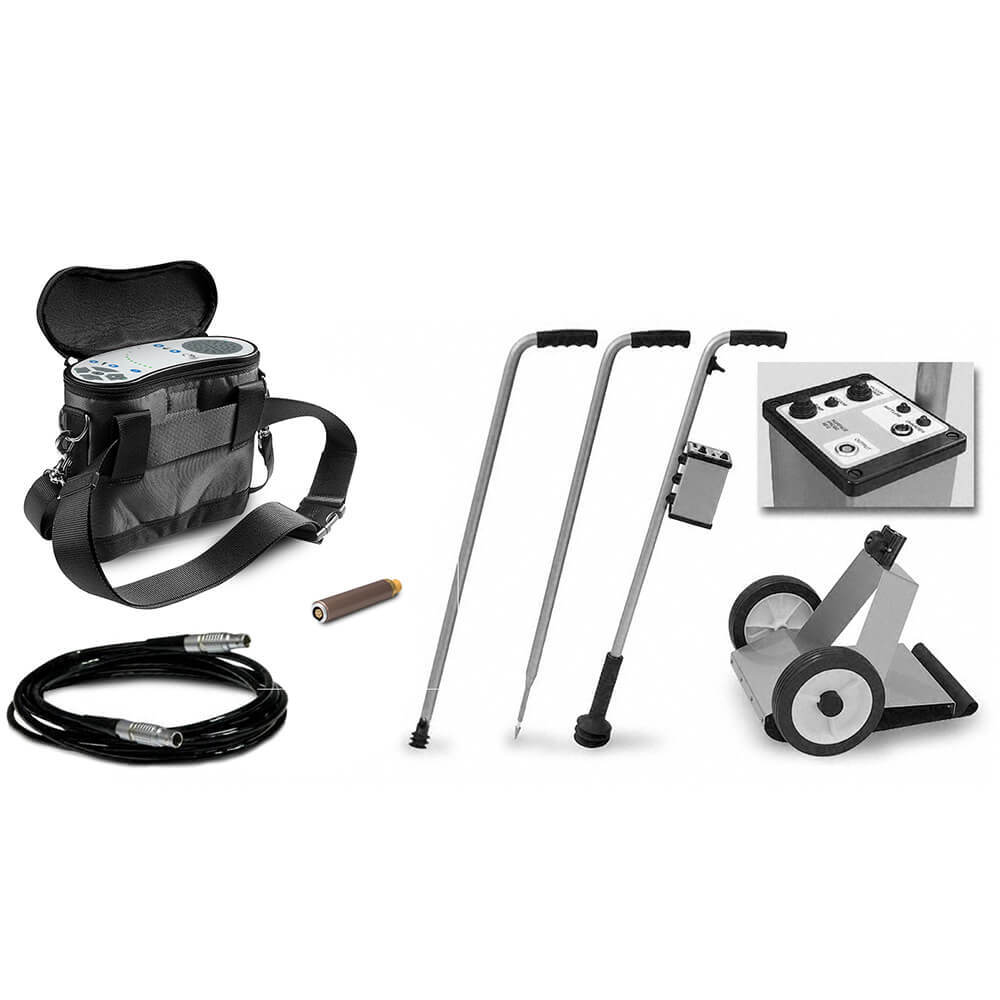

Trotec XRS9012 set web
Trotec XRS9012 – set

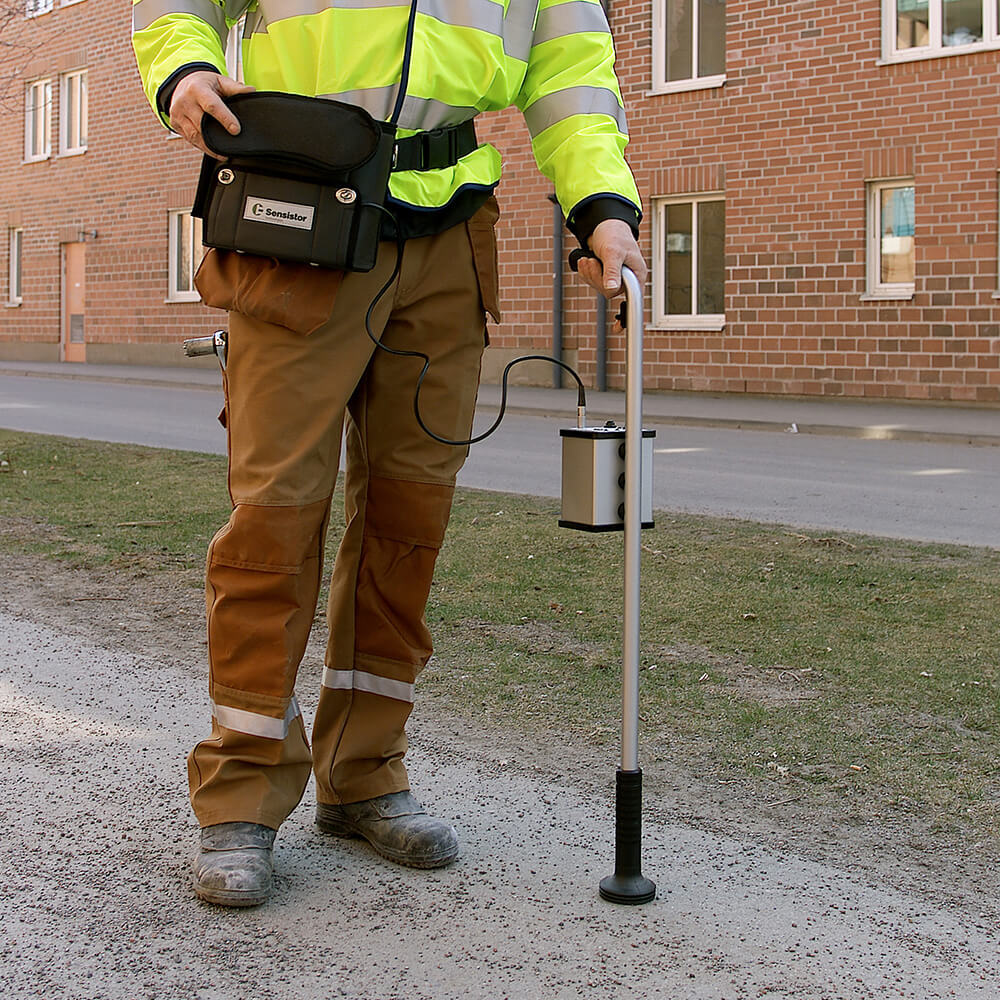

Trotec 9012 XRS Application 1 web
Trotec XRS9012 – application

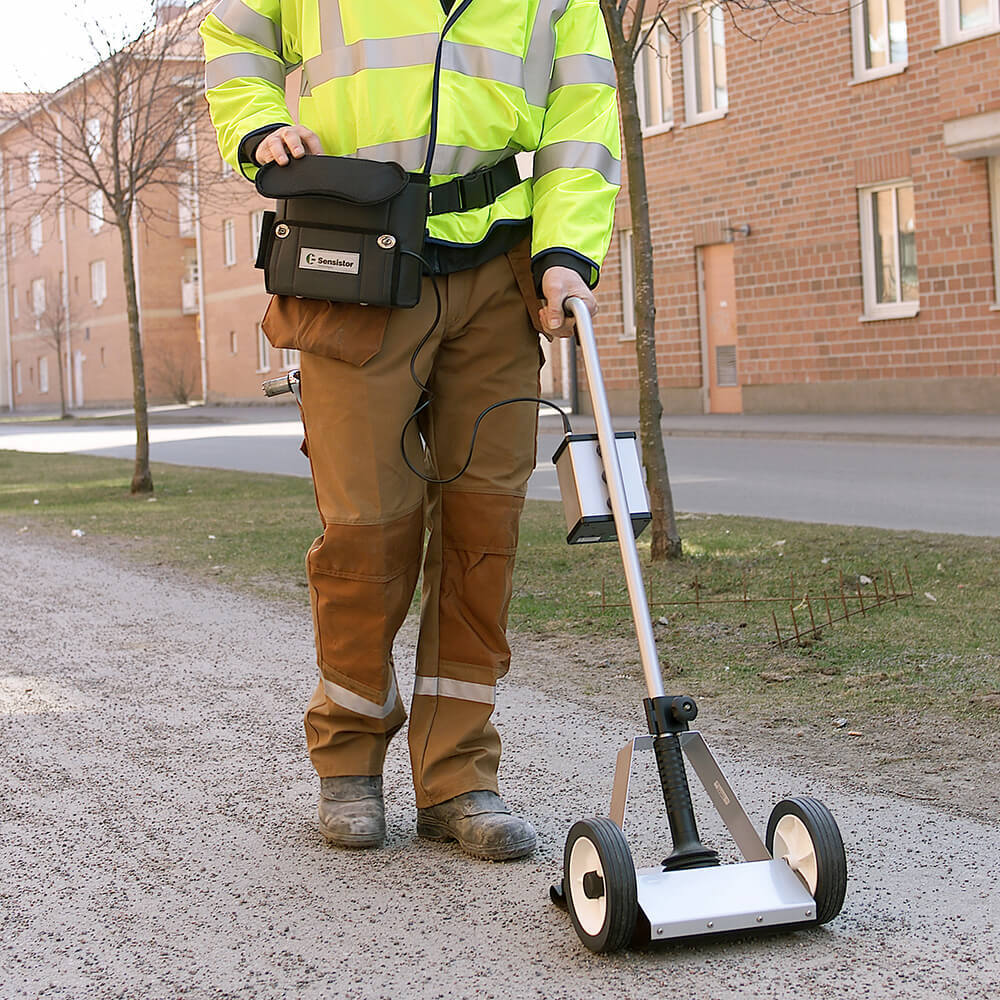

Trotec 9012 XRS Application 2 web
Trotec XRS9012 – application

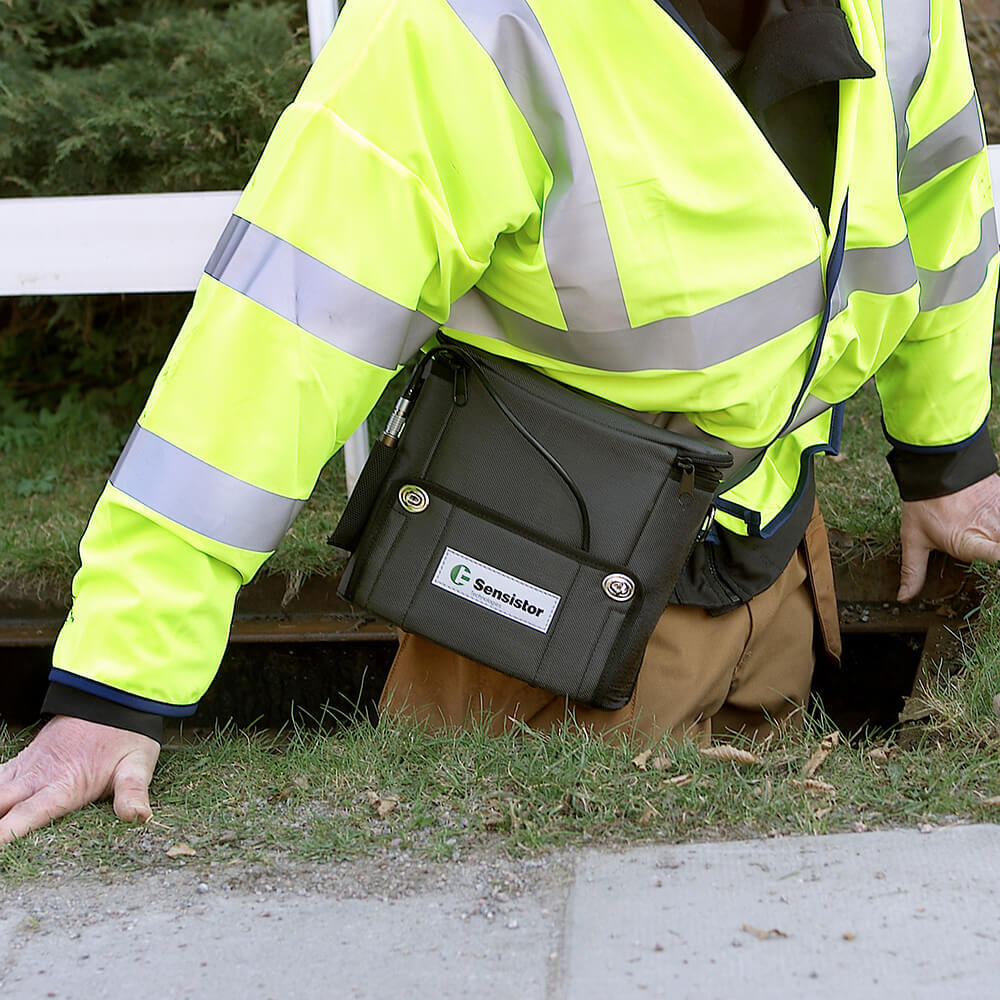

Trotec 9012 XRS Application 3 web
Trotec XRS9012 – application

Key features

  • Adjustable sensitivity level
  • No saturation – even with gross leaks
  • Quick recovery
  • Automatic setting of zero
  • No cross-sensitivity to other gases
  • Ergonomic housing – carrying strap allows working with both hands
  • Maintenance-free battery with short charging time and long lifetime, can also be charged in the car (12 V)
  • Fault indicator
  • Minimum/maximum measured value storage

Product specifications

SpecificationsUnitsXRS 9012
Sensitivity
ppm H2
0.7 in air
Response time
sec.
< 1
Warm up time
sec.
6
Outputs
10 stage LED bar display, speaker: 5 - 1,600 Hz; earpiece: standard earpiece, 3.5 mm earplug, > 8 Ohm
Power supply
Rechargeable lead batteries
Enclosure rating
IP55
Battery capacity
hours
13 at 20 °C, 6 at -20 °C
Charger
Mains adapter (input 100 - 240 VAC) and vehicle charger cable (input 9 - 15 VDC) supplied as standard
Housing
Aluminium
Product size (l x w x h)
mm
120 x 250 x 85
Product size (l x w x h) incl. carrying bag
mm
220 x 260 x 95
Weight / incl. carrying bag
kg
1.9 / 2.5

Suitable for:

  • Industrial, factories and production
  • Water damage restoration
  • Waterworks
