Trotec VSP-VS System – optical inspection
VSP inspection system
The Trotec VSP-VS system is a versatile optical inspection system designed to provide high-quality visual inspection of a wide range of materials and surfaces. It features a high-resolution camera and advanced optics for clear and detailed images. With a compact design, the VSP-VS system is easy to use and can be quickly set up for a variety of applications. The system is ideal for quality control, research, and development, and is a reliable and cost-effective solution for anyone in need of optical inspection.

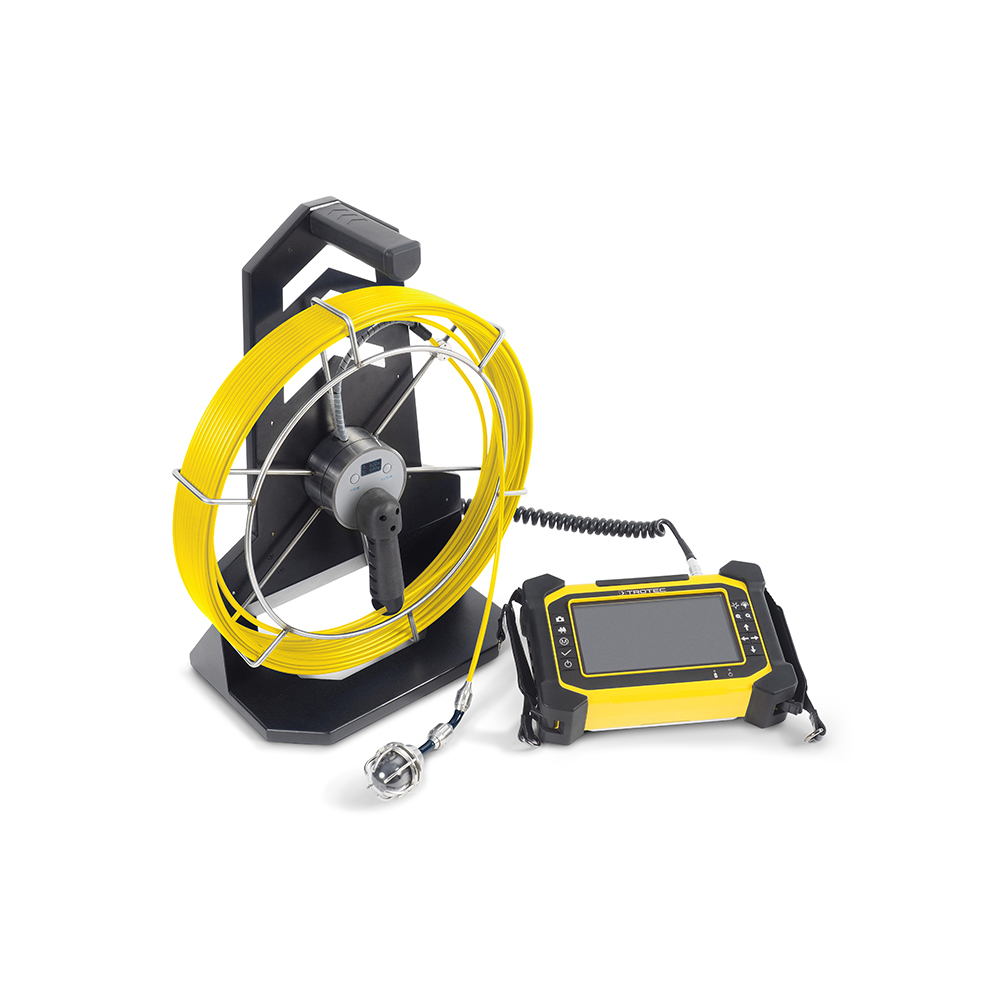

Trotec VSP inspection sytsem VSP R30 3
|
Trotec VSP – inspection system
|

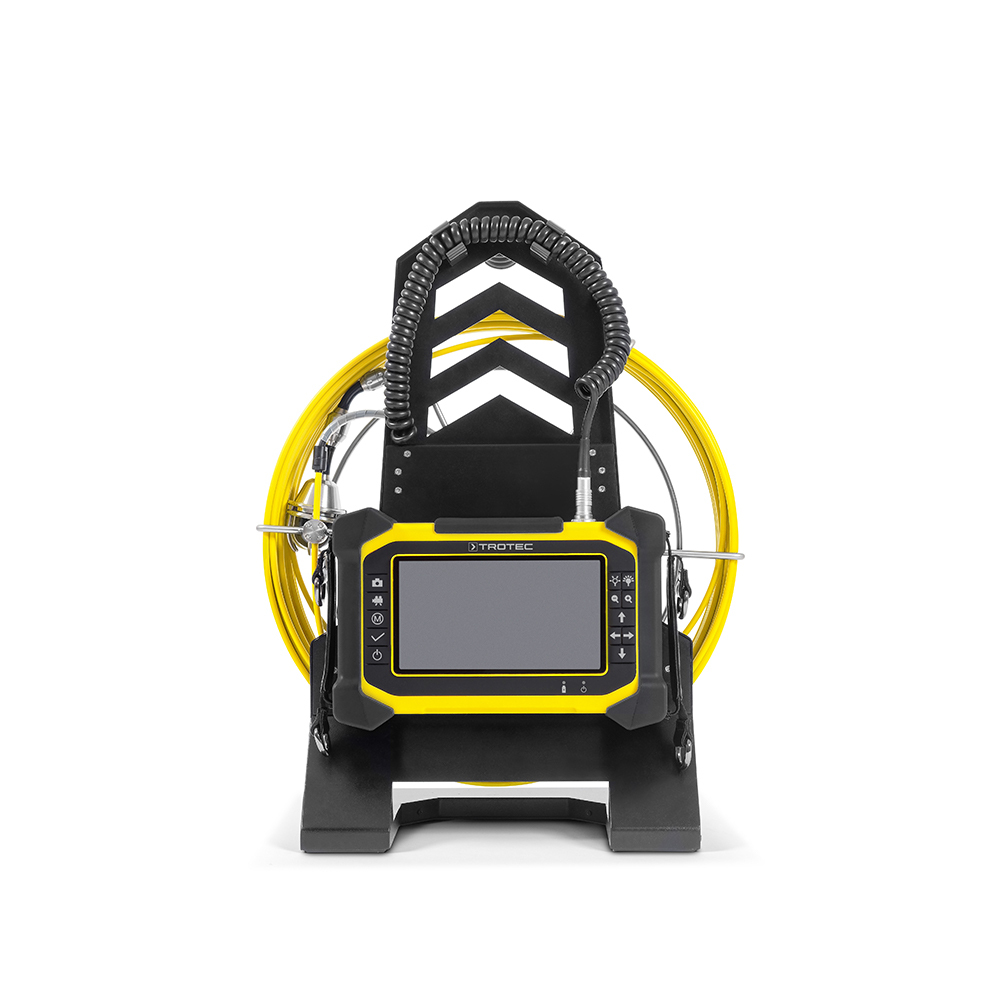

Trotec VSP inspection sytsem main 1
|

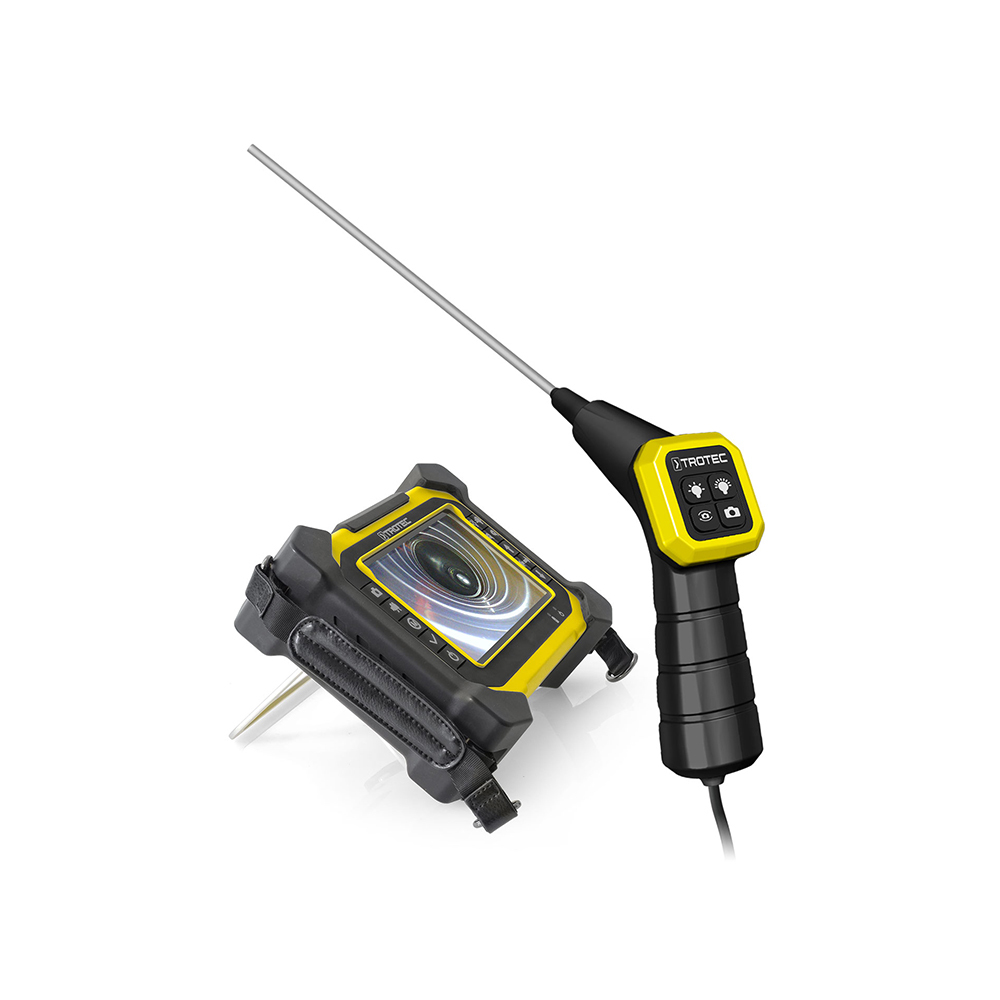

Trotec VSP inspection sytsem VSP VS
|

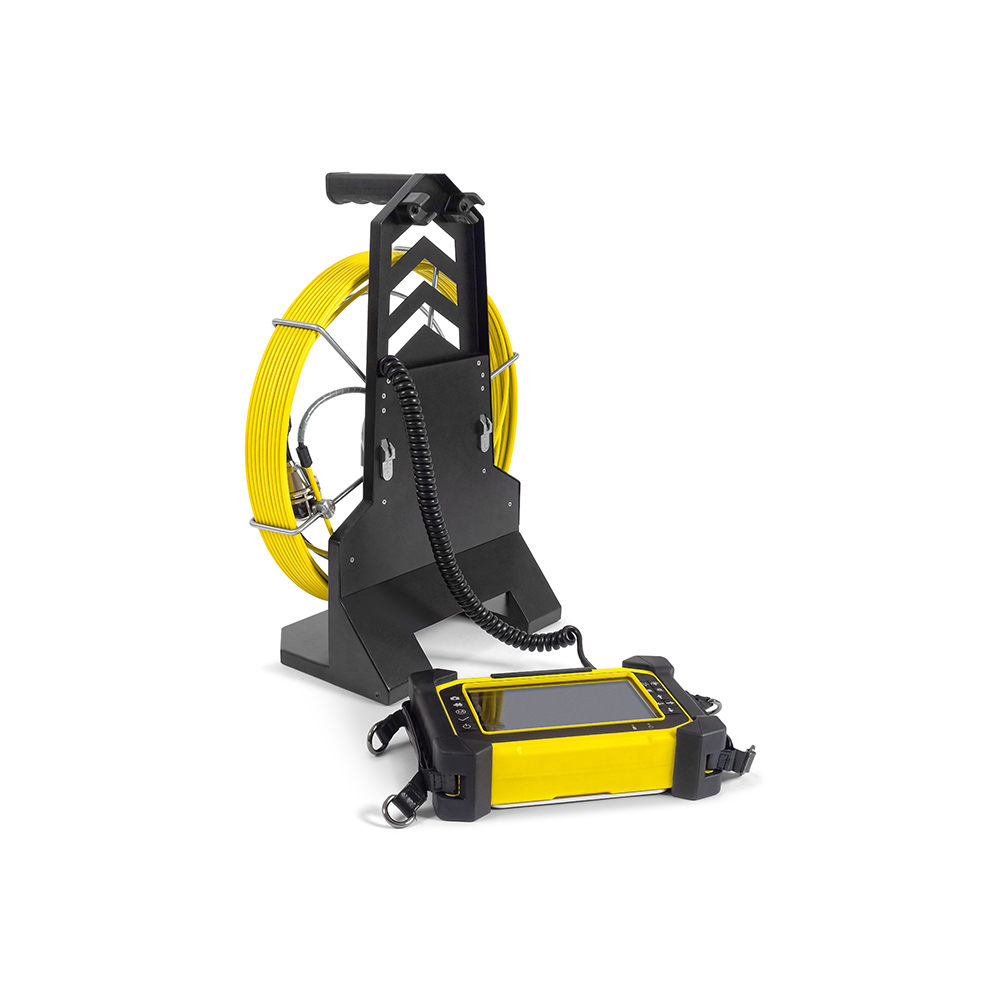

Trotec VSP inspection sytsem VSP R30 back 1
|

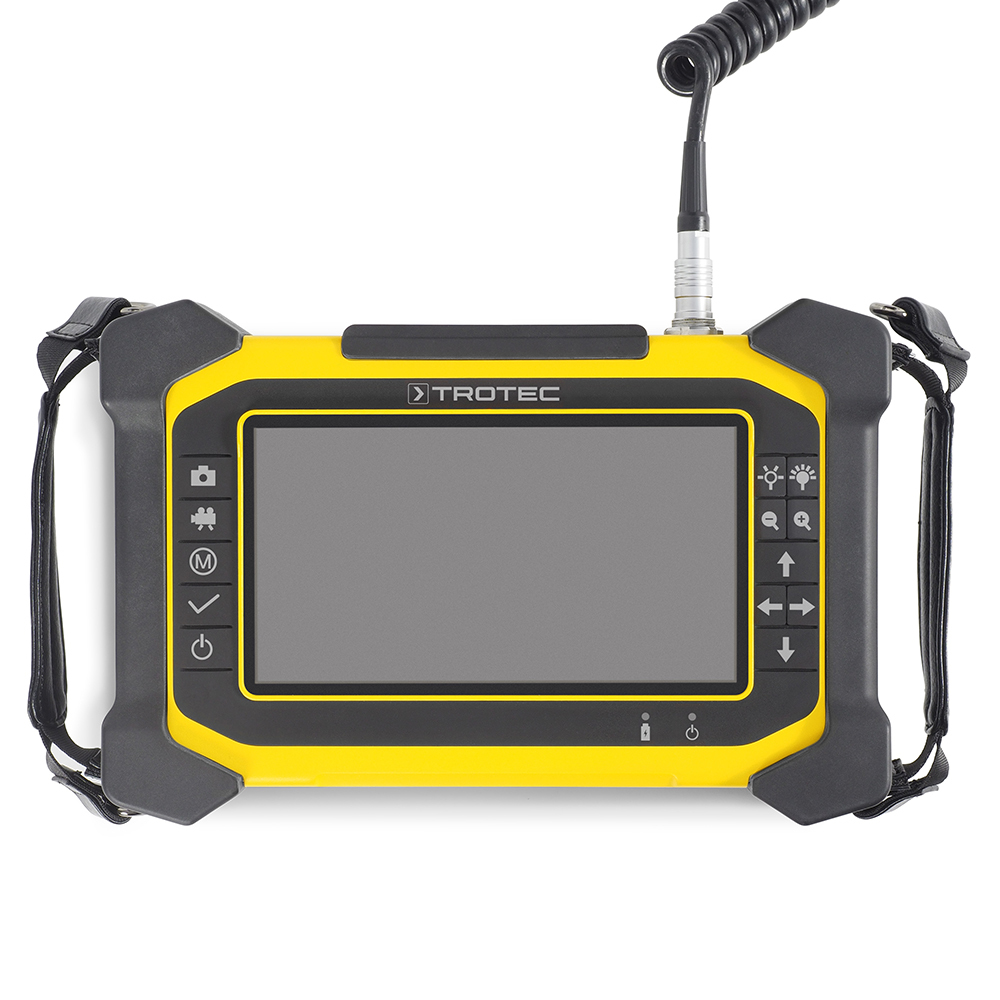

Trotec VSP inspection sytsem VSP control front 1
|

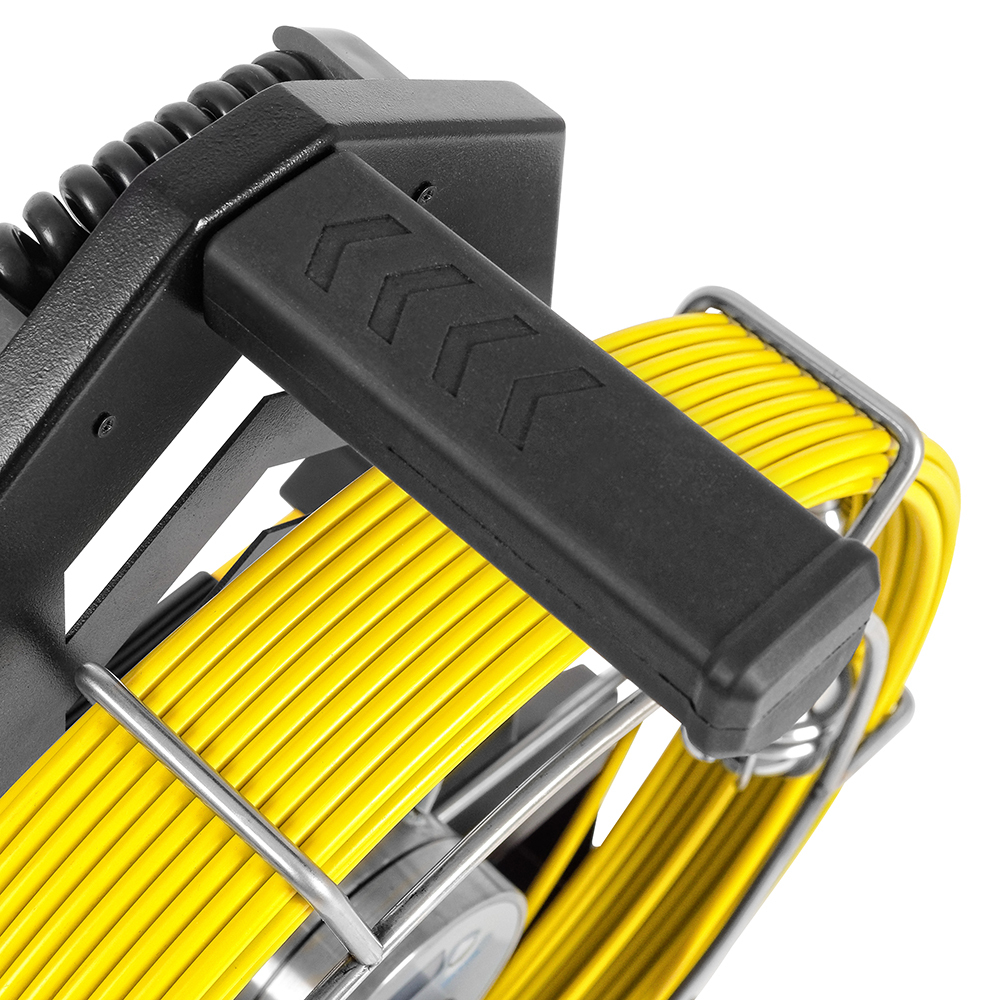

Trotec VSP inspection sytsem detail 2
|
Key features
- Universal solution for many VT applications (virtual testing)
- Modular system – can be flexibly combined and extended
- Colour display and lithium polymer battery system
- Light intense, bendable camera, rotatable and water proof accordance IP67
- Can be expanded with various video endoscopes and borescopes
Product specifications
| Specifications | Units | VSP-VS 4.5-1500 |
|---|---|---|
| Design | Pistol grip with keypad and joystick control | |
| Type of protection (system) | IP64 | |
| Functions | Probe head bending, photograph and video production, lighting brightness | |
| Interfaces | Connection cable with multi-connector for VSP-Control, length approx. 150cm | |
| Probe Diameter | mm | 4.5 |
| Probe Length | m | 1.5 |
| Backlight | 6 LEDs | |
| DOF | mm | 8 - 80 |
| Resolution | pixels | 300,000 |
| Field of vision | ° | >90 |
| Bending | Up/ down/left/right | |
| Design | Tungsten wire mesh with titanium alloy | |
| Type of protection (probe) | IP67 | |
| Product size (l x w x h) without probe | mm | 155 x 110 x 190 |
| Weight | g | 620 |
| Specifications | Units | VSP-VS 6.2-1500-3000 |
|---|---|---|
| Design | Pistol grip with keypad and joystick control | |
| Type of protection (system) | IP64 | |
| Functions | Probe head bending, photograph and video production, lighting brightness | |
| Interfaces | Connection cable with multi-connector for VSP-Control, length approx. 150cm | |
| Probe Diameter | mm | 6.2 |
| Probe Length | m | 1.5 |
| Backlight | 6 LEDs | |
| DOF | mm | 15 to ∞ |
| Resolution | pixels | 300,000 |
| Field of vision | ° | >120 |
| Bending | Up/ down/left/right | |
| Design | Tungsten wire mesh with titanium alloy | |
| Type of protection (probe) | IP67 | |
| Product size (l x w x h) without probe | mm | 155 x 110 x 190 |
| Weight | g | 620 |
Suitable for:
- Agriculture
- Archives and preservation
- Automotive
- Commercial buildings
- Construction
- Data centers and telecoms
- Food and beverage
- Heritage sites
- Industrial, factories and production
- Museums and galleries
- Pharmaceutical and scientific
- Residential buildings
- Warehouses and storage
- Water damage restoration
