Trotec TTW 400000 – professional axial fan
Uber-wind machines
Introducing the TTW 400000, a truly unique wind machine featuring a three-meter blade diameter, a maximum air pressure of 500Pa, and an astonishing airflow rate nearing half a million m³/h. Ideal for maximum air circulation needs, this premium German-made device boasts an exceptionally robust frame and high-quality electronic and mechanical components, ensuring unparalleled durability. Suitable for machine rental companies, industries, and entertainment sectors, it offers stepless regulation of its immense performance with a standard frequency converter. With IP55 protection, it adapts flexibly to indoor and outdoor applications, while a lockable control cabinet ensures secure operation and an additional storage cabinet enhances utility.

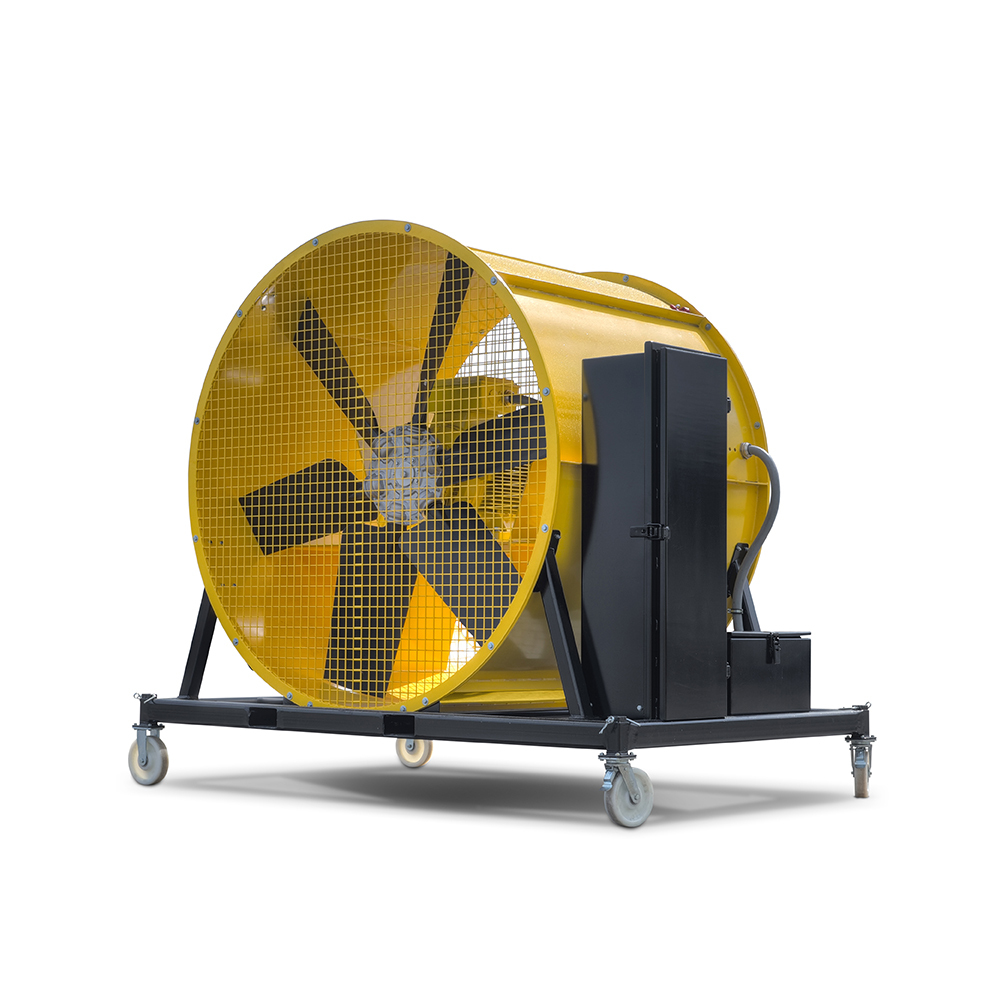

Trotec TTW 400000 main
|

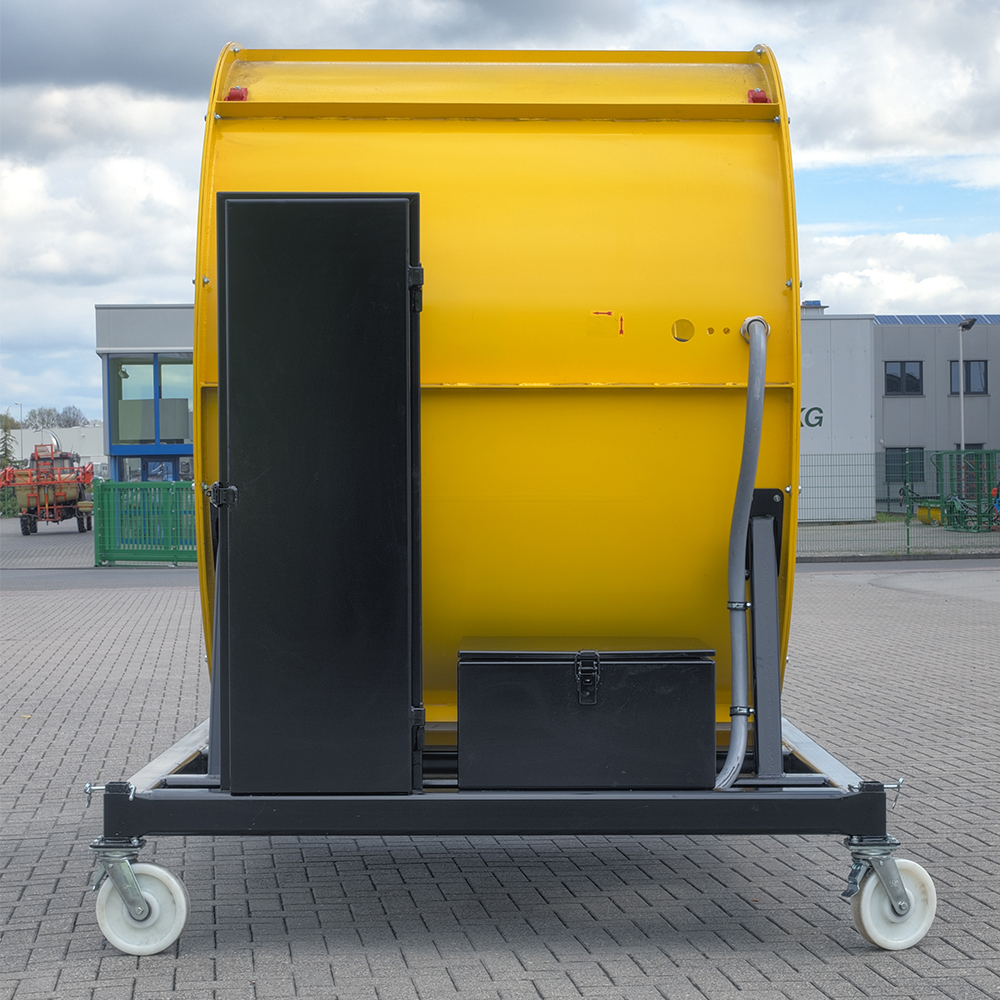

Trotec TTW 400000 side 01
|

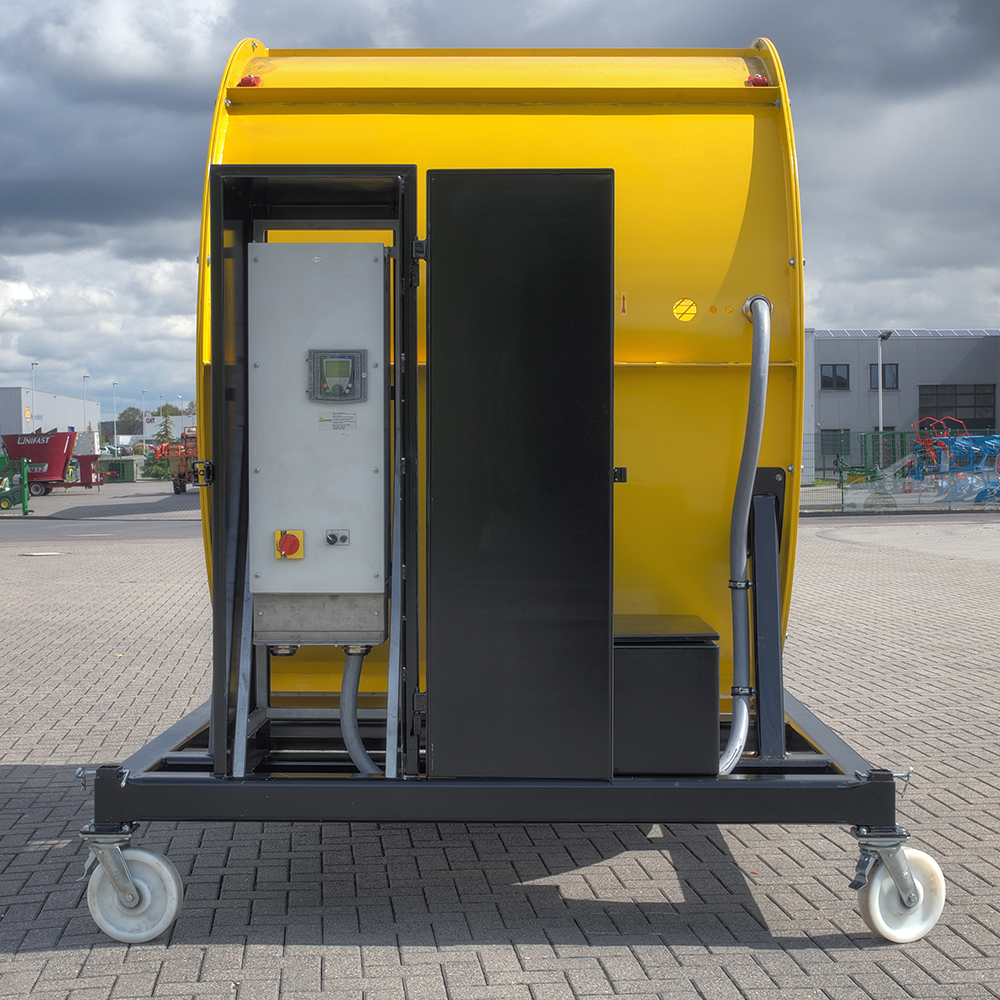

Trotec TTW 400000 side 02
|

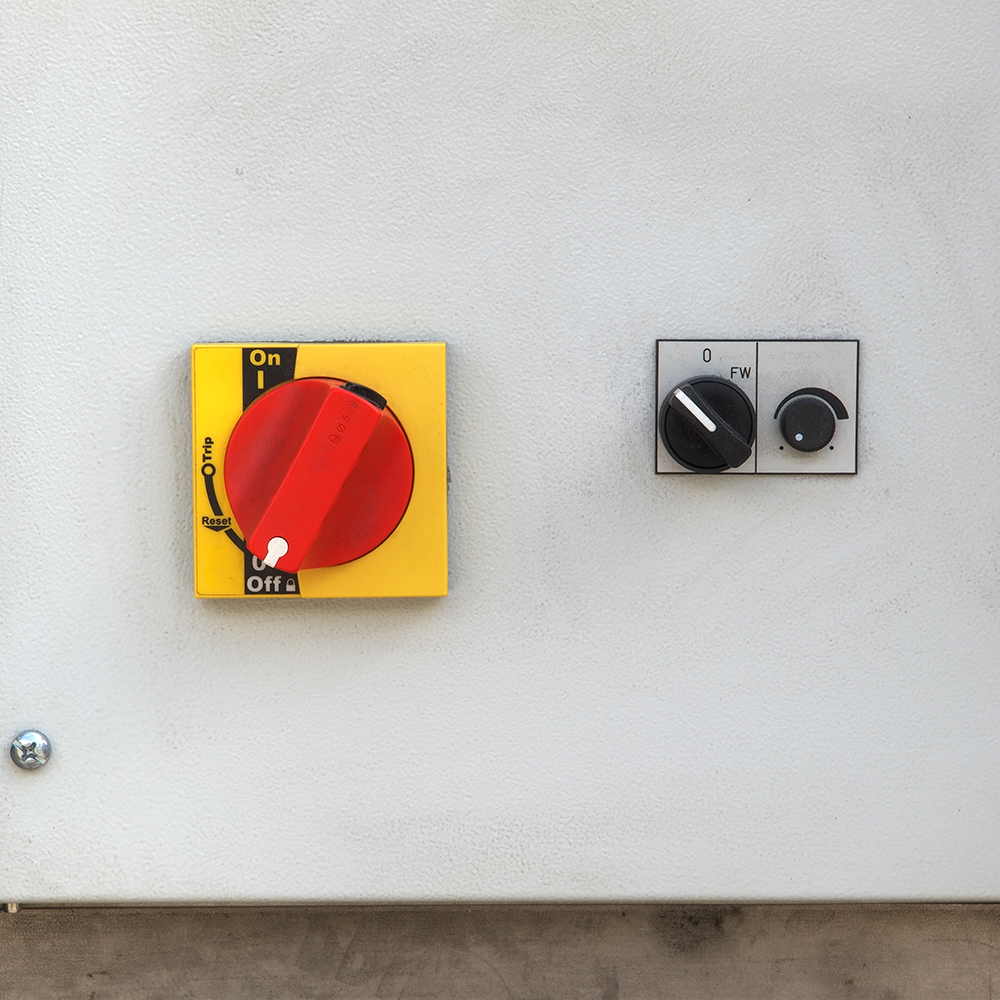

Trotec TTW 400000 operation panel 01
|

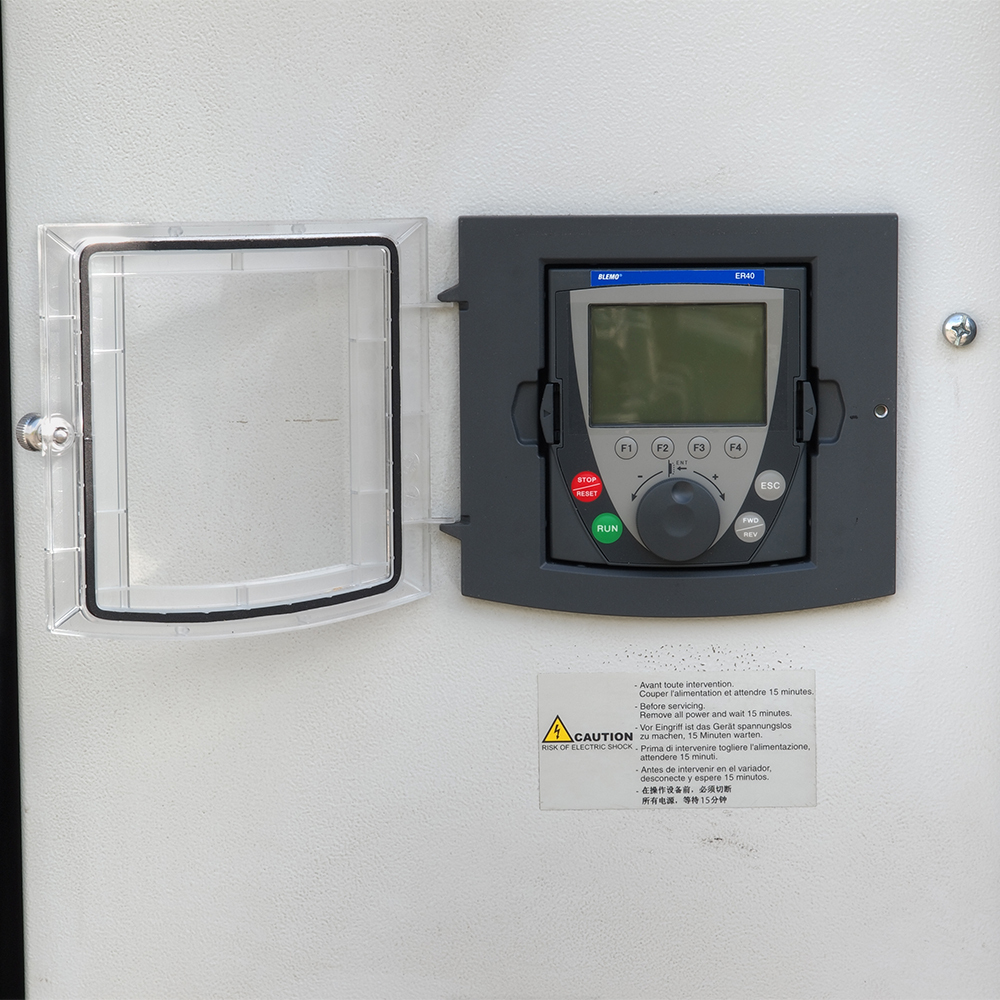

Trotec TTW 400000 operation panel 02
|
Key features
- Extremely robust construction, ideal for rental use
- Continuously adjustable inclination angle of air flow
- Infinitely variable air volume
- IP55-rated ('splashproof')
- Lockable cabinet for secure operation and storage
Product specifications
| Specifications | Units | TTW 400000 |
|---|---|---|
| Air volume freely blowing max. | m³/h | 432,000 |
| Air current | blowing out | |
| Air discharge speed | km/h | 28/100.8 |
| Discharge distance outside/inside | m | 140/500 |
| Fan stages | infinitely variable | |
| Air pressure max. | Pa | 500 |
| Max. transport medium temperature | °C | 40 |
| Power supply | V/Hz | 400/50 |
| Power input | kW | 90 |
| Necessary fuse | A | 200 (direct connection) |
| Protection class | IP55 | |
| Explosion protection | - | |
| Sound level @3m | dB(A) | 92 |
| Product size (l x w x h) | mm | 2200 x 3000 x 2725 |
| Weight | kg | 2,225 |
Suitable for:
- Events and festivals
- Rental companies
