Trotec TTW 100000 – professional axial fan
The TTW 100000 wind machine, a top-tier German-manufactured device, features a sturdy transport frame, premium mechanical and electronic components, rendering it virtually indestructible. Ideal for machine rental companies, industries, and entertainment, its standard frequency converter ensures precise and continuous regulation of the immense output. Protected with IP55, it offers flexibility for both indoor and outdoor use. Additionally, the wind machine comes with an adjustable inclination device for targeted airflow, suitable even for high wall or ceiling areas. Boasting professional quality and variable air volume, this powerhouse is available as an explosion-proof version, making it a practical choice for diverse applications. Technical specifications include an airflow of up to 109,000m³/h, blower speeds, and a weight of 580kg.
![]()

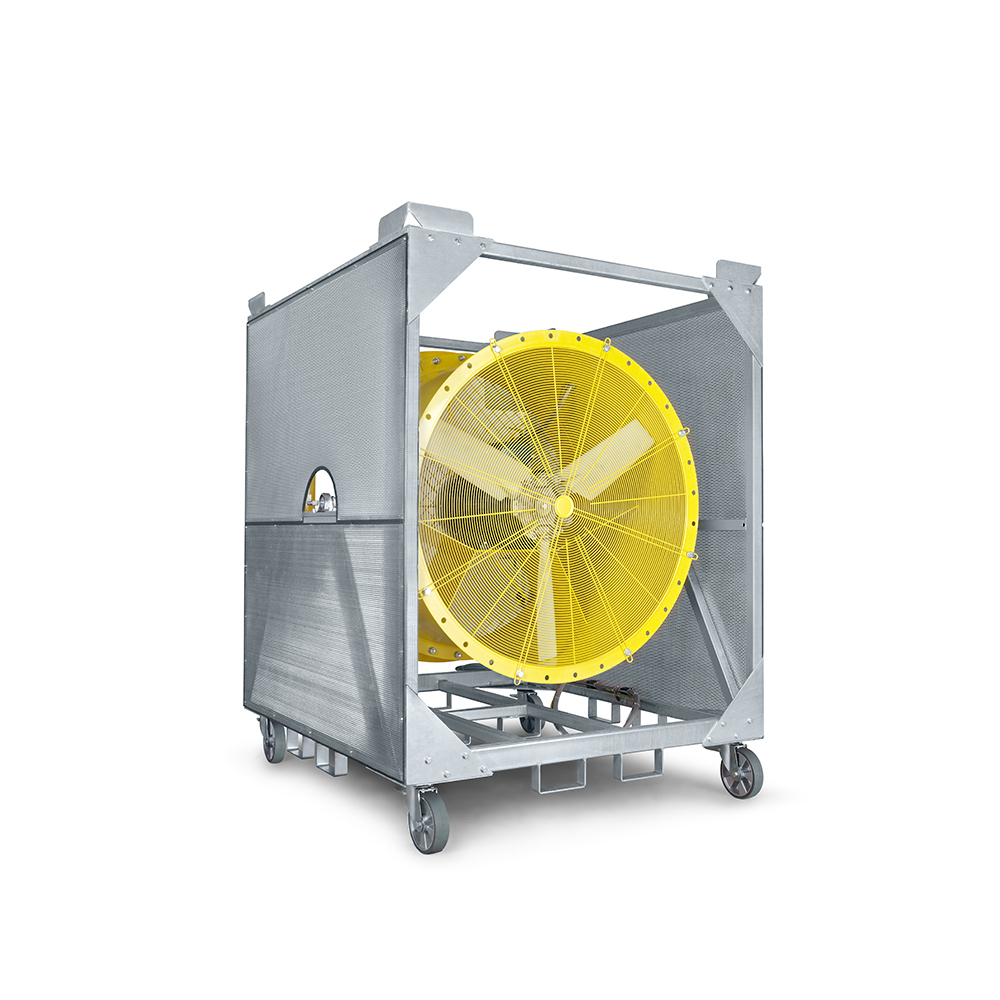

Trotec TTW 100000 main right
| ![]()

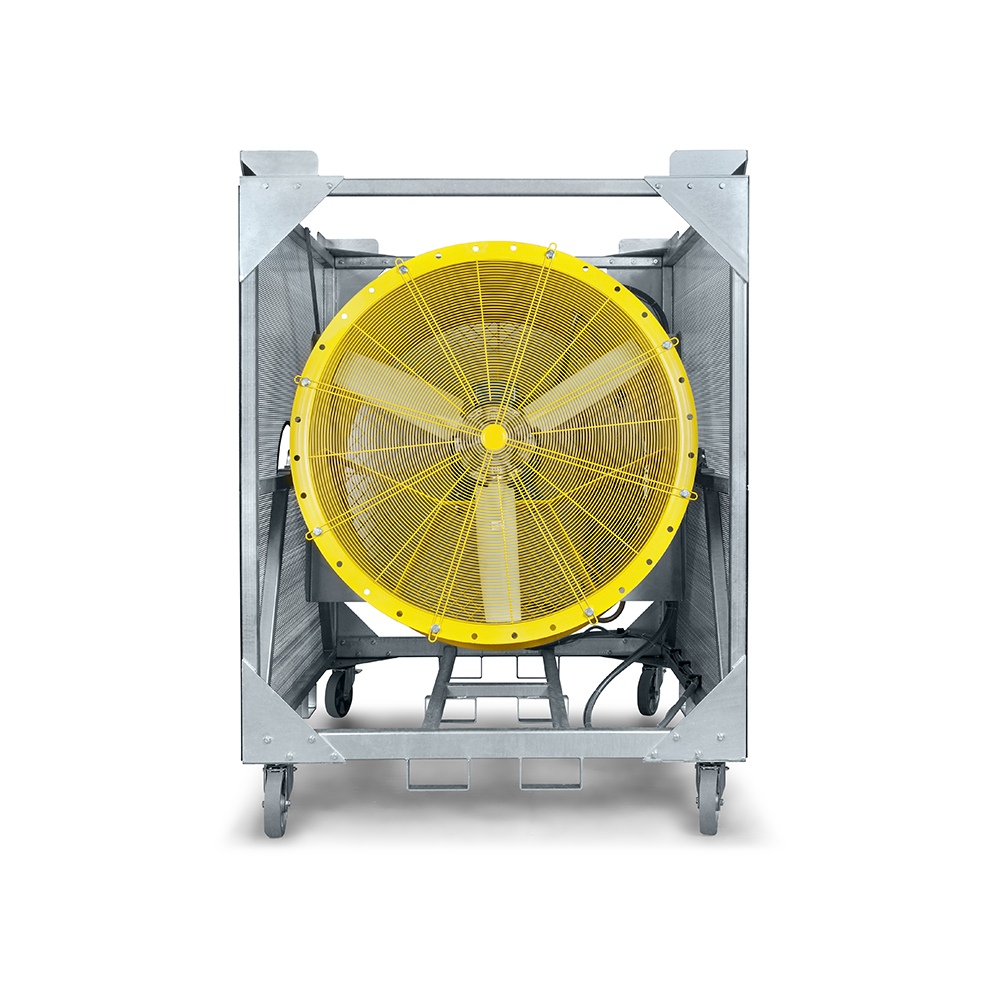

Trotec TTW 100000 front 01
|
![]()

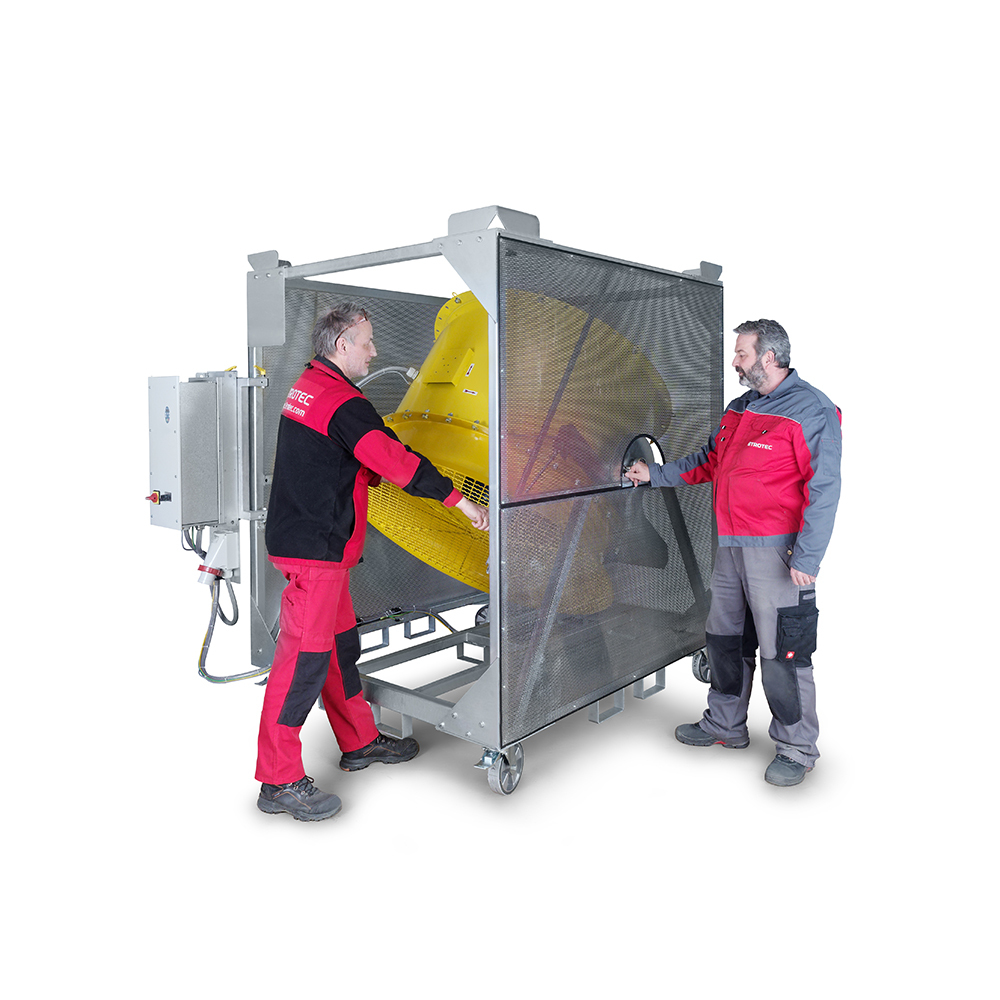

Trotec TTW 100000 adjustment 01
| ![]()

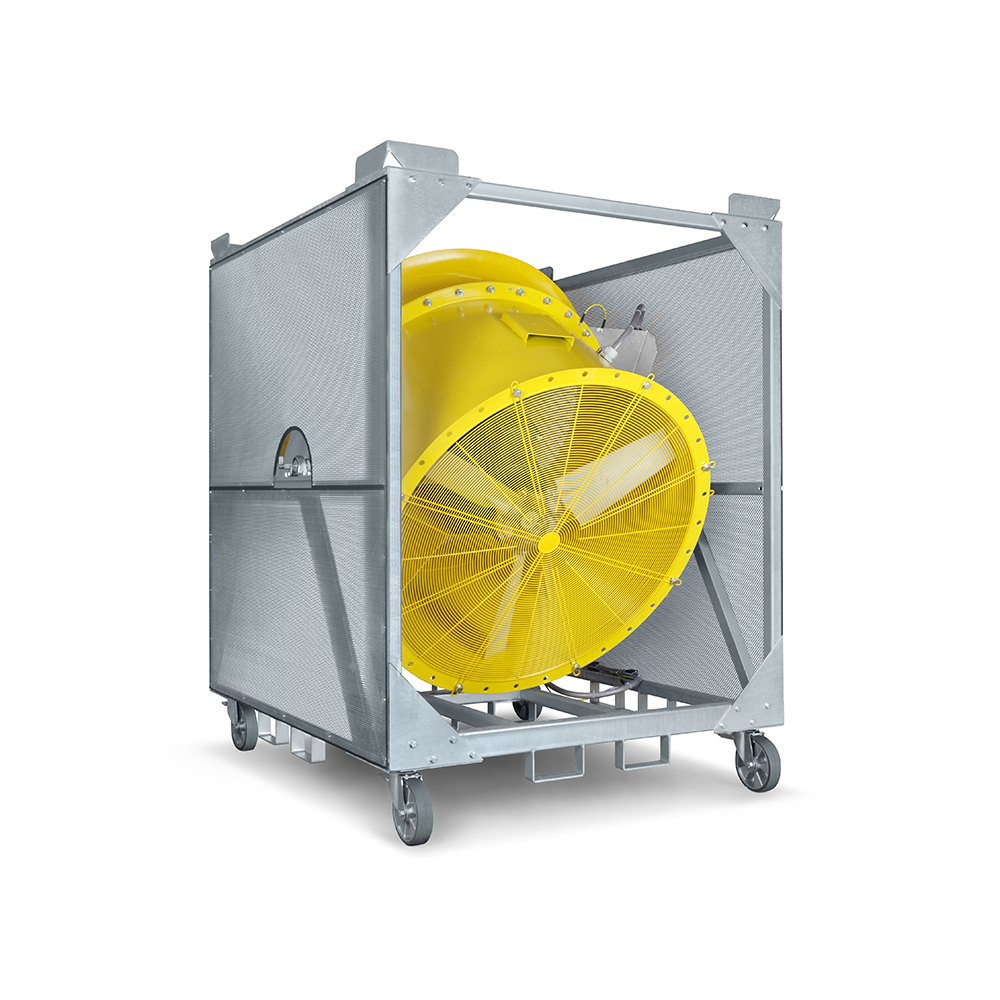

Trotec TTW 100000 angle 01
|
![]()

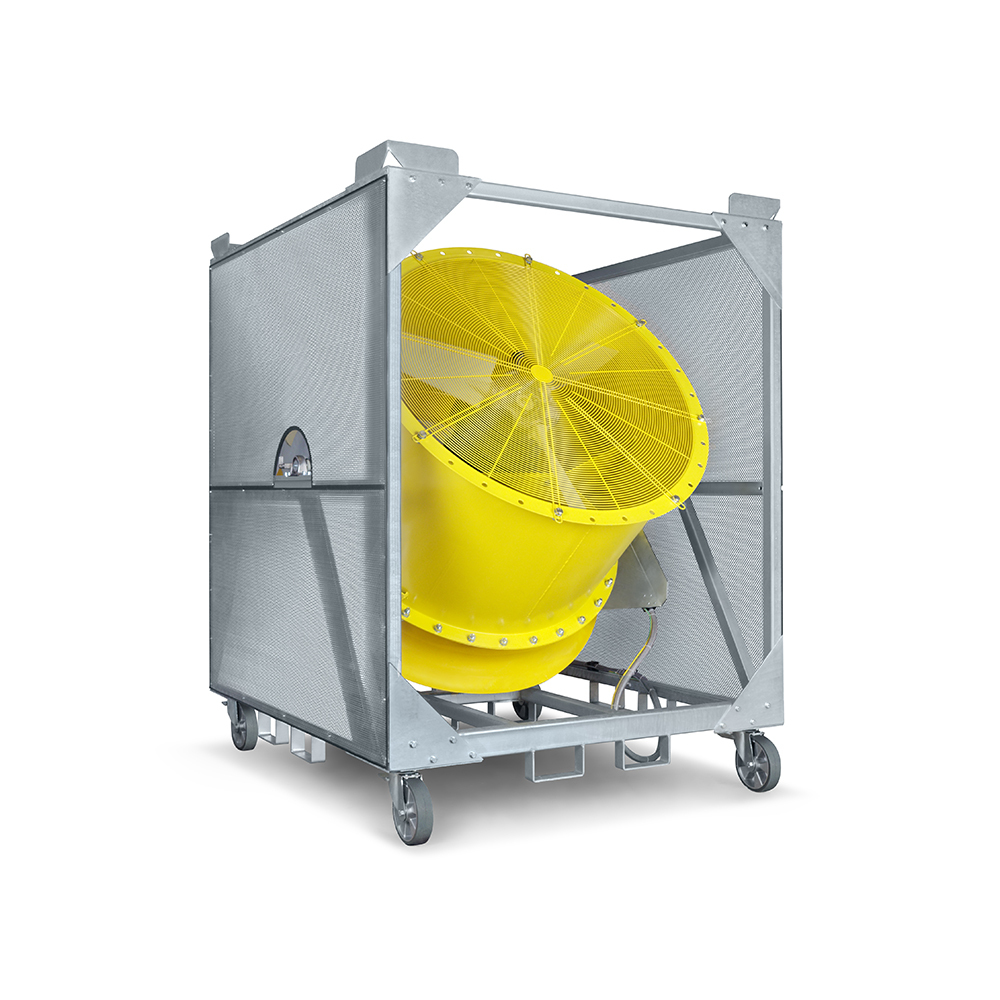

Trotec TTW 100000 angle 05
| ![]()

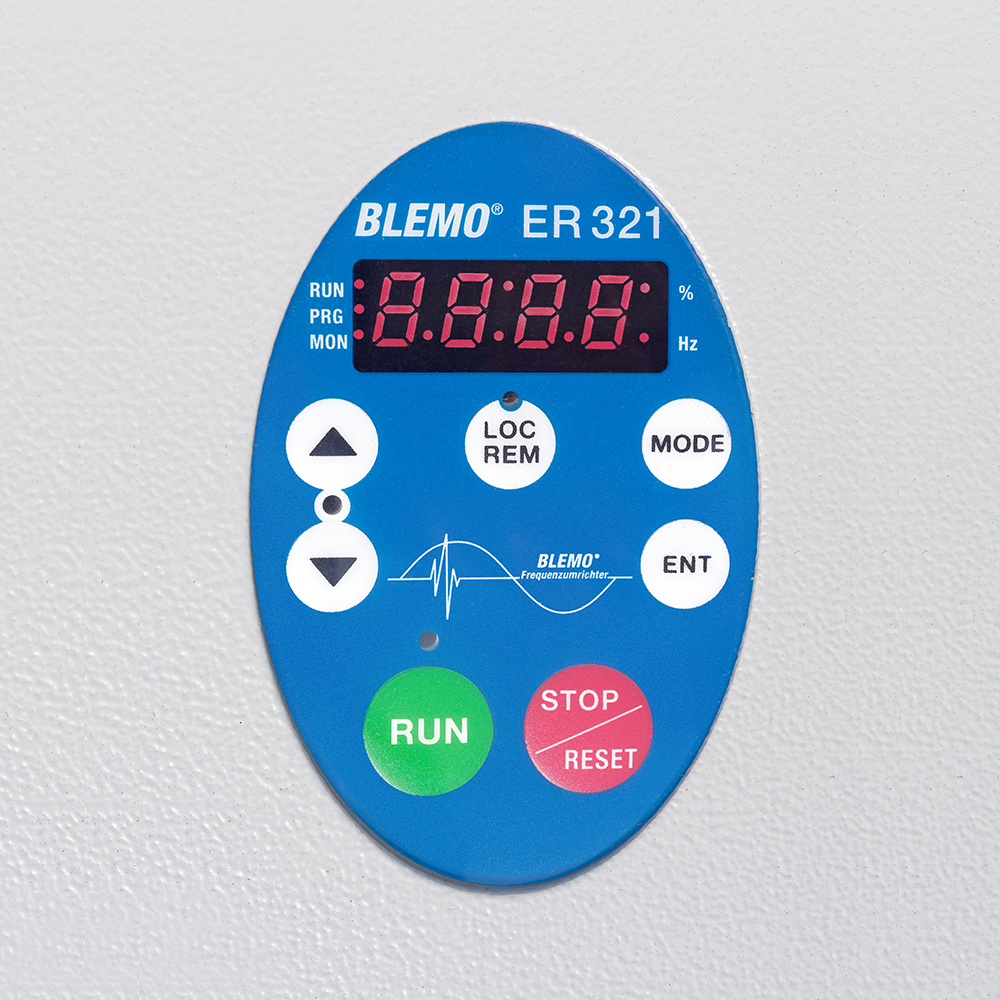

Trotec TTW 100000 operation panel
|
![]()

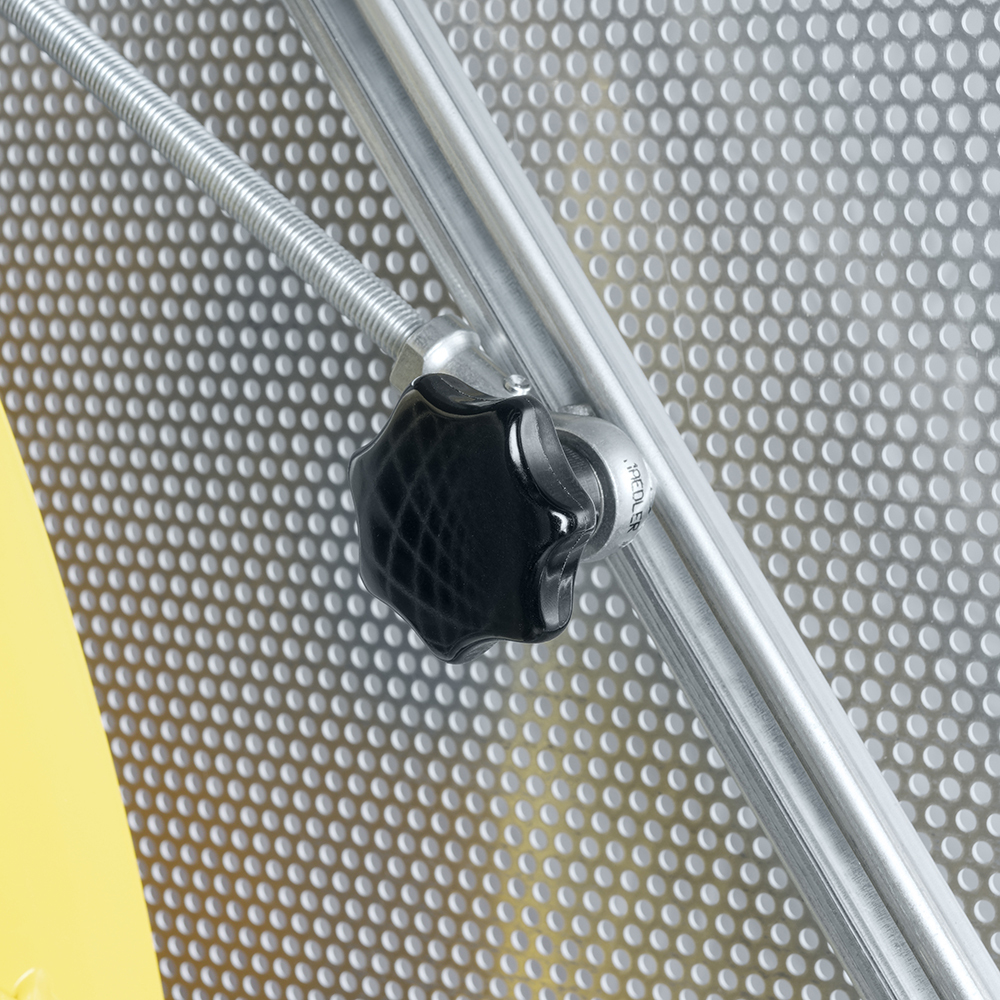

Trotec TTW 100000 detail 01
| ![]()

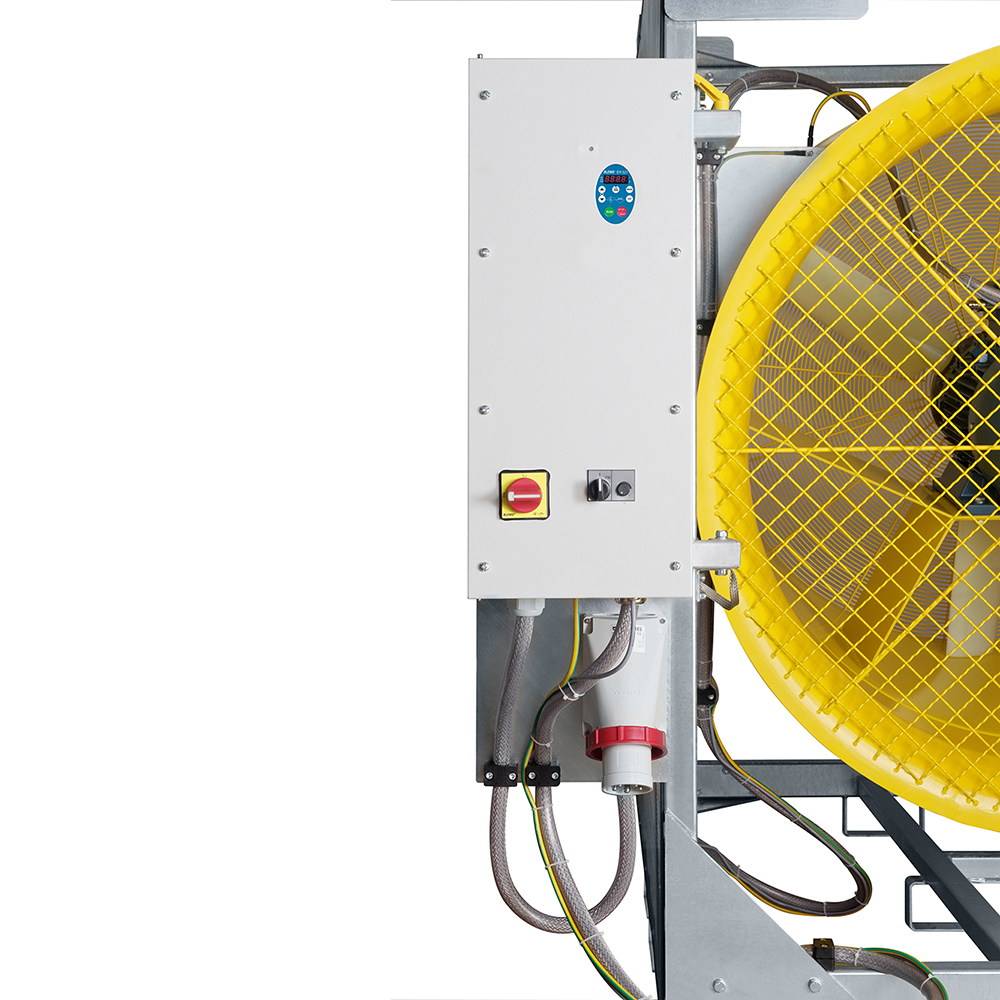

Trotec TTW 100000 detail 02
|
Key features
- Extremely robust construction, ideal for rental use
- Continuously adjustable inclination angle of air flow
- Infinitely variable air volume
- IP55-rated ('splashproof')
- Lockable cabinet for secure operation and storage
- Also available as explosion-proof version
Product specifications
Specifications | Units | TTW 100000 |
---|---|---|
Air volume freely blowing max. | m³/h | 109,000 |
Air current | blowing out | |
Air discharge speed | km/h | 24.6/88.56 |
Discharge distance outside/inside | m | 120/400 |
Fan stages | infinitely variable | |
Air pressure max. | Pa | 600 |
Max. transport medium temperature | °C | 40 |
Power supply | V/Hz | 400/50 |
Power input | kW | 22 |
Necessary fuse | A | 63 |
Protection class | IP55 | |
Explosion protection | - | |
Sound level @3m | dB(A) | 88 |
Product size (l x w x h) | mm | 1830 x 1620 x 2180 |
Weight | kg | 790 |
Suitable for:
- Events and festivals
- Rental companies
