Trotec TTR 500 D – desiccant dehumidifier
The TTR 500 D is a heavy-duty desiccant dehumidifier designed for use in industrial and commercial settings. With a maximum dehumidification performance of 52.8 litres per day, this unit can easily handle high humidity levels in large indoor spaces. Two separate air flows for dry and regeneration air with two separate fans for each circuit secure efficient pressure-tolerant recirculation when setting up the dehumidifier outside as well as inside the room to be treated. The TTR 500 D comes standard in a rugged metal casing and a user-friendly control panel and can be fitted with an optional automatic hygrostat control.
Contact our team to discuss which commercial desiccant dehumidifier or type of industrial dehumidifier is most suitable for your intended purpose.

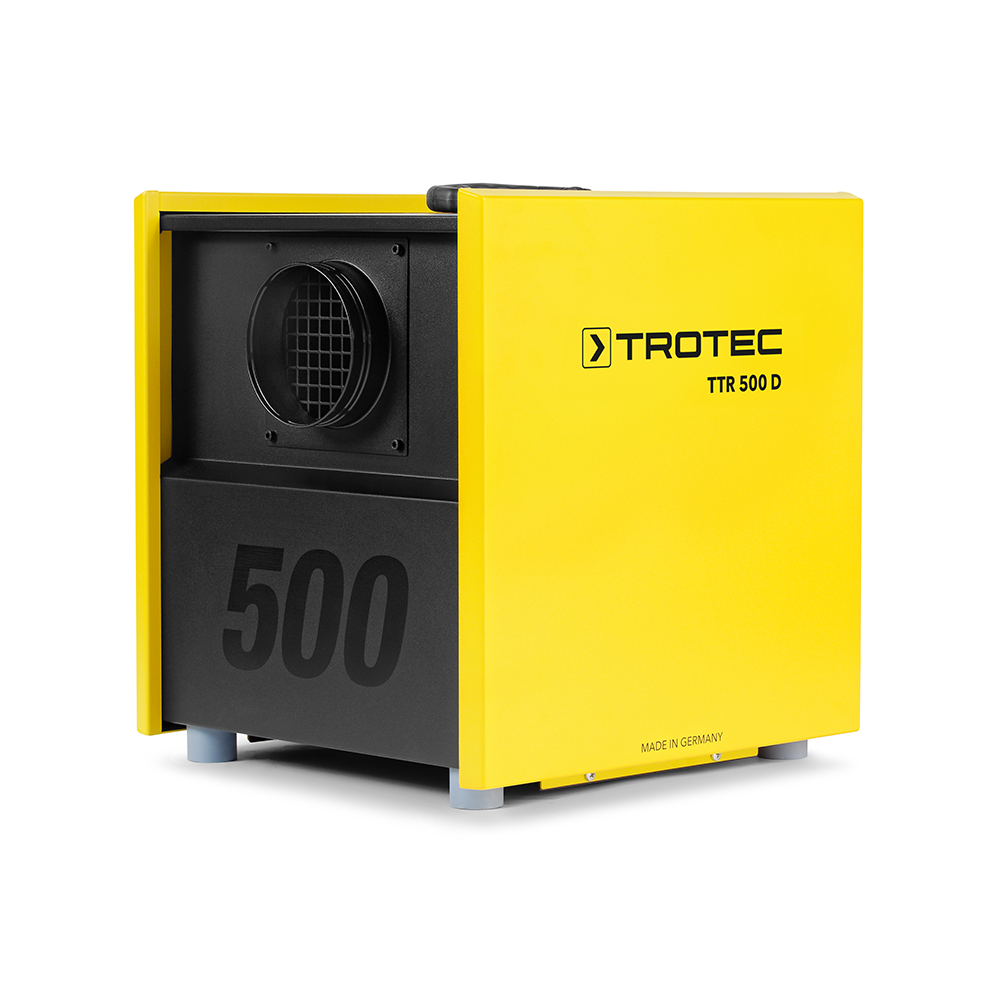

Trotec TTR 500 D perspective left
|

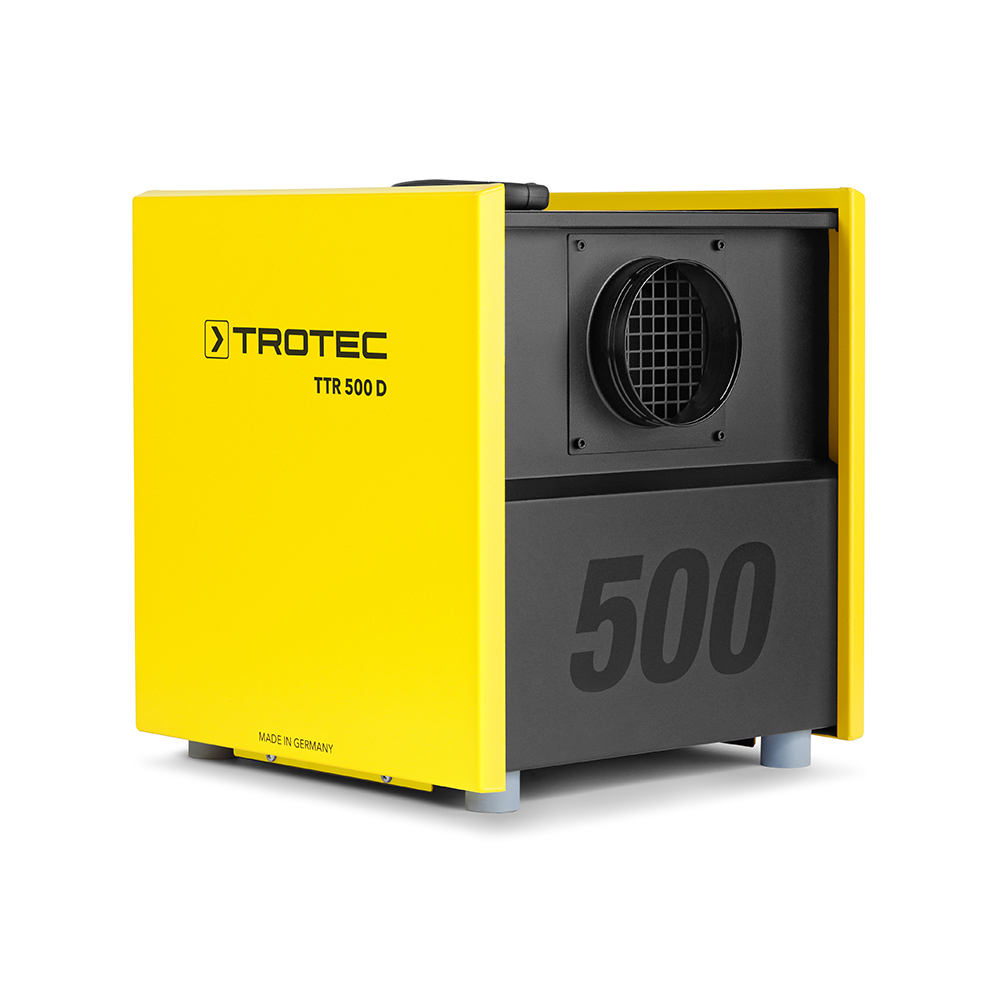

Trotec TTR 500 D perspective right 02
|

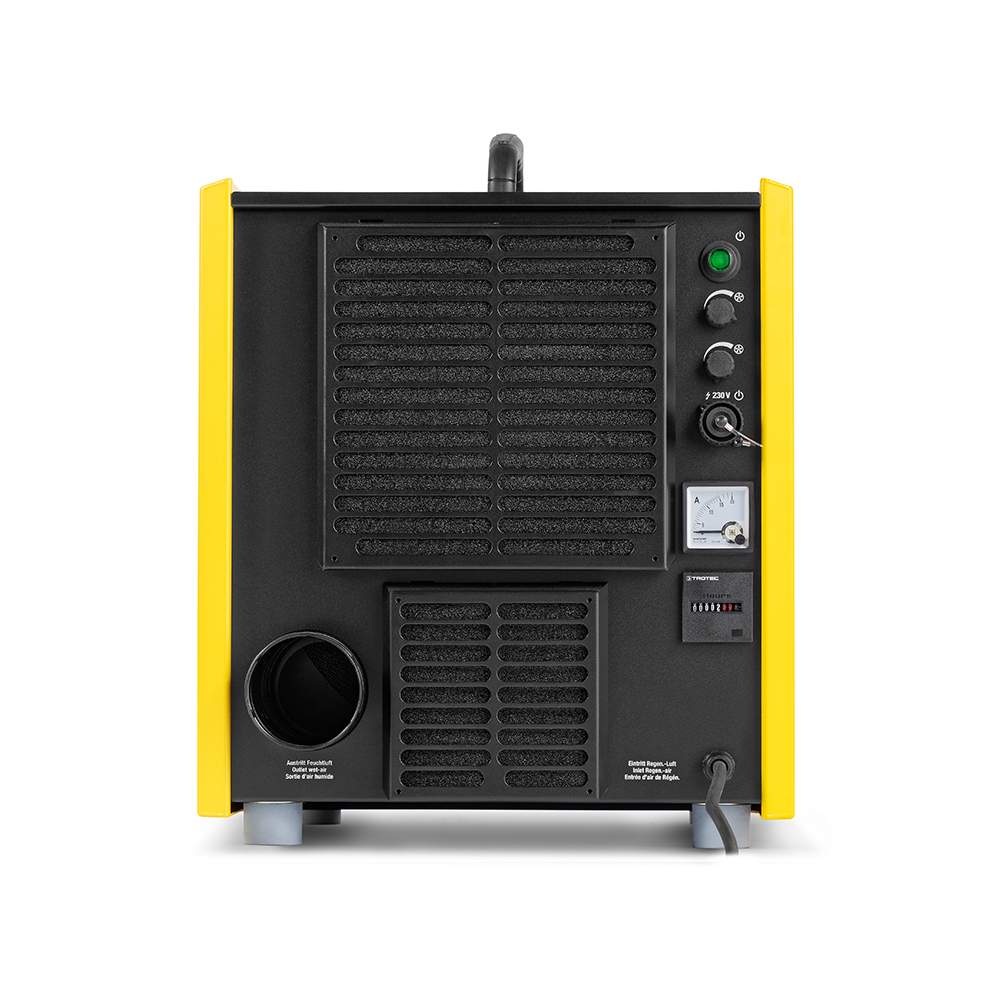

Trotec TTR 500 D back
|

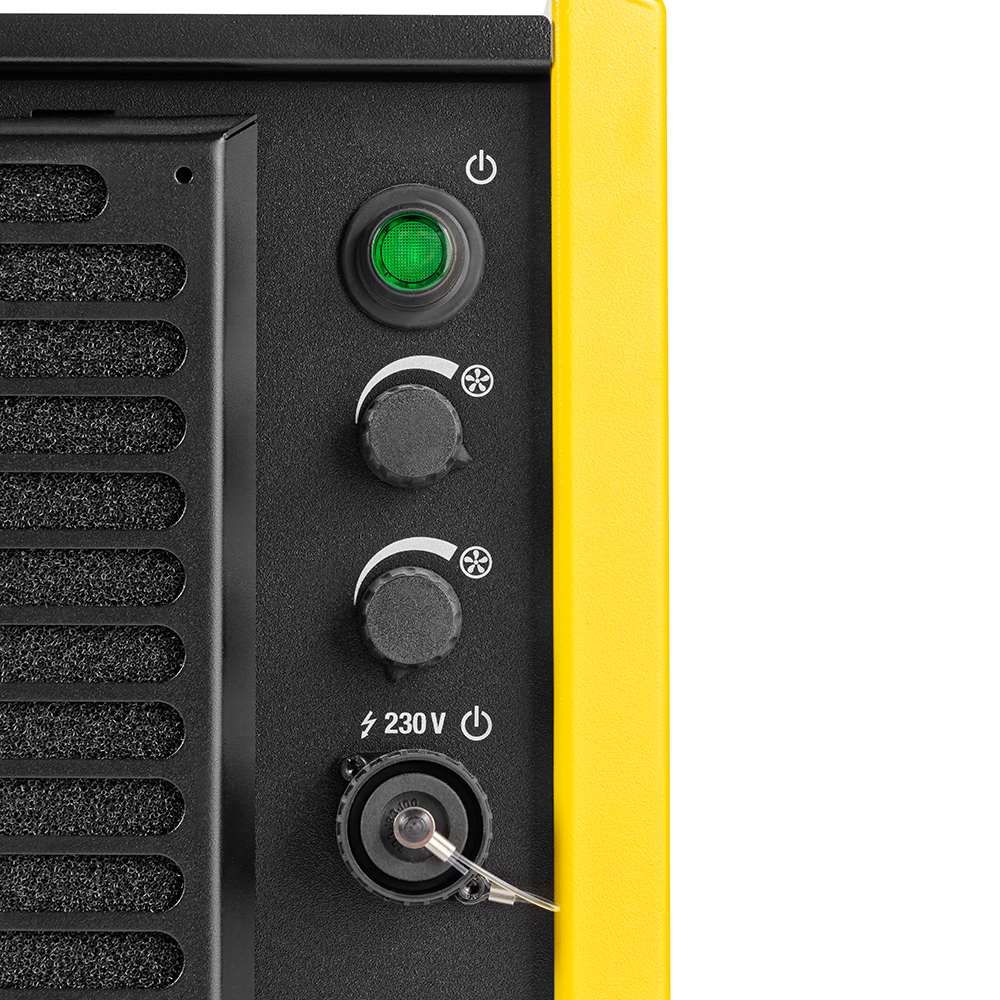

Trotec TTR 500 D oparation panel
|

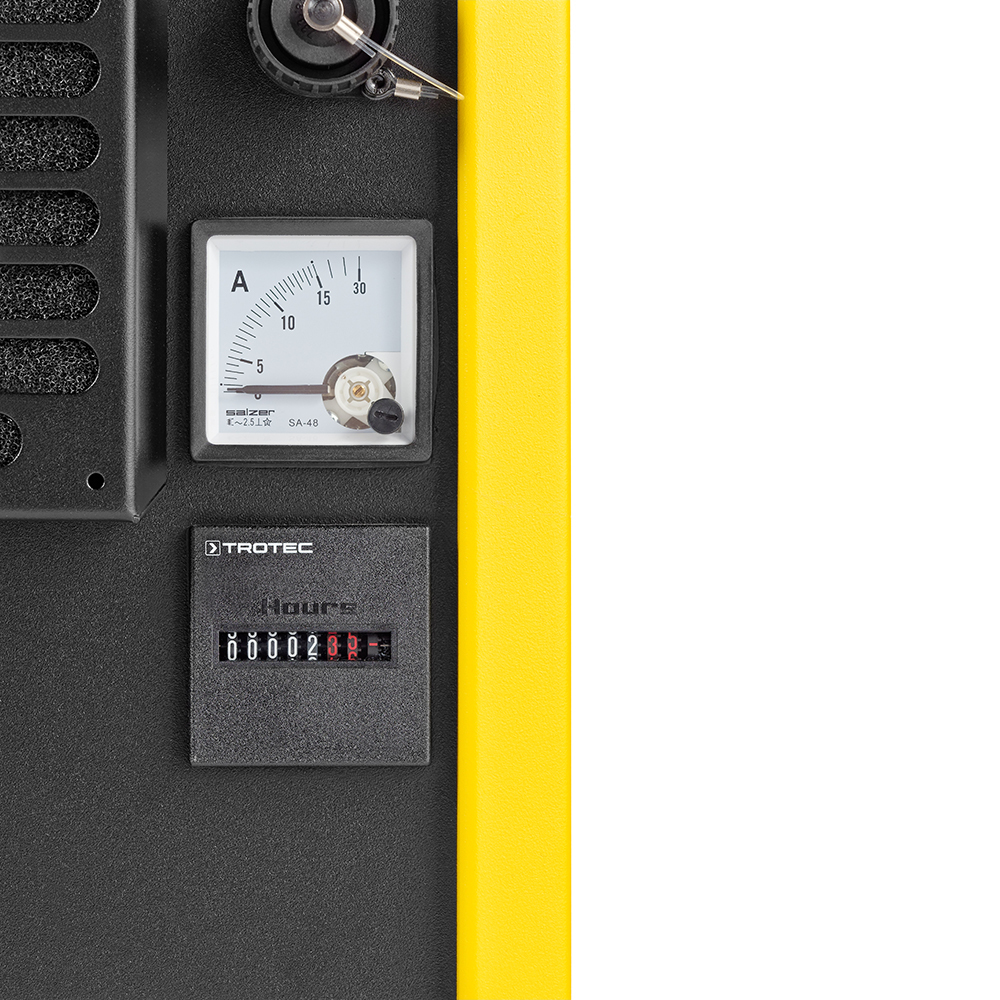

Trotec TTR 500 D hour counter
|

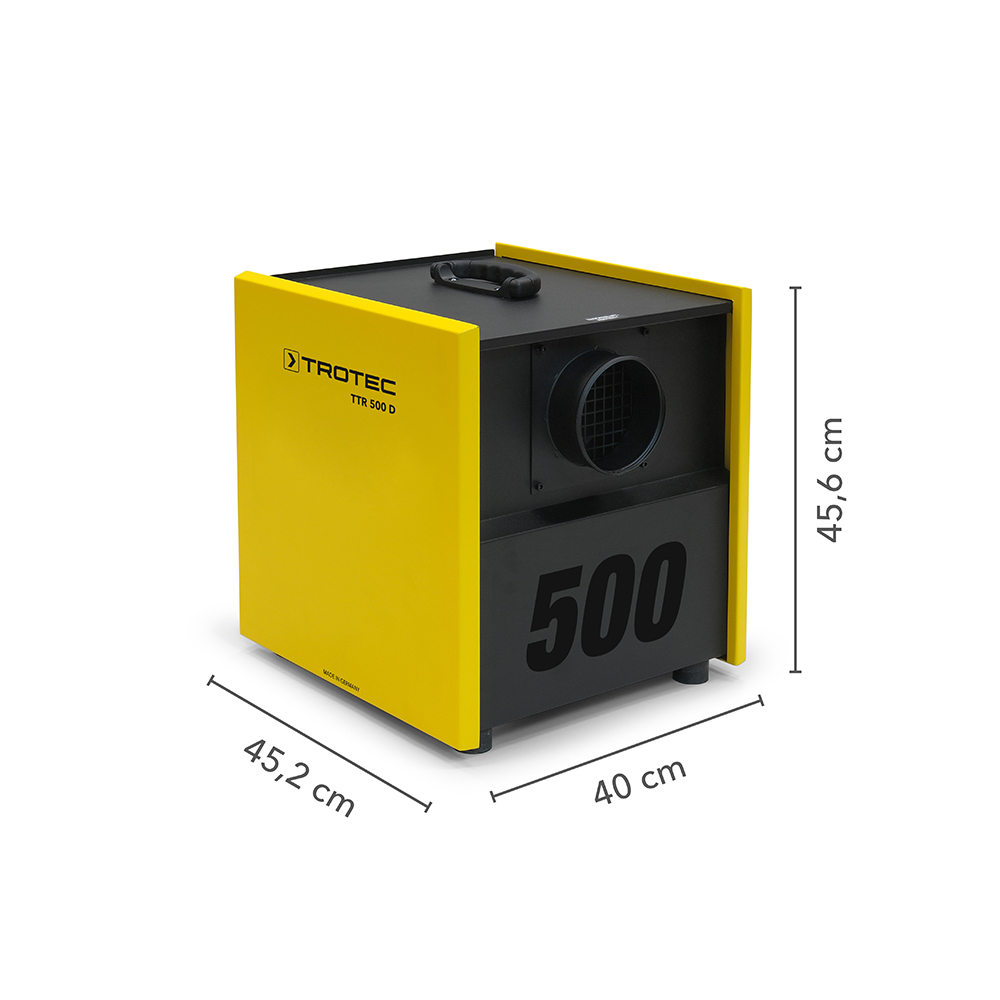

Trotec TTR 500 D dimensions
|
Key features
- Advanced monoventic air volume regulation system for accurate stepless adjustment of dry air volume
- Up to 30% lighter than comparable units
- Maximised performance, minimal size and weight
- Very easy to maintain
- Extremely durable powder-coated steel sheet construction
- Lightweight and easy to handle
- Stackable design saves space
- Electronic regulation of air amount - infinitely adjustable
- Duoventic principle: Separate, infinite adjustment of moisture content and volumetric flow of the required dry air
- Two separate air circuits for a pressure-neutral circulatory air operation
Product specifications
| Specifications | Units | TTR 500 D |
|---|---|---|
| Capacity (20°C/60% RH) | kg/h | 2.2 |
| Dry air range | m³/h | 180 - 550 |
| Dry air volume nominal | m³/h | 480 |
| Available pressure | Pa | 150 |
| Regeneration air flow | m³/h | 80 |
| Available pressure | Pa | 80 |
| Operating temperature range | °C | -15 - +35 |
| Operating humidity range | % RH | 0 - 100 |
| Power supply | V/Hz | 230/1ph/50-60 |
| Power input total | kW | 3.0 |
| Power input heating | kW | 2.7 |
| Sound level @1m | dB(A) | 74 |
| Connections dry air outlet | Ømm | 125 |
| Connections humid air outlet | Ømm | 80 |
| Product size (l x w x h) | mm | 443 x 400 x 452 |
| Weight | kg | 25 |
Suitable for:
- Archives and preservation
- Commercial buildings
- Construction
- Industrial, factories and production
- Museums and galleries
- Rental companies
- Warehouses and storage
- Water damage restoration
- Waterworks
