Trotec TTR 400 D – desiccant dehumidifier
The TTR 400 D is a robust and powerful desiccant dehumidifier designed for use in demanding industrial and commercial settings. With its advanced technology and high capacity, this mobile dehumidifier provides efficient moisture control, enabling fast drying and maintaining optimal humidity levels. Its user-friendly interface and intuitive controls make operation easy, while its compact size and portable design offer flexibility in placement. Equipped with a powerful blower and adjustable settings, the TTR 400 D effectively removes excess moisture, preventing mold, condensation, and other moisture-related issues.
Contact our team to discuss which commercial desiccant dehumidifier or type of industrial dehumidifier is most suitable for your intended purpose.

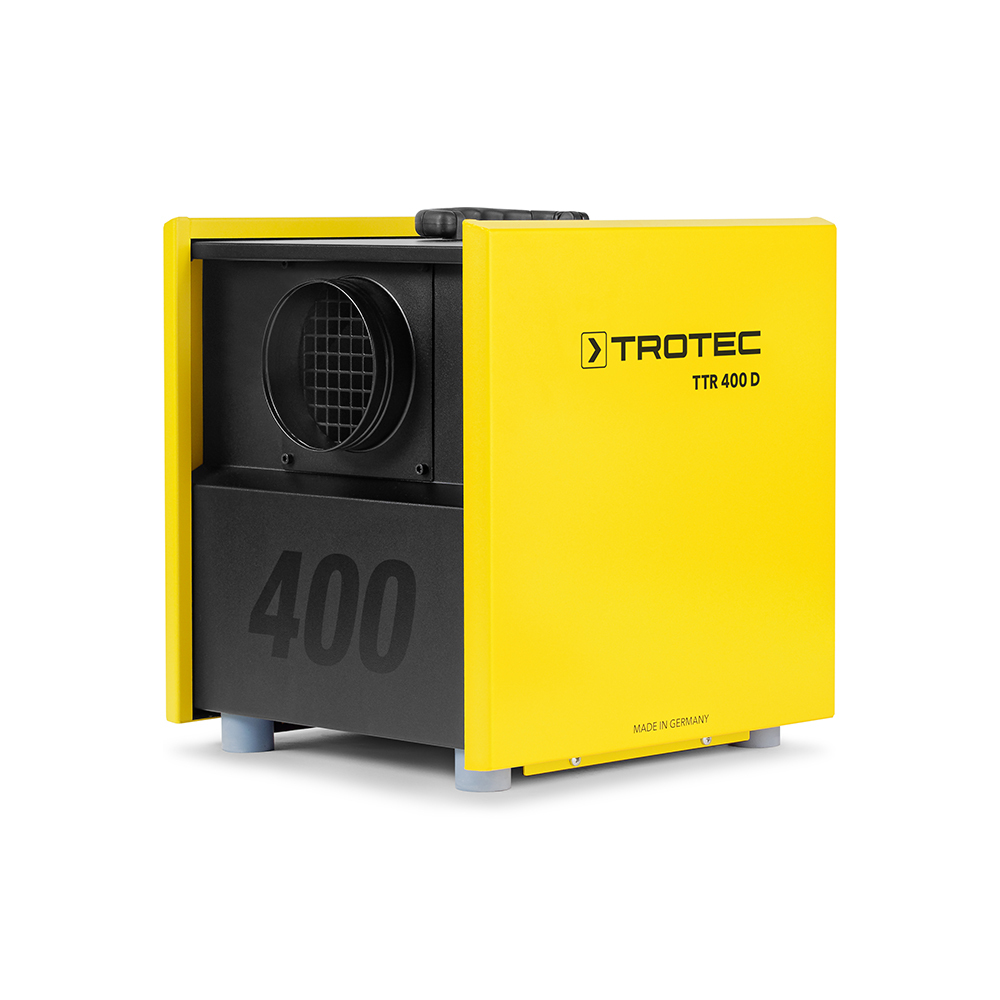

Trotec TTR 400 D perspective left
|

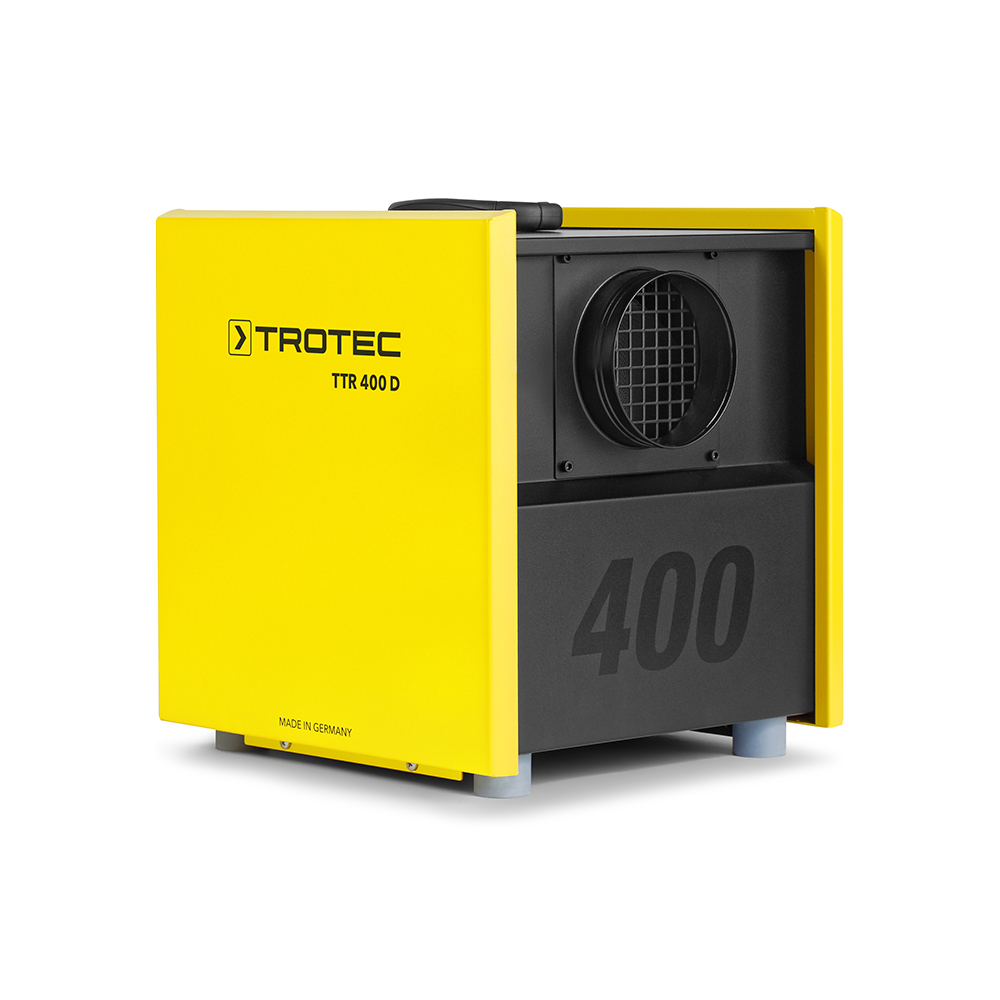

Trotec TTR 400 D perspective right 02
|

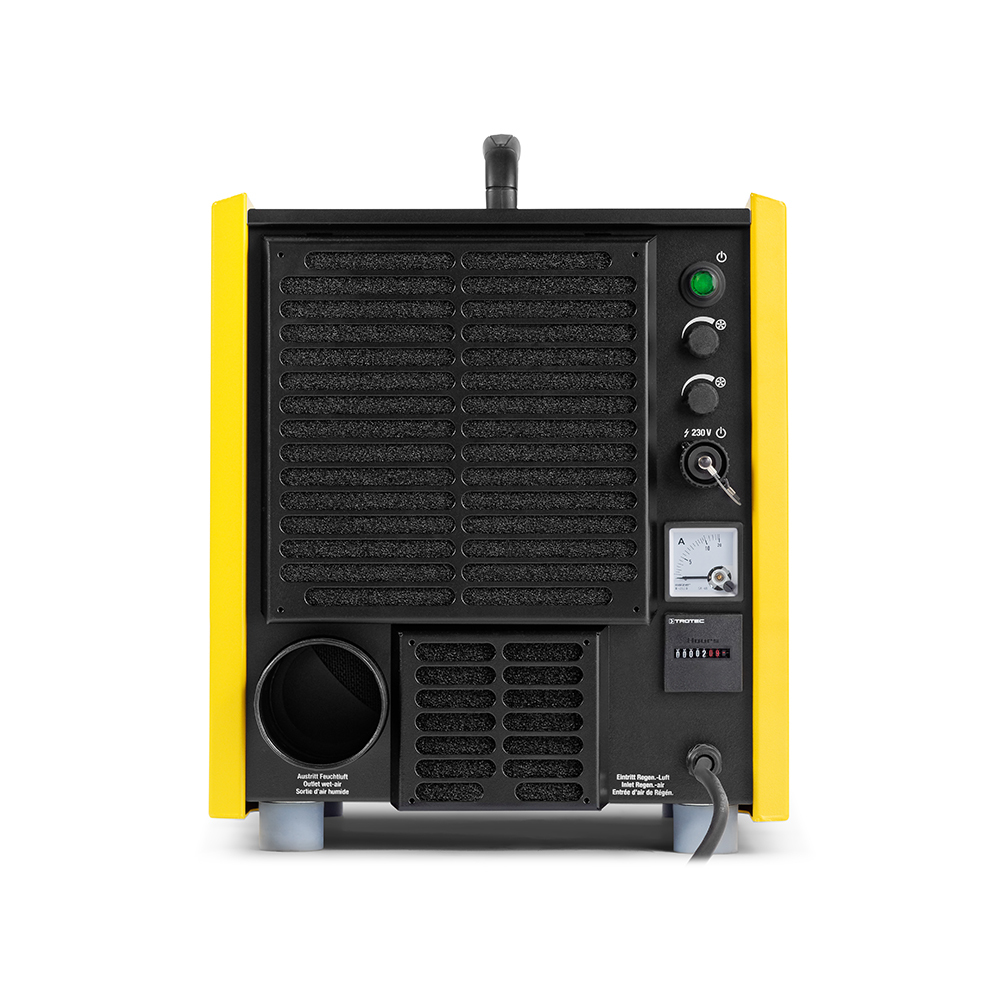

Trotec TTR 400 D back
|

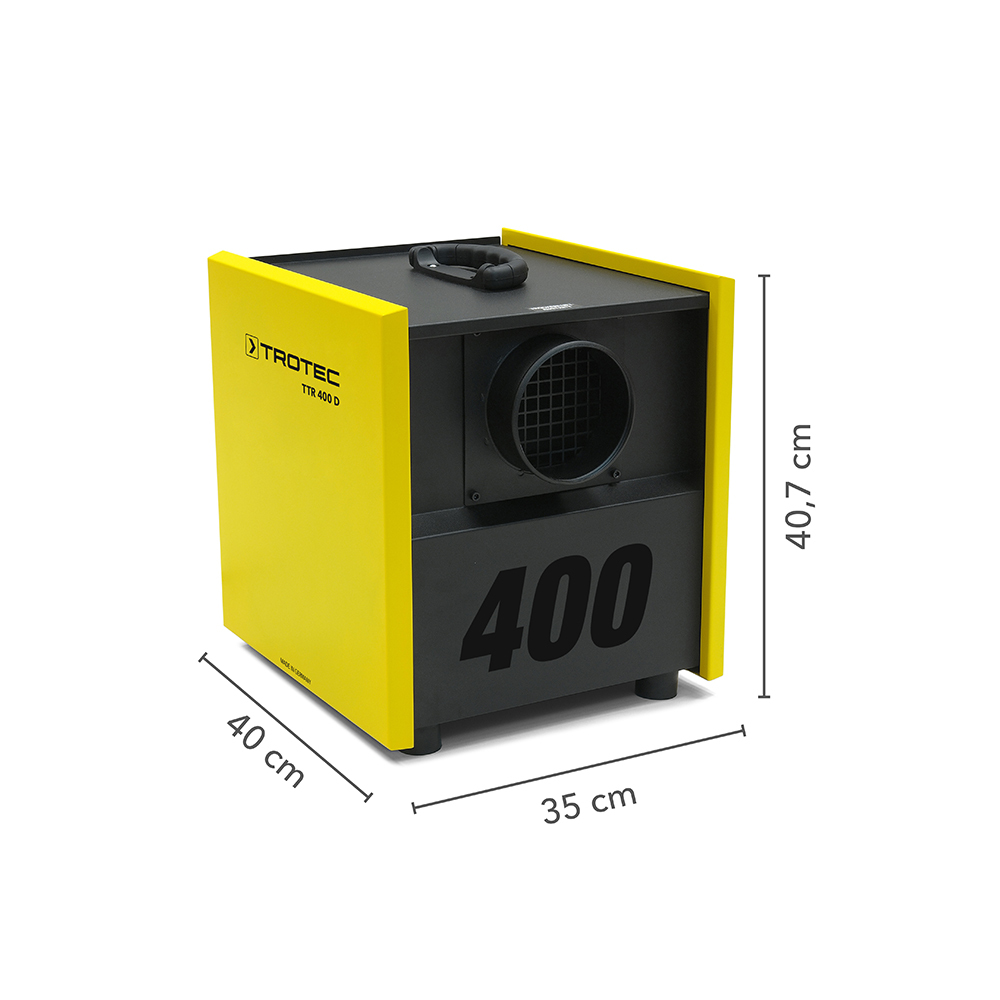

Trotec TTR 400 D dimensions
|
Key features
- Advanced monoventic air volume regulation system for accurate stepless adjustment of dry air volume
- Up to 30% lighter than comparable units
- Maximised performance, minimal size and weight
- Very easy to maintain
- Extremely durable powder-coated steel sheet construction
- Lightweight and easy to handle
- Stackable design saves space
- Electronic regulation of air amount - infinitely adjustable
- Duoventic principle: Separate, infinite adjustment of moisture content and volumetric flow of the required dry air
- Two separate air circuits for a pressure-neutral circulatory air operation
Product specifications
| Specifications | Units | TTR 400 D |
|---|---|---|
| Capacity (20°C/60% RH) | kg/h | 1.6 |
| Dry air range | m³/h | 130 - 450 |
| Dry air volume nominal | m³/h | 350 |
| Available pressure | Pa | 200 |
| Regeneration air flow | m³/h | 65 |
| Available pressure | Pa | 80 |
| Operating temperature range | °C | -15 - +35 |
| Operating humidity range | % RH | 0 - 100 |
| Power supply | V/Hz | 230/1ph/50-60 |
| Power input total | kW | 2.2 |
| Power input heating | kW | 1.95 |
| Sound level @1m | dB(A) | 63 |
| Connections dry air outlet | Ømm | 125 |
| Connections humid air outlet | Ømm | 80 |
| Product size (l x w x h) | mm | 443 x 350 x 405 |
| Weight | kg | 20 |
Suitable for:
- Archives and preservation
- Commercial buildings
- Construction
- Industrial, factories and production
- Museums and galleries
- Rental companies
- Residential buildings
- Warehouses and storage
- Water damage restoration
- Waterworks
