Trotec TTR 200 – desiccant dehumidifier

Industrial desiccant dehumidifier

The TTR 200 is a powerful and versatile desiccant dehumidifier suitable for use in a range of applications. With a maximum dehumidification performance of 8.4 kg per day, this compact and portable unit is ideal for use in small to medium-sized rooms. The TTR 200 features an easy-to-use control panel, optional automatic hygrostat control, and a robust metal casing for long-lasting durability. It is ideal for for continuous room air drying or for mobile drying applications in water damage restoration.

Contact our team to discuss which desiccant dehumidifier or type of commercial dehumidifier is most suitable for your intended purpose.

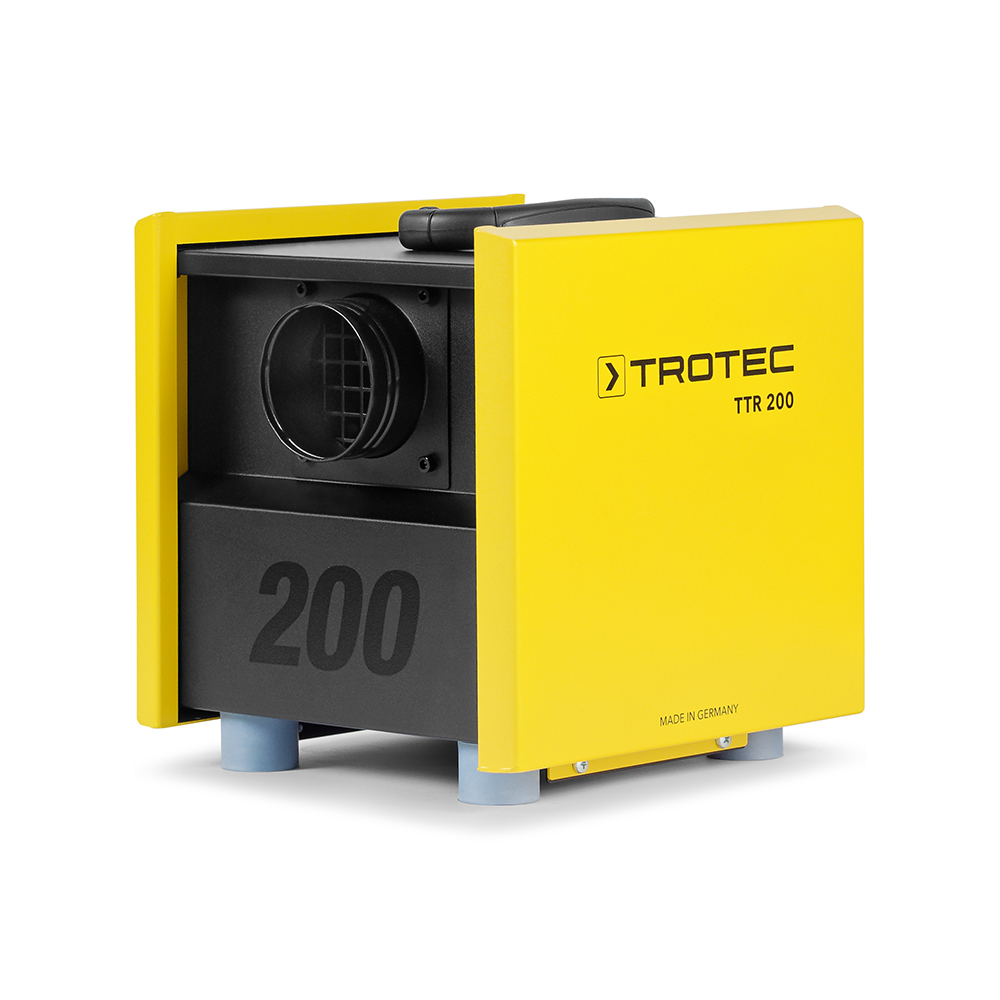

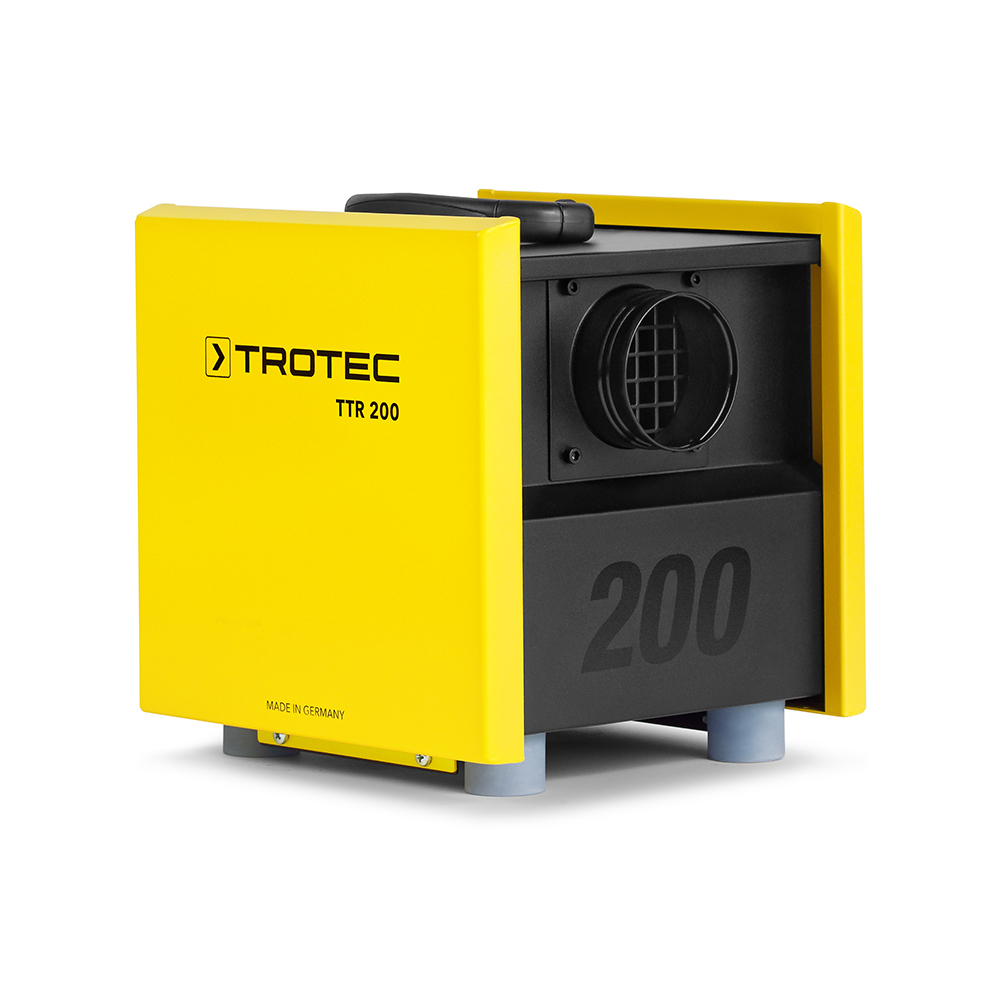

Trotec TTR 200 perspective left 02	Trotec TTR 200 perspective right 02

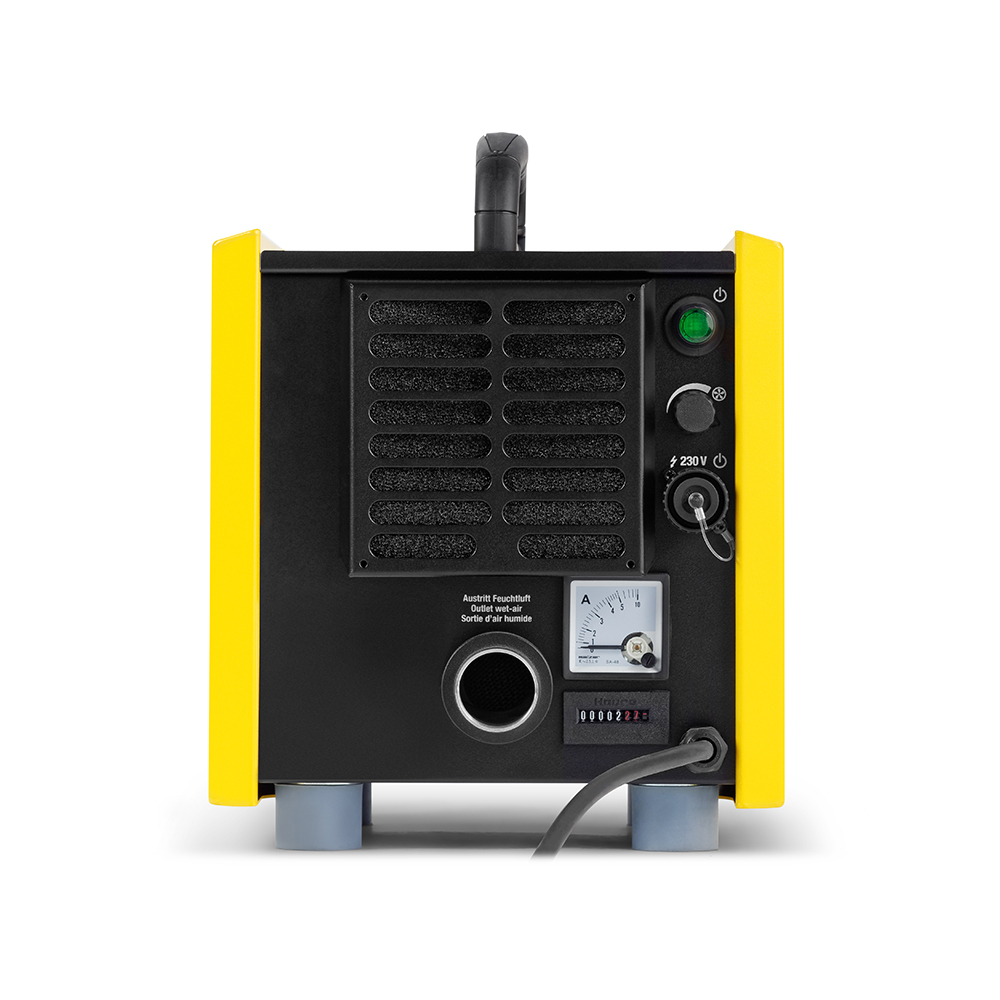

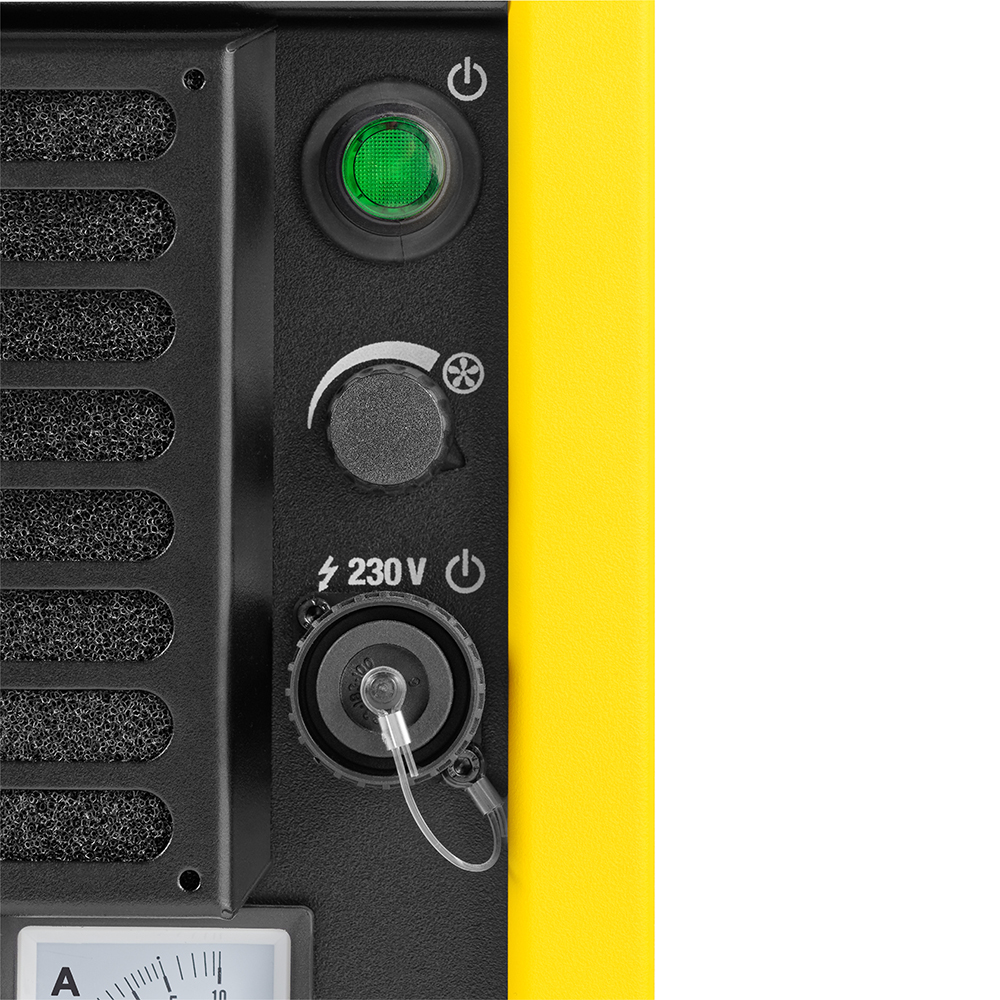

Trotec TTR 200 back	Trotec TTR 200 operation panel

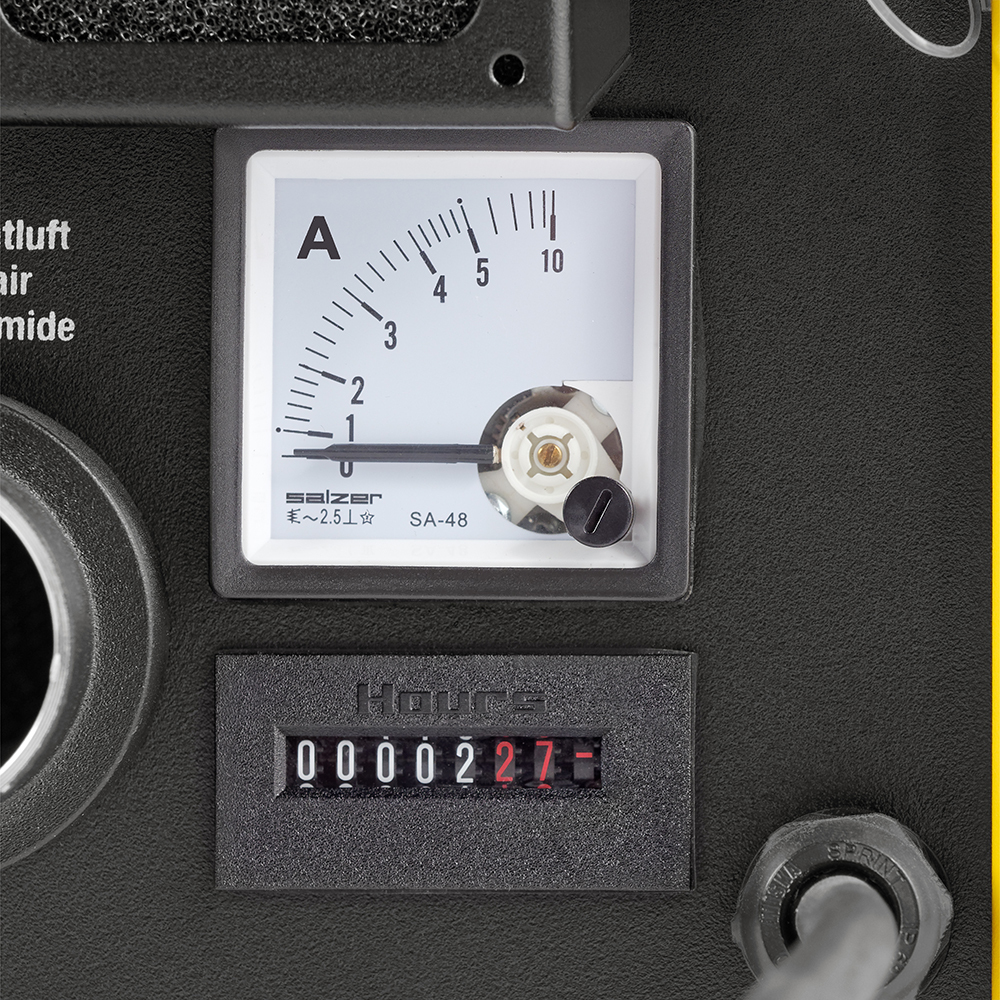

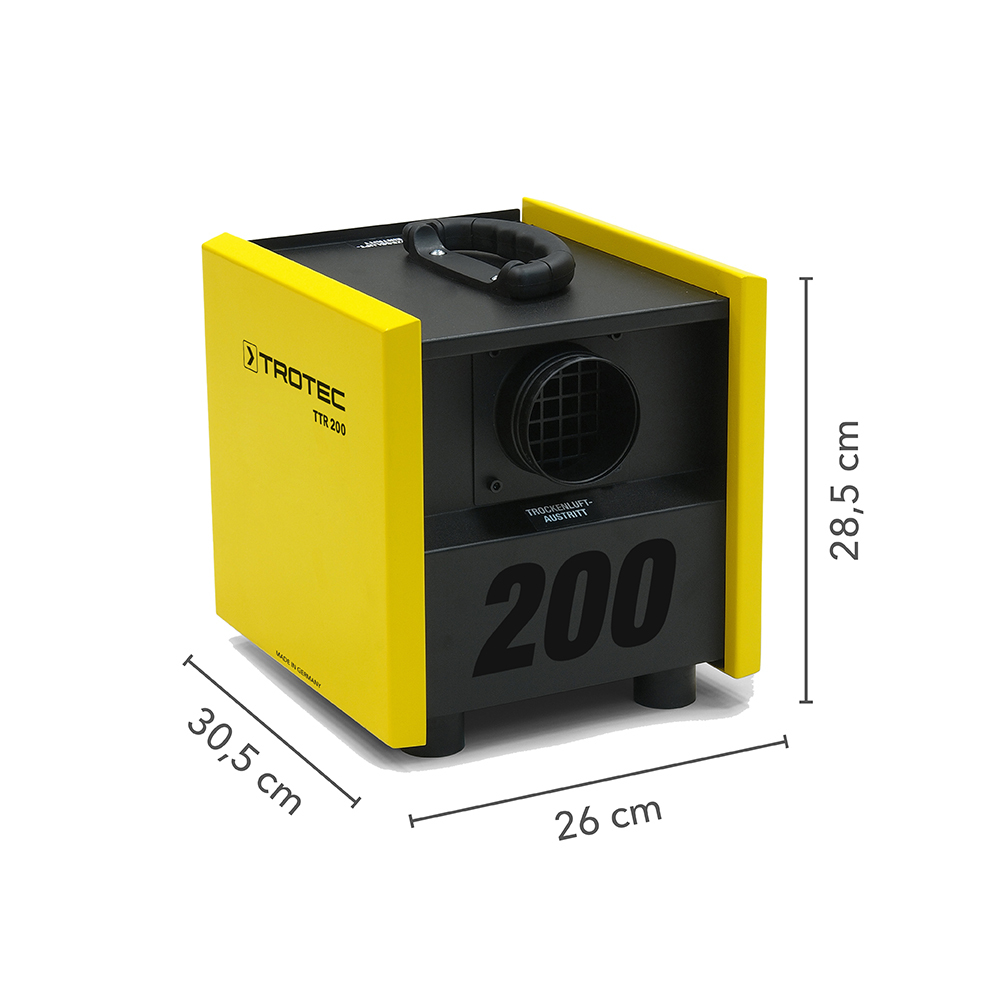

Trotec TTR 200 detail	Trotec TTR 200 dimensions

Key features

Advanced monoventic air volume regulation system for accurate stepless adjustment of dry air volume
Up to 30% lighter than comparable units
Maximised performance, minimal size and weight
Very easy to maintain
Extremely durable powder-coated steel sheet construction
Lightweight and easy to handle
Stackable design saves space
Electronic regulation of air amount - infinitely adjustable

Product specifications

Specifications	Units	TTR 200
Capacity (20°C/60% RH)	kg/h	0.5
Dry air range	m³/h	40 - 120
Dry air volume nominal	m³/h	80
Available pressure	Pa	50
Regeneration air flow	m³/h	15
Available pressure	Pa	30
Operating temperature range	°C	-15 - +35
Operating humidity range	% RH	0 - 100
Power supply	V/Hz	230/1ph/50-60
Power input total	kW	0.45
Power input heating	kW	0.4
Sound level @1m	dB(A)	60
Connections dry air outlet	Ømm	80
Connections humid air outlet	Ømm	38/50
Product size (l x w x h)	mm	305 x 260 x 285
Weight	kg	9

Suitable for:

Commercial buildings
Construction
Industrial, factories and production
Museums and galleries
Rental companies
Residential buildings
Warehouses and storage
Water damage restoration
Waterworks
