Trotec TIH 650+ – infrared heating panel
The TIH 650+ is a professional infrared heating panel designed for drying walls in new buildings, water-damaged areas, or old building renovations. It offers homogeneous heat distribution, noiseless operation, and oxygen-free use in residential areas. It's suitable for drying large areas and features consistent radiation performance. The system is flexible, allowing for various installation options, including vertical and horizontal placement. The compact feet are easy to attach without tools. It comes with a standard MID-compliant energy consumption meter. Optional accessories include stacking handles, assembly support connection set, fastening clamps, and a thermostat. Additionally, a transport bag is available for convenience.
View all of our infrared electric heaters and other types of portable commercial heaters to meet your required applications.

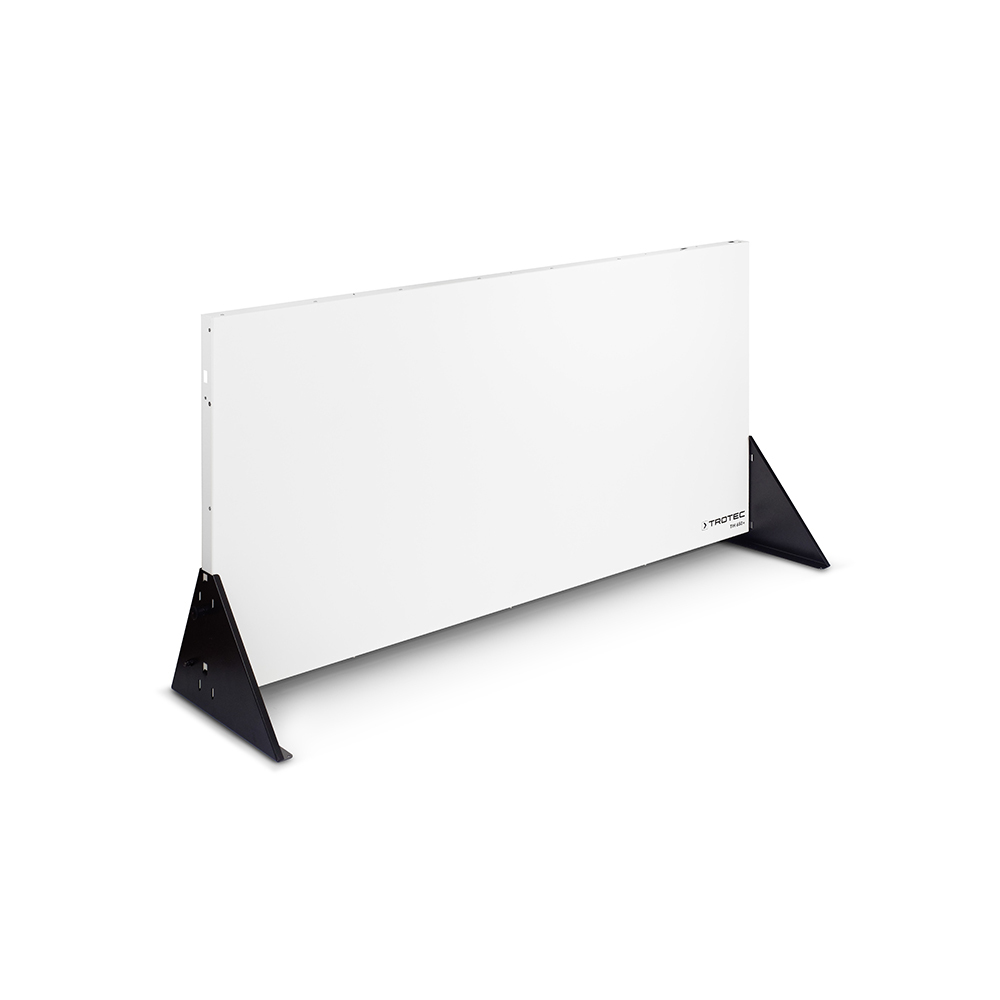

Trotec TIH 650 perspective right
|

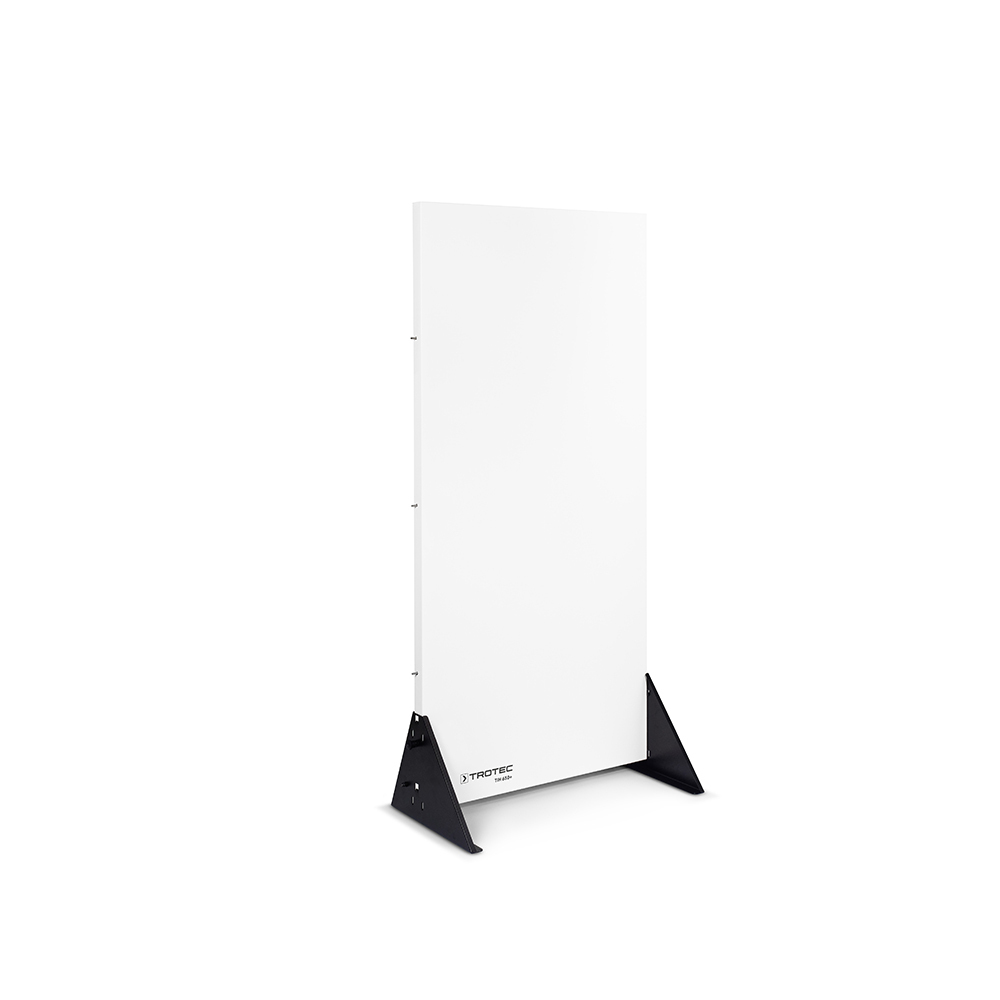

Trotec TIH 650 main right
|

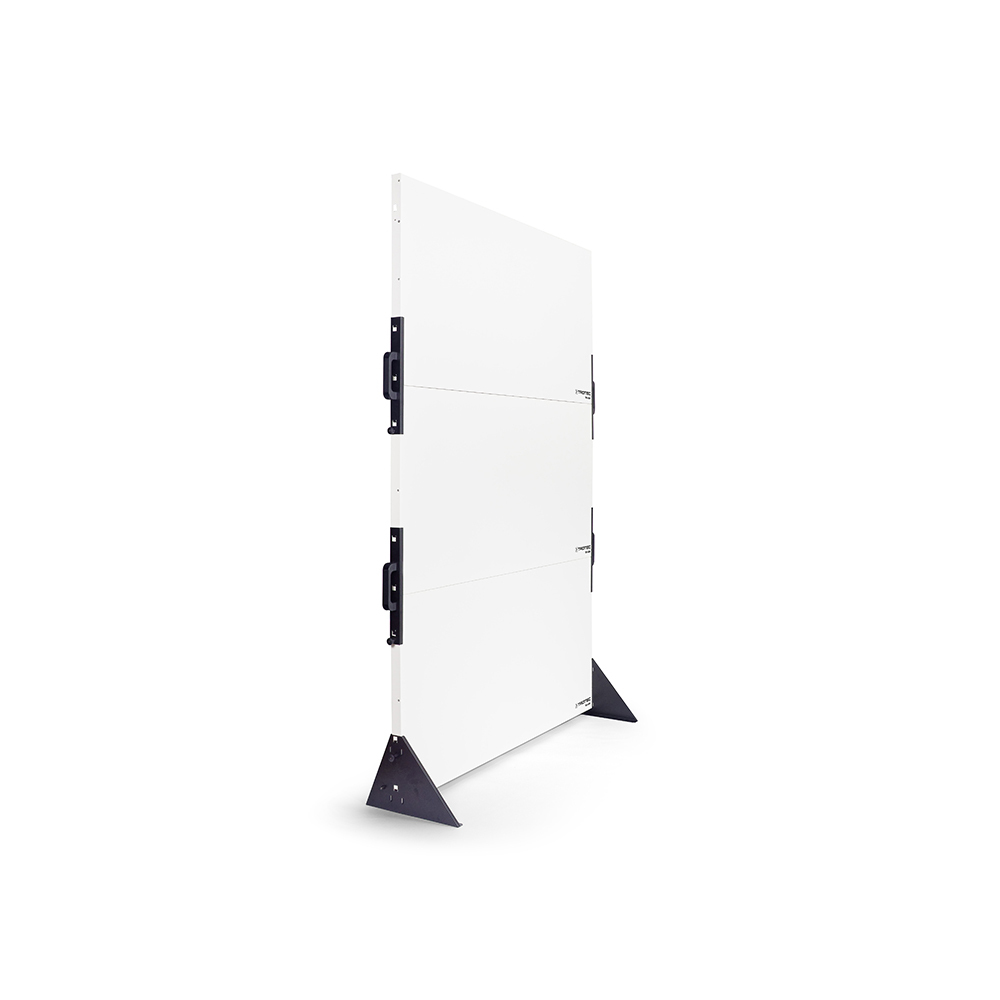

Trotec TIH 650 3 stacked
|

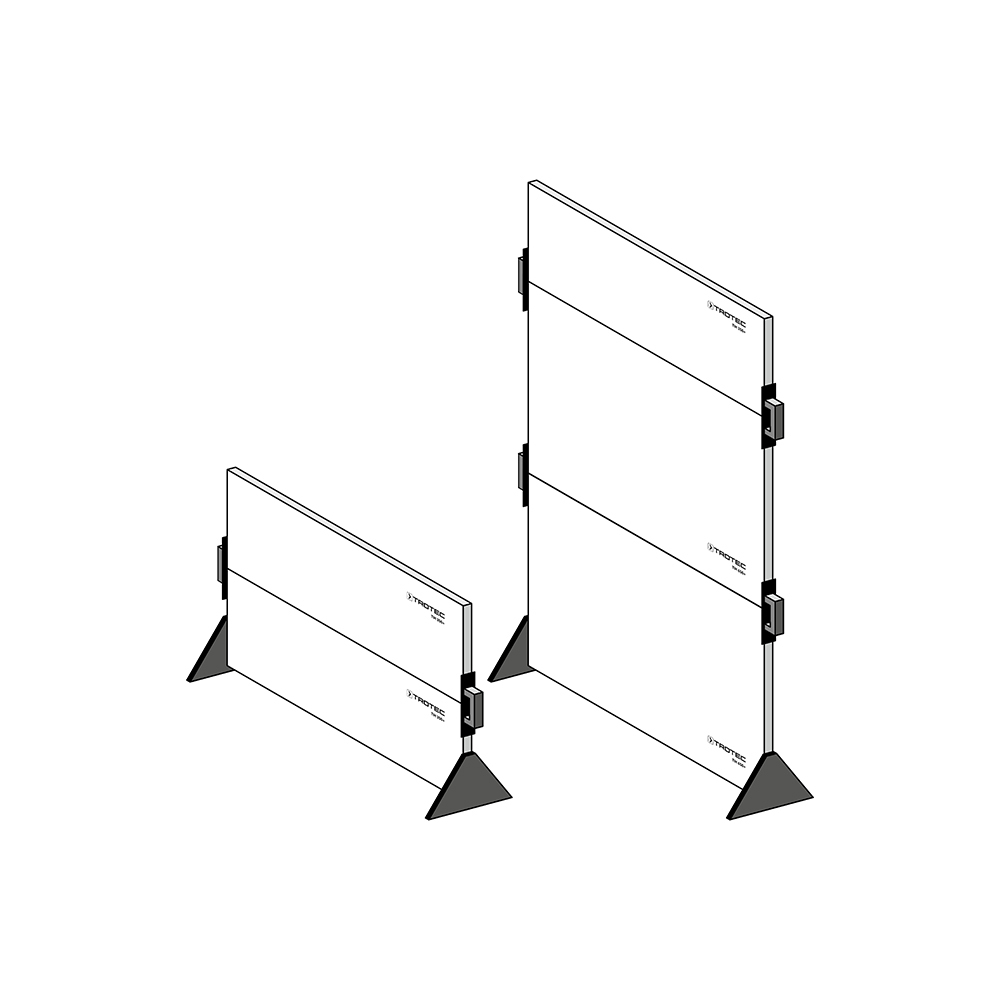

Trotec TIH 650 variations 01
|

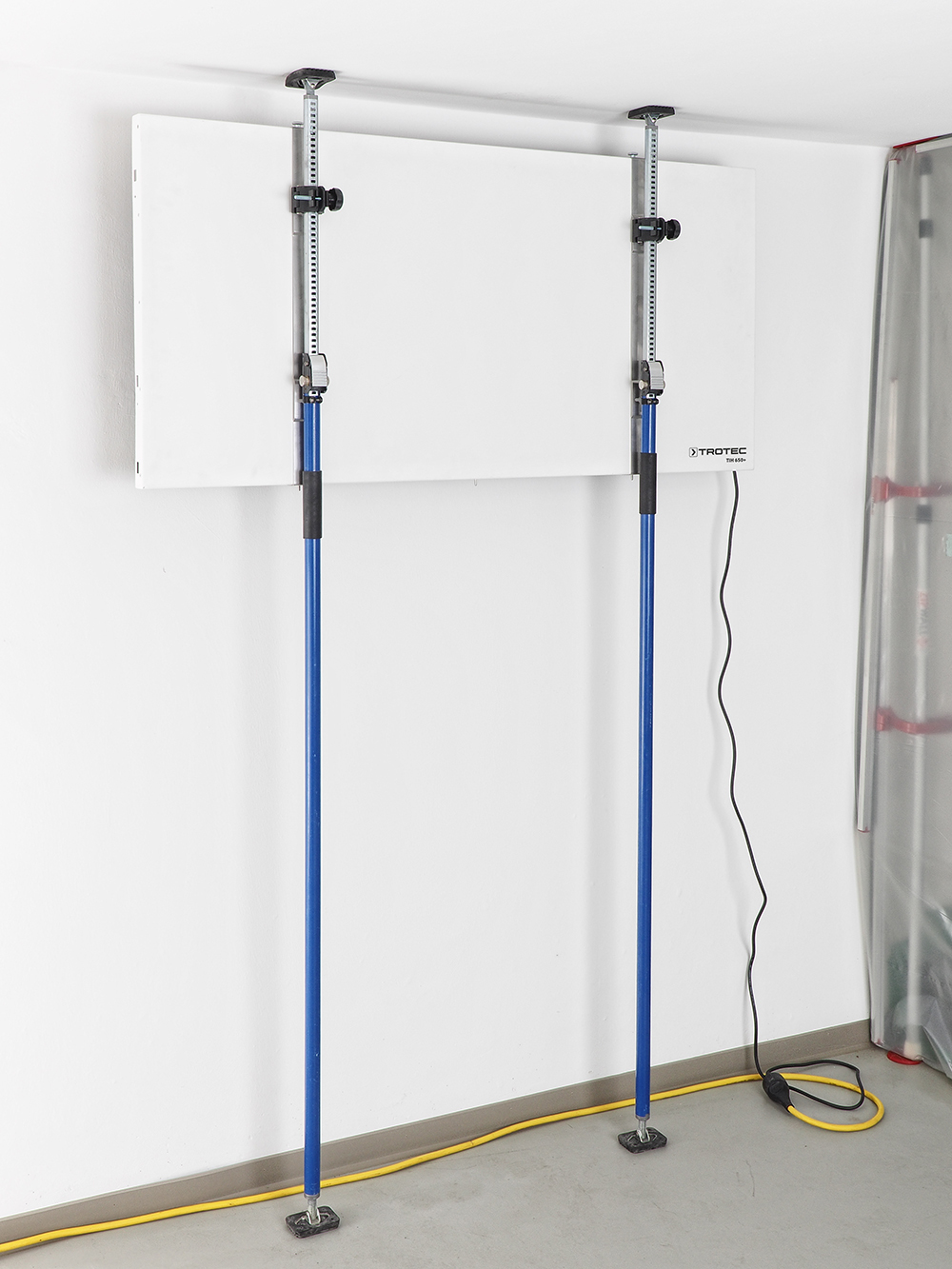

Trotec TIH 650 wall drying
|

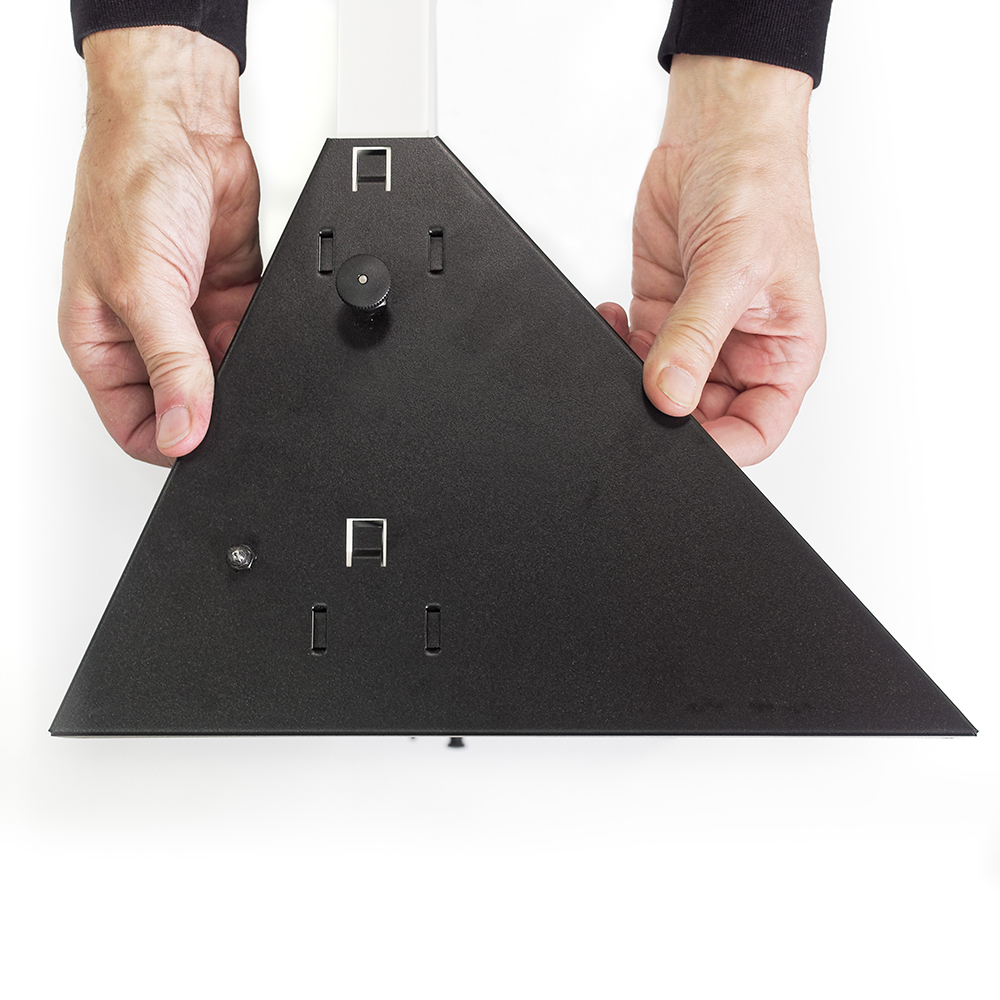

Trotec TIH 650 foot
|

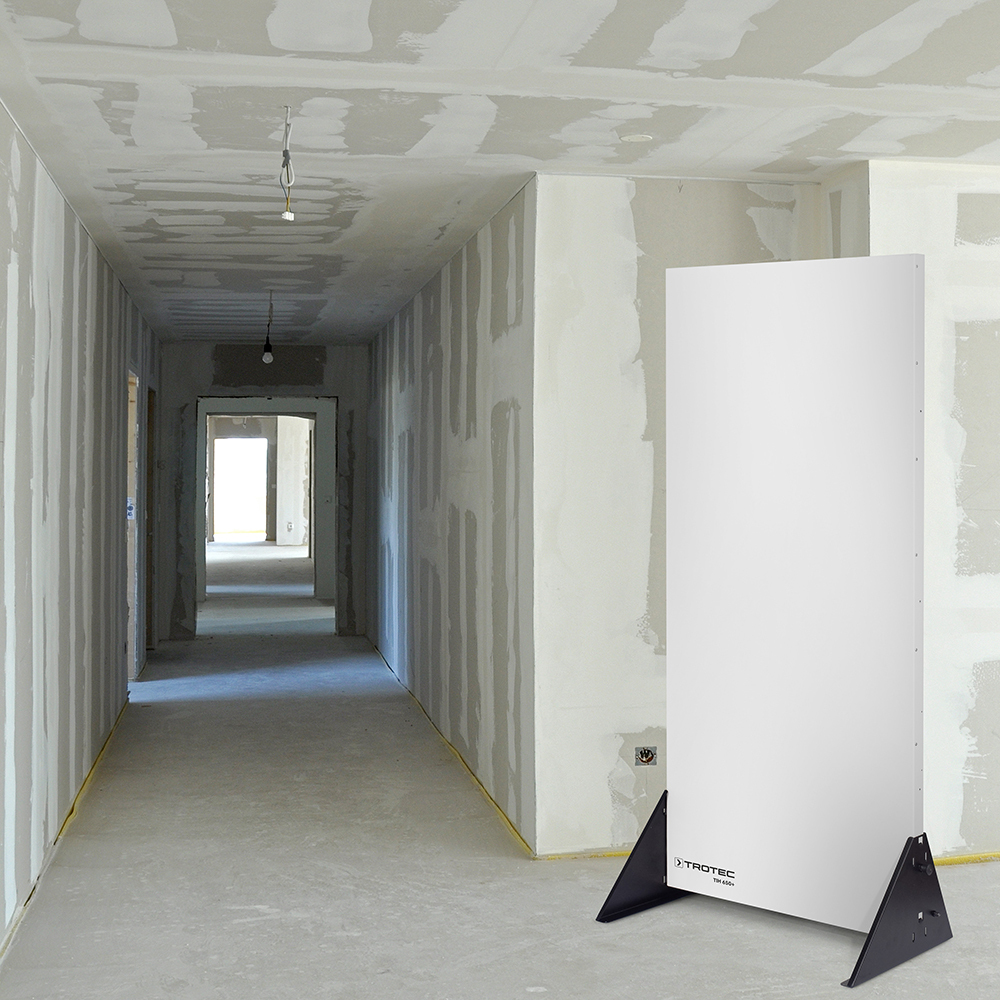

Trotec TIH 650 application 02
|
Key features
- Powerful, robust, flexible
- No noise, no odour, no condensate, no oxygen consumption
- Even heat distribution across entire area
- Rear insulation for maximum energy efficiency
- IR-C radiation for quick brickwork drying
- Can be stacked quickly and stably
- Feet assembly without using tools
- Incorporated transport retainer for feet
- Overheating protection
Product specifications
| Specifications | Units | TIH 650+ |
|---|---|---|
| Heating power | W | 650 |
| Range | m² | 0.85 |
| Power supply | V/Hz | 230/1ph/50 |
| Plug connection | CEE 7/7 | |
| Rated current | A | 2.1 |
| Protection class | IP44 | |
| Cable units | m | 3 |
| Product size (l x w x h) | mm | 36 x 1370 x 625 |
| Weight | kg | 10.7 |
Suitable for:
- Commercial buildings
- Construction
- Water damage restoration
