Trotec LD6000 – combi leak detector

Combination detector for leak detection

Whether you’re planning on using it for routing pipes or for narrowing down the search for leaks or pinpointing their location, the highly-sophisticated LD6000 allows you to determine and process even the tiniest of leak sounds and displaying them on the easy-to-read, clear-cut display. The LD6000 comes with a high-quality microphone and new, cutting-edge electronic technology.

Users in industry are able to benefit from a state-of-the art measuring device which can be used universally to not only locate and pinpoint leaks and problem areas in sprawling and winding pipe networks, but also allow them to carry out effective and low cost inspections to determine if welded seams, valves, tanks, boilers, pressure lines and pump housings are leak proof or not.

For more information, please click on the catalogue.

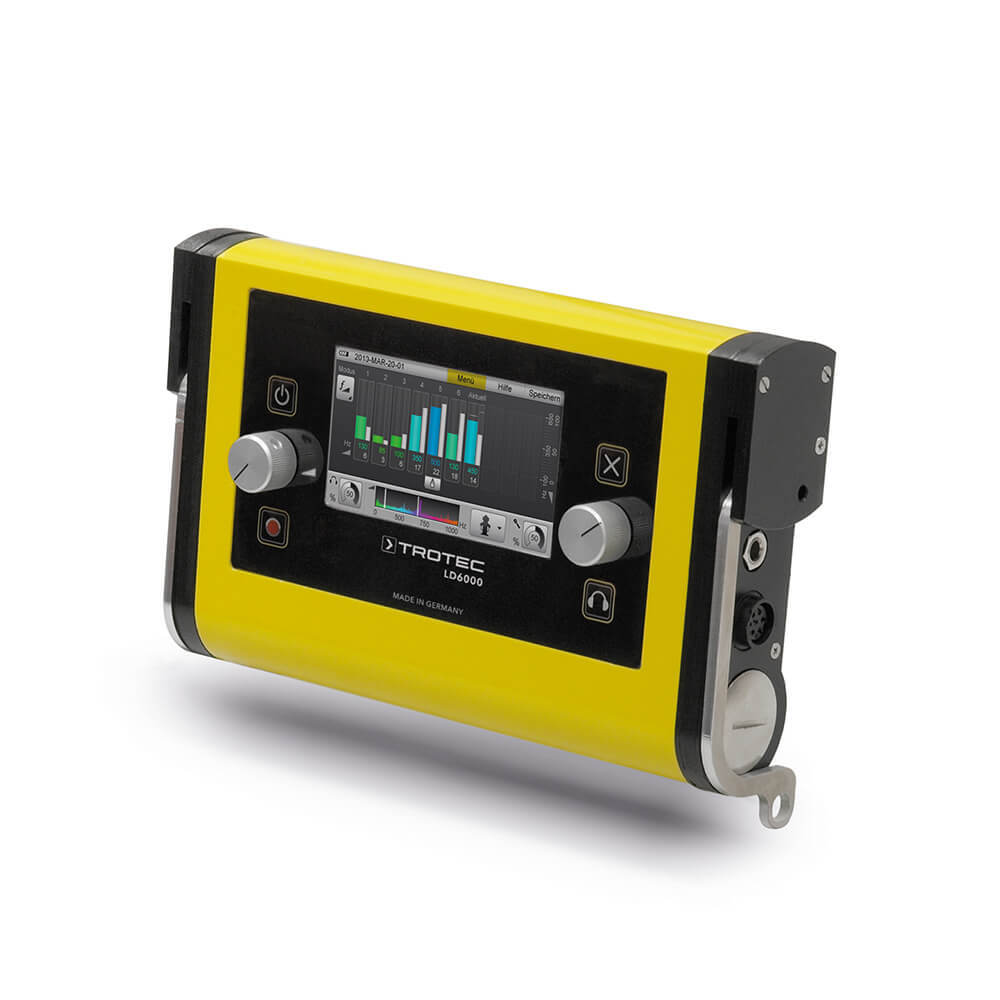

Trotec LD6000 – combination detector for leak detection	Trotec LD6000 – combination detector for leak detection

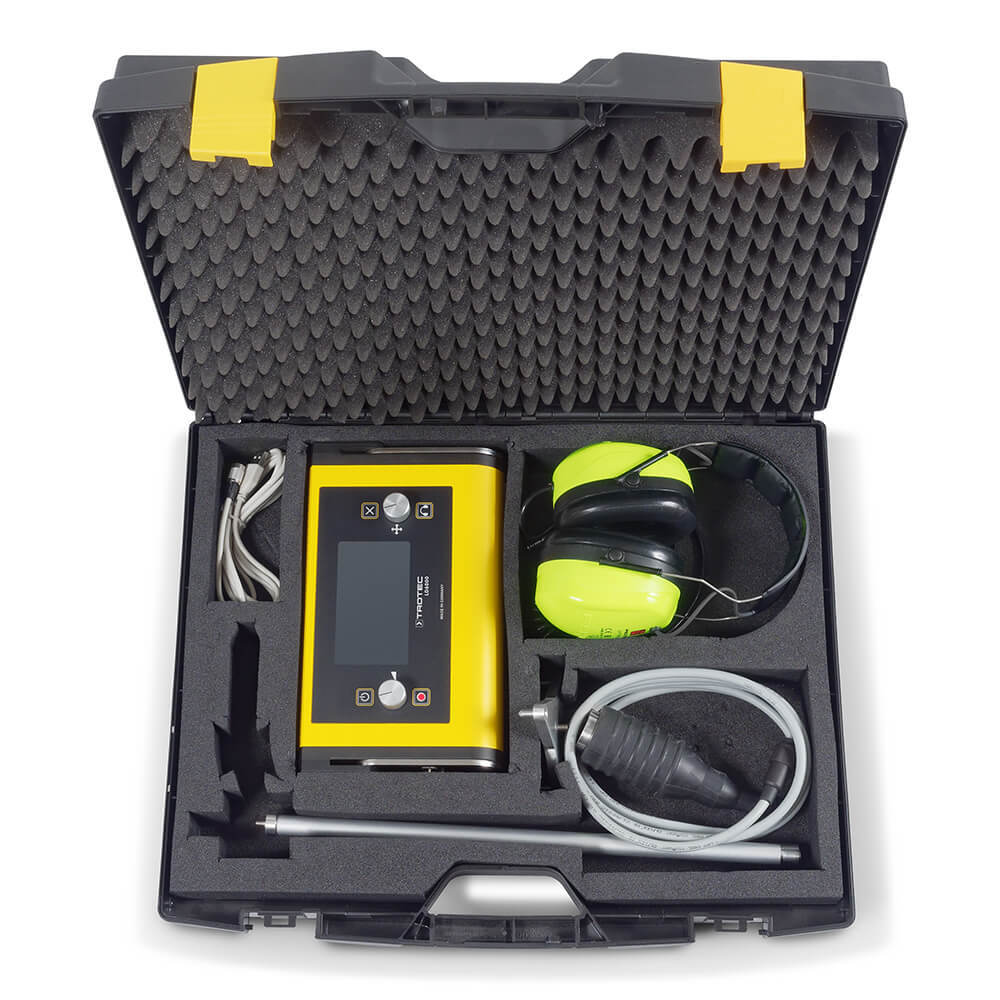

Trotec LD6000 – combination detector for leak detection	Trotec LD6000 – standard case

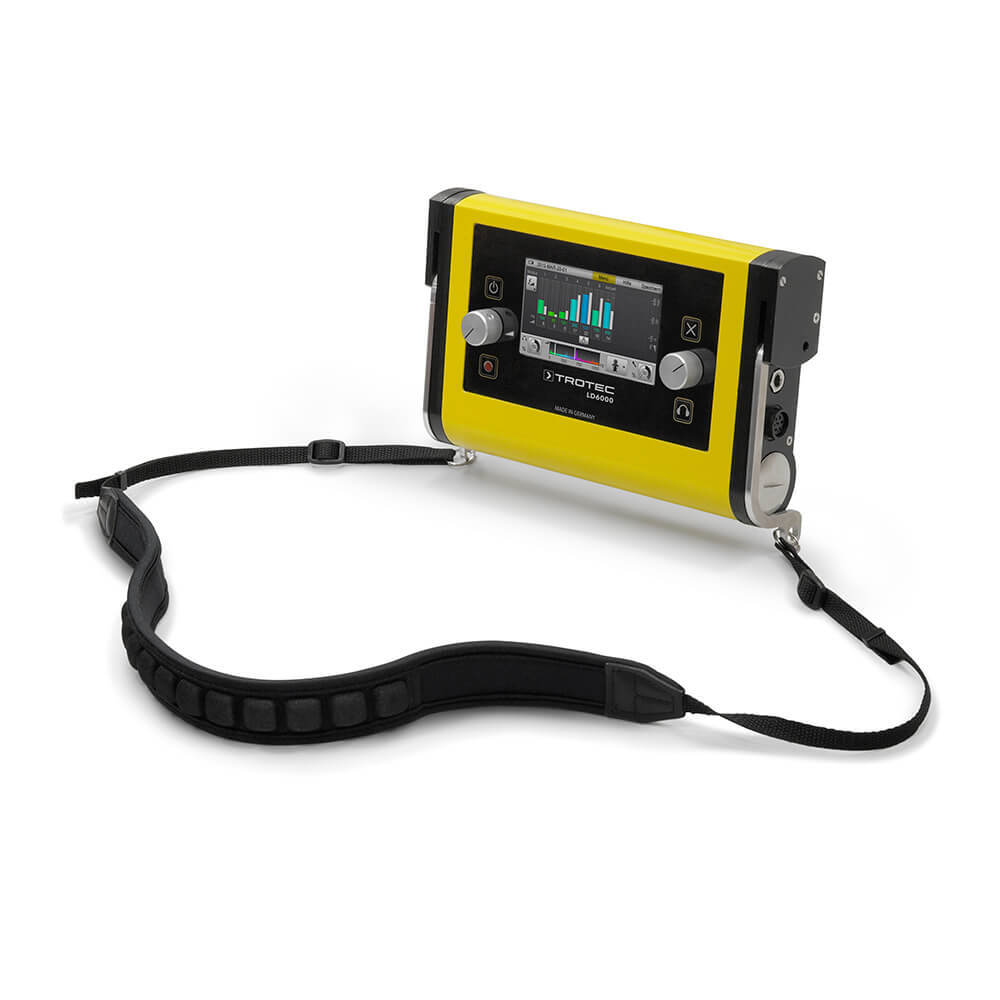

Trotec LD6000 – combination detector for leak detection	Trotec LD6000 – combination detector for leak detection

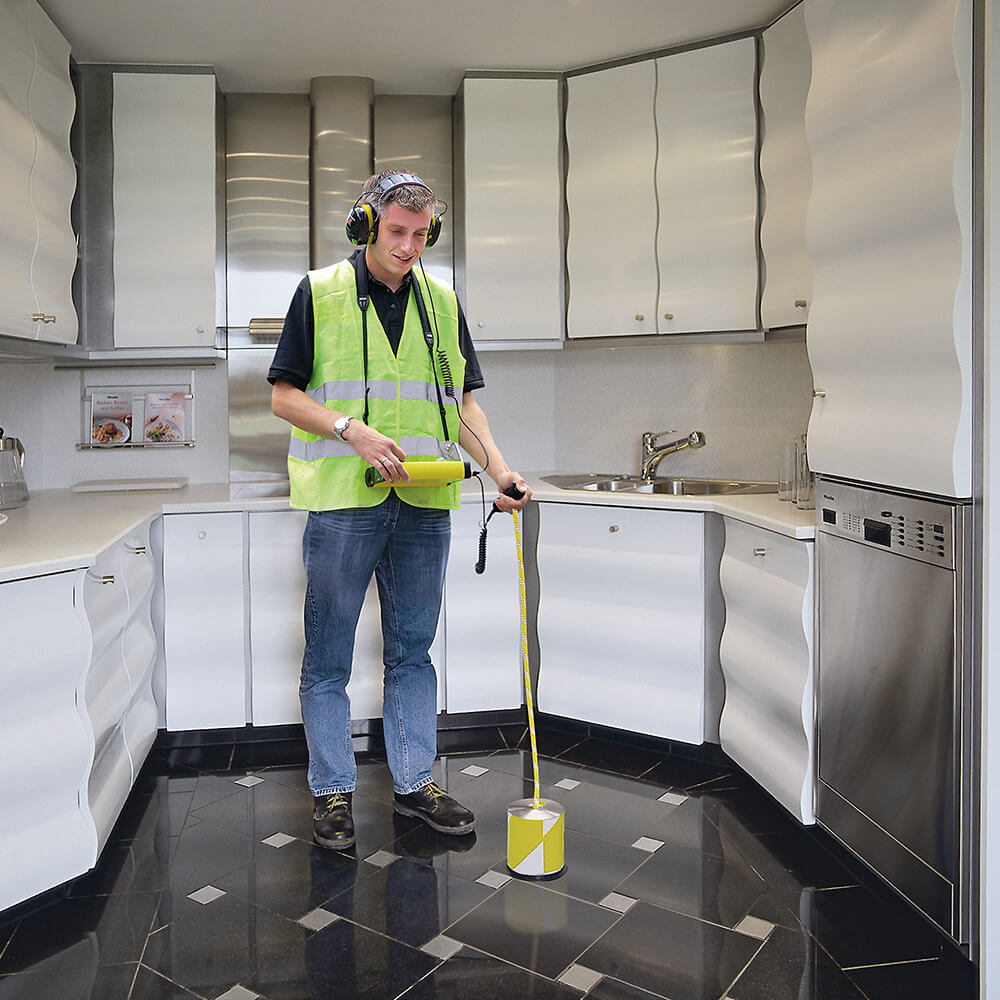

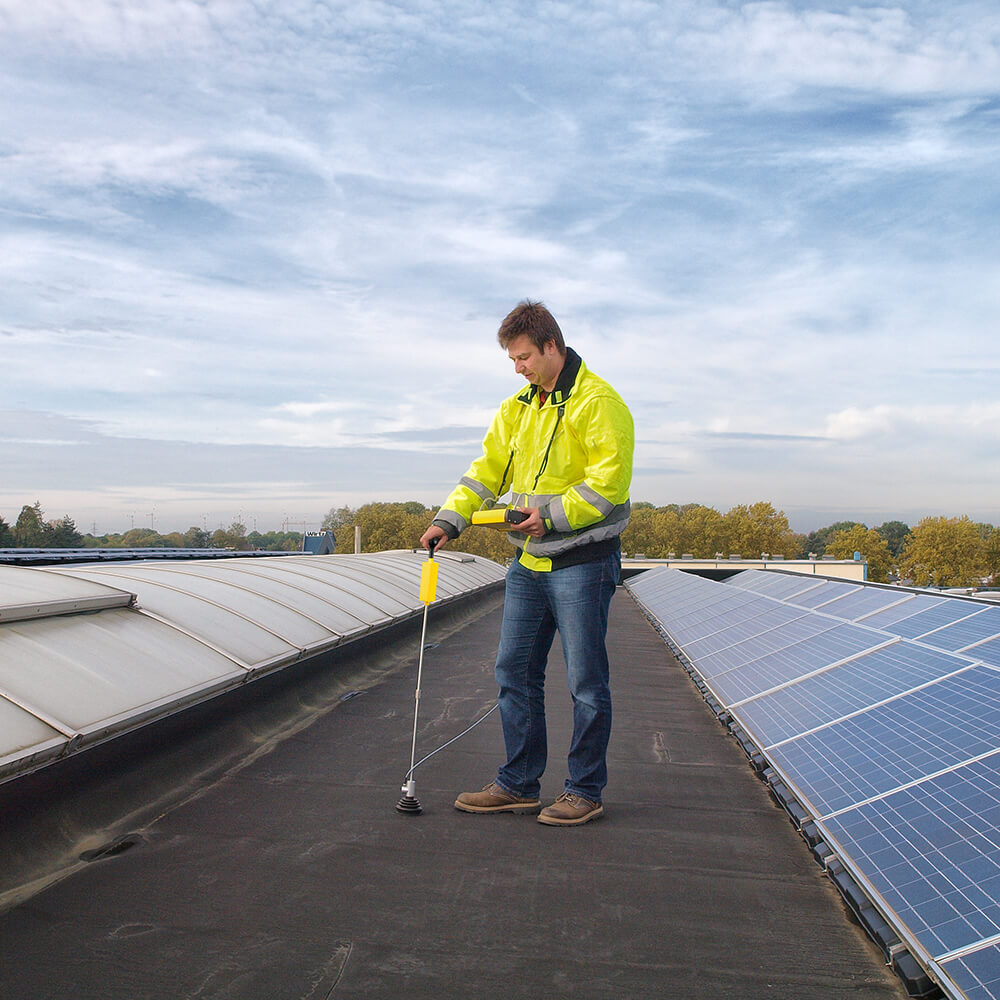

Trotec LD6000 – application	Trotec LD6000 – application

Key features

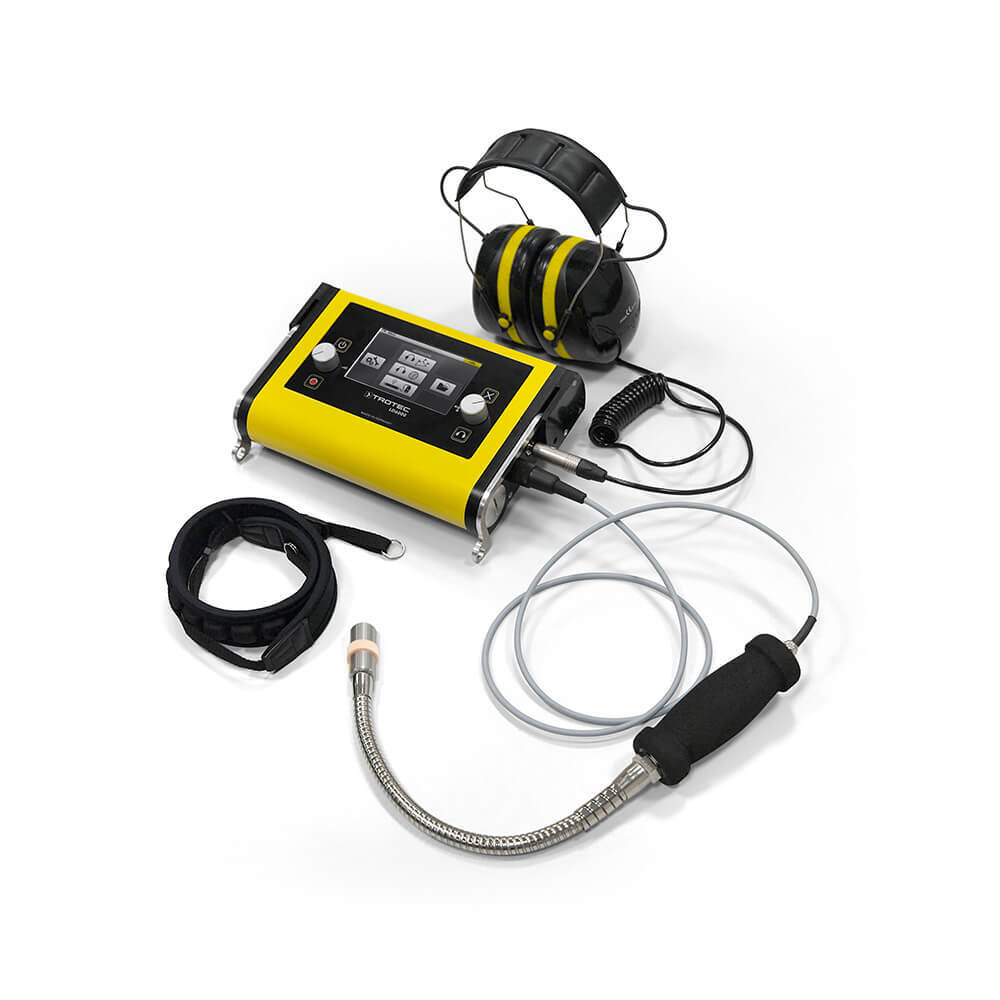

Acoustic and trace gas leak detection in only one device
High-resolution colour graphic display with touchscreen functions
The only one of its kind in its class: State-of-the-art smart function for even faster pinpoint leak detection (patent-protected)
Numerous preprogrammed common applications for quick access
All filters and parameters can be configured individually
Pipe detection mode

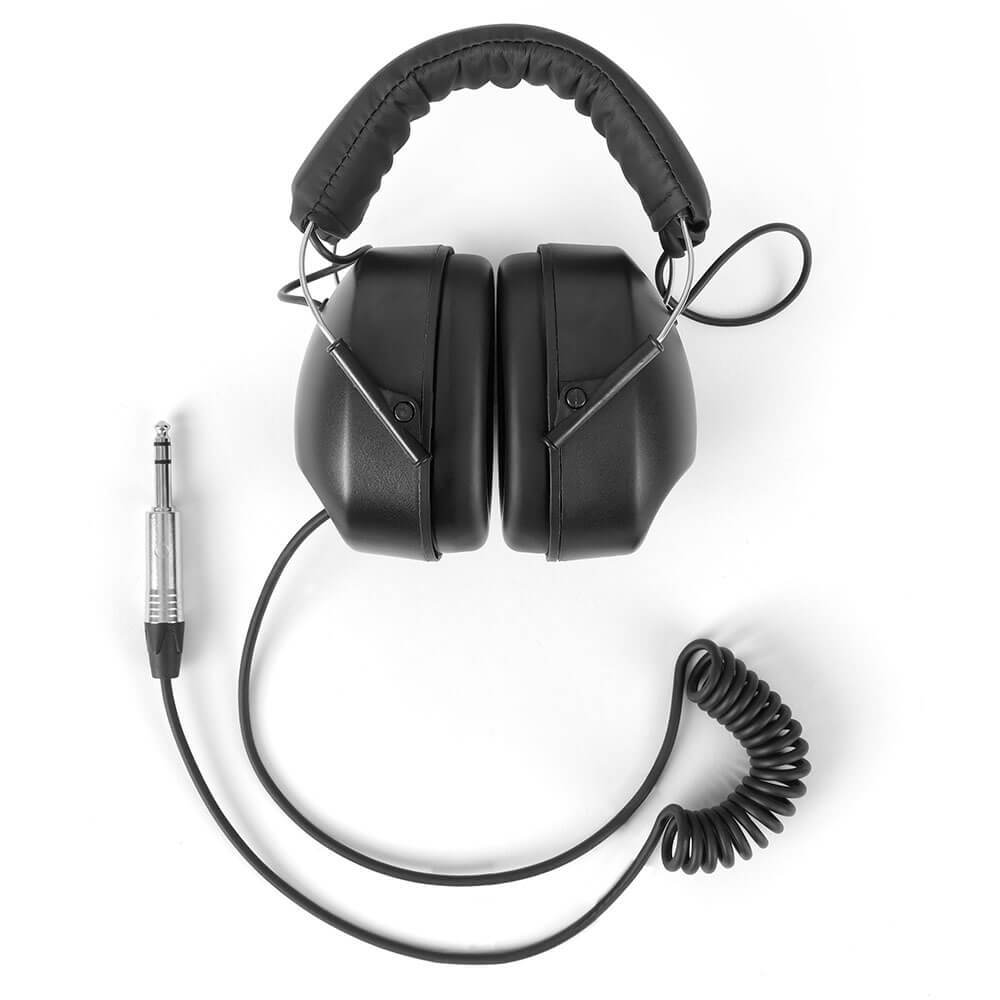

Meets the requirements for ear protection as per accident prevention regulation BGV B3 (formerly VBG 121) when using the original headphones
Highly sensitive, high-quality, robust precision microphone made in Germany

The LD6000 provides utilities with a whole host of application possibilities that allow them to carry out full and conclusive water loss analyses:

Acoustic pinpoint detection with highly-sensitive ground microphones, trace gas leak detection on drinking water networks, line detection on metallic and non-metallic pipes and leak checks on seals and pipe connections.

A comprehensive program of accessories including a ground microphone and a contact and stick microphone ensure that the LD6000 is excellently suited for use as a quick, reliable and universal means of locating leaks not only in many different areas in the field of industry but also in the trade sector.

The LD6000 provides various adjustment possibilities for a quick and precise leak detection and can optionally be operated by the user via touchscreen or keys and control dials. Several default settings for many typical application cases are available for quick access, filters and further parameters can of course be configured individually.

Product specifications

Specifications	Units	LD6000
Operating mode		Acoustic leak detection (F&V, Smart, long-term measuring), pipe detection and trace gas leak detection
Measuring and device functions		Measuring modes for minimum level, averaged level, pulse wave measurements, simultaneous F&V analysis, logging function, automatic functions for setting filter frequencies and sensor sensitivity, memory preference for manual filter settings, sound level overmodulation protection, trace gas detection with concentration-dependent signal (optic and acoustic)
Controls		Either via touchscreen, keys or control dial
Amplification	dB	120 bei niedrigem Rauschfaktor
Input impedance	Ω	1 M
Filter		Up to 256 can be configured individually (for stick sensor and ground microphone)
Frequency spectrum	Hz	0-4,000
Display		Colour LCD (automatic illumination), 480 x 272 pixels
Battery check		Via micro-controller
Output impedance	Ω	≤ 10
Power supply		4 x batteries type LR14 C 1.5 V
Operating time	h	Up to 14 h in non-stop operation, up to 40 h in normal operation

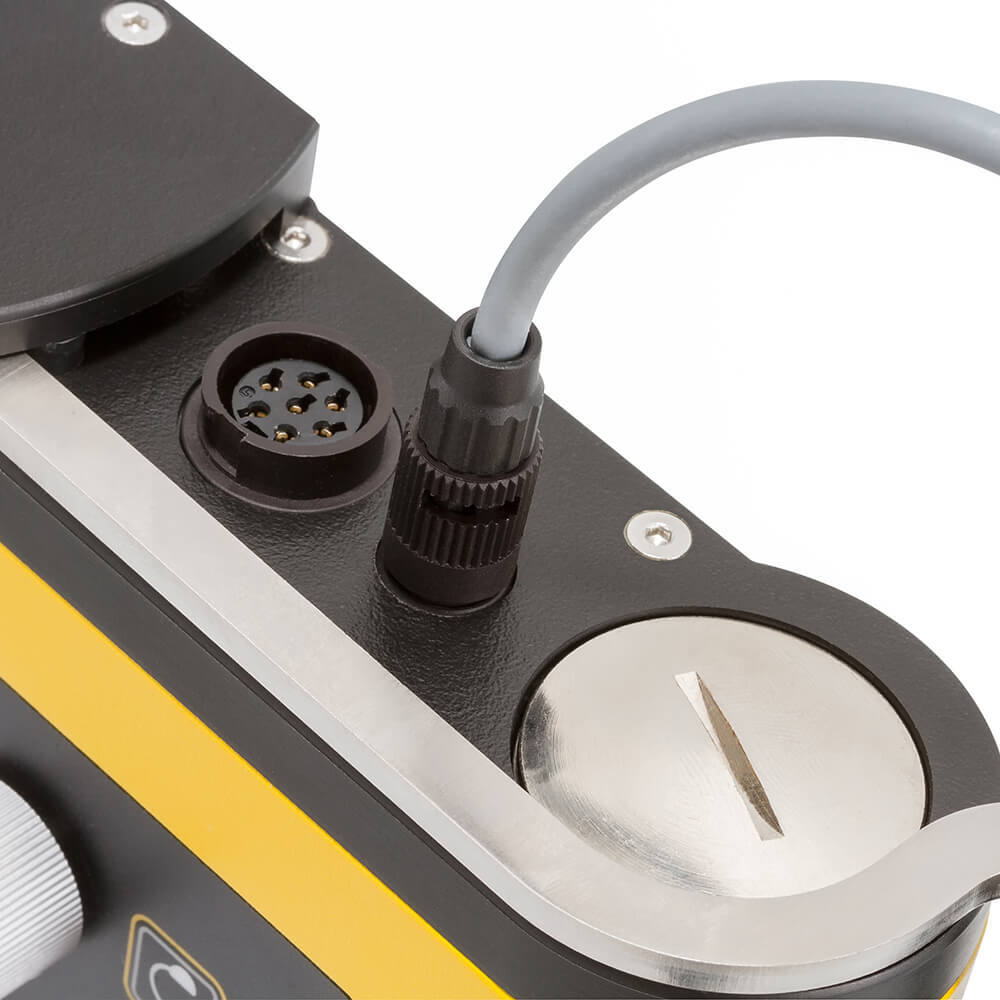

Connections		Bayonet nut connector (microphone / sensor), 6.3 mm jack plug (headphones), USB
Protection class		IP54
Housing		Aluminium, powder-coated
Product size (l x w x h)	mm	210 x 160 x 60
Weight	kg	1.05

Suitable for:

Water damage restoration
Waterworks
