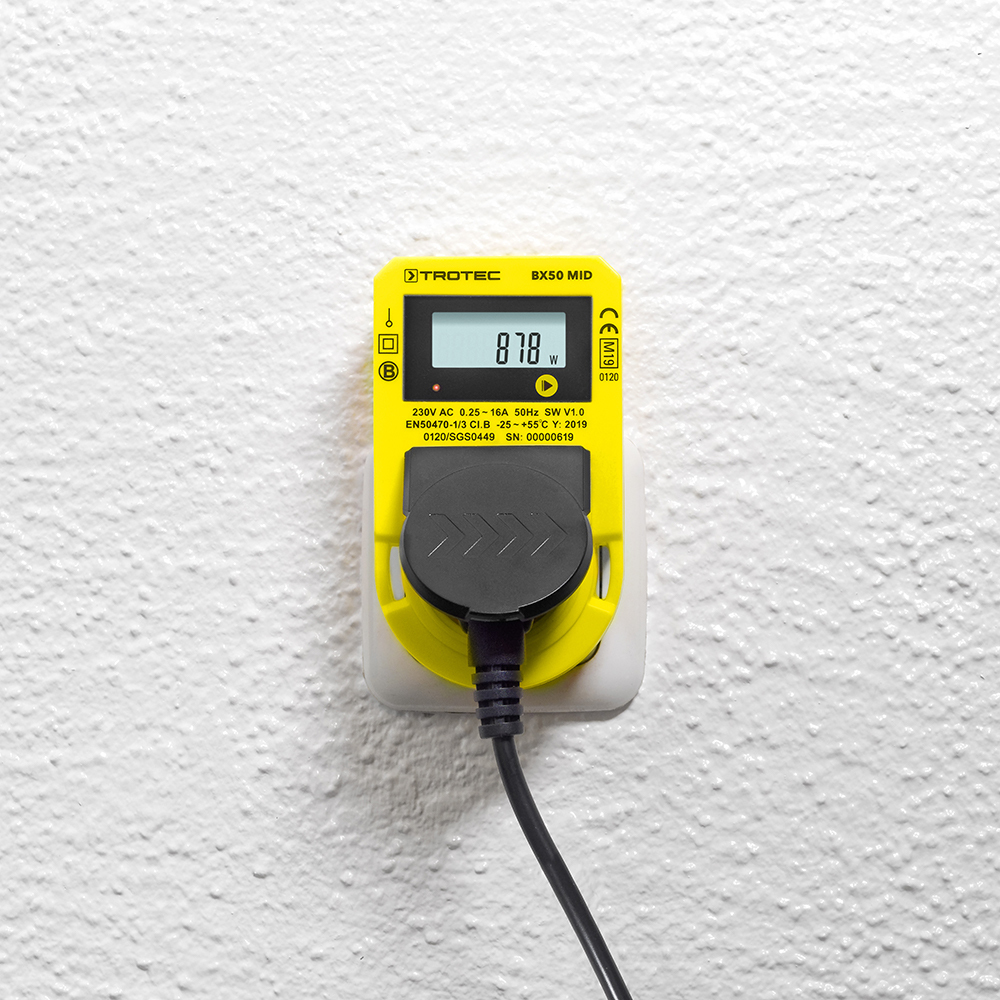

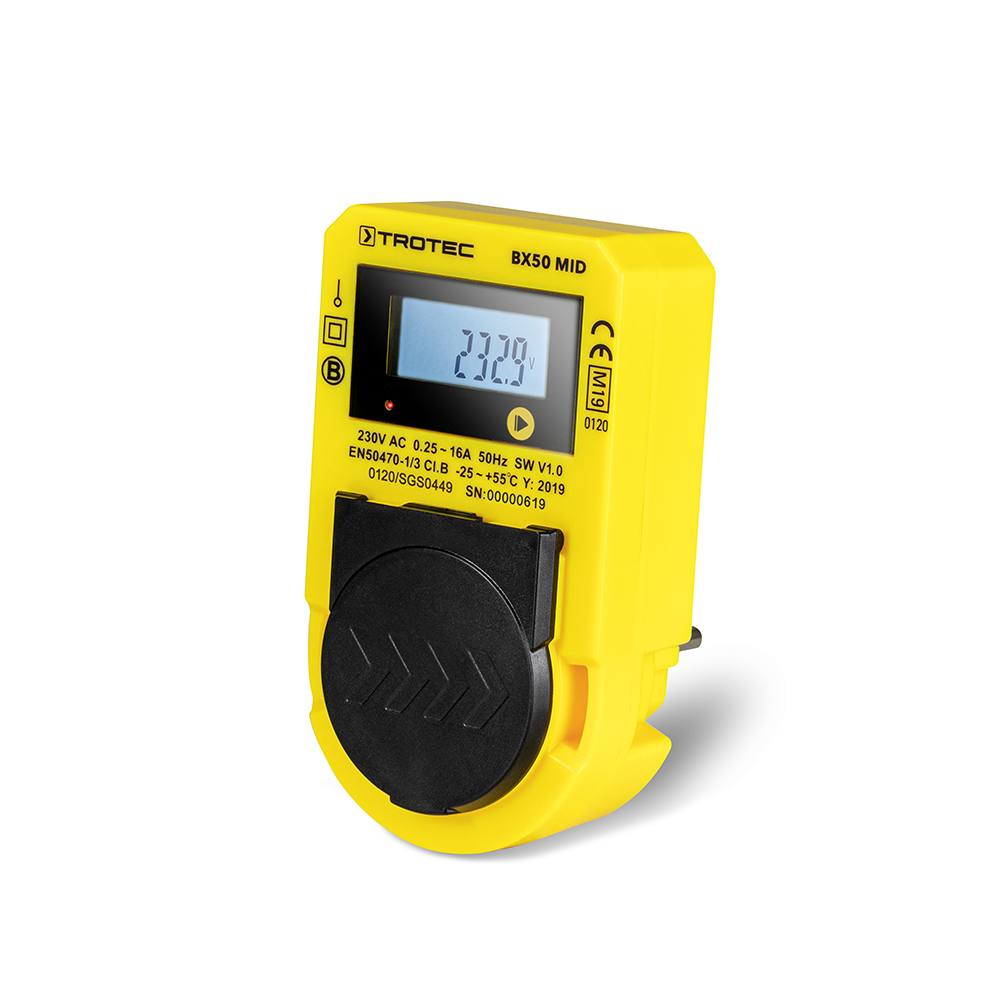

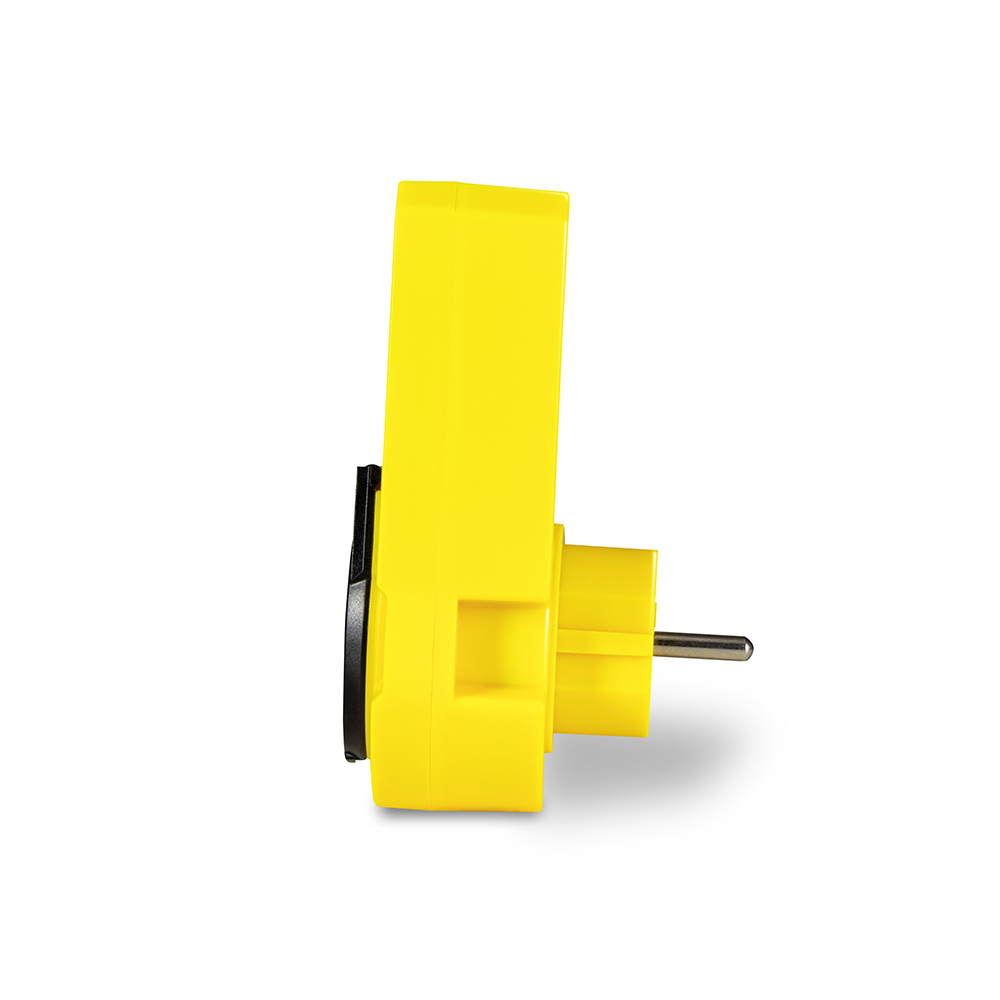

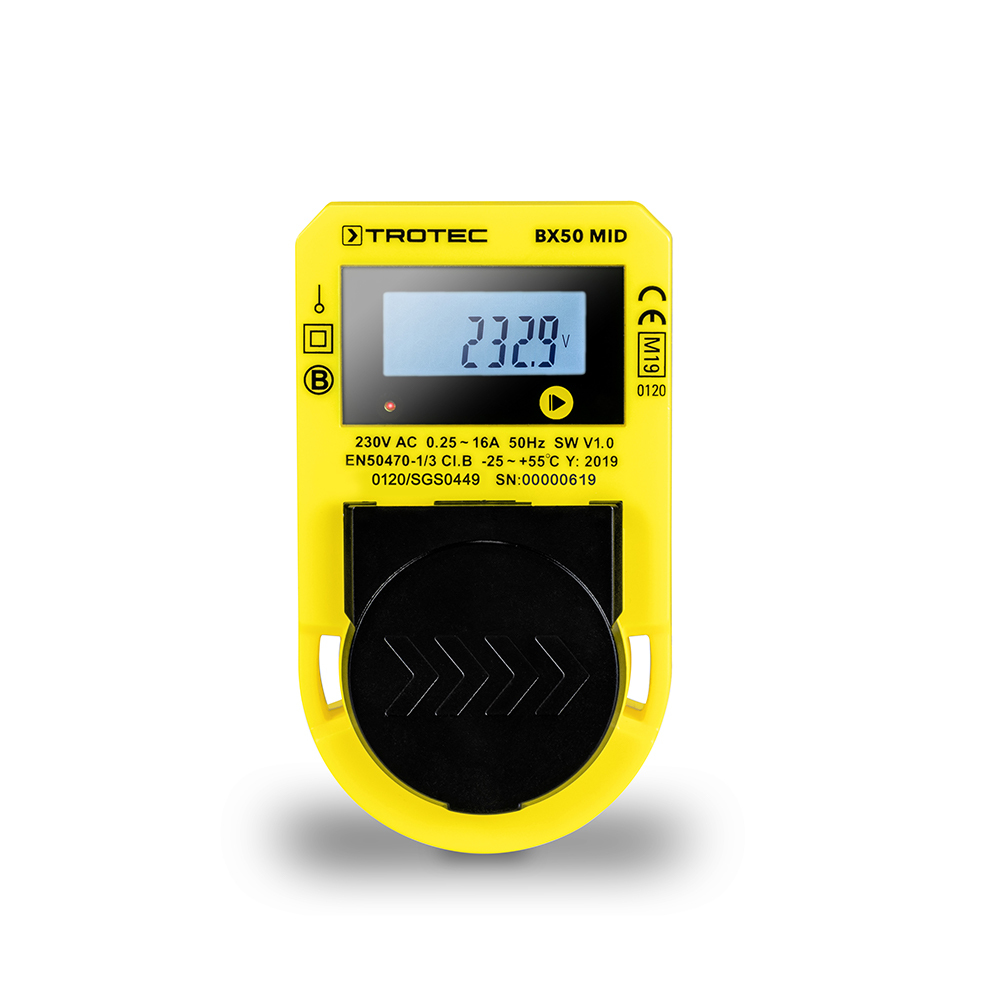

Trotec BX50 MID – energy cost measuring device

Trotec BX50 MID – energy cost measuring device

Professional measuring device

The Trotec BX 50 MID is a professional-grade energy cost measuring device that is designed to help businesses and organisations track their energy usage and costs. It features advanced technology and high-quality components to ensure accurate and reliable measurements. The BX 50 MID is ideal for use in commercial and industrial settings where energy costs can be a significant expense. It features a user-friendly design and is easy to operate and maintain. With its advanced features and reliable performance, the BX 50 MID is the perfect choice for businesses and organisations looking to optimise their energy usage and reduce costs.

Open printer-friendly page

Interested?

Key features

Professional measuring device for reliable measurement of energy consumption
MID-compliant and fully approved for billing purposes
Integrated sealing slots prevent tampering with plugs (compliant with the German MessEG Weights and Measures Act)

Tamper-proof total consumption meter
Resettable daily consumption meter
Socket outlet with protective spring-loaded flap lid

Product specifications

Specifications	Units	BX50 MID
Active power meter		MID-certified, non-resettable
Measuring range	W	57.5 to 3,680
Maximum performance	W/A	3,680/16
AC voltage	V	176 to 276
Input voltage	V/Hz	230, AC/50
Consumption measurement	kWh	0 to 999,999.9
Ambient conditions	°C	-25 to 55
Measuring category		CAT II (600 V)
Insulation		Protection class II
Accuracy class		Class 1 IEC 62053-21, Class B EN 50470-1/3
Type of protection		IP54
Measured values		Power [W], AC voltage [V/AC], alternating current [A/AC], frequency [Hz],, power factor [cos Ф], display electricity production [W], display absolute production [kWh], display power consumption [W], display showing the absolute consumption [kWh]
Functions		Digital display of voltage (V), power (W), current (A), frequency (Hz), power factor (cos Ф), max. electricity demand (W) and absolute consumption (kWh), tamper-proof total consumption meter (production / consumption), resettable daily consumption meter (production / consumption), fail-safe, display illumination
Power supply		Via mains voltage
Product size (l x w x h)	mm	77 x 63 x 118
Weight	g	155

Active power meter

MID-certified, non-resettable

Measuring range

57.5 to 3,680

Maximum performance

3,680/16

W/A

AC voltage

176 to 276

Input voltage

230, AC/50

V/Hz

Consumption measurement

0 to 999,999.9

kWh

Ambient conditions

-25 to 55

°C

Measuring category

CAT II (600 V)

Insulation

Protection class II

Accuracy class

Class 1 IEC 62053-21, Class B EN 50470-1/3

Type of protection

IP54

Measured values

Power [W], AC voltage [V/AC], alternating current [A/AC], frequency [Hz],, power factor [cos Ф], display electricity production [W], display absolute production [kWh], display power consumption [W], display showing the absolute consumption [kWh]

Functions

Digital display of voltage (V), power (W), current (A), frequency (Hz), power factor (cos Ф), max. electricity demand (W) and absolute consumption (kWh), tamper-proof total consumption meter (production / consumption), resettable daily consumption meter (production / consumption), fail-safe, display illumination
