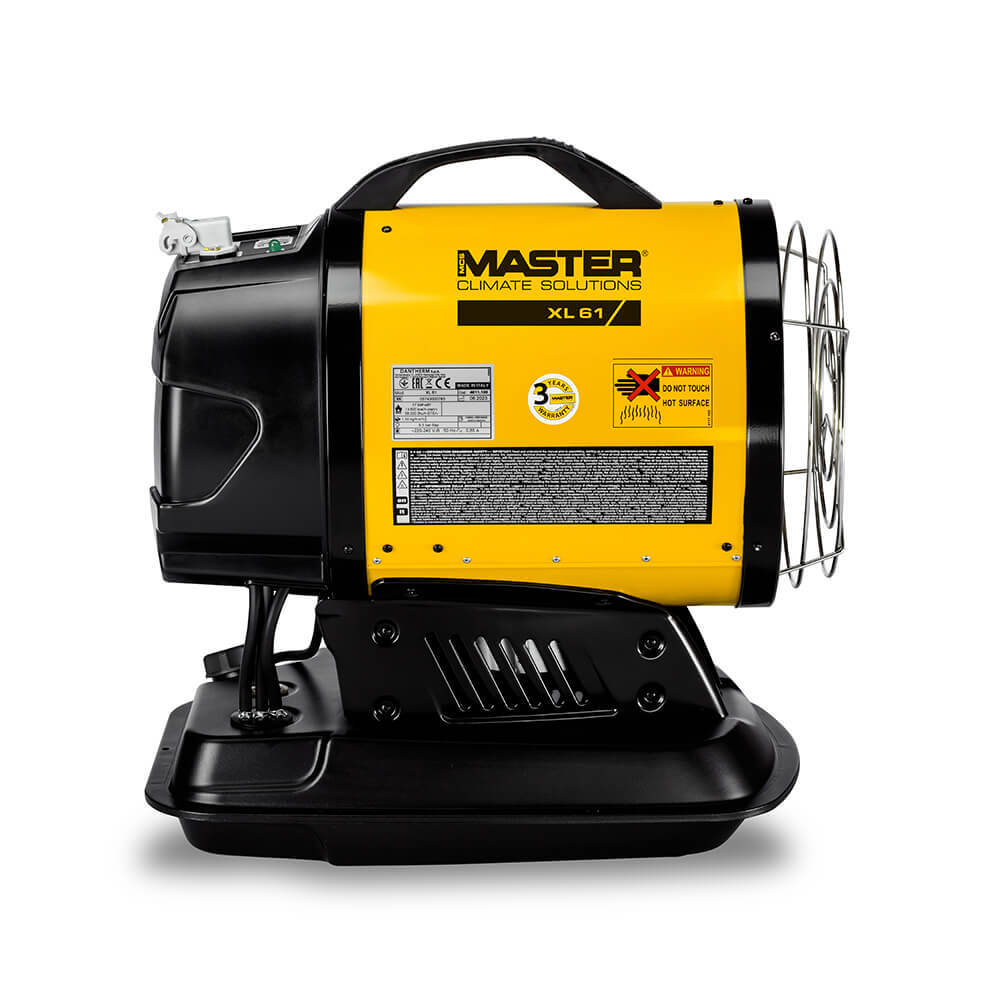

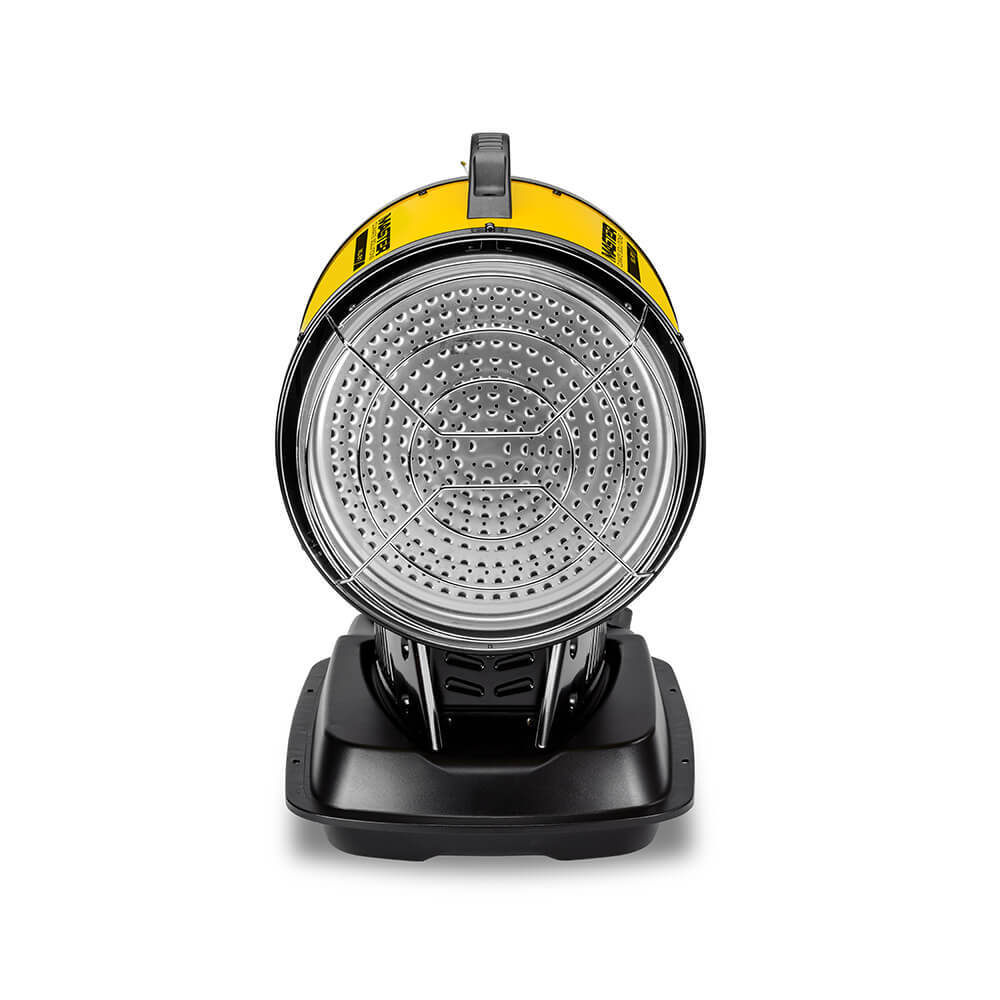

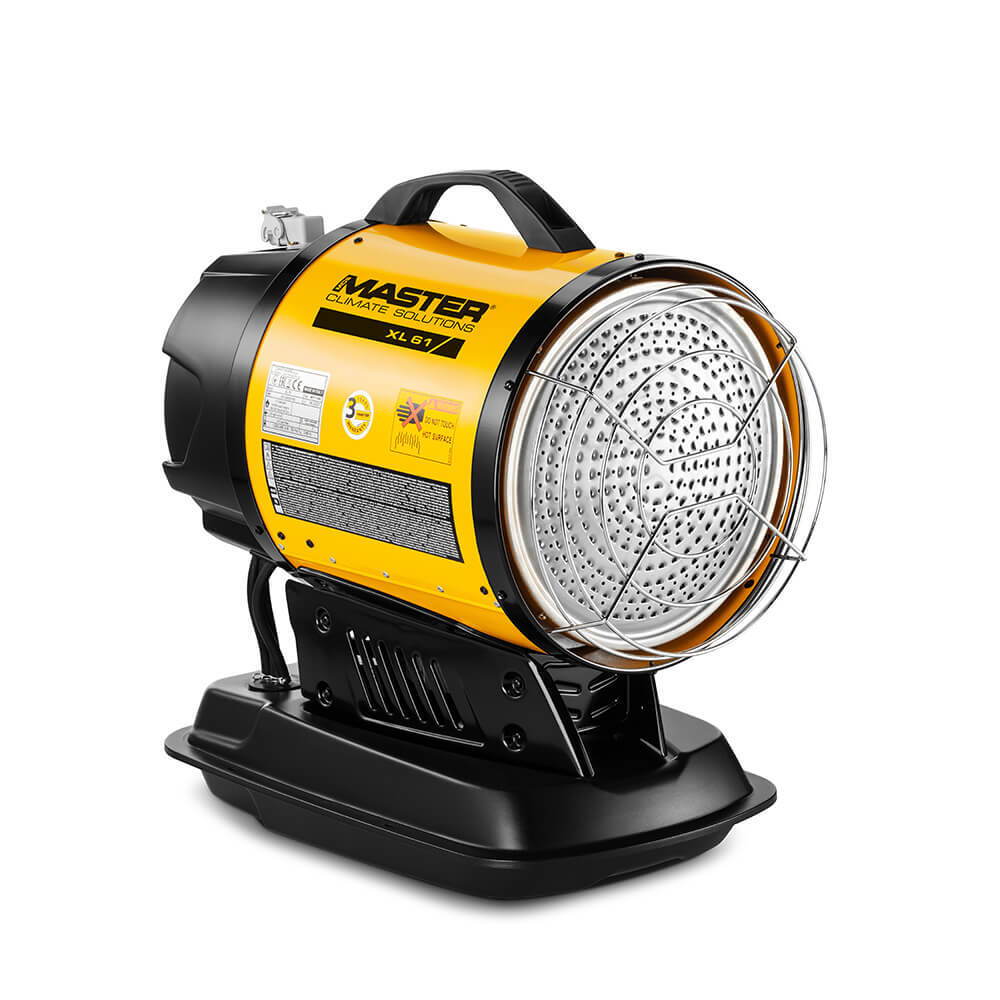

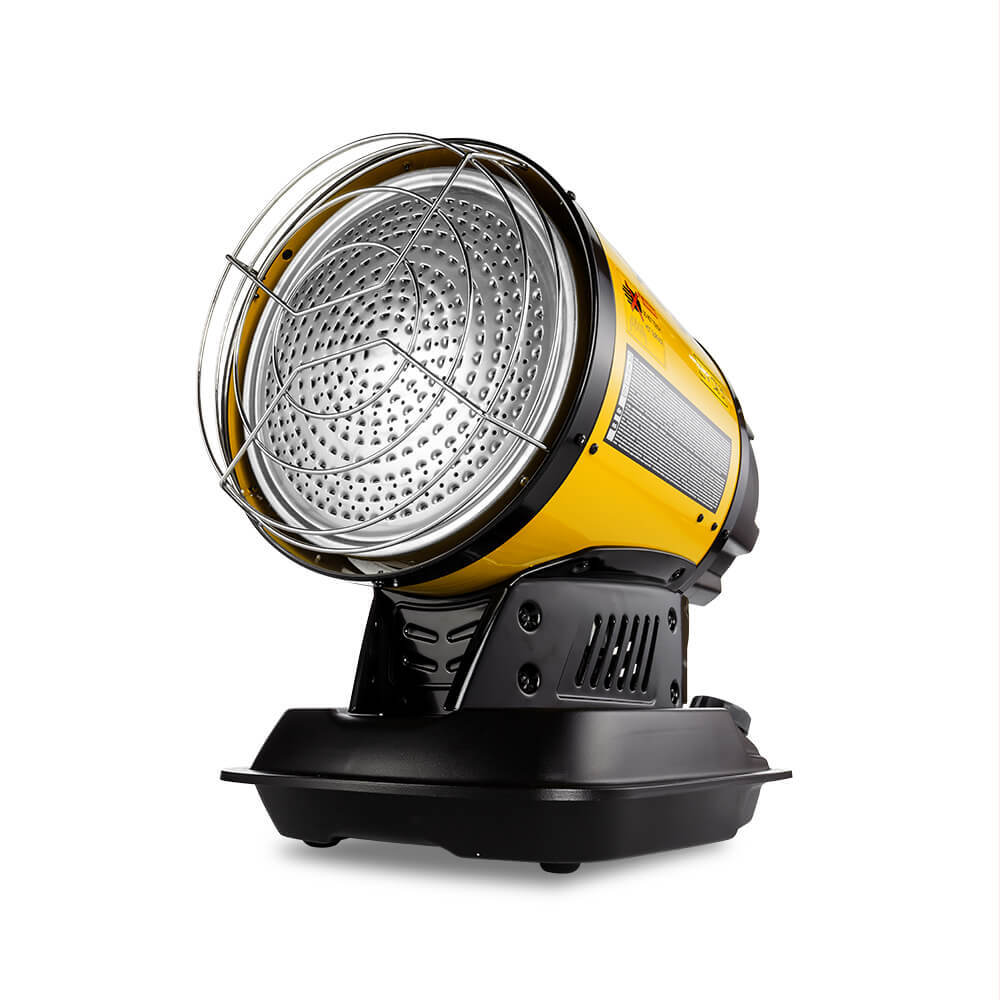

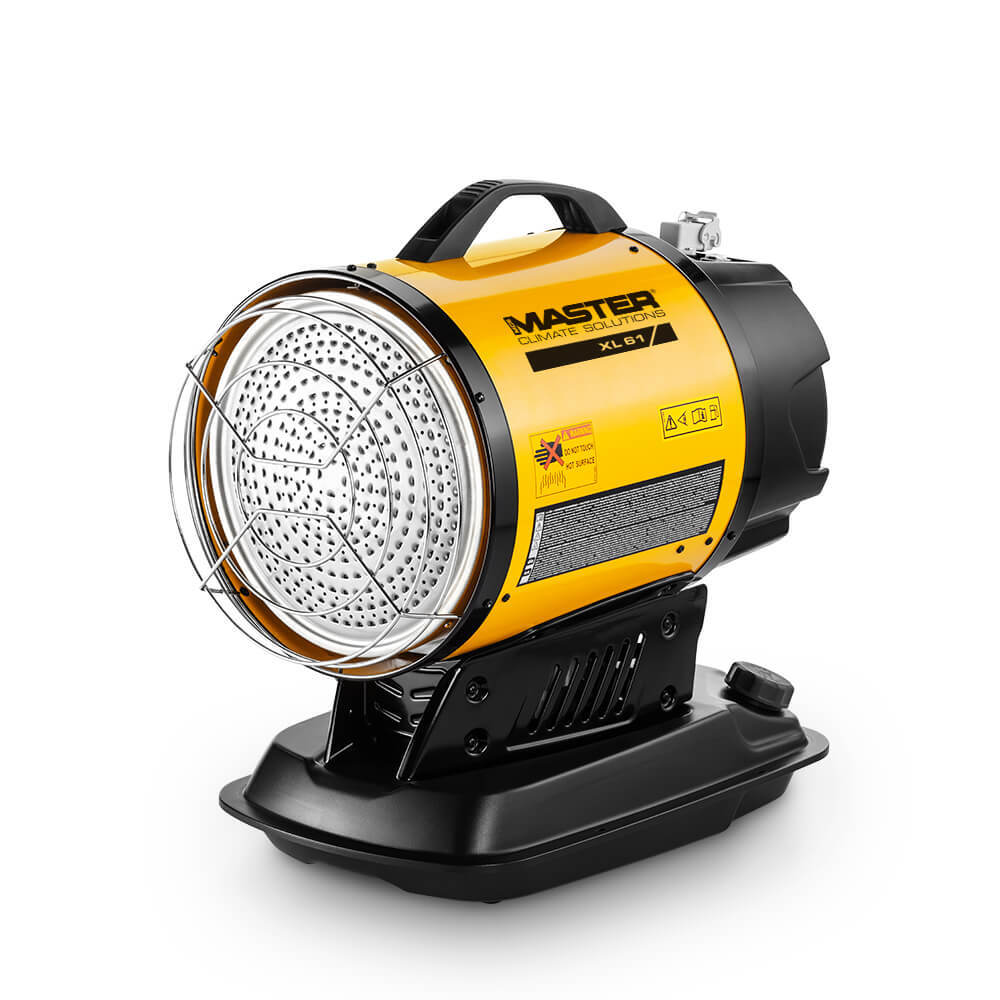

Master XL 61 – infrared oil fired heater
Infrared oil fired heaters with Master burner
Infrared oil heaters deliver heat fast and exactly to the place where it is required without any air movement. They are suitable for dust-free drying walls or paints, defrosting machinery or pipelines, heating the working areas.
View all of our infrared oil fired heaters and other types of portable commercial heaters to meet your required applications.
Master XL 61 – infrared oil fired heater
|
Master XL 61 – infrared oil fired heater
|
Master XL 61 – infrared oil fired heater
|
Master XL 61 – infrared oil fired heater
|
Master XL 61 – infrared oil fired heater
|
Master XL 61 – infrared oil fired heater
|
Master XL 61 – infrared oil fired heater
|
Master XL 61 – infrared oil fired heater
|
Master XL 61 – infrared oil fired heater
|
Master XL 61 – infrared oil fired heater
|

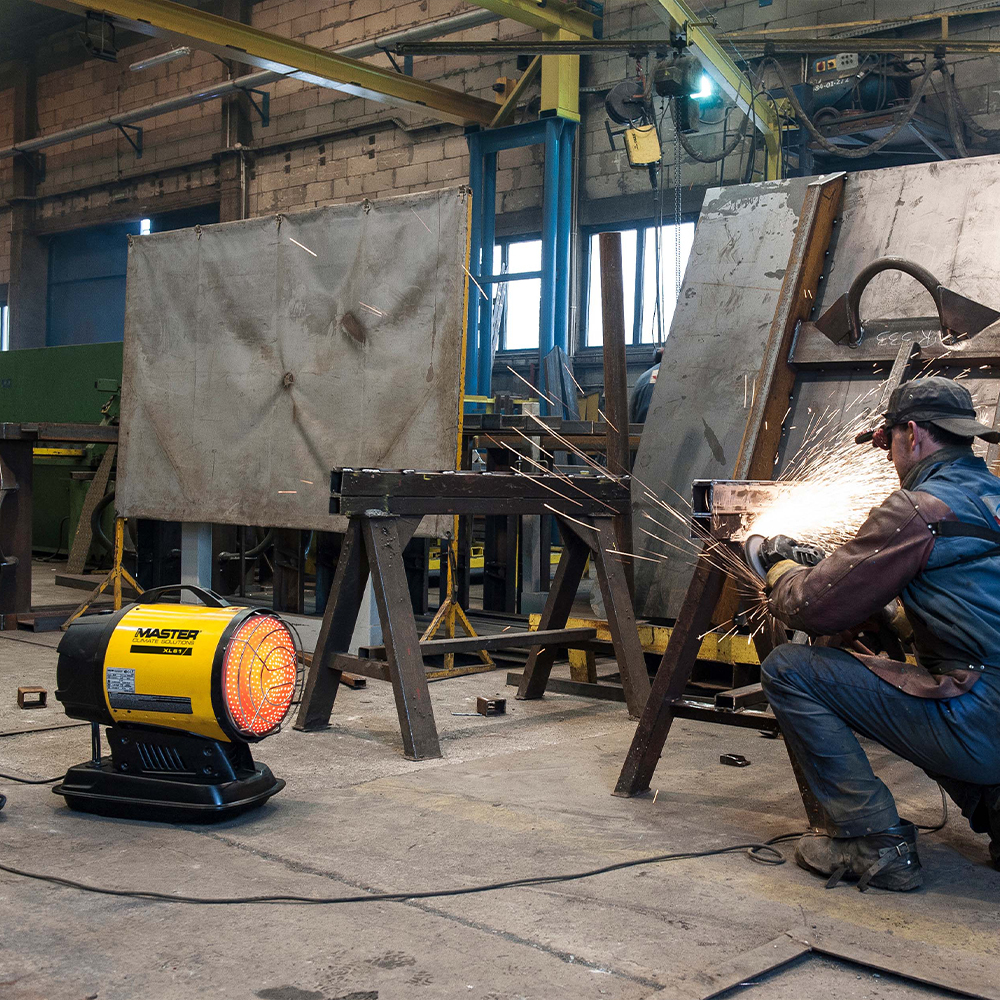

Master XL 61 in a warehouse
|
Key features
- Infrared heating (short wave)
- Electronic flame control with photocell
- Post-ventilation

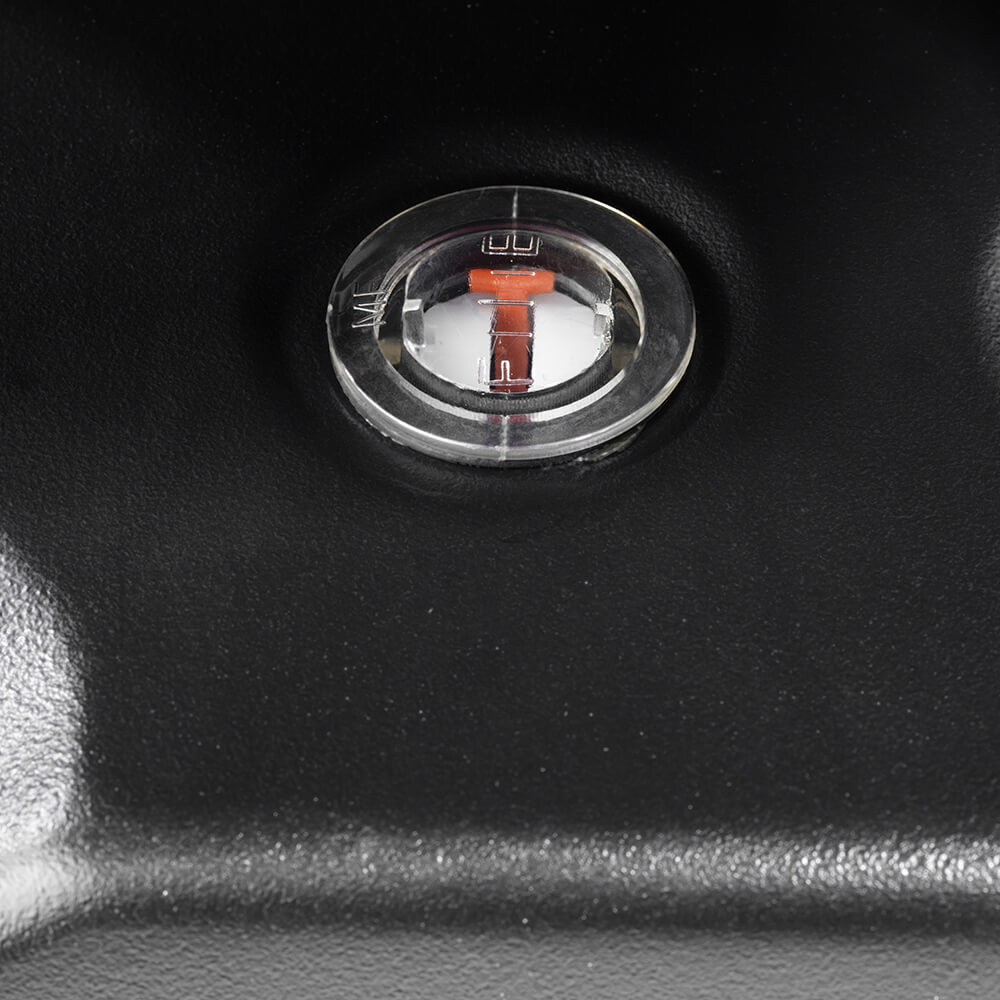

- Standard oil level indicator

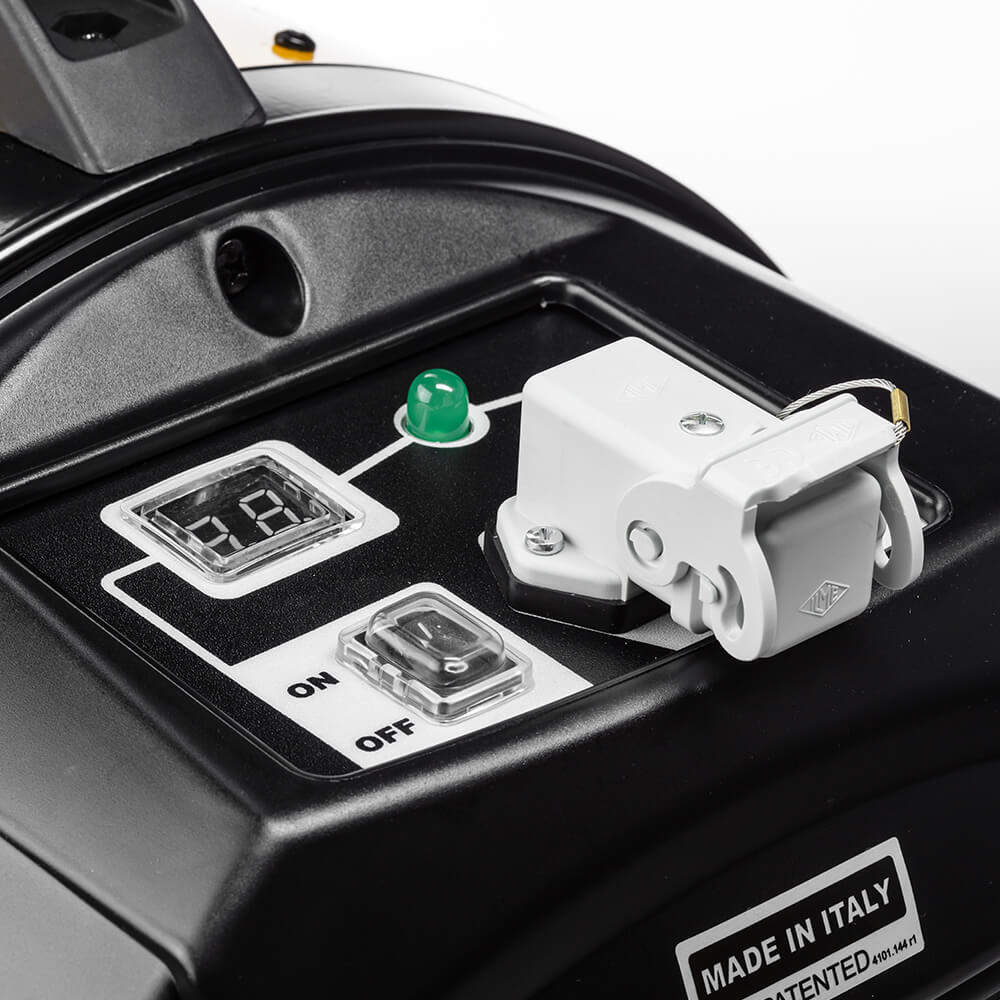

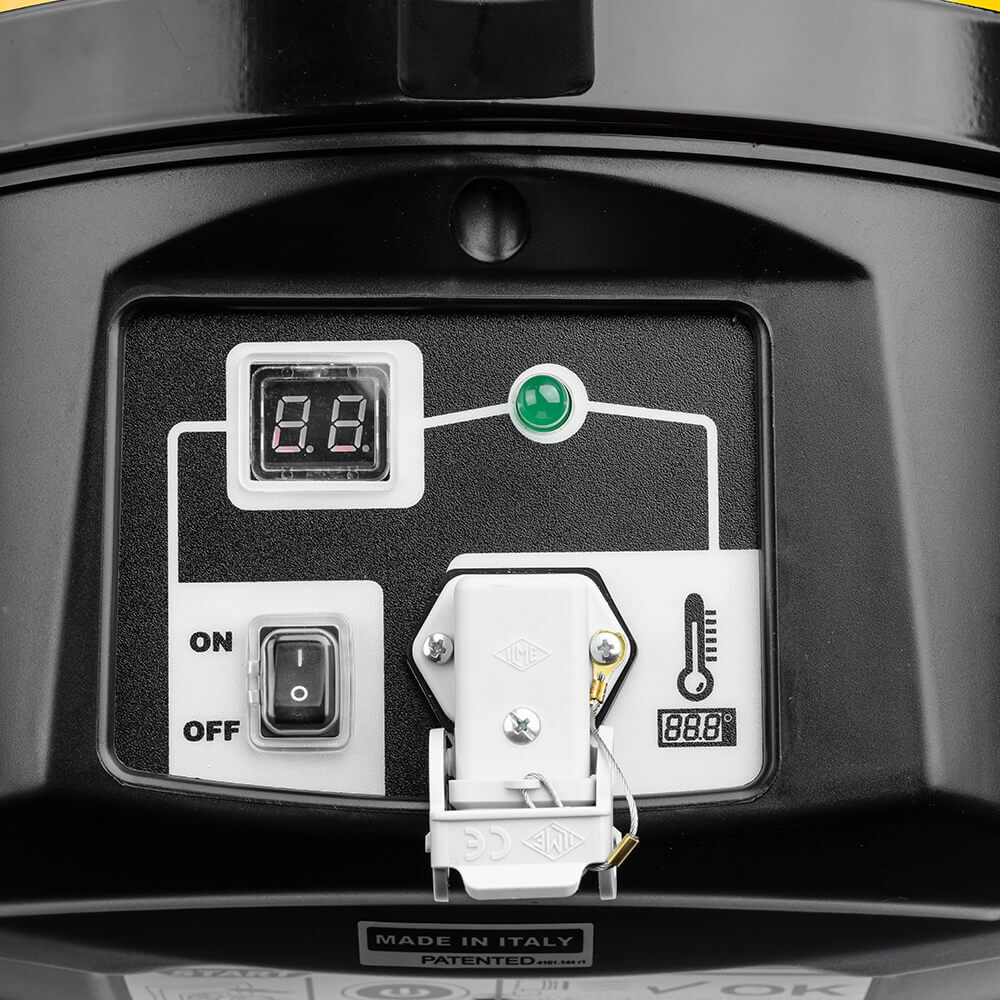

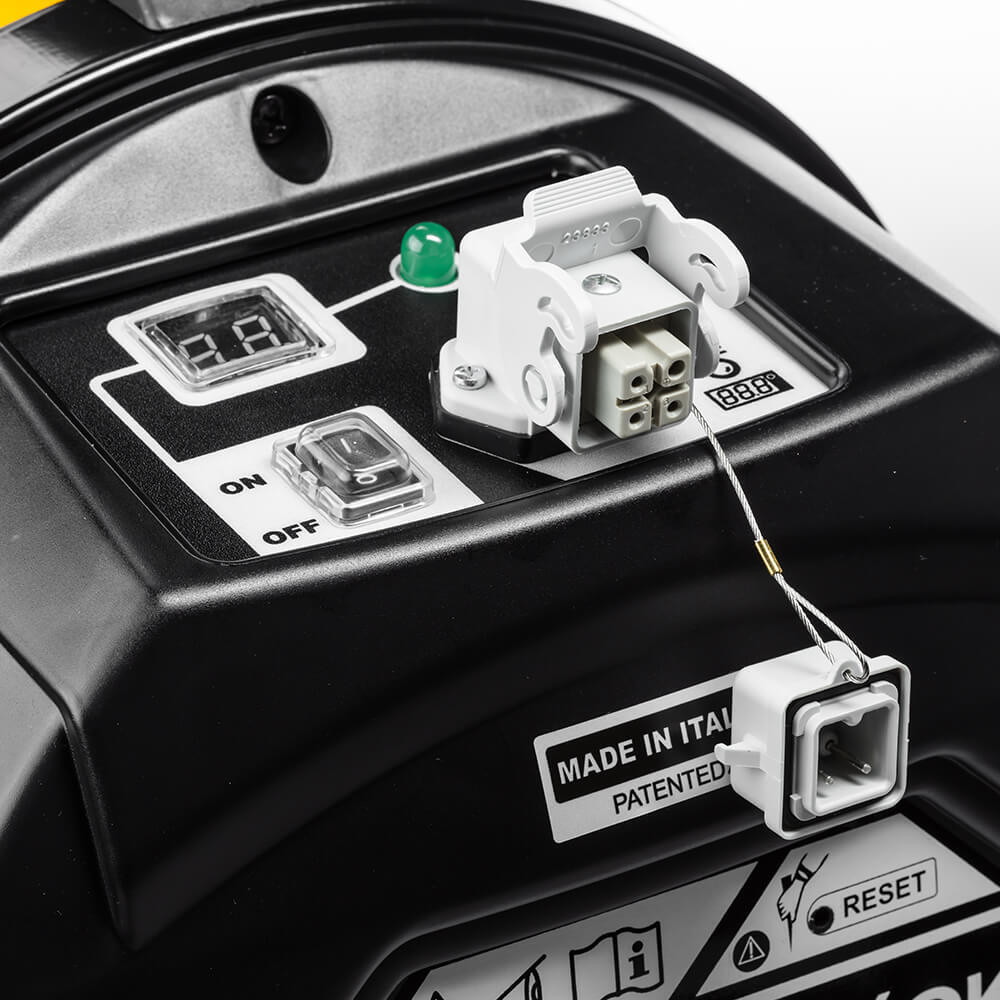

- ILME socket for remote thermostat: analogue or digital
- Suction filter and inlet filter
- Snorkel
- Overheat thermostat
- Anti-tilt switch
- 110 V available
Similar to the sun, short-wave infrared radiation heats the objects without heating the air. Once objects (or walls) are penetrated with heat, they can also reradiate and heat other objects. Infrared radiation heats through fog or wind. Infrared radiation travels straight, unlike hot air which rises. Infrared heaters are an excellent solution for:
- Heating objects, bodies or walls indoors and outdoors.
- Drying plaster walls. Infrared heat penetrates the wall and evaporates the humidity of the wall from inside. Unlike an air flow heater which creates a dry surface which traps humidity in the wall.
- Heating objects or limited indoor spaces. Unlike other methods where the hot air is quickly dispersed in the room.
- Saving energy, because less energy is required for achieving the same heating effect.
Product specifications
| Specifications | Units | XL 61 |
|---|---|---|
| Heating power | kW | 17 |
| Heating power | Btu/h | 58,000 |
| Heating power | kcal/h | 14,600 |
| Fuel consumption | kg/h | 1.35 |
| Fuel autonomy | h | 7 |
| Thermostat control | Analogue or digital | |
| Electric power | kW | 0.2 |
| Power supply | V/Hz | 220-240/1ph/50 |
| Rated current | A | 0.85 |
| Tank capacity | l | 11 |
| Product size (l x w x h) | mm | 560 x 345 x 575 |
| Box size (l x w x h) | mm | 600 x 380 x 580 |
| Net/gross weight | kg | 19/21 |
| Pallet | pcs | 12 |
| 110 V | Available |
Heating radiation table
| Specifications | Units | T Ambient 20°C - XL 61 |
|---|---|---|
| 0.5m | °C | 110 |
| 1m | °C | 50 |
| 1.5m | °C | 20 |
Suitable for:
- Agriculture
- Automotive
- Construction
- Emergency services
- Events and festivals
- Industrial, factories and production
- Military and aerospace
- Rental companies
- Transport and logistics
