Master CF 75 SPARK – direct gas fired air heater
Fixed direct gas fired air heaters
Designed for indoor and outdoor, the CF 75 is easy to install and the availability of cheap fuel allows to cut down on heating costs. They are suitable for areas with high air flow requirements like greenhouses or animal housing, warehouses, workshops, etc. They can work with a standard oil burner, LPG or natural gas burner.
View all of our direct gas fired heaters or browse our full range of commercial heaters that are suitable for multiple applications and environments.

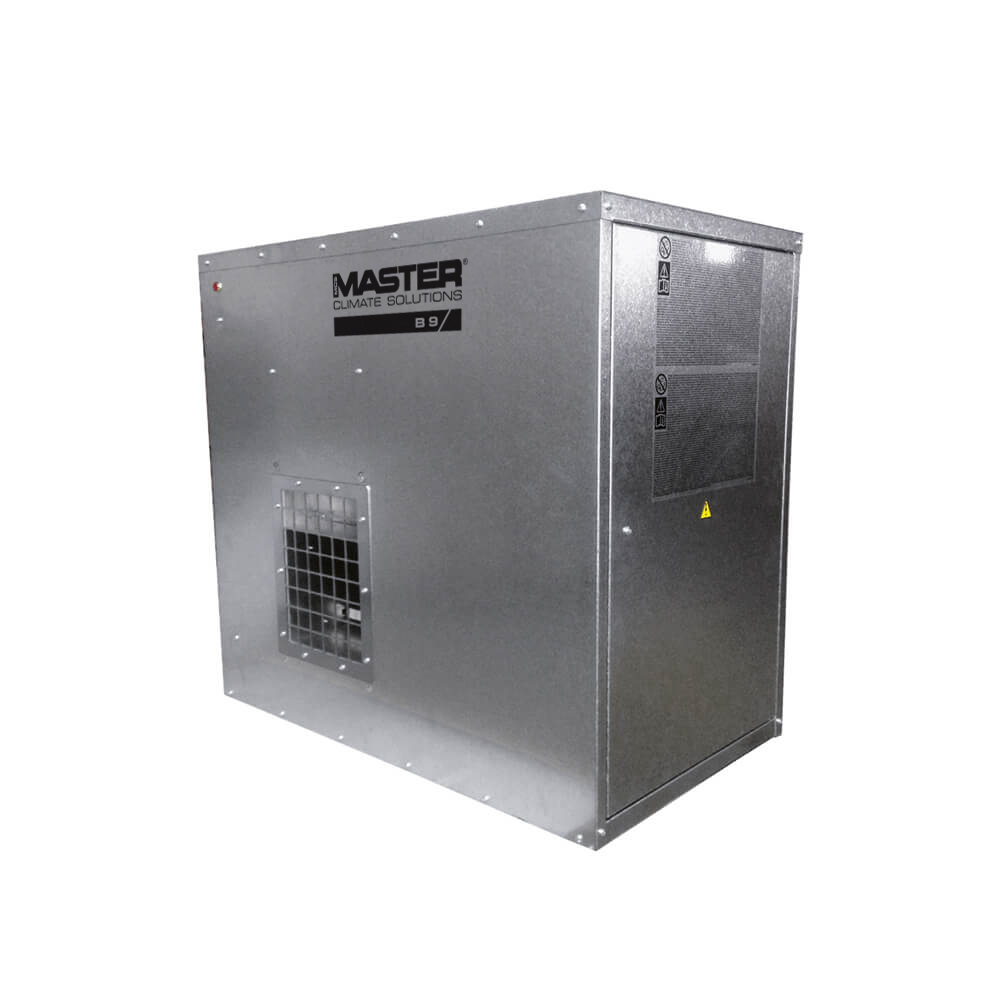

Master CF 75 – direct gas fired air heater
|

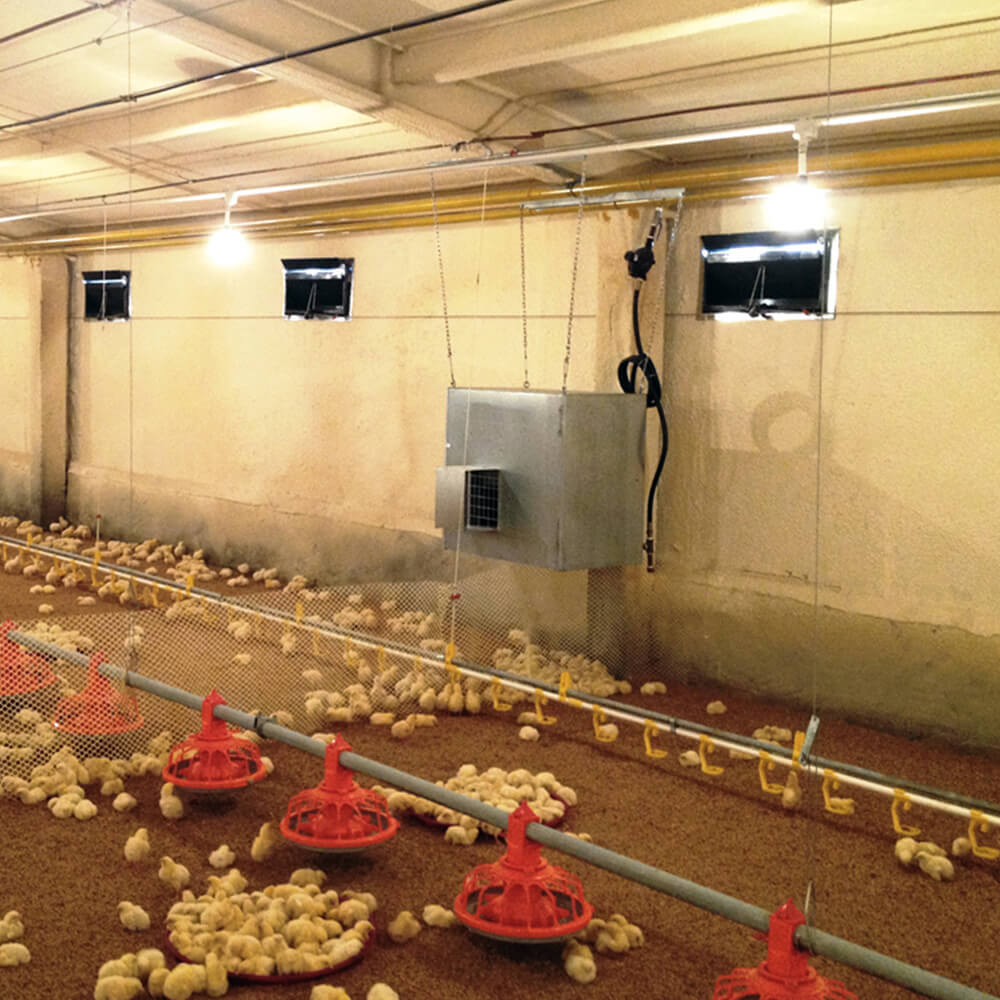

Master CF 75 SPARK heating a chicken farm
|
Key features
- Designed for indoor and outdoor use
- Can be placed on the floor or hung from a ceiling
- Galvanised steel combustion chamber
- Reliable twin spark ignition
- Natural gas or LP gas burner
- High efficiency heat exchanger
- Overheat thermostat
- Closed motor to assure safety and dependability even in harsh environments
- Galvanised steel body
Product specifications
| Specifications | Units | CF 75 SPARK |
|---|---|---|
| Heating power | kW | 75 |
| Heating power | Btu/h | 255,900 |
| Heating power | kcal/h | 64,500 |
| Air flow | m³/h | 2,100 |
| Thermostat control | Optional | |
| Fuel consumption (LPG) | m³/h | 2.3 |
| Fuel consumption (natural gas) | m³/h | 8 |
| Electric power | kW | 0.5 |
| Power supply | V/Hz | 220-240/1ph/50 |
| Rated current | A | 2.8 |
| Product size (l x w x h) | mm | 788 x 464 x 719 |
| Box size (l x w x h) | mm | 825 x 515 x 780 |
| Net/gross weight | kg | 57/61 |
| Pallet | pcs | 4 |
| Included in the box | Diverter, LPG to natural GAS kit |
Suitable for:
- Agriculture
- Industrial, factories and production
