Master ACD 137 – condensation dehumidifier and cooler
Condensation dehumidifier and air-conditioner
An innovative new product that allows multiple usage of being an air-conditioner and a dehumidifier. This durable and portable unit is ideal for emergency and temporary cooling and drying solutions including tents, mobile hospitals, work spaces and retail premises.
View other industrial condensation dehumidifiers or see our full range of dehumidifiers, air cooling units and air conditioning units suitable for multiple applications.

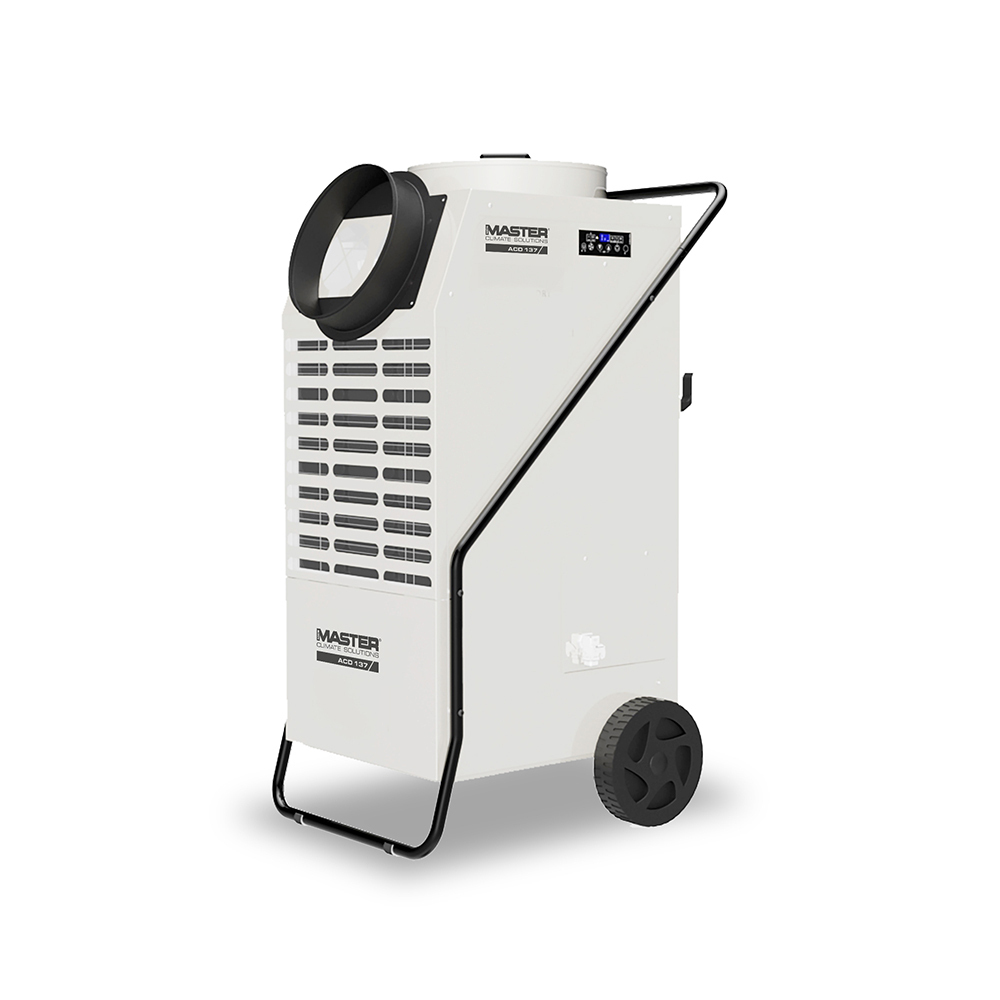

Master ACD 137 dehumidifier and air-conditioner
|

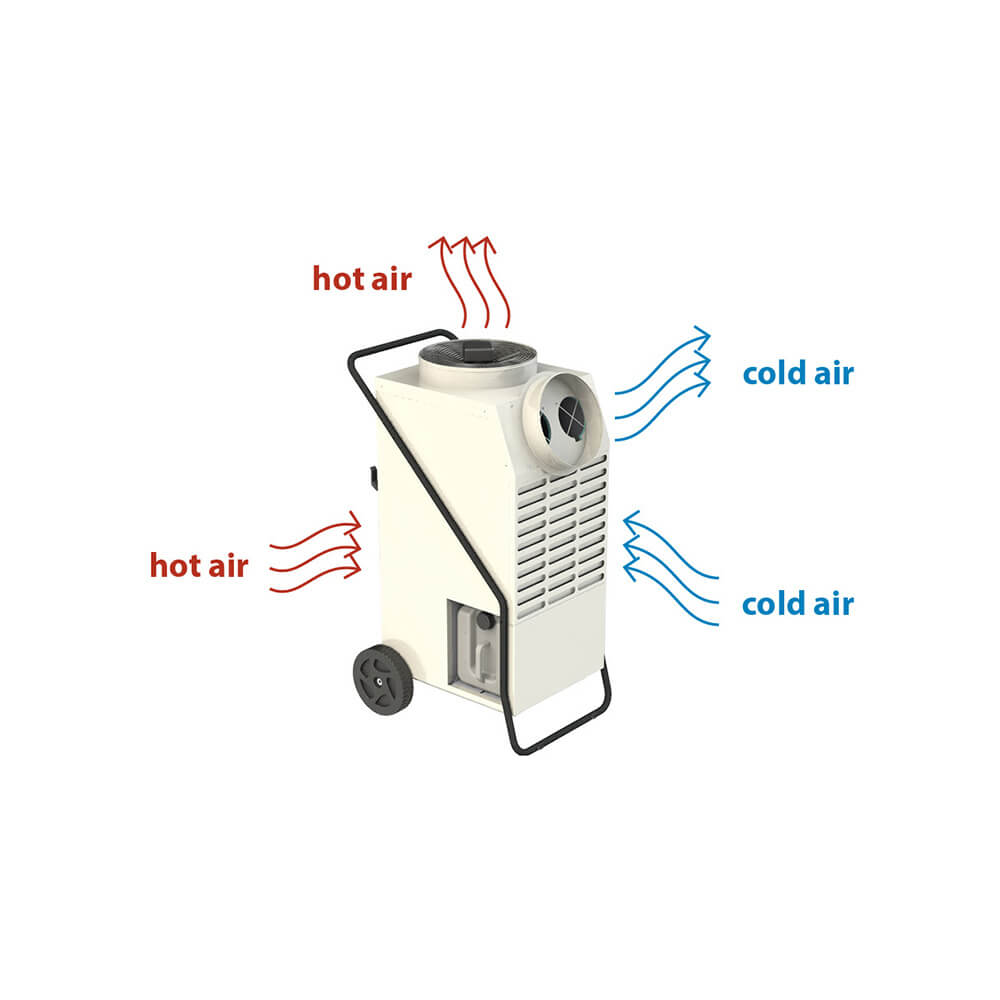

Master ACD 137 diagram
|

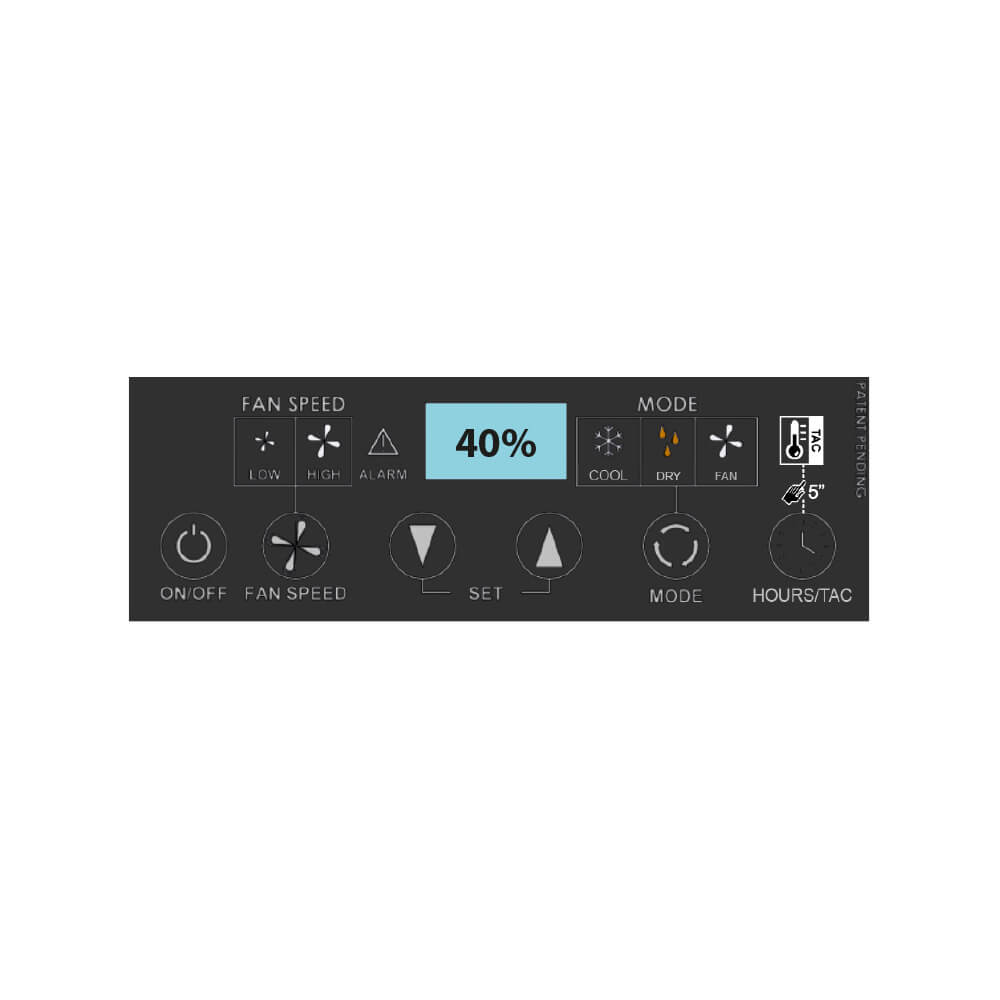

Master ACD 137 controls
|

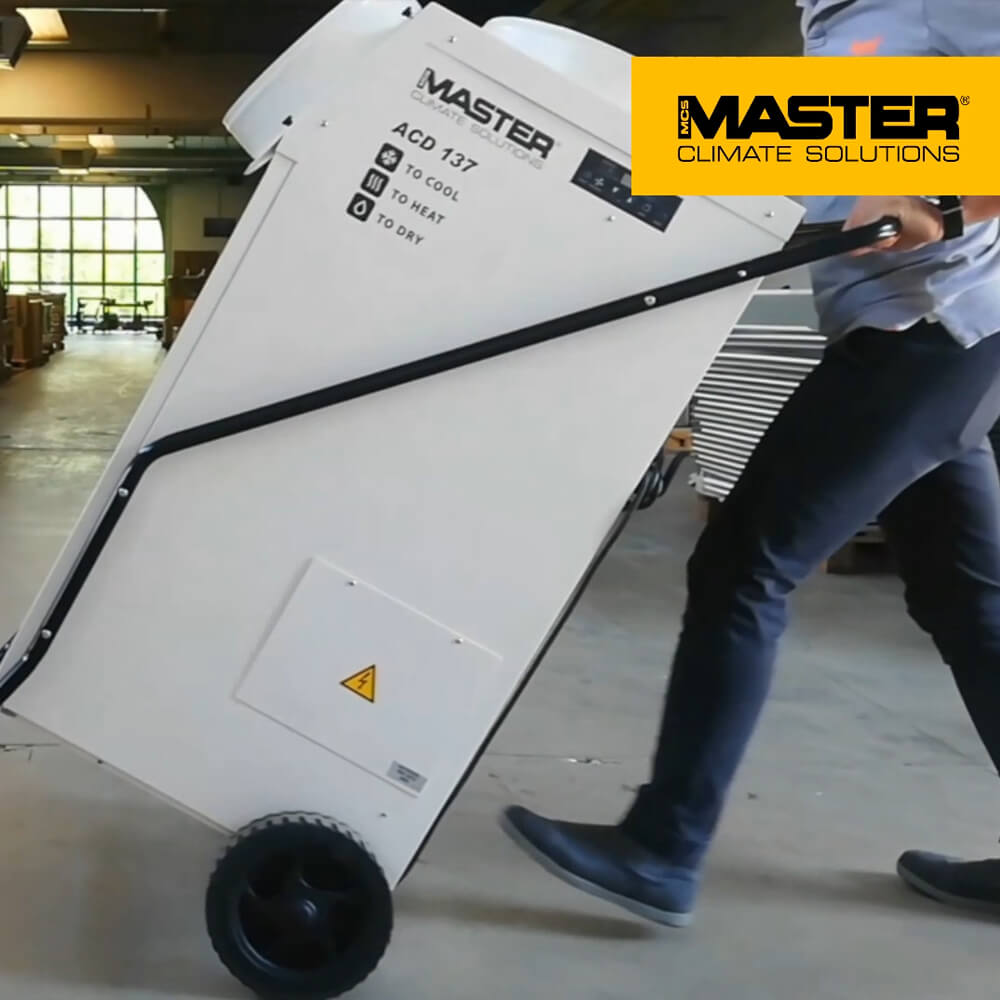

Master ACD 137 video
|

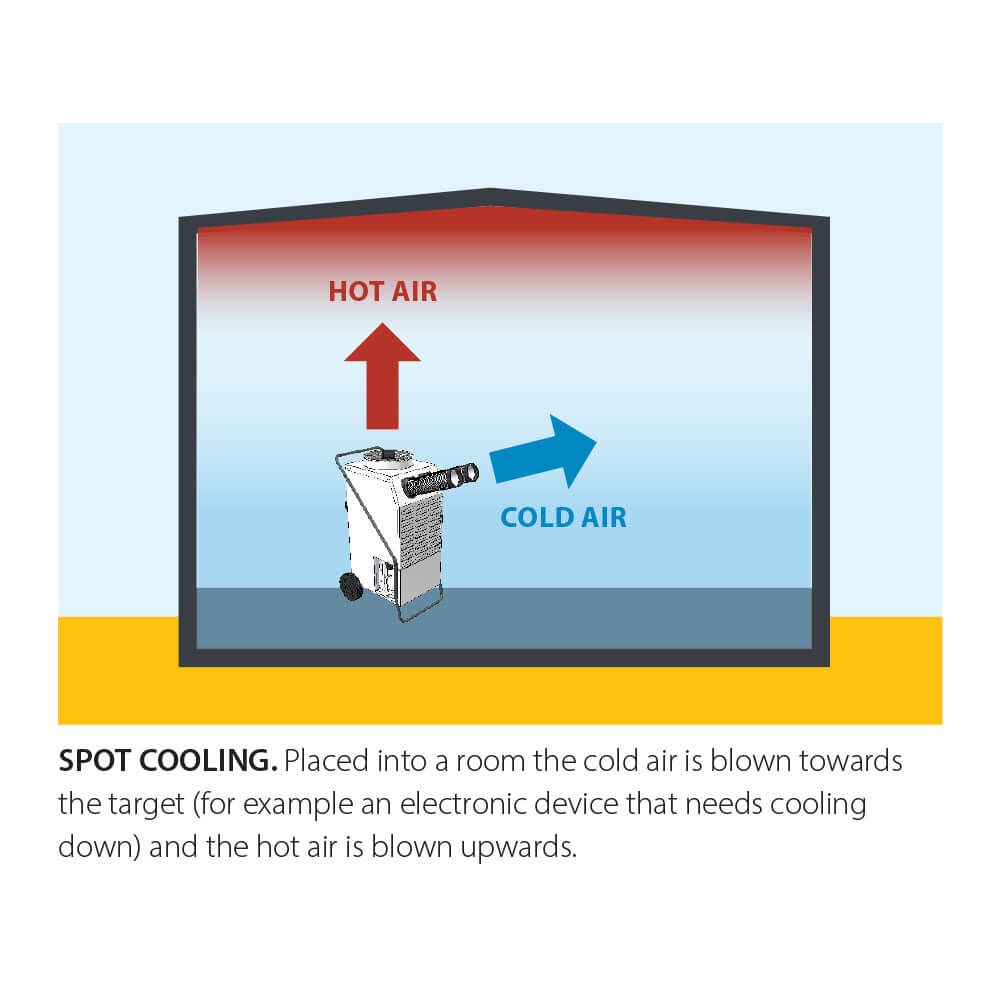

Master ACD 137 spot cooling
|

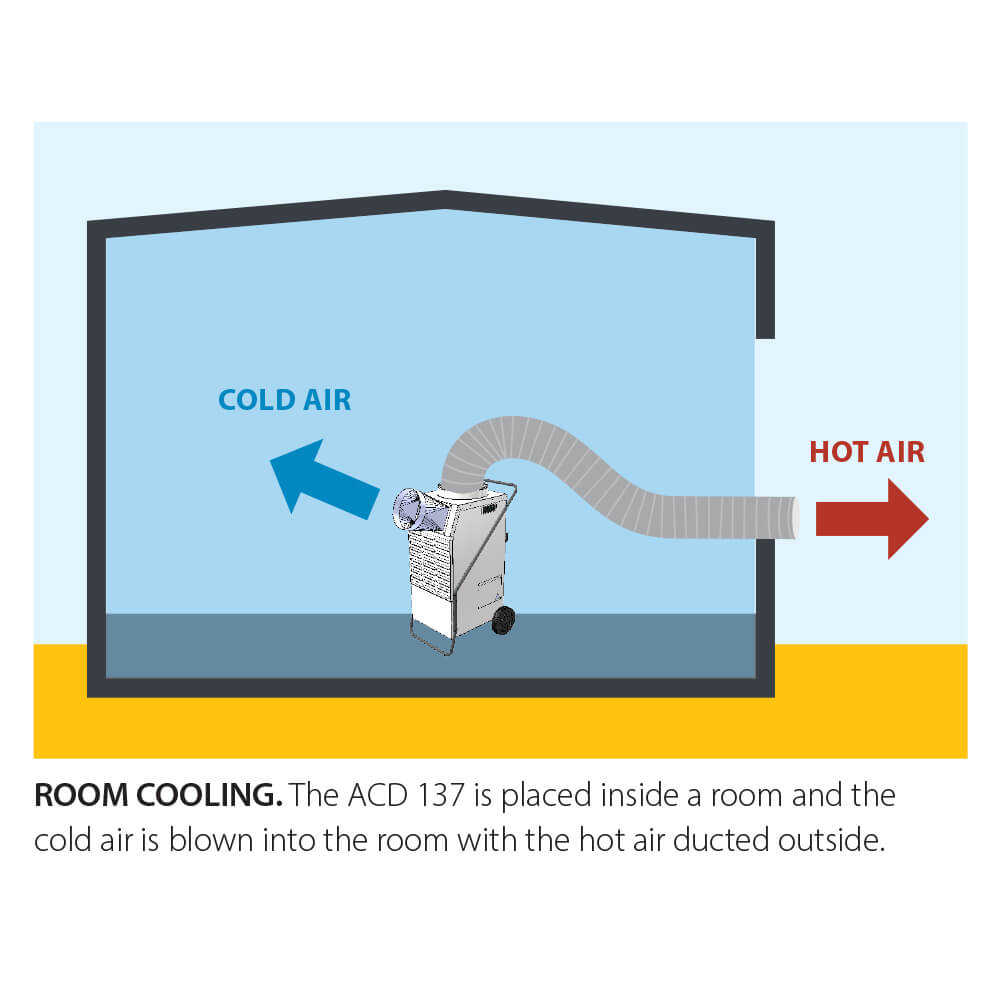

Master ACD 137 room cooling inside
|

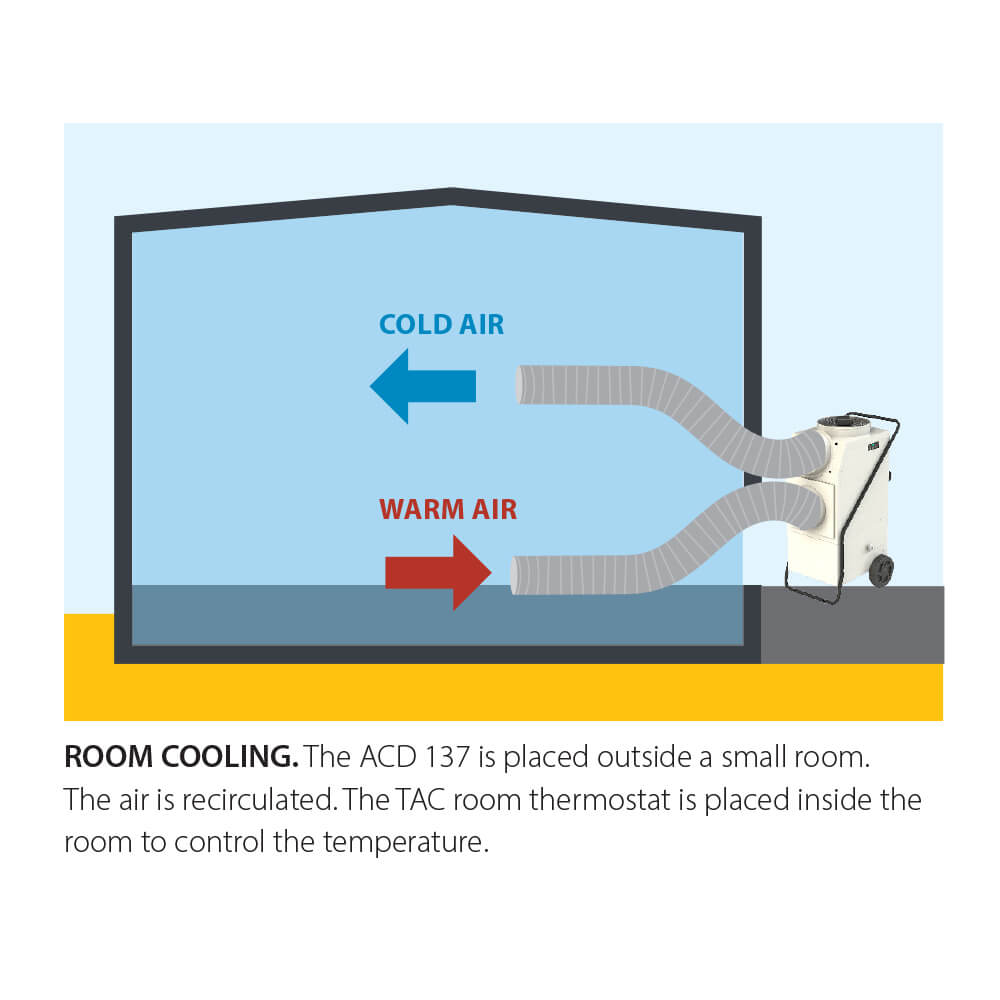

Master ACD 137 room cooling outside
|

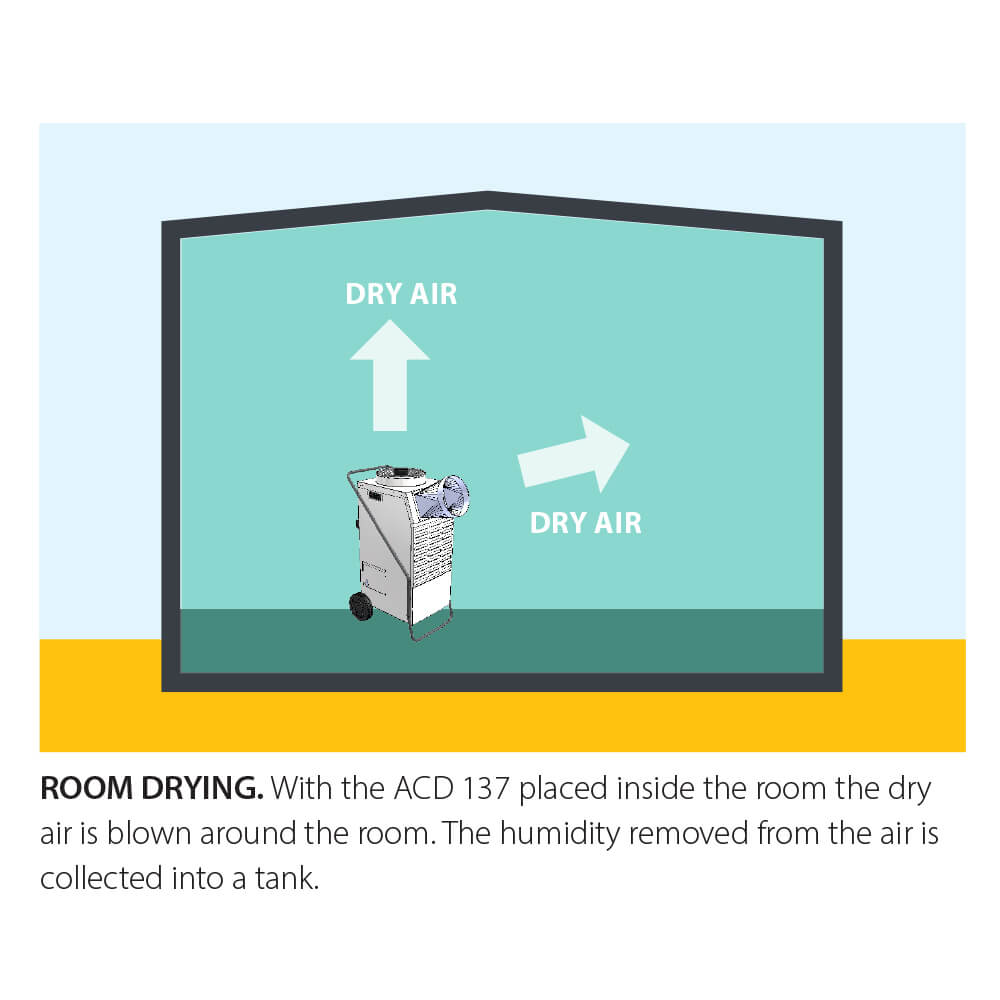

Master ACD 137 room drying
|

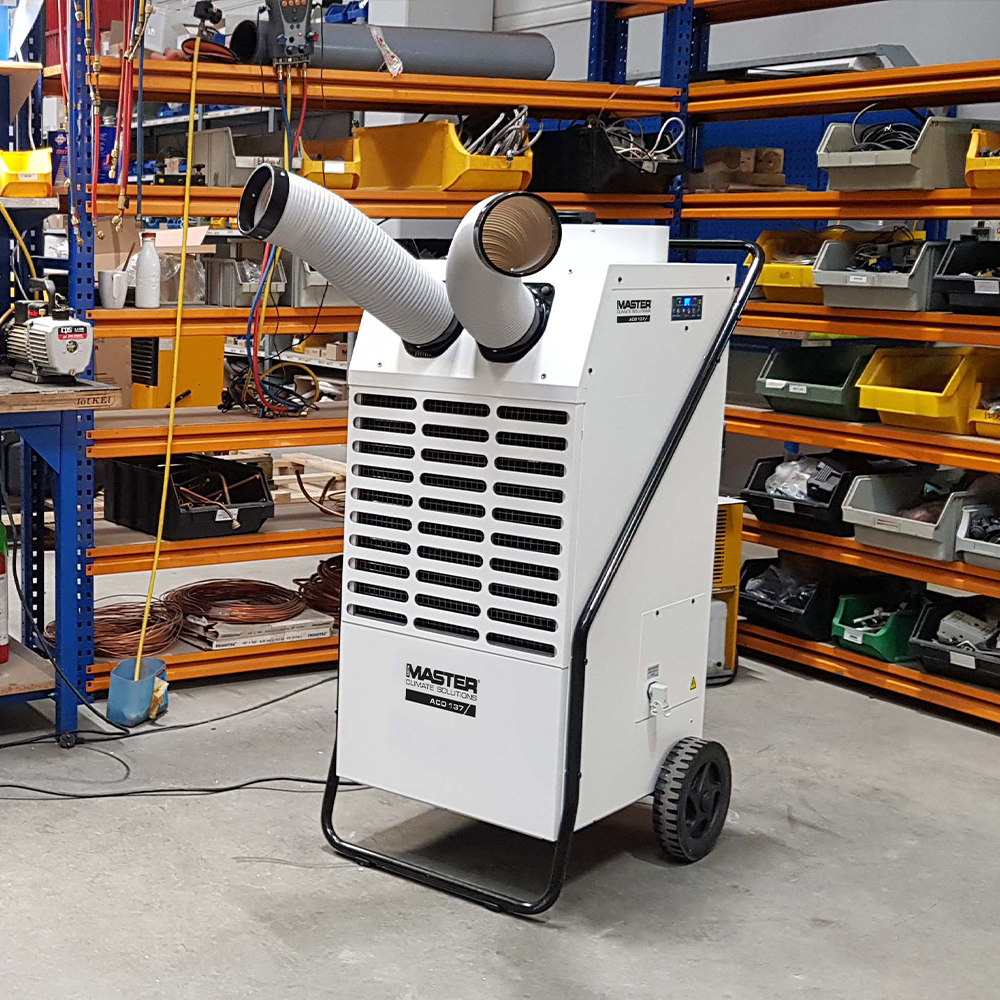

Master ACD 137 cooling workshop
|

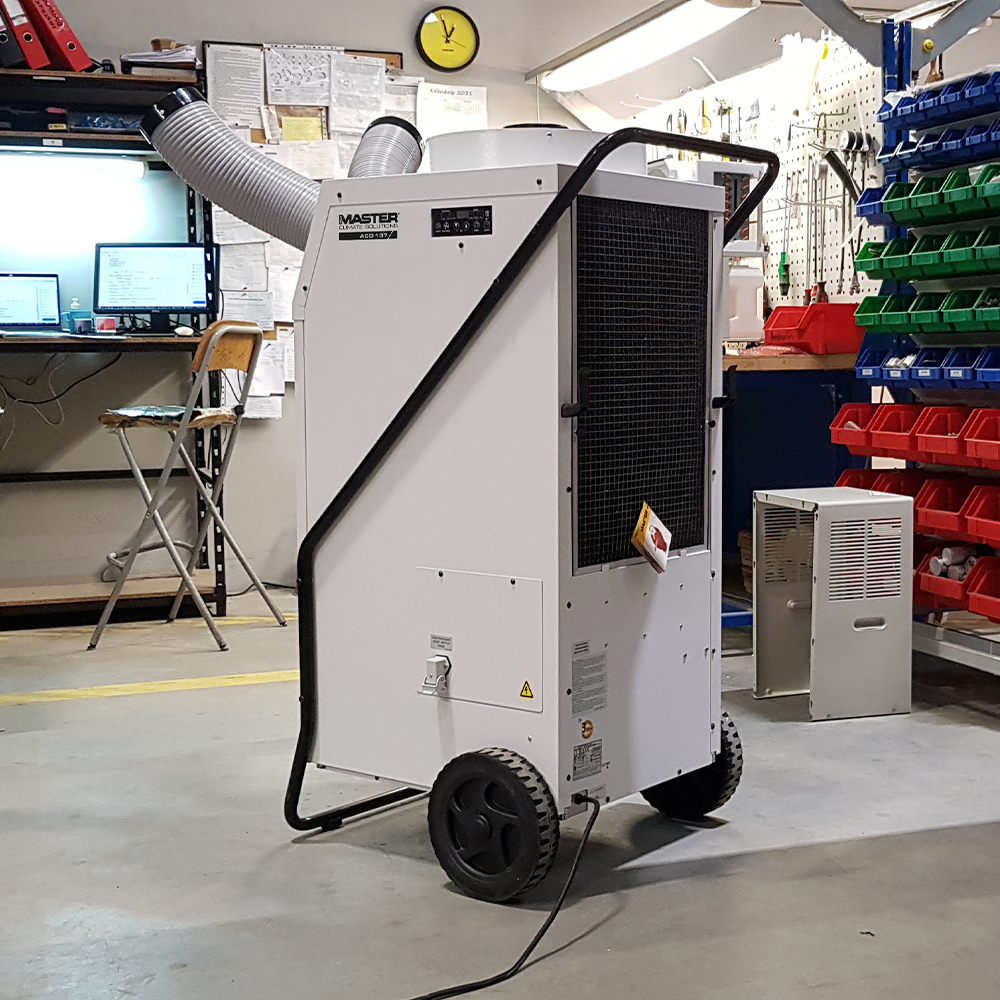

Master ACD 137 workshop
|

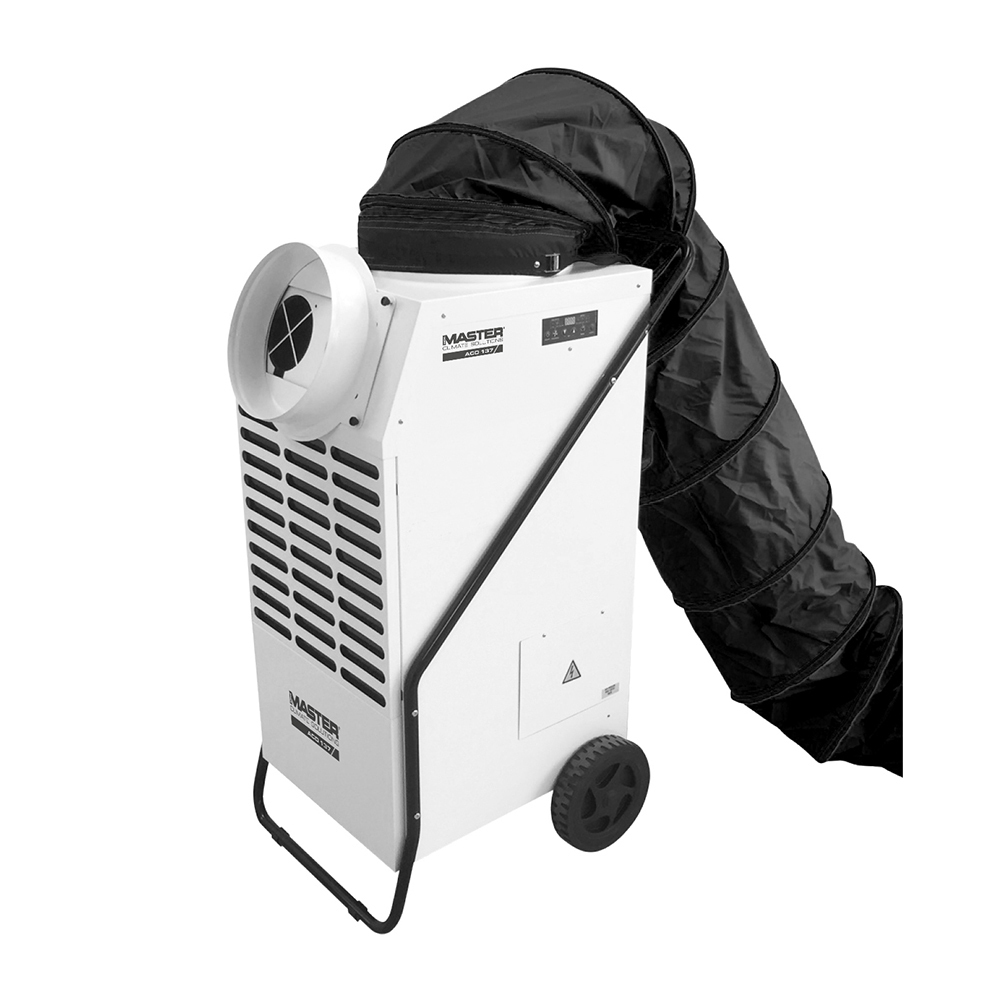

Master ACD 137 with black flex tube
|
Key features
- High capacity air-conditioning cold air: 24,000 BTU/h (equal to 7.1 kW) with just 1.98kW electrical supply
- High capacity dehumidifying dry air: 130 l/day water collection with just 1.98kW electrical supply
- Ducting connections
- Powerful and quiet fans
- Compact and lightweight and easy to install
- Heavy-duty casters
- Ideal for emergency and temporary solutions – quick deployment for tents and mobile hospitals
- Portable spot air-conditioning for a wide range of applications like workshops, data centres, offices, retail
Product specifications
| Specifications | Units | ACD 137 |
|---|---|---|
| Cooling capacity (28°C/55% RH) | kW | 7.1 |
| Cooling capacity (28°C/55% RH) | Btu/h | 24 |
| Drying capacity (30°C/80% RH) | l/24h | 130 |
| Air flow | m3/h | 1,020/800 |
| Operating temperature range | °C | 10-42 |
| Nominal power supply (28°C/55%) | W | 1,980 |
| Nominal current (28°C/55%) | A | 10 |
| Max. current | A | 14 |
| Power supply | V/Hz | 220-240/1ph/50 |
| Sound level | dB(A) | 55 |
| Refrigerant | R1234yf A2L | |
| Hot air outlet | mm | 400 |
| Cold air outlet (2-ways, standard) | mm | 2 x 135 |
| Cold air outlet (1-way) | mm | 300 |
| Product size (l x w x h) with handle | mm | 790 x 620 x 1326 |
| Box size (l x w x h) | mm | 580 x 700 x 1500 |
| Weight | kg | 98 |
| Included in the box | Twin adjustable hoses, fix connector for flex tube |
Suitable for:
- Agriculture
- Commercial buildings
- Emergency services
- Events and festivals
- Industrial, factories and production
- Leisure and recreation
- Military and aerospace
- Rental companies
