Heylo StaubStop 3000-6000 – dust extraction
Mobile dust extraction - for use in workshop and on the building site.
StaubStop contains: Ventilator PowerVent 3000 or PowerVent 6000 + filter housing + dust filter set (G4 + F9)
Air cleaning on building sites shall become standard: In spring 2014, the Committee for Hazardous Substances has reduced the threshold value for respirable dusts on building sites from 3 mg/cum to 1.25 mg/cum.
The mobile air filter StaubStop reduces the dust on building sites to minimum. The combination consists of a ventilator and a filter housing including coarse and fine dust filter. The powerful ventilator ensures that dust is removed directly at the point of origin during renovation work. The combination is set up quickly and is easy to transport on account of the low weight.
If necessary, a dust filter or optionally an ink filter can be used to draw off overspray. Have a look at FarbStop 3000.

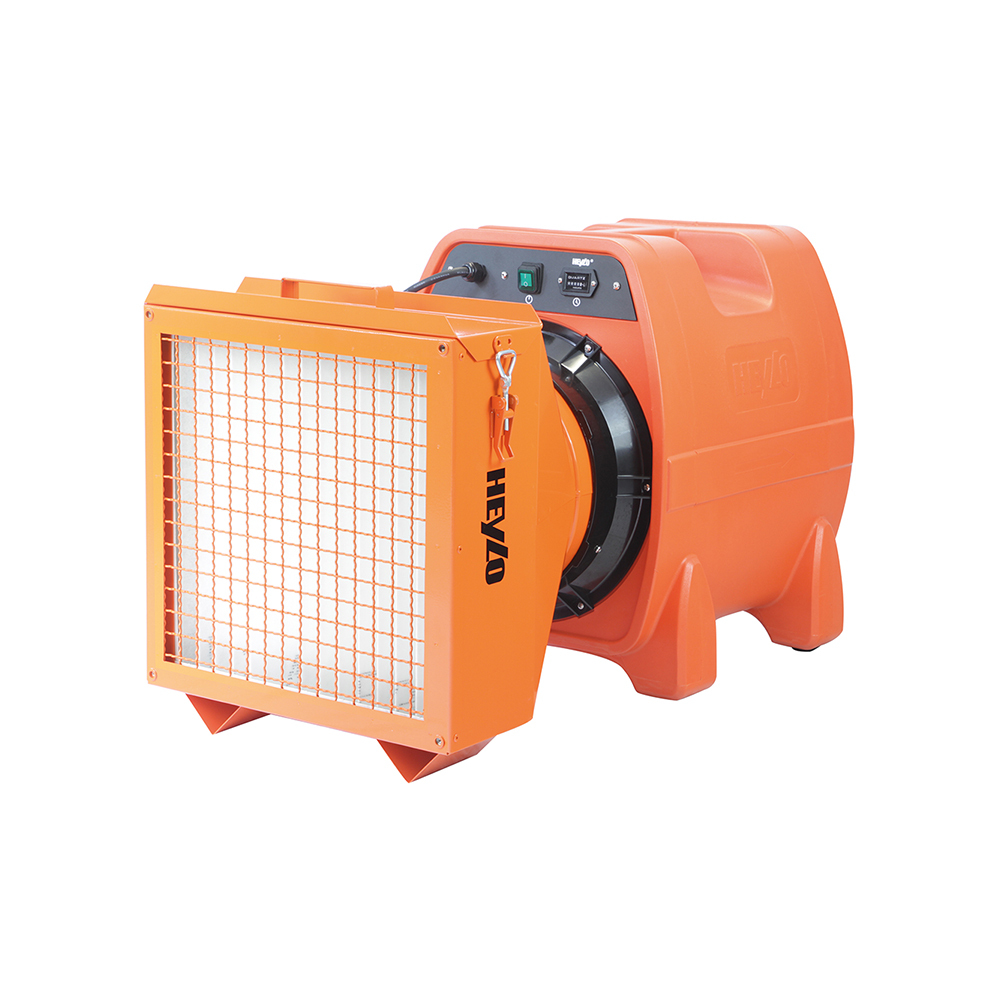

Heylo air cleaner StaubStop 3000
|

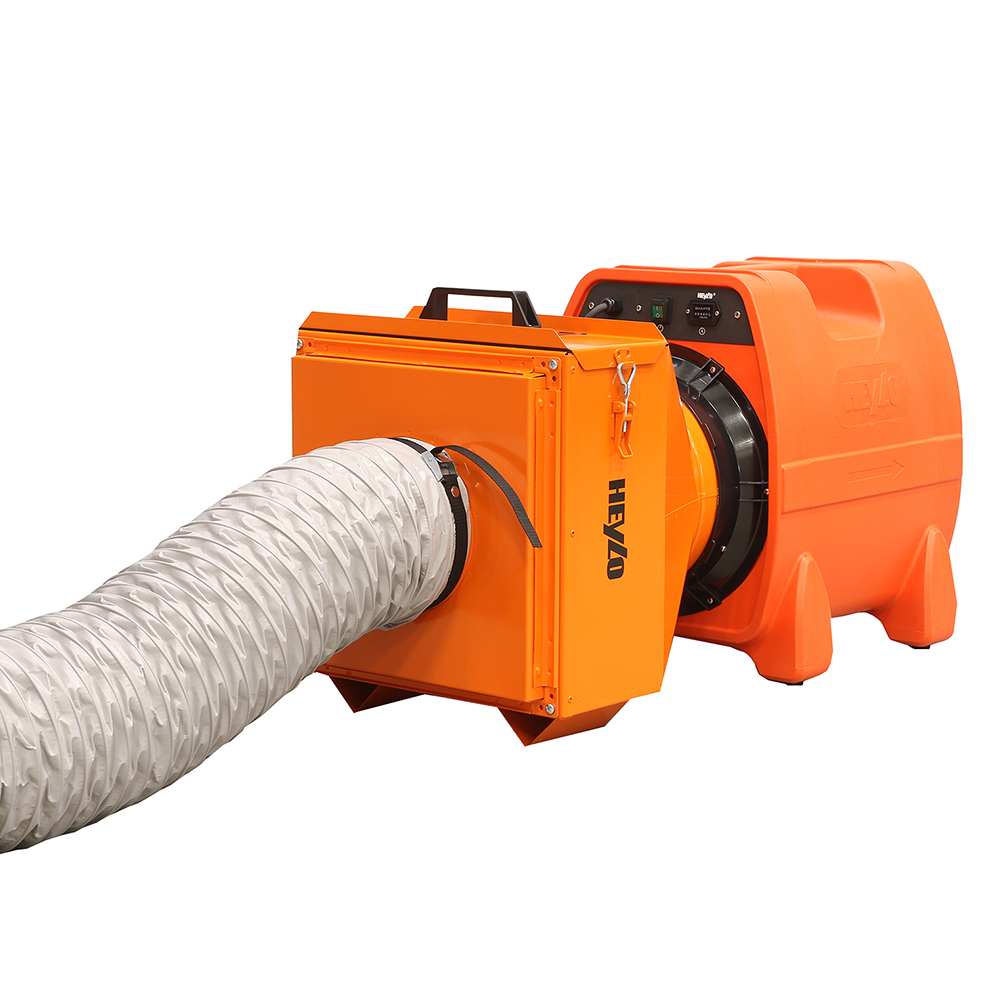

Heylo air cleaner StaubStop with hose
|

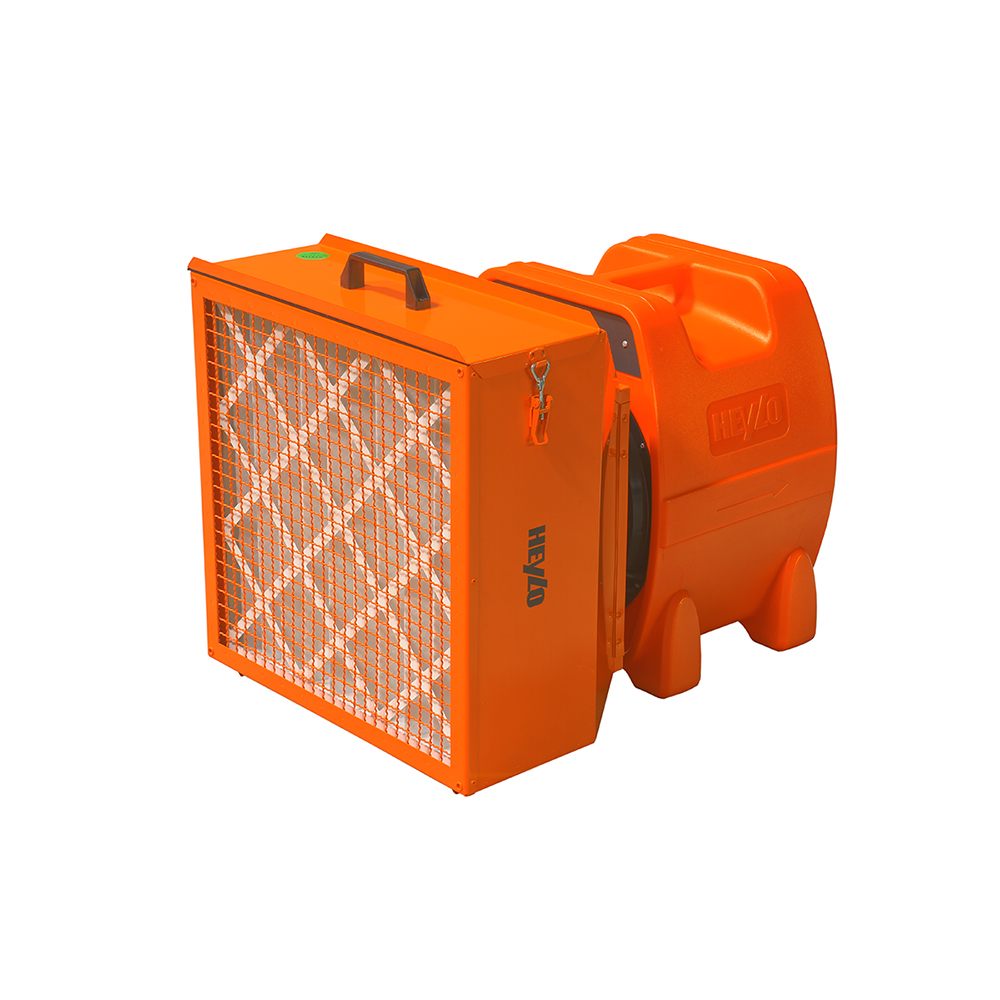

Heylo air cleaner StaubStop 6000
|

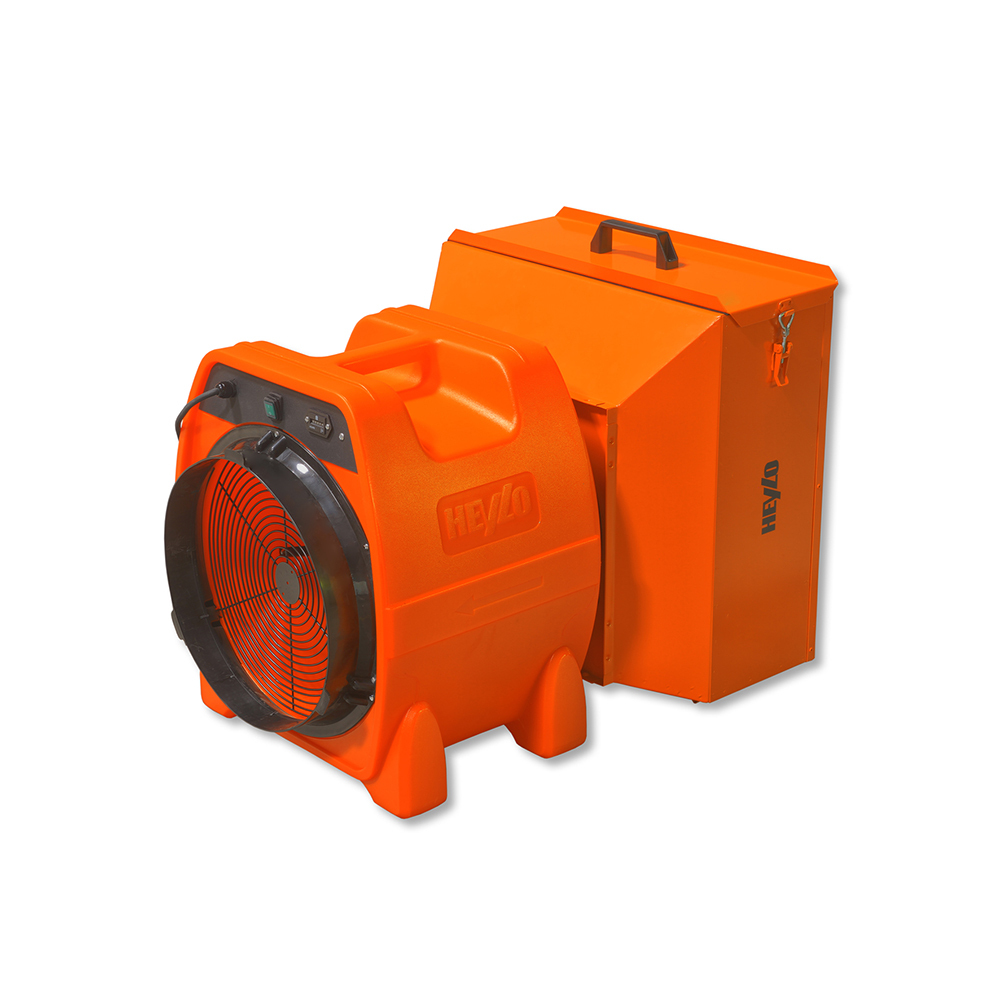

Heylo air cleaner StaubStop 6000 back
|
open filter housing
|
Key features
- Coarse and fine dust filters quickly and reliably collect the dust particles
- High air flow
- Dust, dirt, paint mist are extracted directly
- Quickly transported
- Targeted extraction possible by connecting an air duct
Product specifications
| Specifications | Units | StaubStop 3000 |
|---|---|---|
| Fan air flow rate max. | m³/h | 3,102 |
| Power supply | V/Hz | 230/1ph/50 |
| Included filter | Dust filter set (G4 + F9) | |
| Sound level @3m | dB(A) | 78 |
| Product size filter housing (l x w x h) | mm | 450 x 430 x 450 |
| Weight | kg | 29 |
| Specifications | Units | StaubStop 6000 |
|---|---|---|
| Fan air flow rate max. | m³/h | 5,410 |
| Power supply | V/Hz | 230/1ph/50 |
| Included filter | Dust filter set (G4 + F9) | |
| Sound level @3m | dB(A) | 84 |
| Product size filter housing (l x w x h) | mm | 445 x 640 x 690 |
| Weight | kg | 45 |
Suitable for:
- Commercial buildings
- Construction
- Industrial, factories and production
- Leisure and recreation
- Rental companies
