Dantherm TTR 8200 – desiccant dehumidifier
The TTR 8200 industrial desiccant dehumidifier offers over 1,000kg of dehumidification performance per day, making it ideal for various tasks in industrial, haulage, or utility companies. It can protect products and production, as well as machines, inventory, and buildings from corrosion, condensation, or mould formation. Its robust, galvanised, and painted steel housing with corrosion protection can withstand harsh environmental conditions, making it suitable for dry keeping, gas dehumidification, or dry air production in the chemical, pharmaceutical, and food industries, mechanical engineering, or reducing the formation of ice and frost in deep freeze zones. It can also protect stored goods susceptible to moisture.
Contact our team to discuss which commercial adsorption dehumidifier or type of industrial dehumidifier is most suitable for your intended purpose.

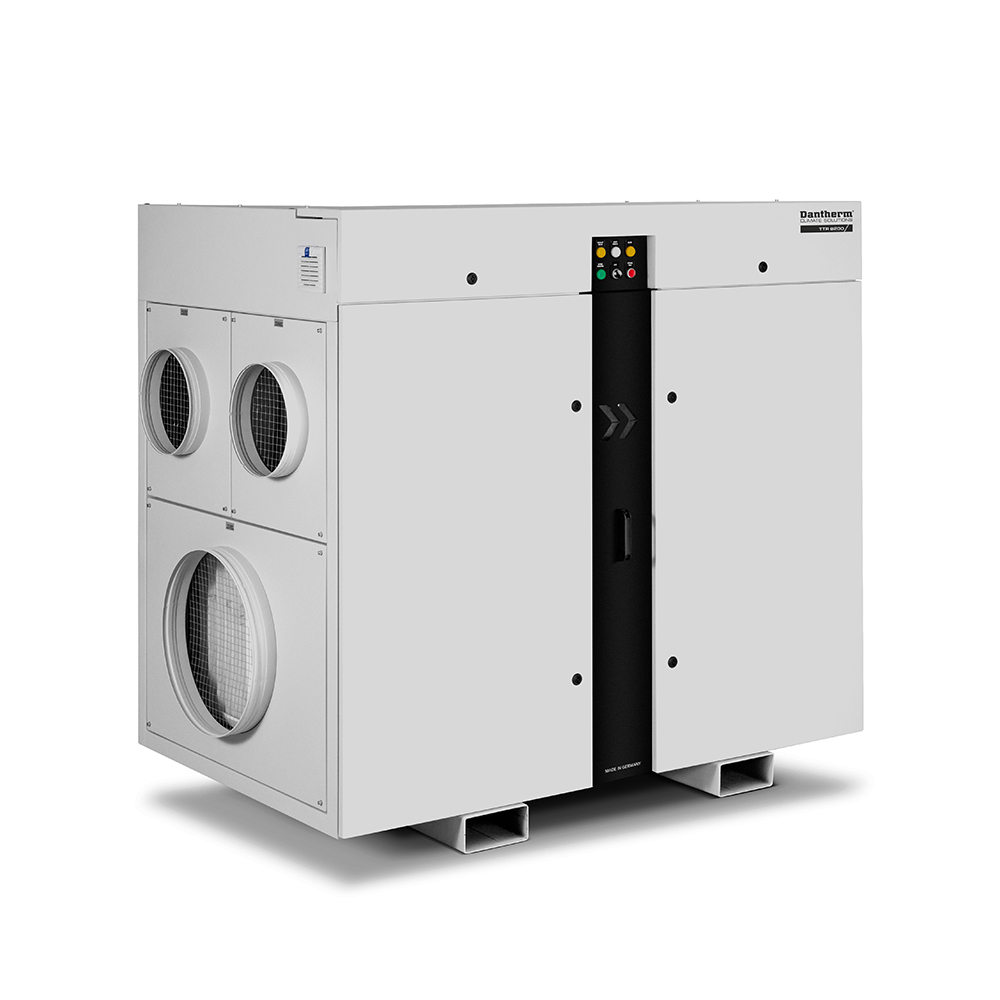

Dantherm TTR 8200 main right
|

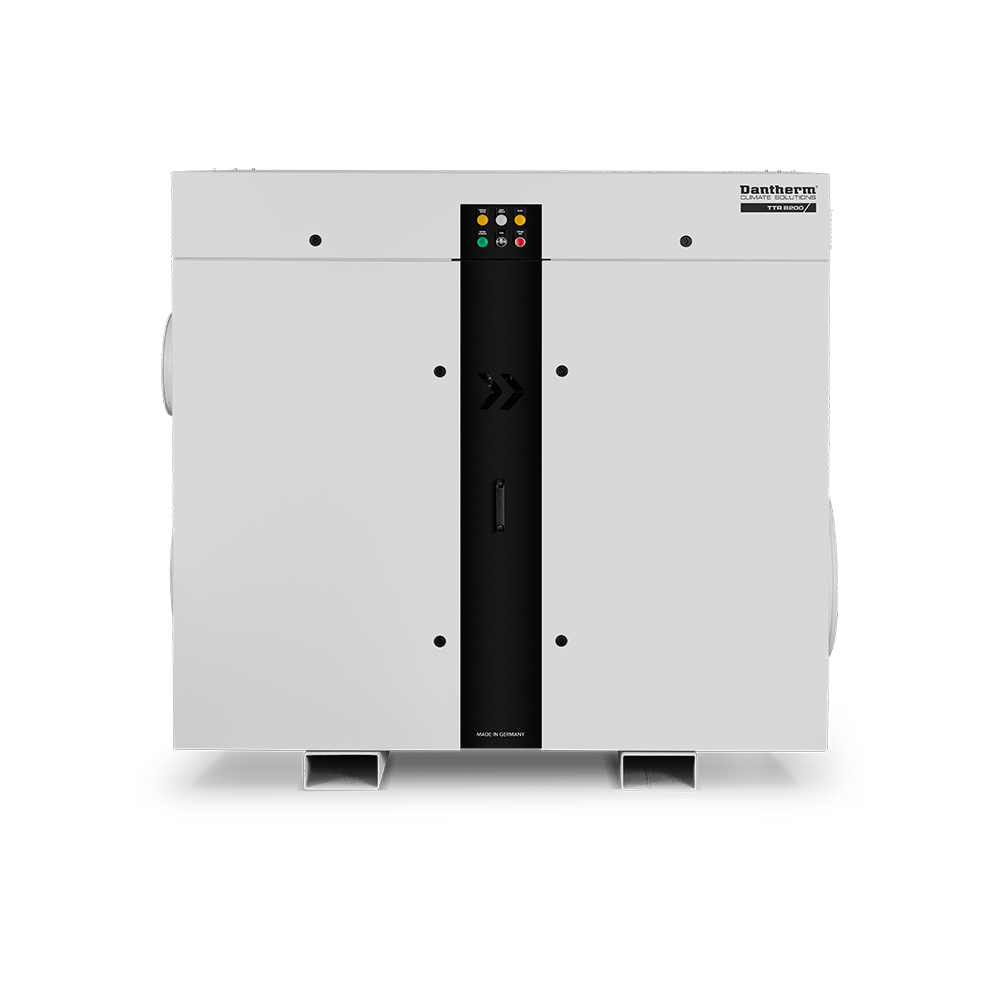

Dantherm TTR 8200 front
|

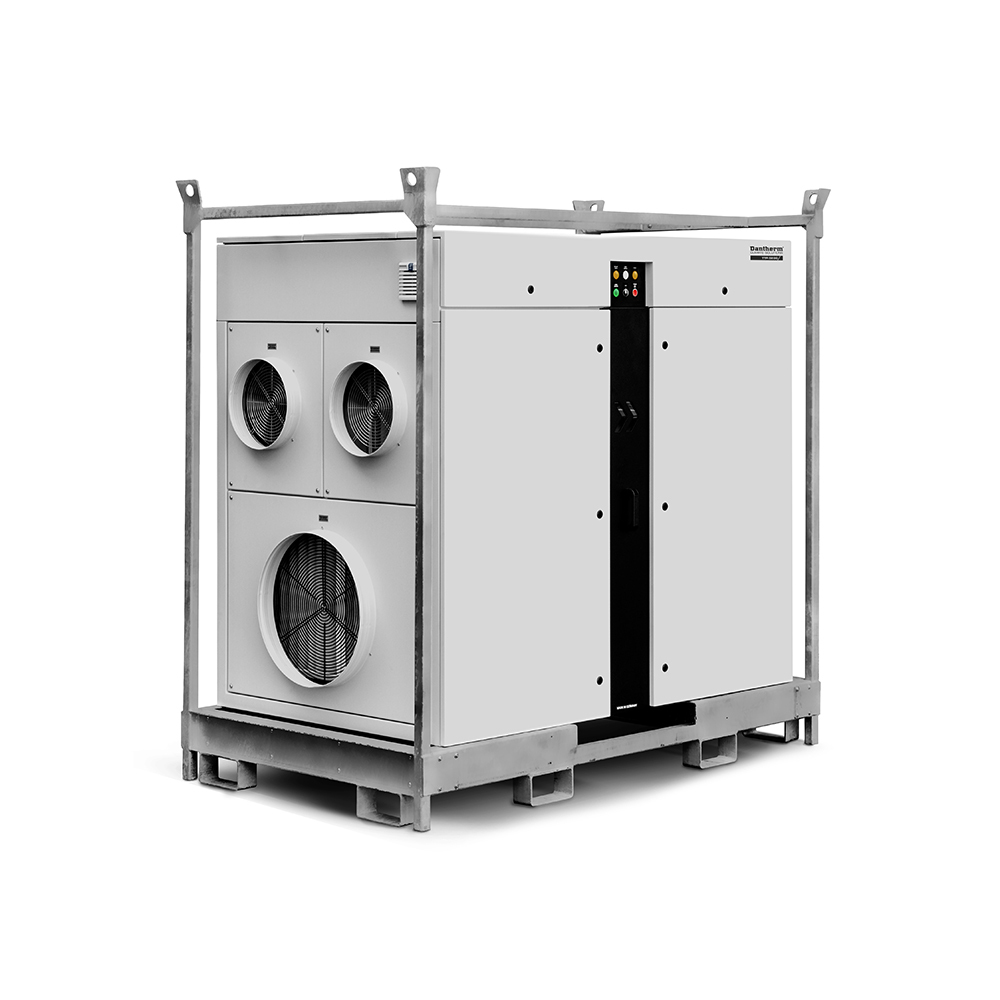

Dantherm TTR 8200 frame
|

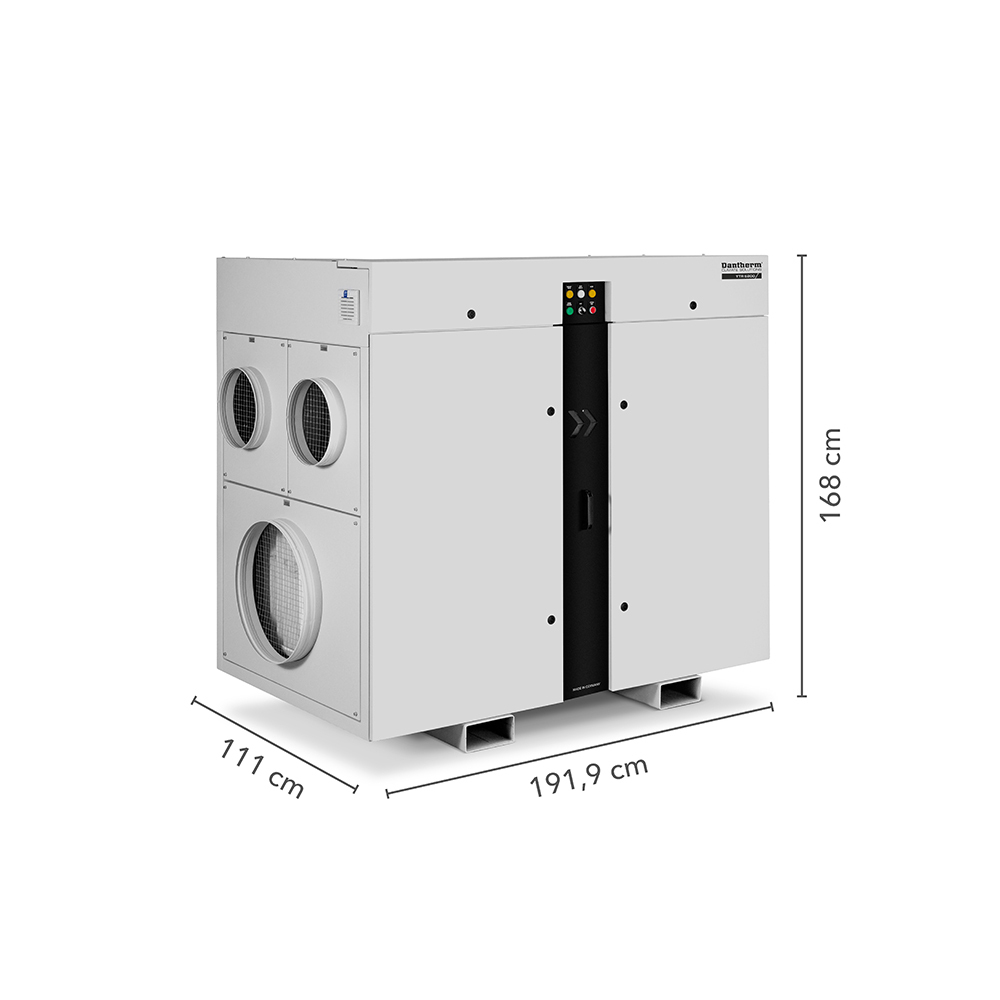

Dantherm TTR 8200 dimensions
|

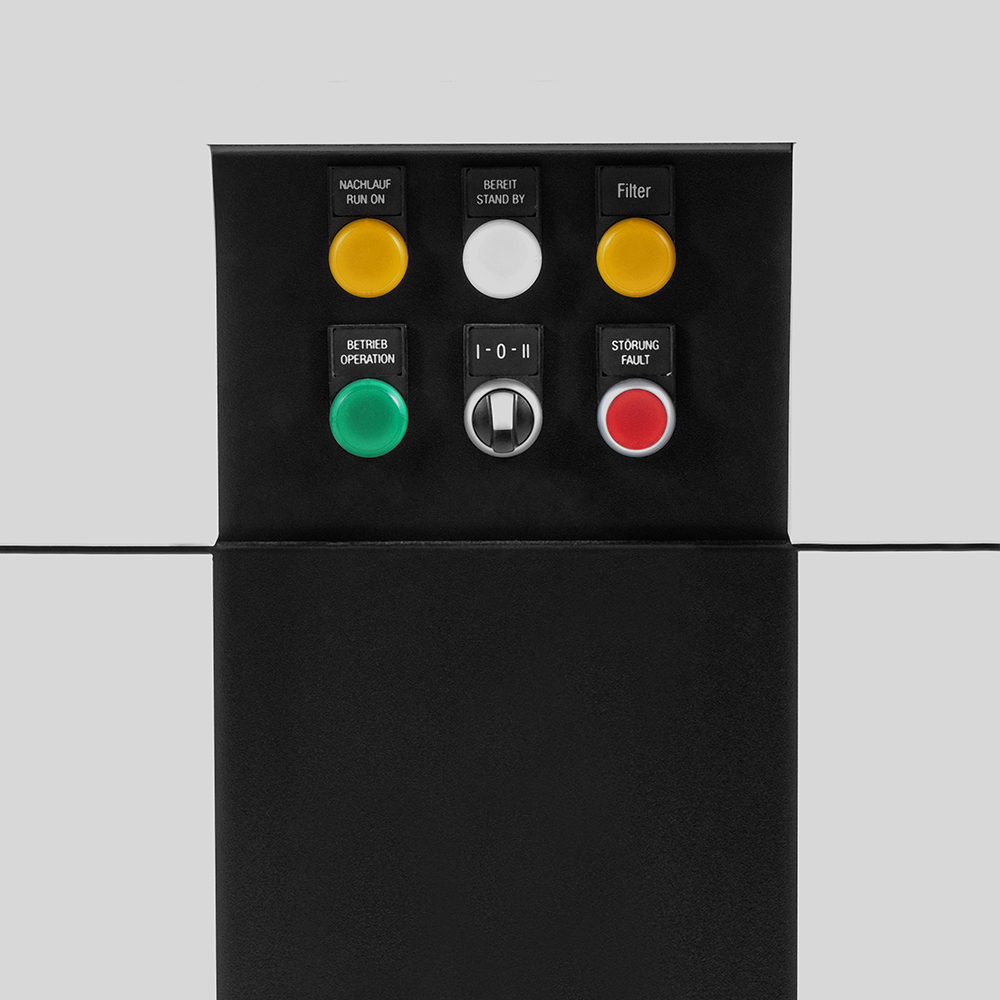

Dantherm TTR 8200 operation panel
|

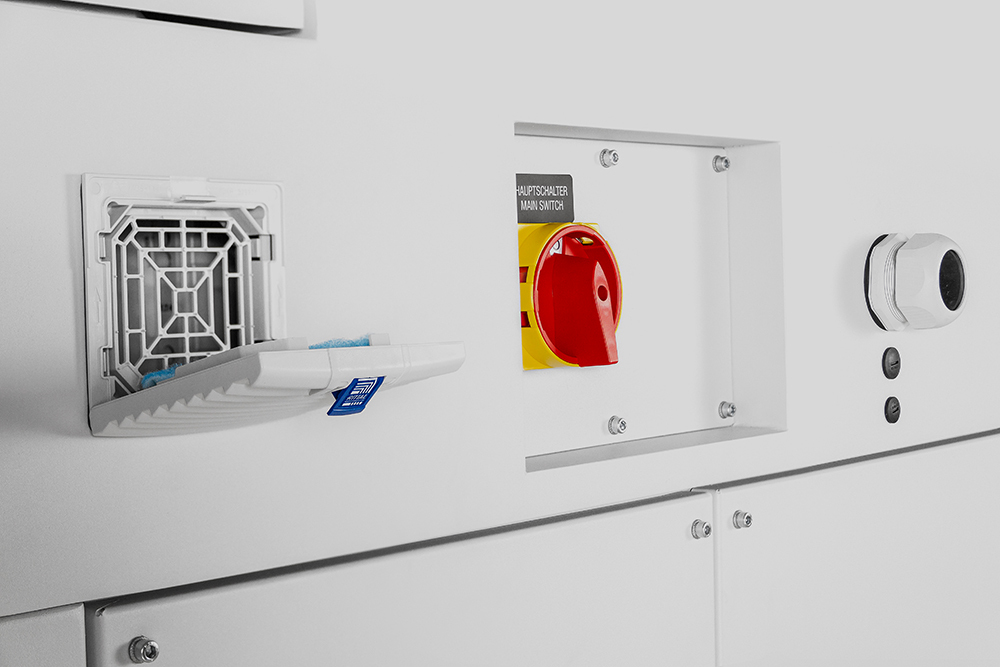

Dantherm TTR 8200 detail
|
Key features
- Housing made of powder-coated, galvanized sheet steel
- Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
- Filter monitoring with warning light
- Rotor rotation control
- Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
- Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
- Flowmatic S, separate electronic fan speed control for process and regeneration air, controlled to a constant volumetric flow or pressure depending on the processrelated target value, control signal 0…10 V or 4–20 mA
- Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
- Control with four-line plain text display
- Temperature-controlled rundown period
Product specifications
| Specifications | Units | TTR 8200 |
|---|---|---|
| Dehumidification capacity @ 20°C/60% RH | kg/h | 46.2 |
| Dry air flow free-blowing | m³/h | 9,000 |
| Dry air flow nominal | m³/h | 8,200 |
| Available pressure | Pa | 400 |
| Regeneration air flow | m³/h | 1,660 |
| Available pressure | Pa | 300 |
| Operating temperature range | °C | -20 to 40 |
| Heating | kW | 57.0 |
| Power consuption | kW | 64.5 |
| Power supply | V/Hz | 380-480/3ph/50-60+PE |
| Electrical connection | A | 125 |
| Nominal current consumption | A | 93.5 |
| Product size (l x w x h) | mm | 1919 x 1100 x 1680 |
| Weight | kg | 750 |
| Connections dry air input/output | Ømm | 500/500 |
| Connections regeneration air input/output | Ømm | 300/300 |
Suitable for:
- Agriculture
- Archives and preservation
- Commercial buildings
- Data centers and telecoms
- Food and beverage
- Heritage sites
- Industrial, factories and production
- Leisure and recreation
- Military and aerospace
- Museums and galleries
- Pharmaceutical and scientific
- Transport and logistics
- Warehouses and storage
- Water damage restoration
- Waterworks
