Dantherm TTR 800 – desiccant dehumidifier
The TTR 800 desiccant dehumidifier provides high dehumidification capacity even in low dew points. Its stainless steel housing and IP53-designed electrical control box make it resistant to corrosion and harsh operational environments. It is ideal for a variety of drying tasks and dry air production in industries such as chemical, pharmaceutical, and mechanical engineering. It can also protect machines, inventory, and buildings from corrosion, condensation, and mould formation in facilities such as water processing and electrical control centres. The maintenance-friendly design makes it easy to use.
Contact our team to discuss which commercial adsorption dehumidifier or type of industrial dehumidifier is most suitable for your intended purpose.

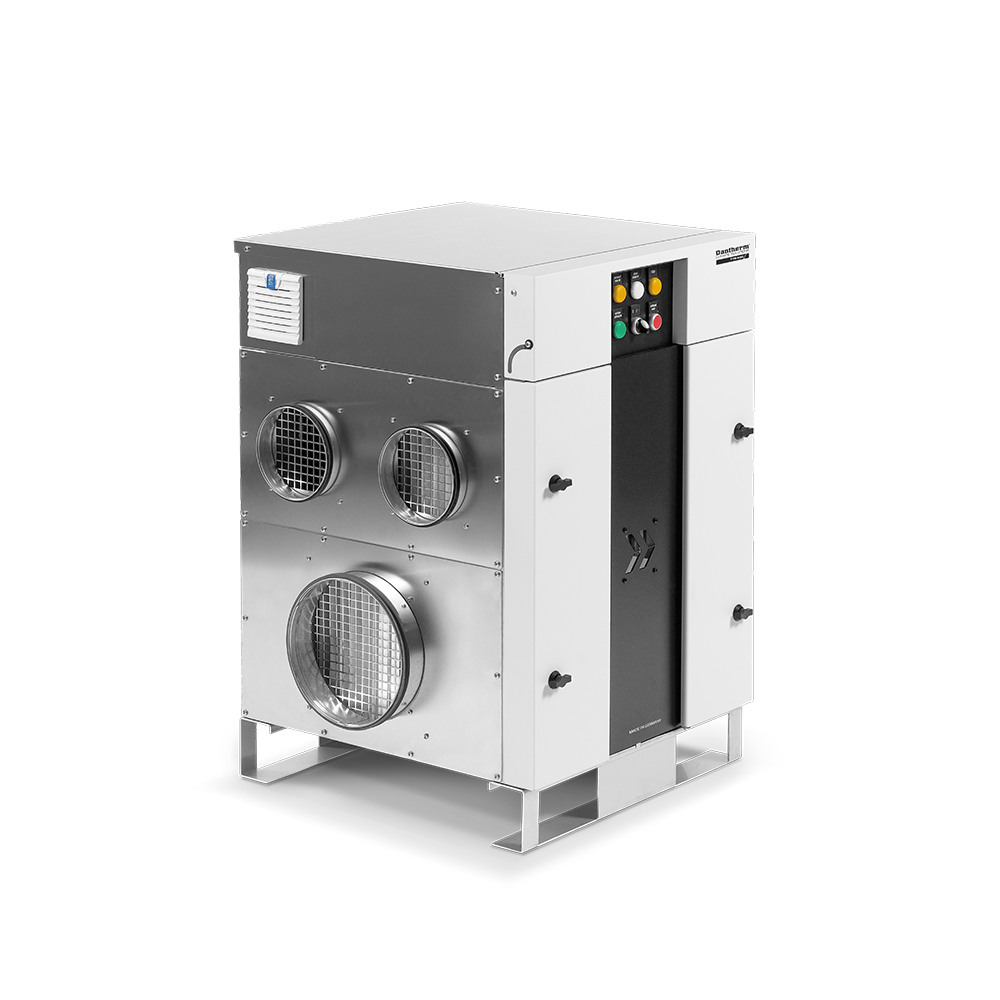

Dantherm TTR 800 main right
|

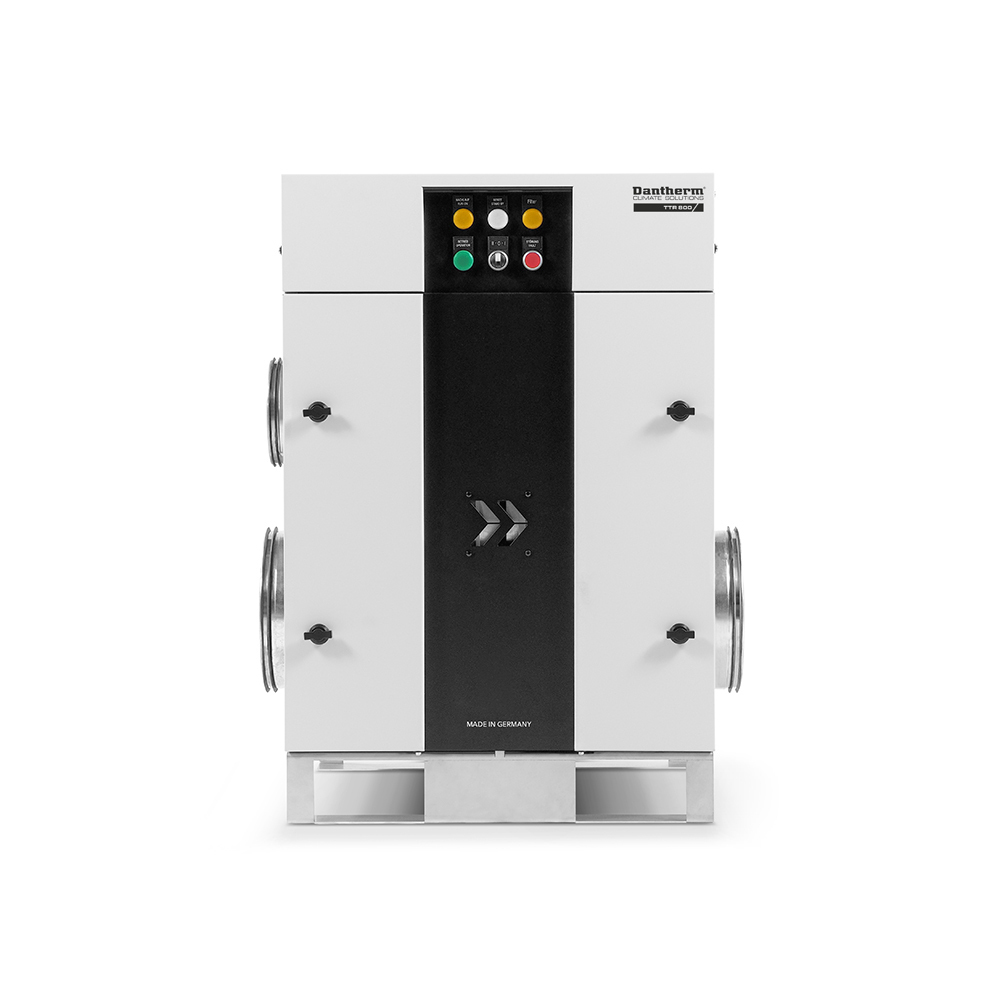

Dantherm TTR 800 front
|

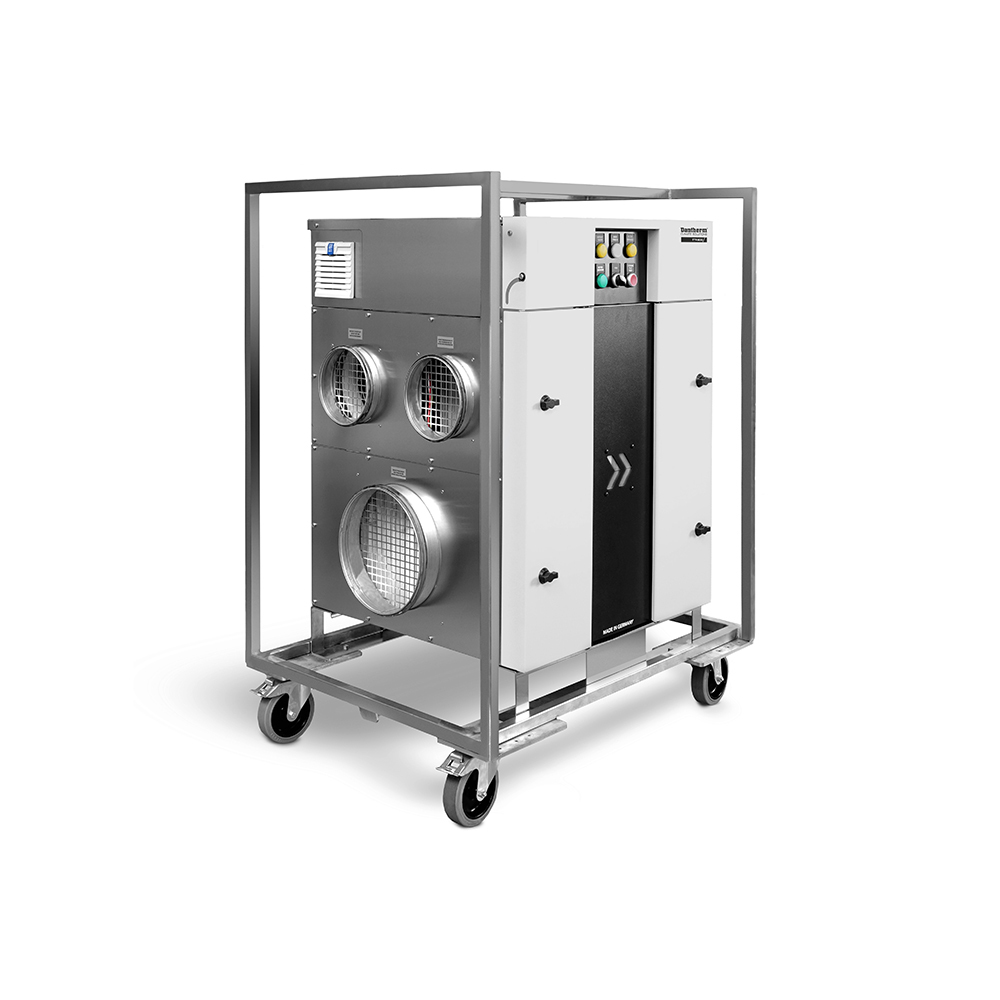

Dantherm TTR 800 frame perspective right
|

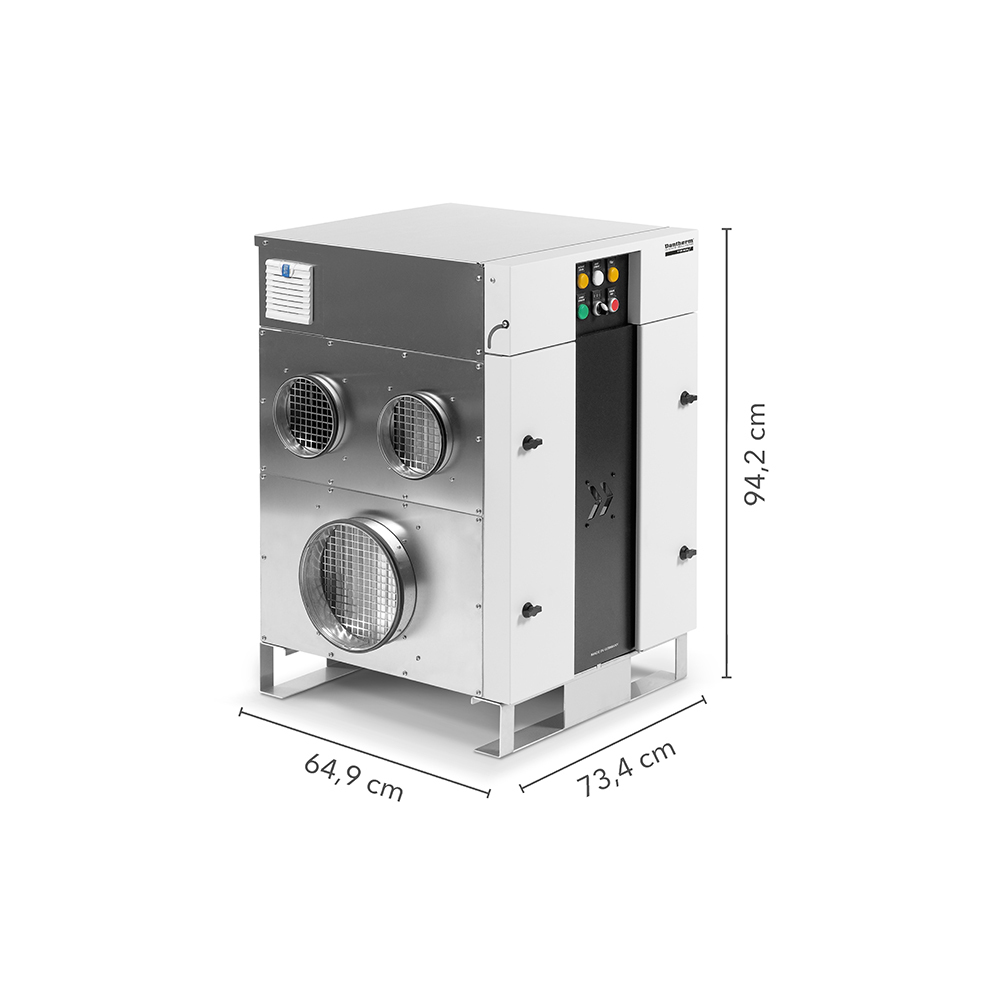

Dantherm TTR 800 dimensions
|
Key features
- Robust stainless steel housing
- Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
- Filter monitoring with warning light
- Rotor rotation control
- Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
- Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
- Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
- Temperature-controlled rundown period
Product specifications
| Specifications | Units | TTR 800 |
|---|---|---|
| Dehumidification capacity @ 20°C/60% RH | kg/h | 3.6 |
| Dry air flow free-blowing | m³/h | 950 |
| Dry air flow nominal | m³/h | 750 |
| Available pressure | Pa | 300 |
| Regeneration air flow | m³/h | 130 |
| Available pressure | Pa | 300 |
| Operating temperature range | °C | -20 to 40 |
| Heating | kW | 4.1 |
| Power consuption | kW | 4.9 |
| Power supply | V/Hz | 380-480/3ph/50-60+PE |
| Electrical connection | A | 16 |
| Nominal current consumption | A | 7.5 |
| Product size (l x w x h) | mm | 734 x 649 x 942 |
| Weight | kg | 85 |
| Connections dry air input/output | Ømm | 250/250 |
| Connections regeneration air input/output | Ømm | 160/160 |
Suitable for:
- Agriculture
- Archives and preservation
- Commercial buildings
- Data centers and telecoms
- Food and beverage
- Heritage sites
- Industrial, factories and production
- Leisure and recreation
- Military and aerospace
- Museums and galleries
- Pharmaceutical and scientific
- Transport and logistics
- Warehouses and storage
- Water damage restoration
- Waterworks
