Dantherm TTR 2800 – desiccant dehumidifier
The TTR 2800 industrial desiccant dehumidifier can handle nearly 400kg of dehumidification performance per day, even in cold ambient conditions with low dew points. This makes it an ideal solution for various air and gas dehumidification tasks in industrial, haulage, or utility companies to protect products, machines, inventory, and buildings against corrosion, condensation, or mould formation. The TTR 2800 has a standard stainless steel housing and an electrical control box with IP44 protection, making it corrosion proof and suitable for dry keeping or producing dry air at low temperatures or under material-straining conditions, including hygiene-sensitive areas.
Contact our team to discuss which adsorption dehumidifier or type of commercial dehumidifier is most suitable for your intended purpose.

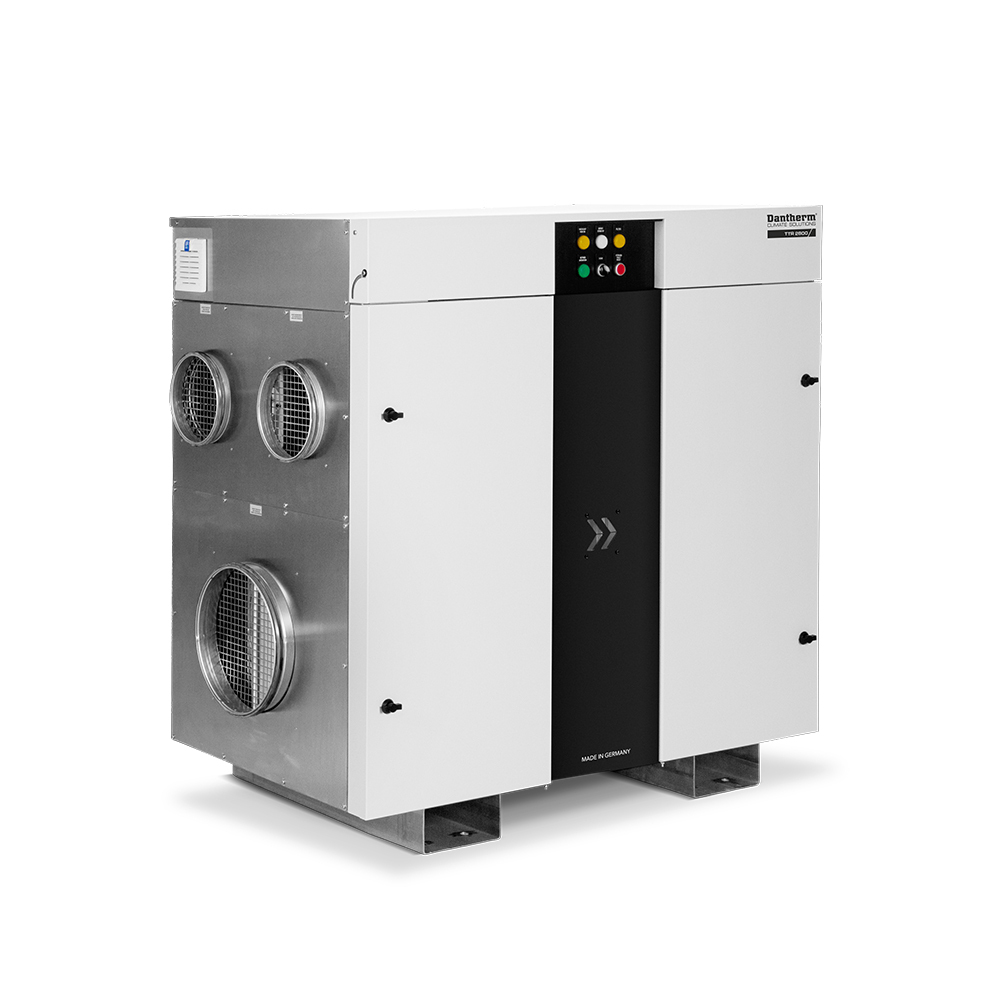

Dantherm TTR 2800 main right
|

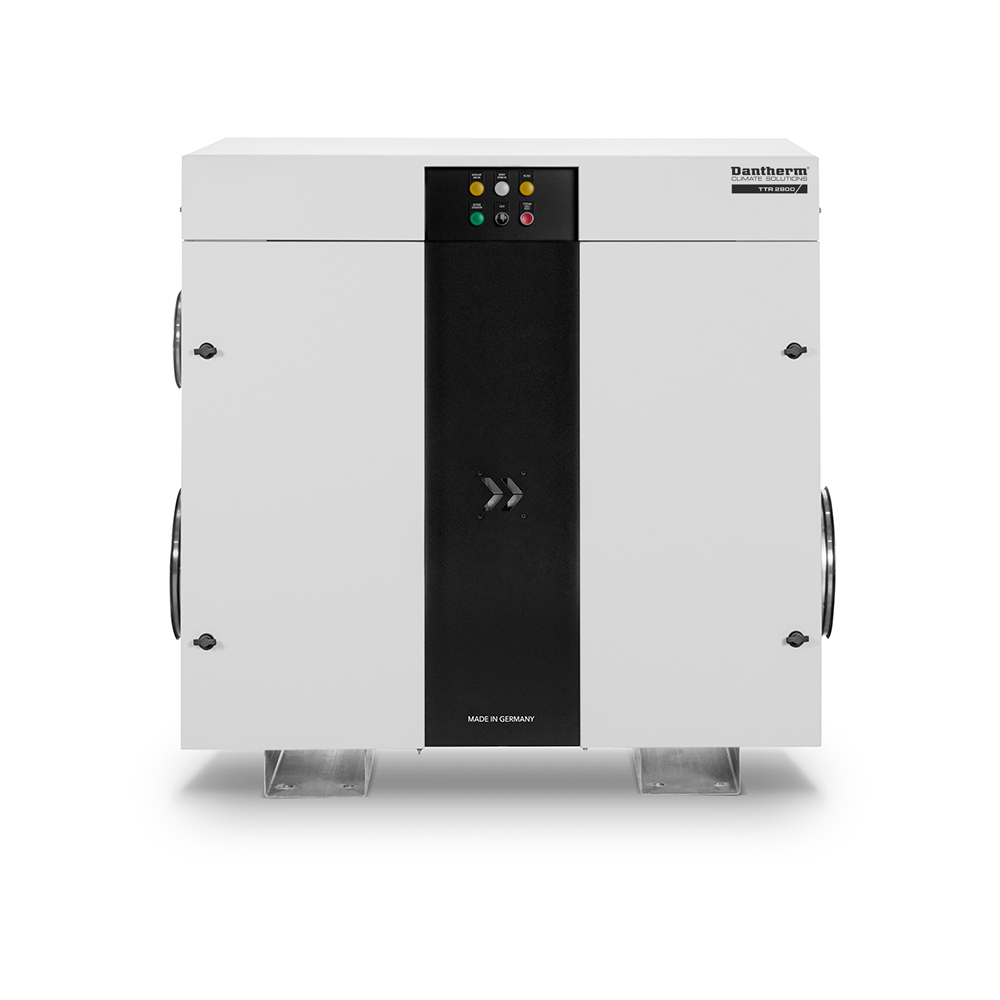

Dantherm TTR 2800 front
|

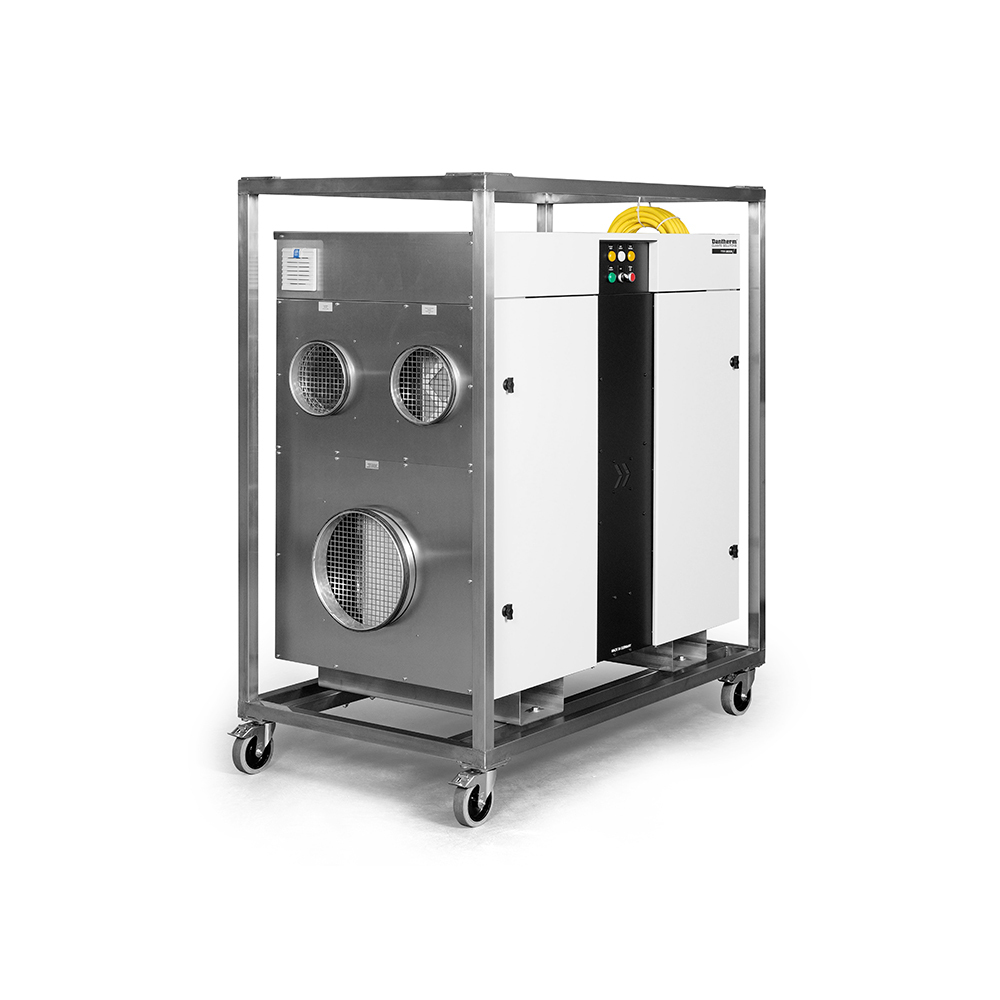

Dantherm TTR 2800 frame 01
|

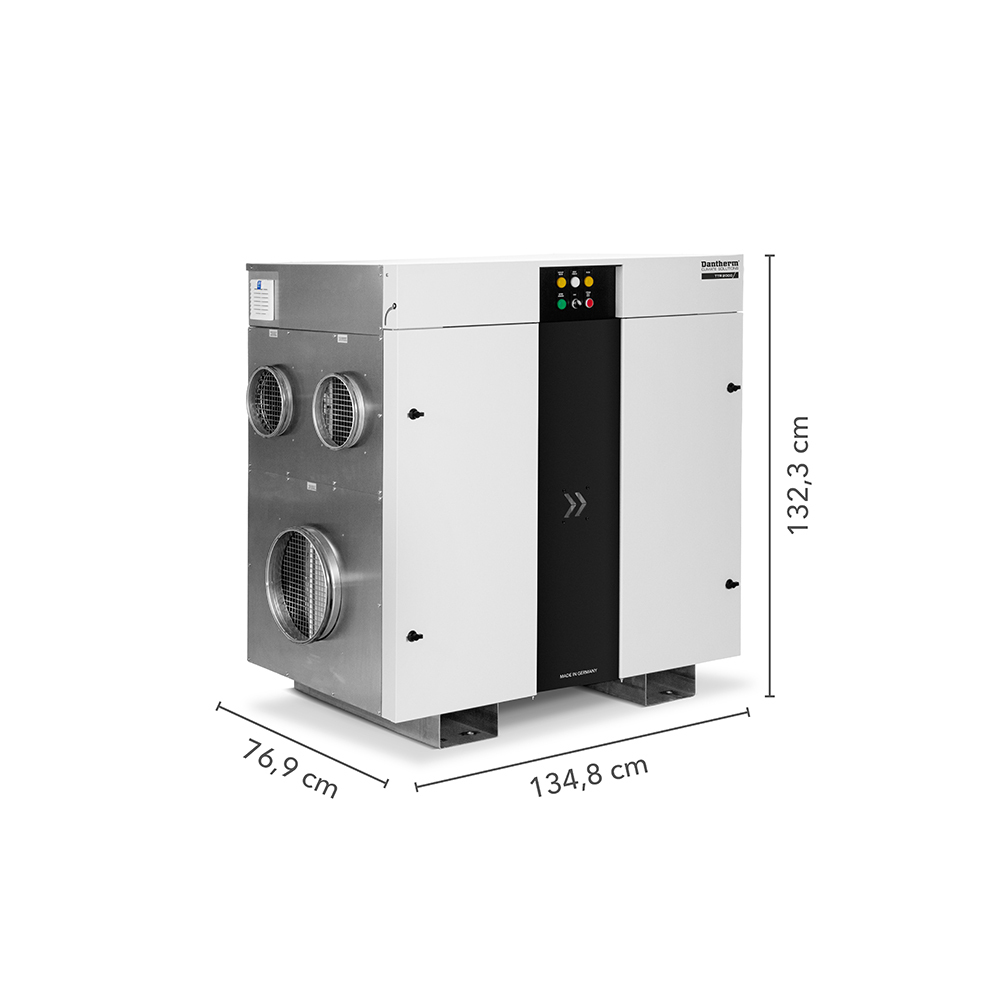

Dantherm TTR 2800 dimensions
|

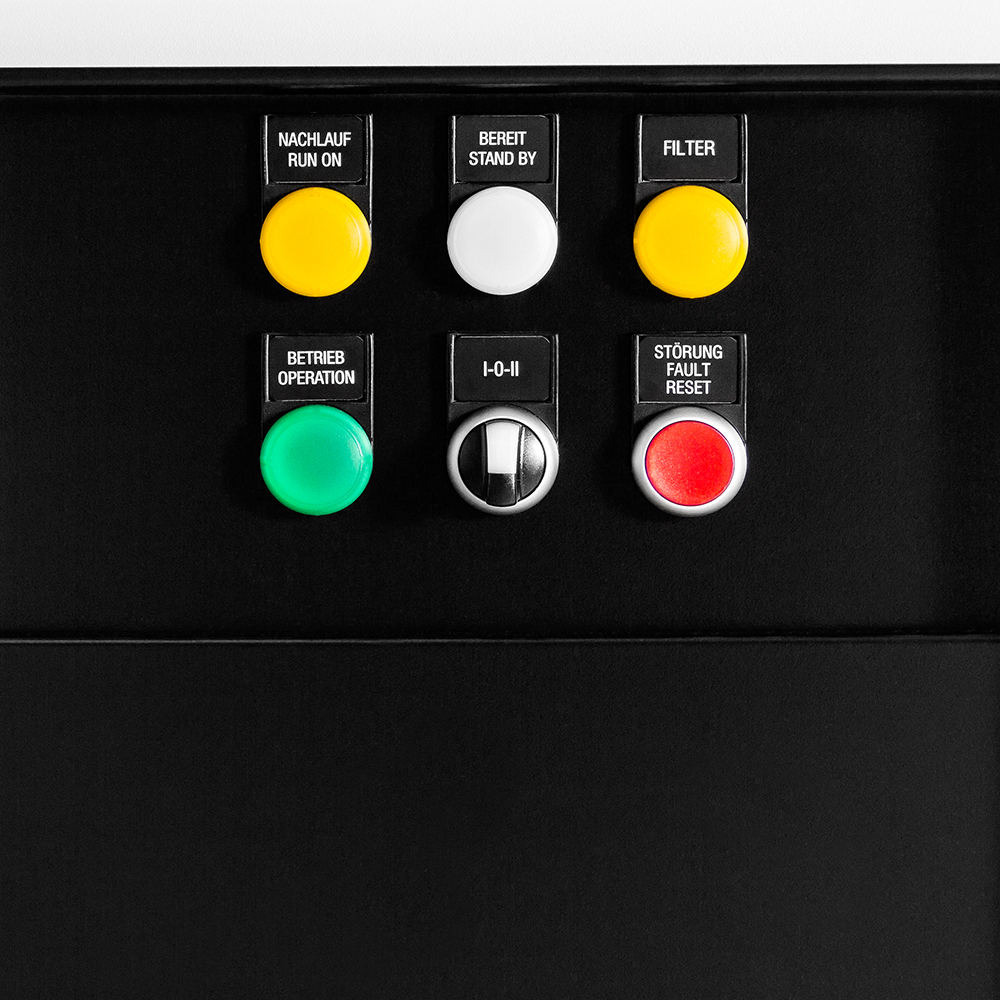

Dantherm TTR 2800 operation panel
|

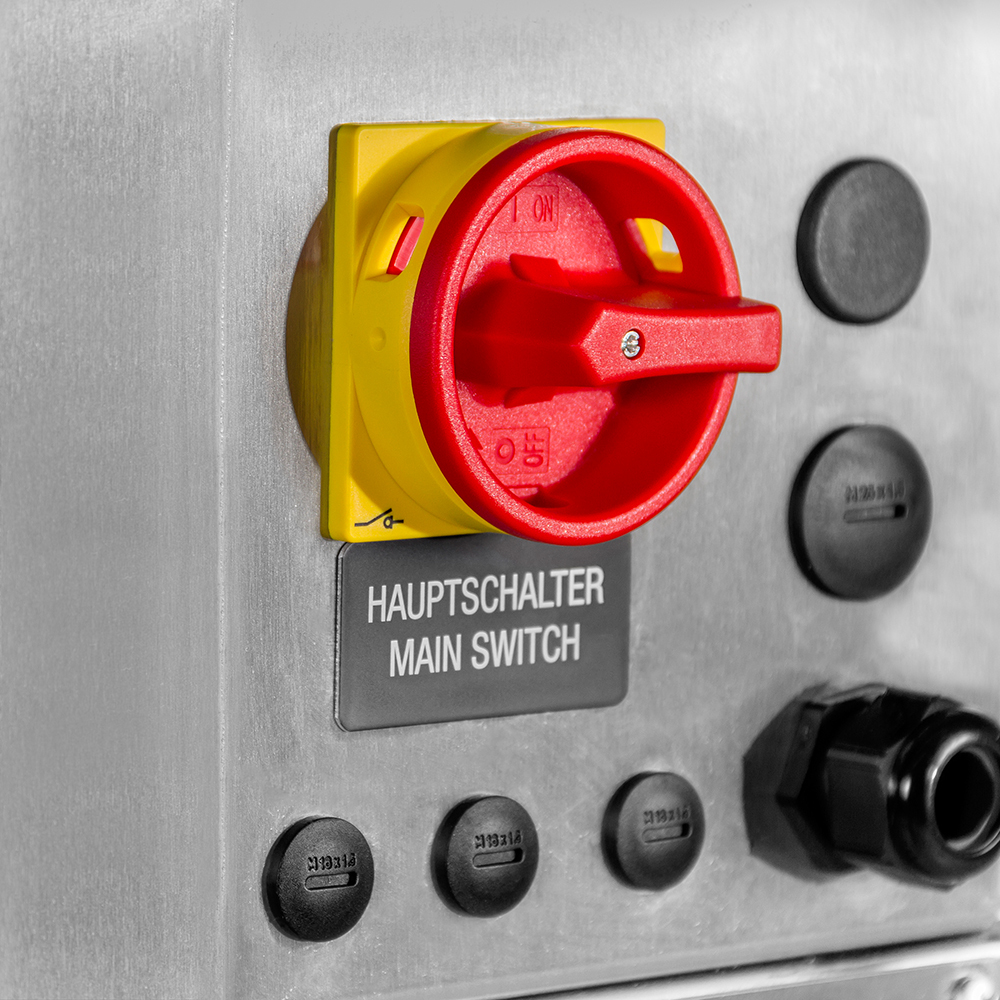

Dantherm TTR 2800 detail
|
Key features
- Robust stainless steel housing
- Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
- Filter monitoring with warning light
- Rotor rotation control
- Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
- Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
- Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
- Electric regeneration air heater comprising tubular heating elements, equipped with safety temperature limiters and differential pressure switch, controlled via semi-conductor relay(s)
- Temperature-controlled rundown period
Product specifications
| Specifications | Units | TTR 2800 |
|---|---|---|
| Dehumidification capacity @ 20°C/60% RH | kg/h | 15.7 |
| Dry air flow free-blowing | m³/h | 3,150 |
| Dry air flow nominal | m³/h | 2,800 |
| Available pressure | Pa | 300 |
| Regeneration air flow | m³/h | 570 |
| Available pressure | Pa | 300 |
| Operating temperature range | °C | -20 to 40 |
| Heating | kW | 18.9 |
| Power consuption | kW | 21.6 |
| Power supply | V/Hz | 380-480/3ph/50-60+PE |
| Electrical connection | A | 32 |
| Nominal current consumption | A | 31.7 |
| Product size (l x w x h) | mm | 1348 x 769 x 1323 |
| Weight | kg | 250 |
| Connections dry air input/output | Ømm | 315/315 |
| Connections regeneration air input/output | Ømm | 200/200 |
Suitable for:
- Agriculture
- Archives and preservation
- Commercial buildings
- Data centers and telecoms
- Food and beverage
- Heritage sites
- Industrial, factories and production
- Leisure and recreation
- Military and aerospace
- Museums and galleries
- Pharmaceutical and scientific
- Transport and logistics
- Warehouses and storage
- Water damage restoration
- Waterworks
