Dantherm TTR 2000 – desiccant dehumidifier
The TTR 2000 is an industrial desiccant dehumidifier that can handle several hundred kg of dehumidification performance per day, even in cold conditions with low dew points. This makes it an ideal solution for air and gas dehumidification tasks in various industries, such as securing products and production and protecting machines, inventory, and buildings from corrosion, condensation, or mould formation. The TTR 2000 comes with a standard stainless steel housing and an electrical control box with IP44 protection, which ensures it can withstand harsh environmental conditions and is suitable for dry keeping or the production of dry air in low temperatures or material-straining conditions, including hygiene-sensitive areas.
View other commercial desiccant dehumidifiers or see our full range of dehumidifiers suitable for multiple applications.

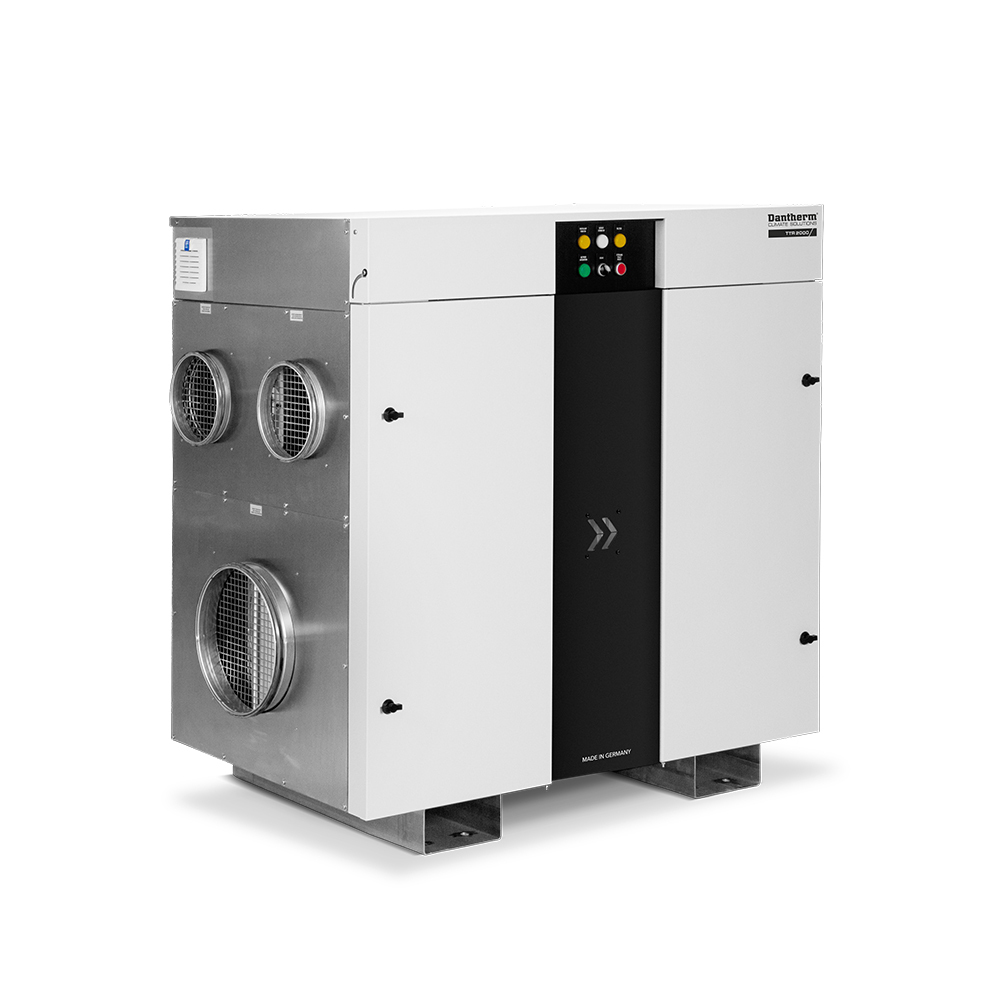

Dantherm TTR 2000 main right
|

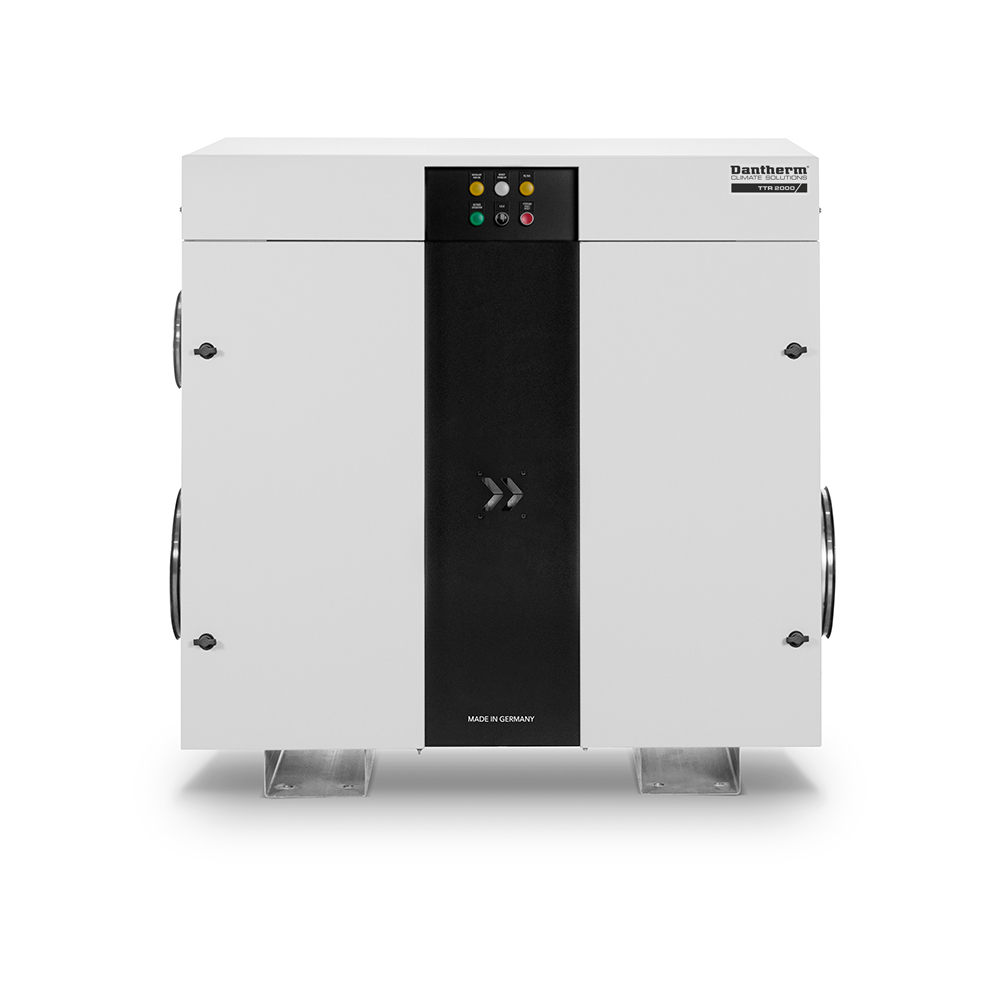

Dantherm TTR 2000 front
|

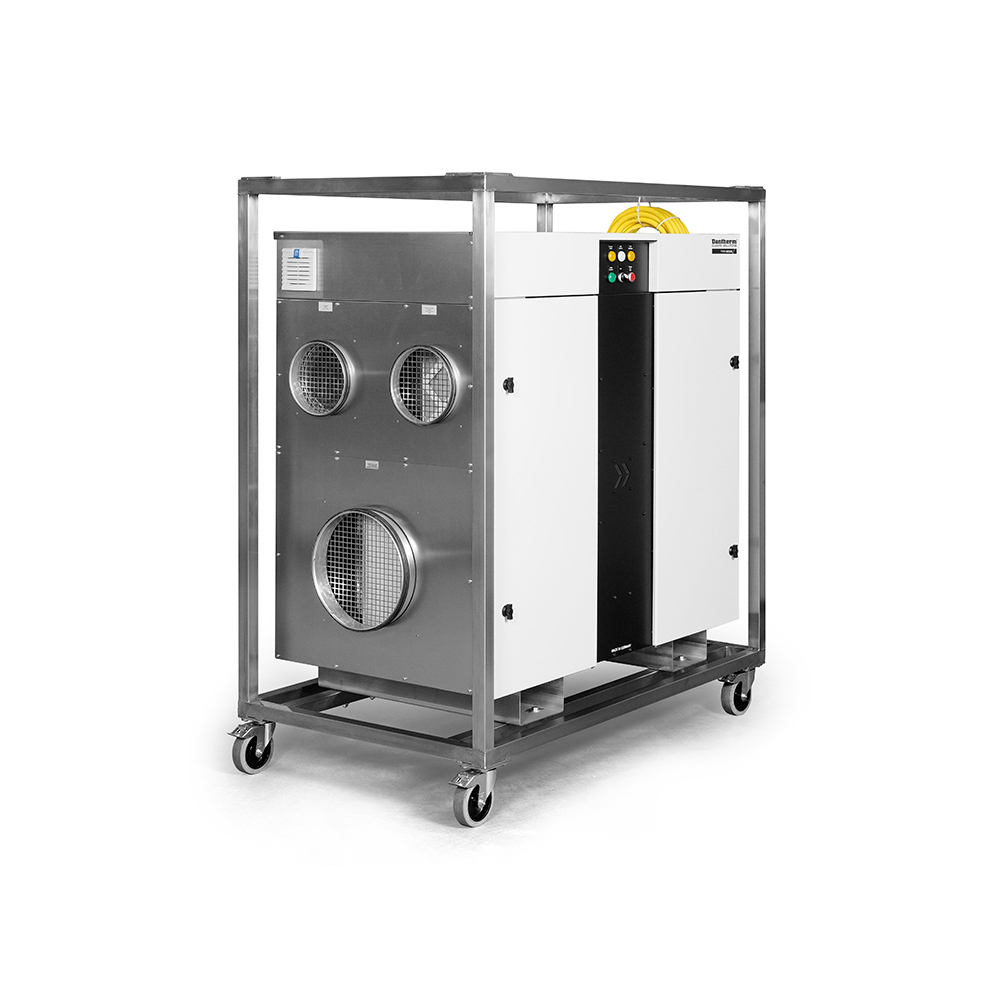

Dantherm TTR 2000 frame 01
|

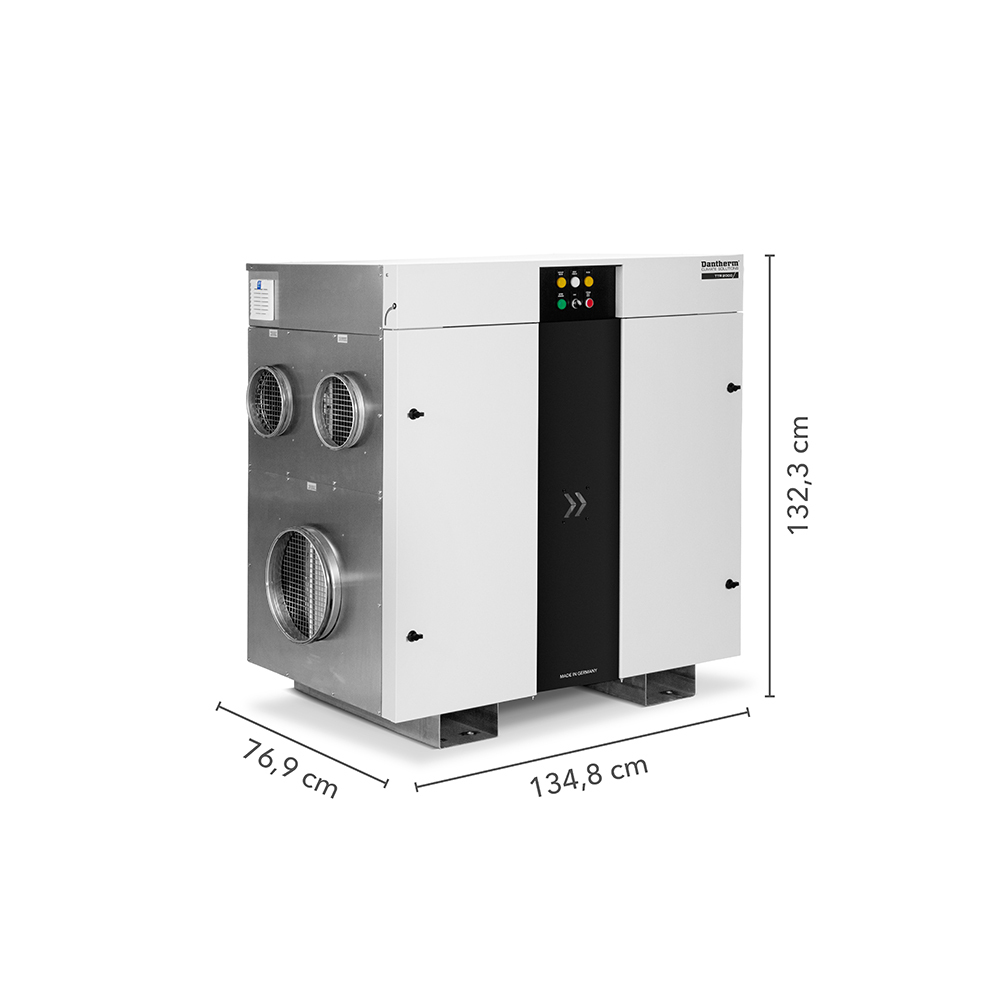

Dantherm TTR 2000 dimensions
|

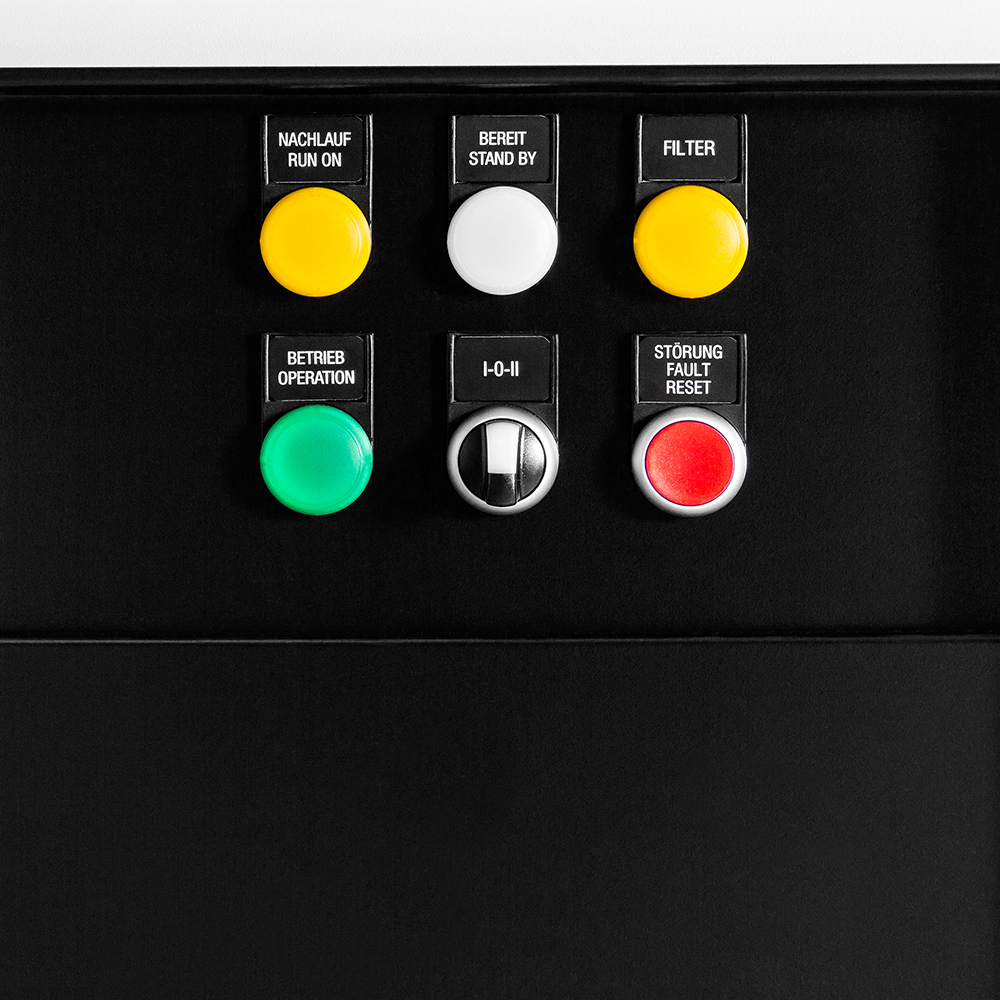

Dantherm TTR 2000 operation panel
|

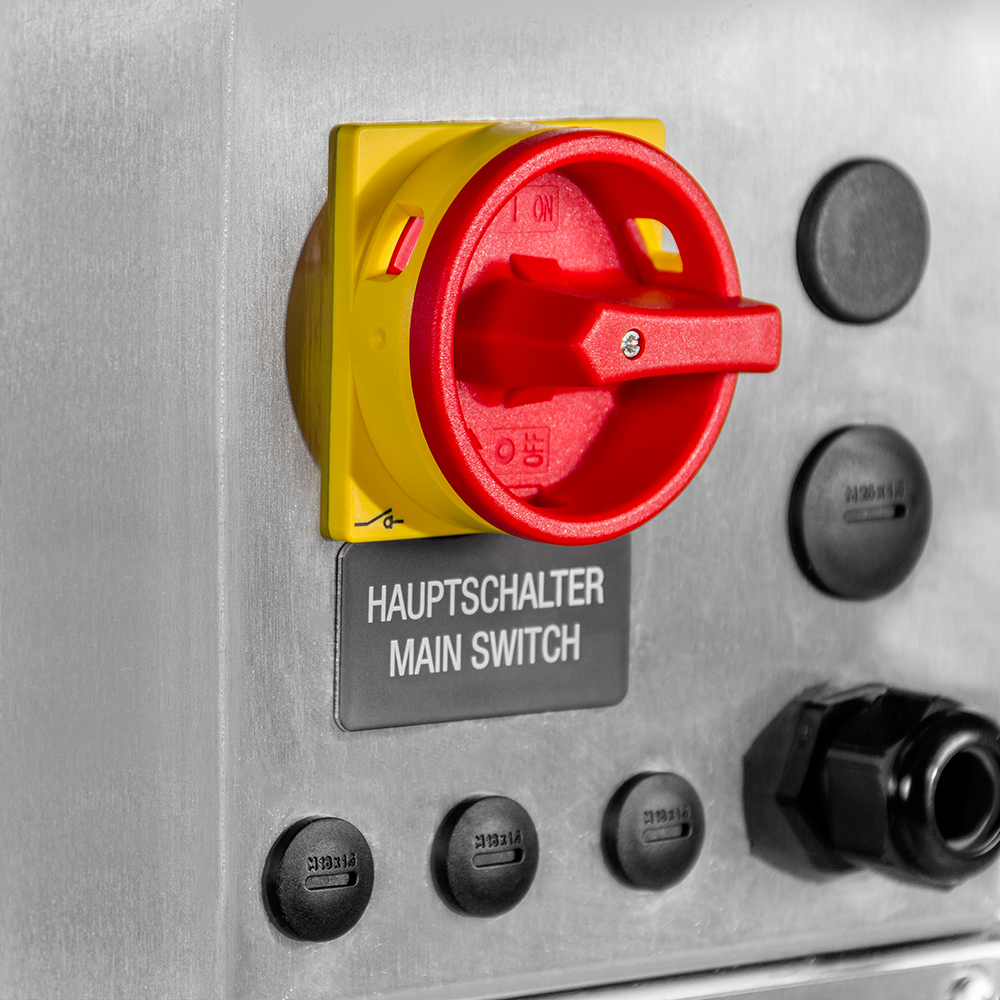

Dantherm TTR 2000 detail
|
Key features
- Robust stainless steel housing
- Integrated G4 equivalent air filters as Z-line filters, separately for process and regeneration air
- Filter monitoring with warning light
- Rotor rotation control
- Potential-free signal contacts for maintenance/filter change, fault, operation ON/OFF
- Directly driven high-performance EC fans with manual speed adjustment integrated in the housing (no additional throttle valves required), separately for process and regeneration air
- Silica gel sorption rotor with internal purging sector for heat recovery and automatically adjusting rotor seal kit
- Electric regeneration air heater comprising tubular heating elements, equipped with safety temperature limiters and differential pressure switch, controlled via semi-conductor relay(s)
- Temperature-controlled rundown period
Product specifications
| Specifications | Units | TTR 2000 |
|---|---|---|
| Dehumidification capacity @ 20°C/60% RH | kg/h | 10.8 |
| Dry air flow free-blowing | m³/h | 2,350 |
| Dry air flow nominal | m³/h | 2,000 |
| Available pressure | Pa | 300 |
| Regeneration air flow | m³/h | 380 |
| Available pressure | Pa | 250 |
| Operating temperature range | °C | -20 to 40 |
| Heating | kW | 12.5 |
| Power consuption | kW | 15 |
| Power supply | V/Hz | 380-480/3ph/50-60 |
| Electrical connection | A | 32 |
| Nominal current consumption | A | 23 |
| Product size (l x w x h) | mm | 1348 x 769 x 1323 |
| Weight | kg | 230 |
| Connections dry air input/output | Ømm | 315/315 |
| Connections regeneration air input/output | Ømm | 200/200 |
Suitable for:
- Agriculture
- Archives and preservation
- Commercial buildings
- Data centers and telecoms
- Food and beverage
- Heritage sites
- Industrial, factories and production
- Leisure and recreation
- Military and aerospace
- Museums and galleries
- Pharmaceutical and scientific
- Transport and logistics
- Warehouses and storage
- Water damage restoration
- Waterworks
