Dantherm DanX AF – swimming pool and commercial dehumidifiers
High capacity swimming pool and commercial ducted dehumidifiers
The DanX AF is a very effective heat pump dehumidification system, which perfectly controls the humidity and indoor temperature while offering significant running cost reductions. This system is the obvious choice where only limited space is available, or for pools with limited use, for instance hotel pools. Optionally it is also possible to install the unit suspended under the ceiling of the pool room.
For further energy optimization, a water cooled condenser can be integrated into the heat pump. This allows the excess heat to be transferred to the pool or the hot water supply, where it is efficiently reused.
View our swimming pool dehumidifier range or see other portable and wall mounted dehumidifiers suitable for multiple applications.

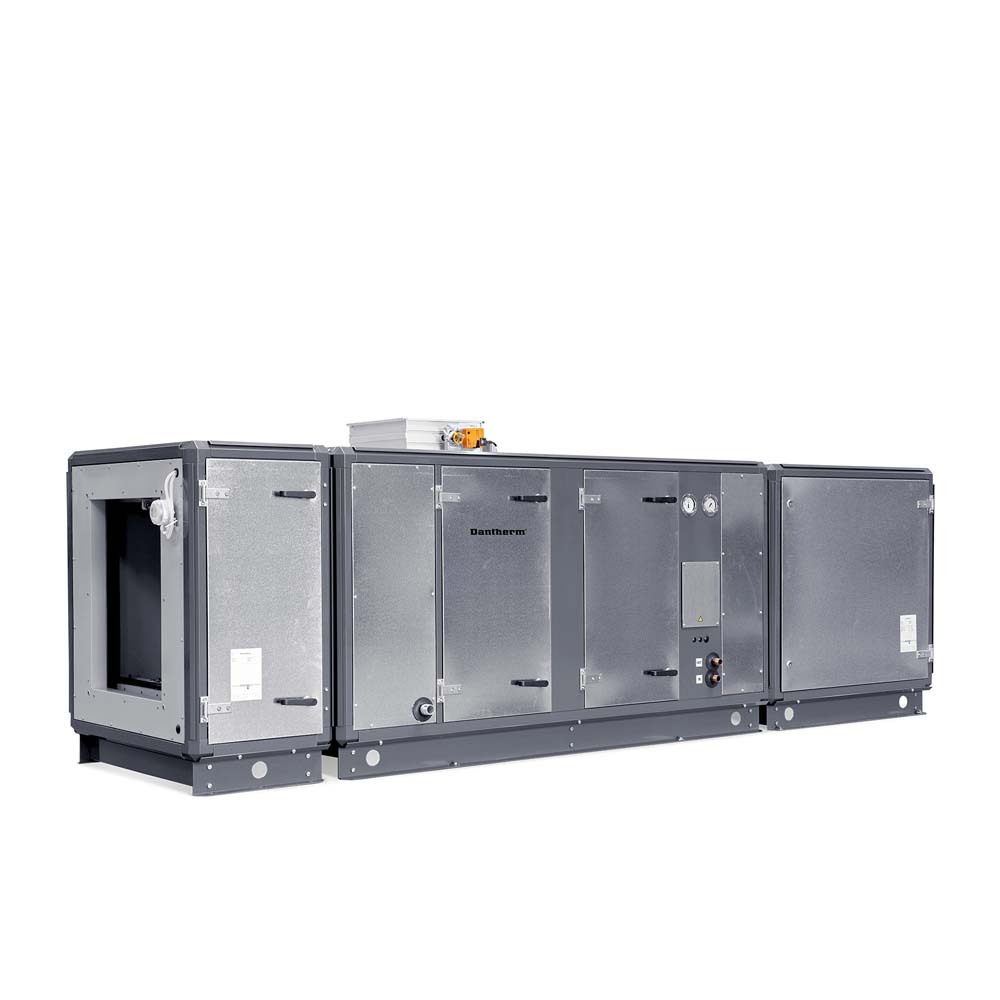

Dantherm DanX AF – swimming pool and commercial dehumidifiers
|

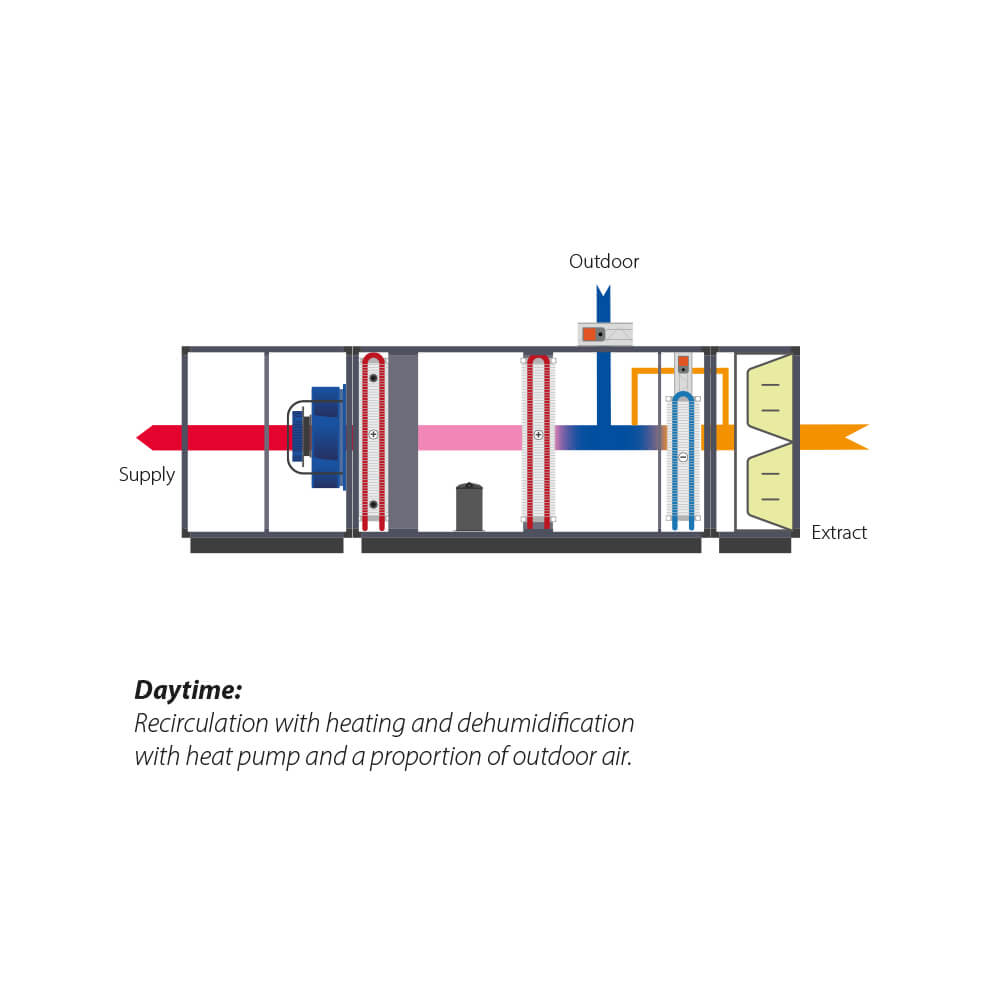

Dantherm DanX AF diagram
|
Key features
- User-friendly control system that monitors and controls temperature and humidity automatically. The custom-built software runs the unit as efficiently as possible under different conditions.
- BMS communication with either Modbus or BACnet. All internal terminal wiring done from factory.
- Refrigerant circuit with optional built-in water cooled condenser for heating of domestic water and external condenser for hot countries.
- Optional DX or water-cooling coil.
- Highly energy-efficient EC plug fans.
- Highly efficient bag filters with a low pressure drop.
- Fresh air (30%) inlet possible through fresh air duct.
- Load-bearing frame construction module with galvanised, powder-painted sandwich panels with 50mm mineral wool insulation and bottom frame with adjustable feet.
- Specifically designed to withstand aggressive environments (Corrosion class C4 according to EN/ISO 12944-2), with epoxy coated coils with aluminium frame, pre-painted fins and with all fasteners, bolts and nuts specially protected.
- Large inspection doors with strong hinges and tongue locks and handles for easy access for service.
- Modular unit for easy and quick installation with all sensors and electrical components already connected. Separate control panel fitted with cables and plugs for quick electrical connection between unit and panel.
Product specifications
| Specifications | Units | 3/6 AF |
|---|---|---|
| Operating temperature range | °C | 22-36 |
| Operating humidity range | % | 50-80 |
| Dehumidification @ 28°C/60% RH | l/h | 13 |
| Air flow | m3/h | 4,850 |
| Available duct pressure | Pa | 300 |
| Outdoor air | % | 1-30 |
| Power supply | V/Hz | 400/3ph/50 |
| R407c gas weight/CO2 equivalent | kg/t | 9/15.97 |
| Max. power consumption | kW | 8.6 |
| Height | mm | 1,115 |
| Width | mm | 3,380 |
| Depth | mm | 880 |
| Weight | kg | 575 |
| Specifications | Units | 5/10 AF |
|---|---|---|
| Operating temperature range | °C | 22-36 |
| Operating humidity range | % | 50-80 |
| Dehumidification @ 28°C/60% RH | l/h | 20 |
| Air flow | m3/h | 7,300 |
| Available duct pressure | Pa | 300 |
| Outdoor air | % | 0-30 |
| Power supply | V/Hz | 400/3ph/50 |
| R407c gas weight/CO2 equivalent | kg/t | 14/24.84 |
| Max. power consumption | kW | 12.3 |
| Height | mm | 1,115 |
| Width | mm | 3,380 |
| Depth | mm | 1,400 |
| Weight | kg | 800 |
| Specifications | Units | 5/10s AF |
|---|---|---|
| Operating temperature range | °C | 22-36 |
| Operating humidity range | % | 50-80 |
| Dehumidification @ 28°C/60% RH | l/h | 25 |
| Air flow | m3/h | 9,500 |
| Available duct pressure | Pa | 300 |
| Outdoor air | % | 0-30 |
| Power supply | V/Hz | 400/3ph/50 |
| R407c gas weight/CO2 equivalent | kg/t | 14/24.84 |
| Max. power consumption | kW | 16.1 |
| Height | mm | 1,115 |
| Width | mm | 3,380 |
| Depth | mm | 1,400 |
| Weight | kg | 800 |
| Specifications | Units | 7/14 AF |
|---|---|---|
| Operating temperature range | °C | 22-36 |
| Operating humidity range | % | 50-80 |
| Dehumidification @ 28°C/60% RH | l/h | 30 |
| Air flow | m3/h | 12,000 |
| Available duct pressure | Pa | 300 |
| Outdoor air | % | 0-30 |
| Power supply | V/Hz | 400/3ph/50 |
| R407c gas weight/CO2 equivalent | kg/t | 22/39.03 |
| Max. power consumption | kW | 22.1 |
| Height | mm | 1,195 |
| Width | mm | 3,350 |
| Depth | mm | 1,900 |
| Weight | kg | 1,125 |
| Specifications | Units | 7/14s AF |
|---|---|---|
| Operating temperature range | °C | 22-36 |
| Operating humidity range | % | 50-80 |
| Dehumidification @ 28°C/60% RH | l/h | 39 |
| Air flow | m3/h | 14,000 |
| Available duct pressure | Pa | 300 |
| Outdoor air | % | 0-30 |
| Power supply | V/Hz | 400/3ph/50 |
| R407c gas weight/CO2 equivalent | kg/t | 22/39.03 |
| Max. power consumption | kW | 24.1 |
| Height | mm | 1,195 |
| Width | mm | 3,350 |
| Depth | mm | 1,900 |
| Weight | kg | 1,200 |
| Specifications | Units | 12/24 AF |
|---|---|---|
| Operating temperature range | °C | 22-36 |
| Operating humidity range | % | 50-80 |
| Dehumidification @ 28°C/60% RH | l/h | 52 |
| Air flow | m3/h | 19,000 |
| Available duct pressure | Pa | 300 |
| Outdoor air | % | 0-30 |
| Power supply | V/Hz | 400/3ph/50 |
| R407c gas weight/CO2 equivalent | kg/t | 32/56.77 |
| Max. power consumption | kW | 31.7 |
| Height | mm | 1,485 |
| Width | mm | 4,125 |
| Depth | mm | 2,200 |
| Weight | kg | 1,650 |
| Specifications | Units | 12/24s AF |
|---|---|---|
| Operating temperature range | °C | 22-36 |
| Operating humidity range | % | 50-80 |
| Dehumidification @ 28°C/60% RH | l/h | 60 |
| Air flow | m3/h | 24,000 |
| Available duct pressure | Pa | 300 |
| Outdoor air | % | 0-30 |
| Power supply | V/Hz | 400/3ph/50 |
| R407c gas weight/CO2 equivalent | kg/t | 32/56.77 |
| Max. power consumption | kW | 42.8 |
| Height | mm | 1,485 |
| Width | mm | 4,125 |
| Depth | mm | 2,200 |
| Weight | kg | 1,675 |
Suitable for:
- Archives and preservation
- Food and beverage
- Industrial, factories and production
- Leisure and recreation
- Swimming pools
- Warehouses and storage
