Dantherm AC-M7 MKII – tent cooler
Tent coolers
The AC-M7 MKII air-conditioner is a 7kW portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents. The AC-M7 is designed to be placed outside the tent with ducted supply and return air.
View our range of air cooling units and tent coolers suitable for all types of application and commercial purpose on any scale.

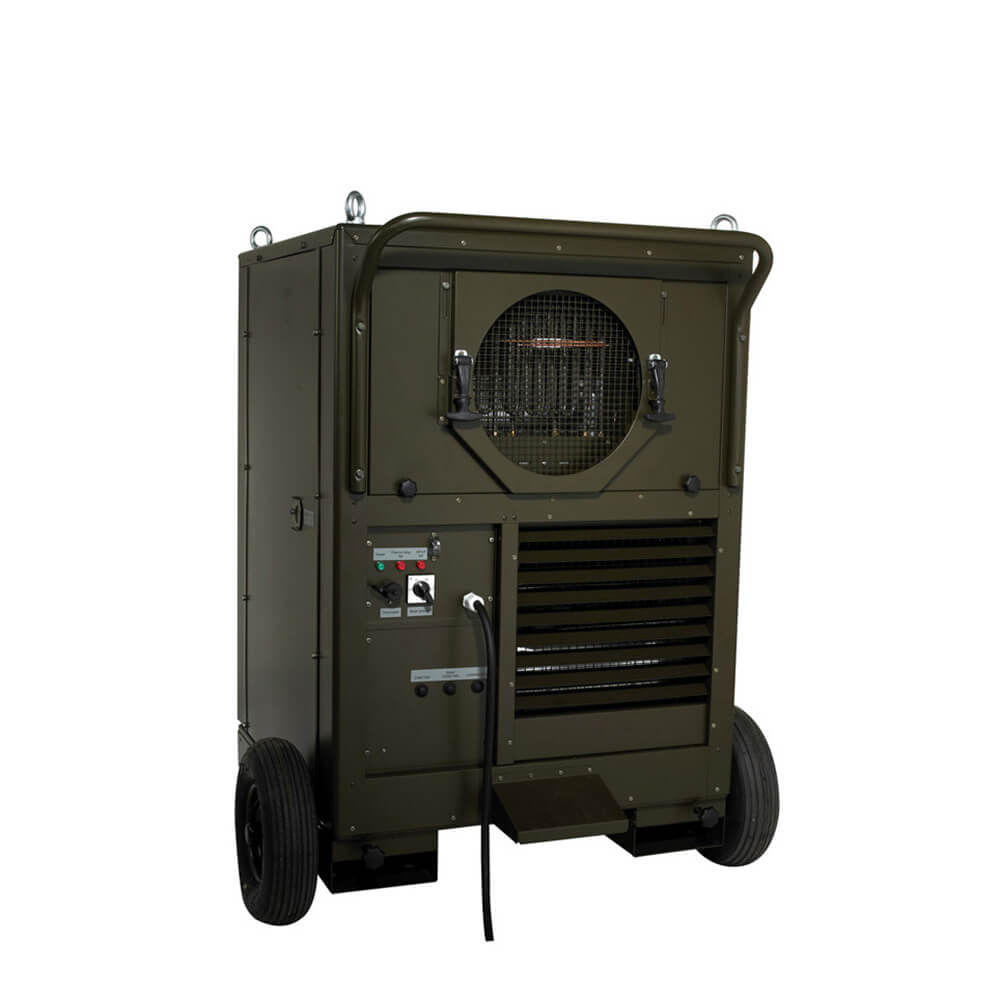

Dantherm AC-M7 MKII – tent cooler with one opening
|

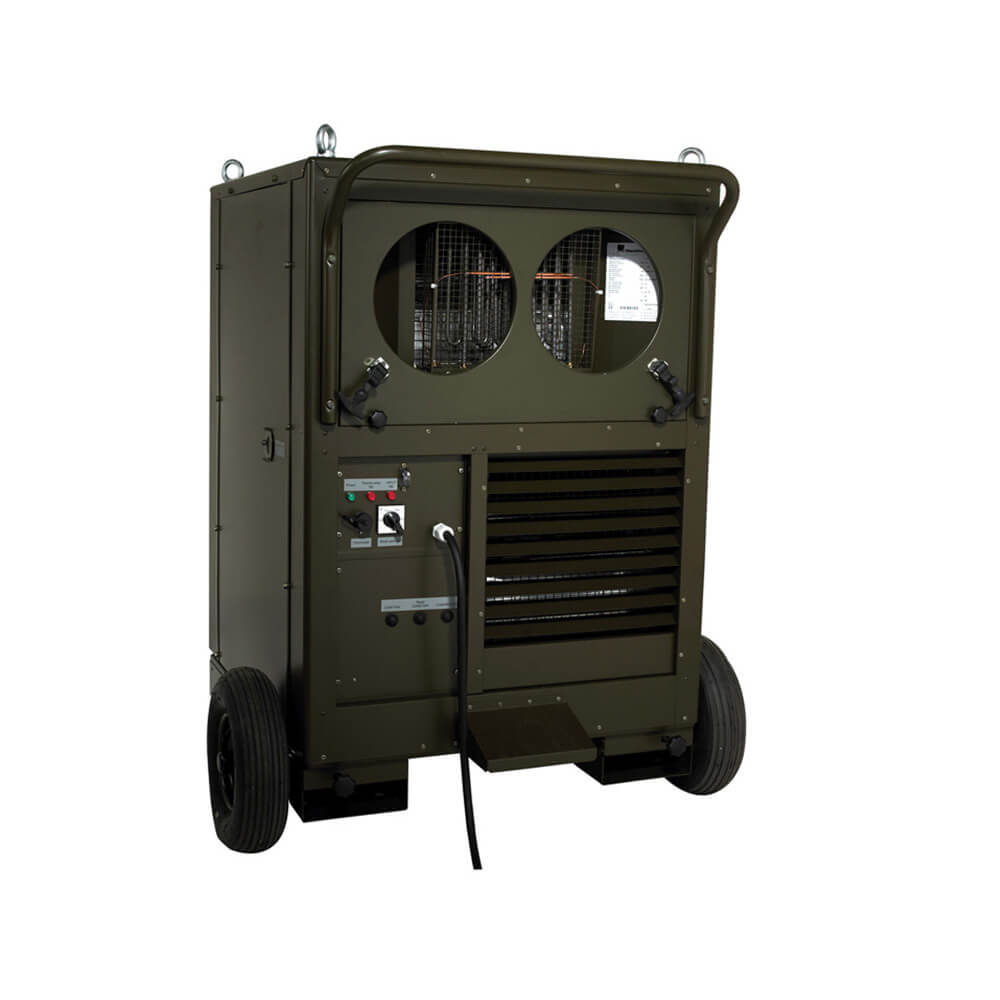

Dantherm AC-M7 MKII – tent cooler with two openings
|

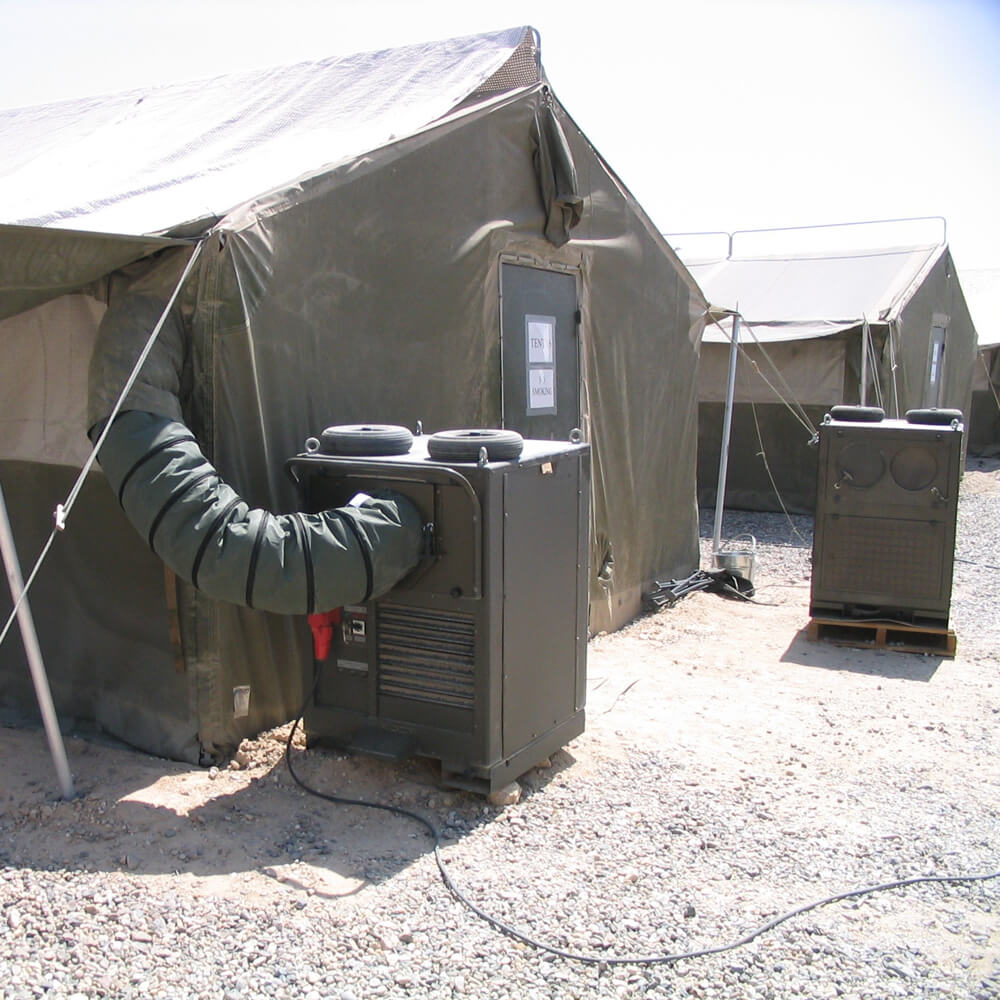

Dantherm AC M7 MKII installed in a military camp
|
Dantherm climate solutions for field camps
|

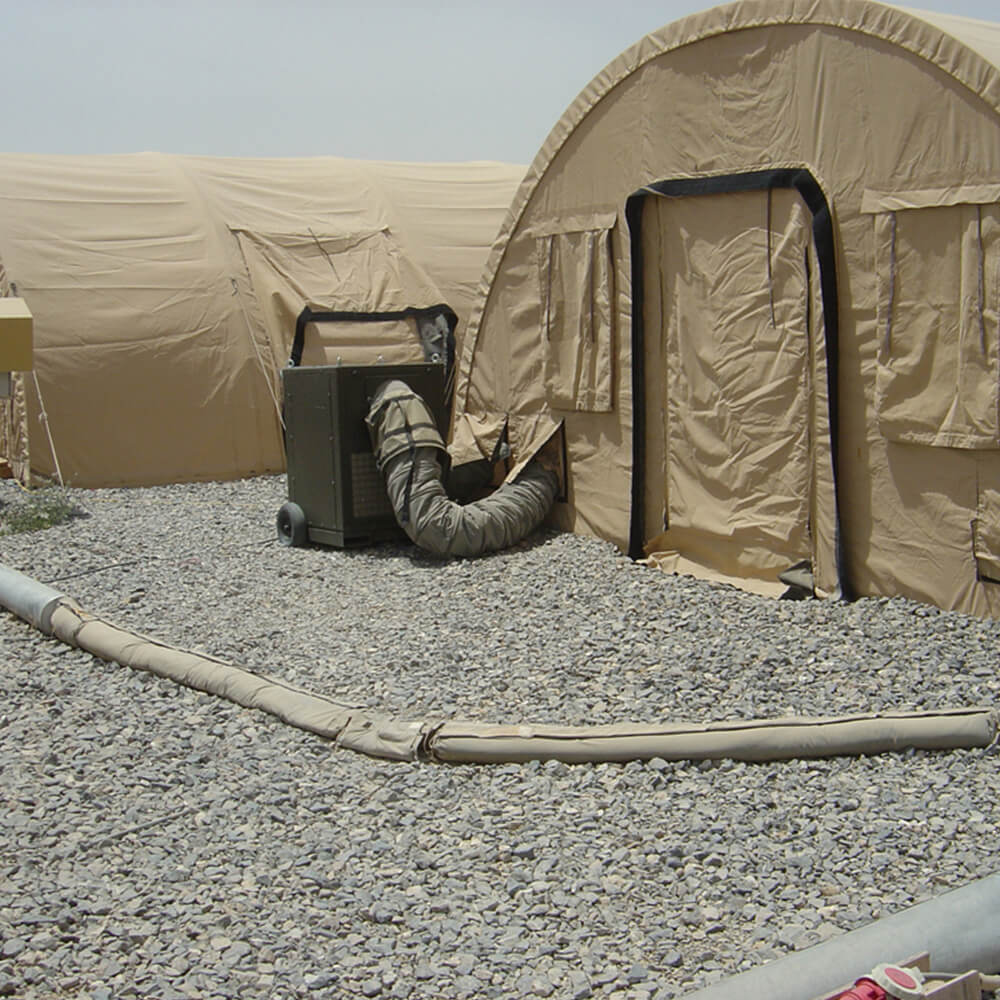

Dantherm AC M7 MKII tent installtion in the desert
|

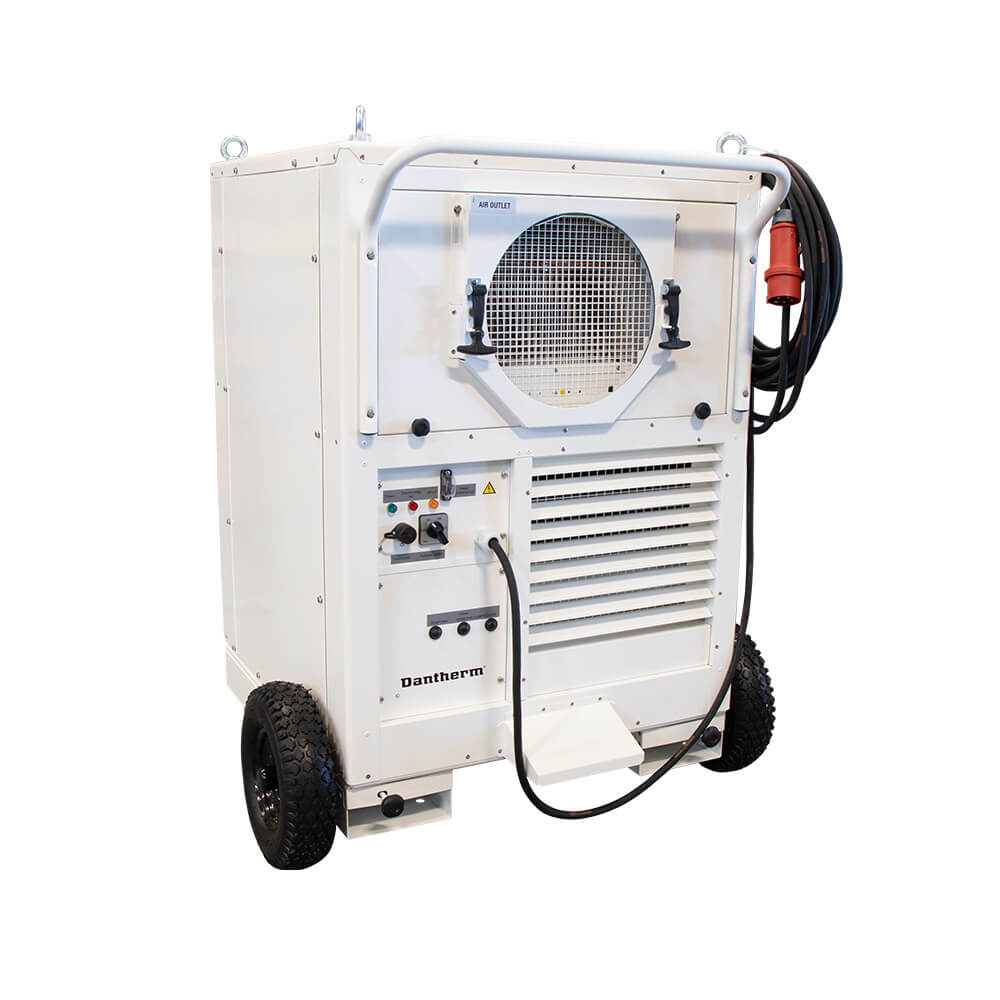

AC-M7 MKII white
|

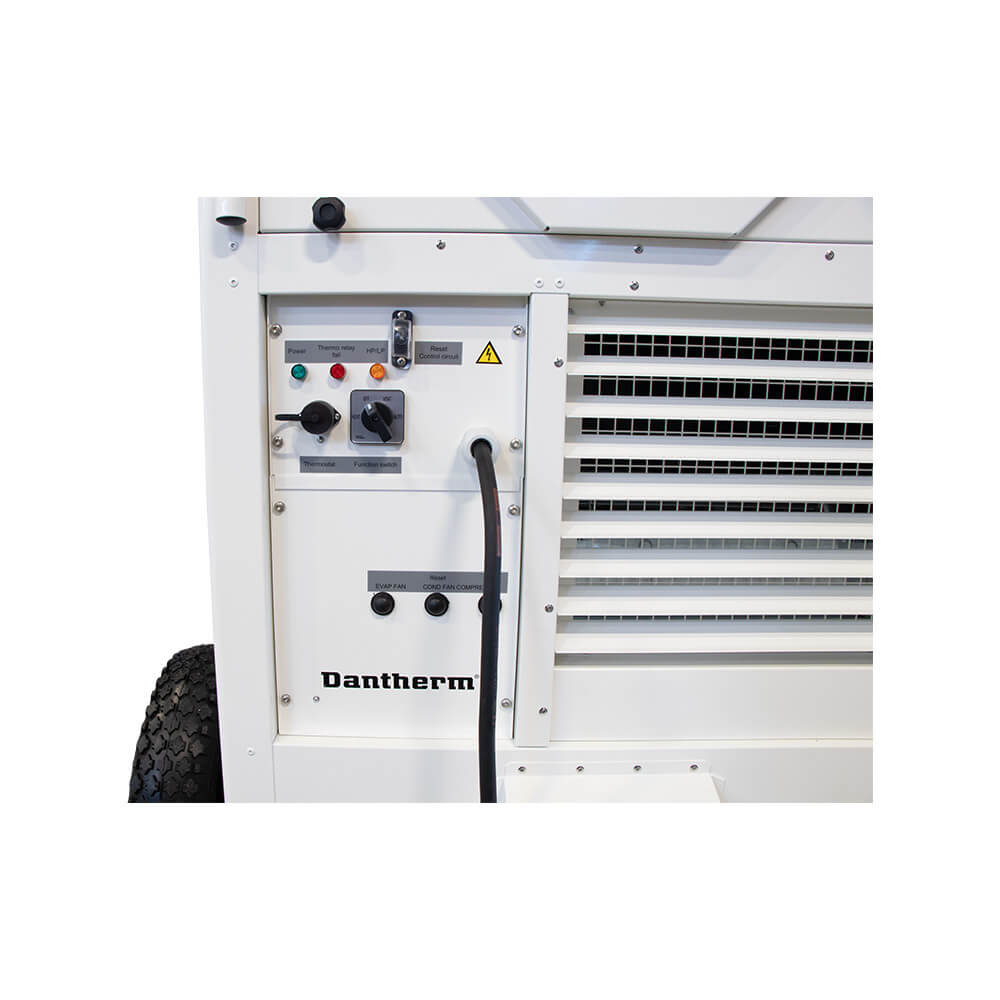

Dantherm AC-M7 MKII control panel
|
Key features
- Manufactured from hot dip galvanized and powder coated steel sheet
- Can provide cooling at ambient temperatures up to +55°C
- Connect to the mains power supply or a separate diesel generator through a 15m power cable with CEE plug
- “VENT-only” option, allowing ventilation without cooling
- Temperature control by a room thermostat placed inside the tent
- Washable and easy removable coarse filters in front of internal air intake as well as in front of external air intake
- Easy transportation, either by forklift, the four lifting hooks on top of the unit or with the two wheels
- Setup and operation can be done by a single person
- Removable wheels, which can be stowed on top of the unit
- Adjustable fresh air intake
- As operational range, heating: an option can be provided to operate between -32°C to +20°C
Product Specifications
| Specifications | Units | AC-M7 MKII |
|---|---|---|
| Registered NSN number | - | Yes |
| Operating temperature range, cooling | °C | +20 – +55 |
| Operating temperature range, heating | °C | -20 – +20 |
| Air flow | m³/h | 2,500 |
| Sound level @ 1.5m | dB(A) | 69 |
| Protection class | IPX4 | |
| Refrigerant | Type/kg | R134a/3.0 |
| Nominal cooling capacity | kW | 7.6 |
| Heating capacity (optional) | kW | 7.2 |
| Power supply | V/Hz | 400/3ph/50 |
| Max. running current, cooling/heating | A | 7.2/13 |
| Locked rotor amperage (LRA) | A | 24 |
| Max. power consumption cooling/heating | W | 3,700/7,700 |
| Hose connection | Ømm | 1 x 315 or 2 x 225 |
| Product size (h x l x w) | mm | 1150 x 796 x 756 |
| Weight | kg | 190 |
Product Specifications (US)
| Specifications | Units | AC-M7 MKII |
|---|---|---|
| Registered NSN number | Yes | |
| Operating temperature range, cooling | °F | +68 to +131 |
| Operating temperature range, heating | °F | -4 to +68 |
| Air flow | SCFM | 1.471 |
| Sound level @ 1.5m | dB(A) | 69 |
| Protection class | NEMA | 3S |
| Refrigerant | type/lbs | R134a/6.6 |
| Nominal cooling capacity | BTU | 25,900 |
| Heating capacity (optional) | BTU | 24,500 |
| Power supply | V/Hz | 400/3ph/50 |
| Max. running current, cooling/heating | A | 7.2/13 |
| Locked rotor amperage (LRA) | A | 24 |
| Max. power consumption cooling/heating | W | 3,700/7,700 |
| Hose connection | Øin | 1 x 12.4 or 2 x 8.9 |
| Product size (h x l x w) | in | 45.3 x 31.3 x 29.8 |
| Weight | lbs | 419 |
Suitable for:
- Camps and field hospitals
- Events and festivals
- Military and aerospace
