Dantherm AC-M5 MKI – container cooler
Container coolers
The AC-M5 MKI is designed for window mounting in ISO containers. Together with the trap door system the air conditioner is mounted inside the container. It is designed to store within the confinement of the ISO corners of the container during transportation or storage. The AC-M5 MKI is sliding in its trap door system and is deployed from the container for operation. Once deployed the unit is locked from inside the container when operating.
AC-M5 MKI has a fresh-air intake. For applications requiring CBRN/COLPRO compliance, please refer to the AC-M5 MKII product page.
View our range of air cooling units and container coolers suitable for all types of commercial purpose on any scale.

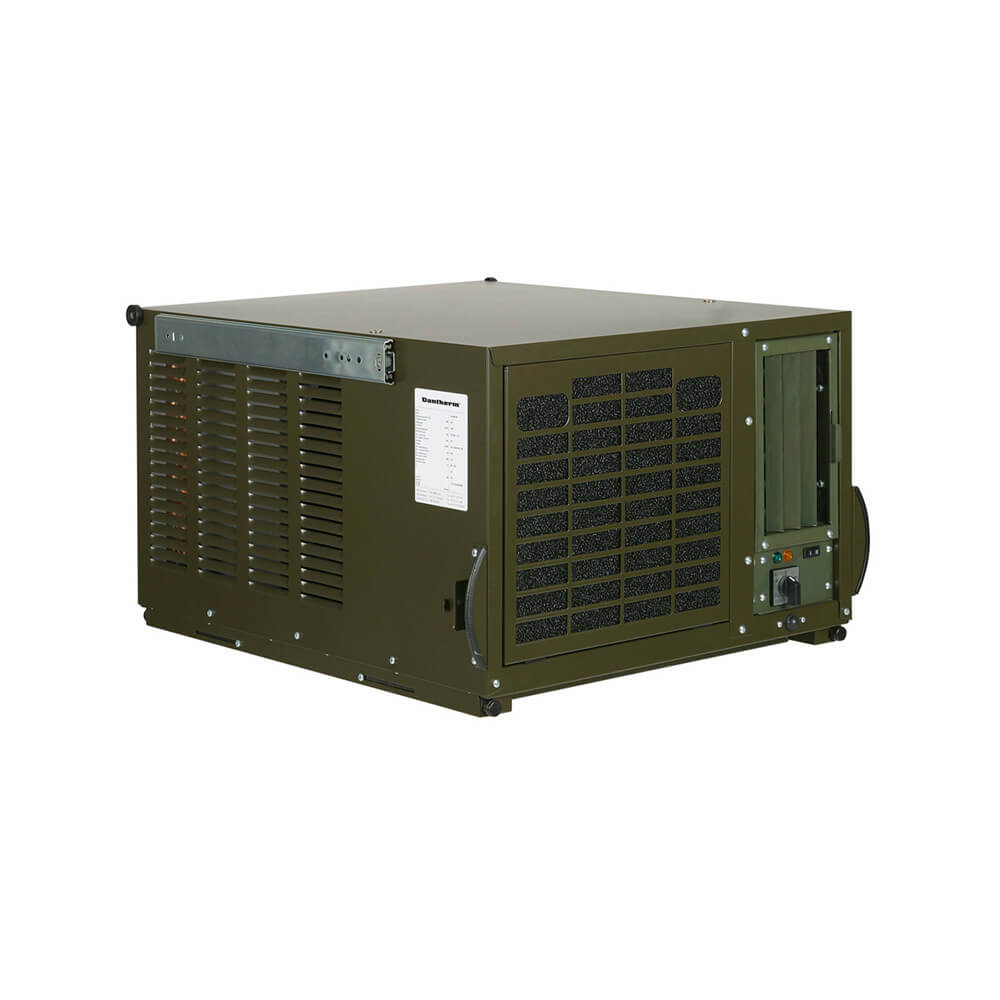

Dantherm AC-M5 MKI – container cooler
|

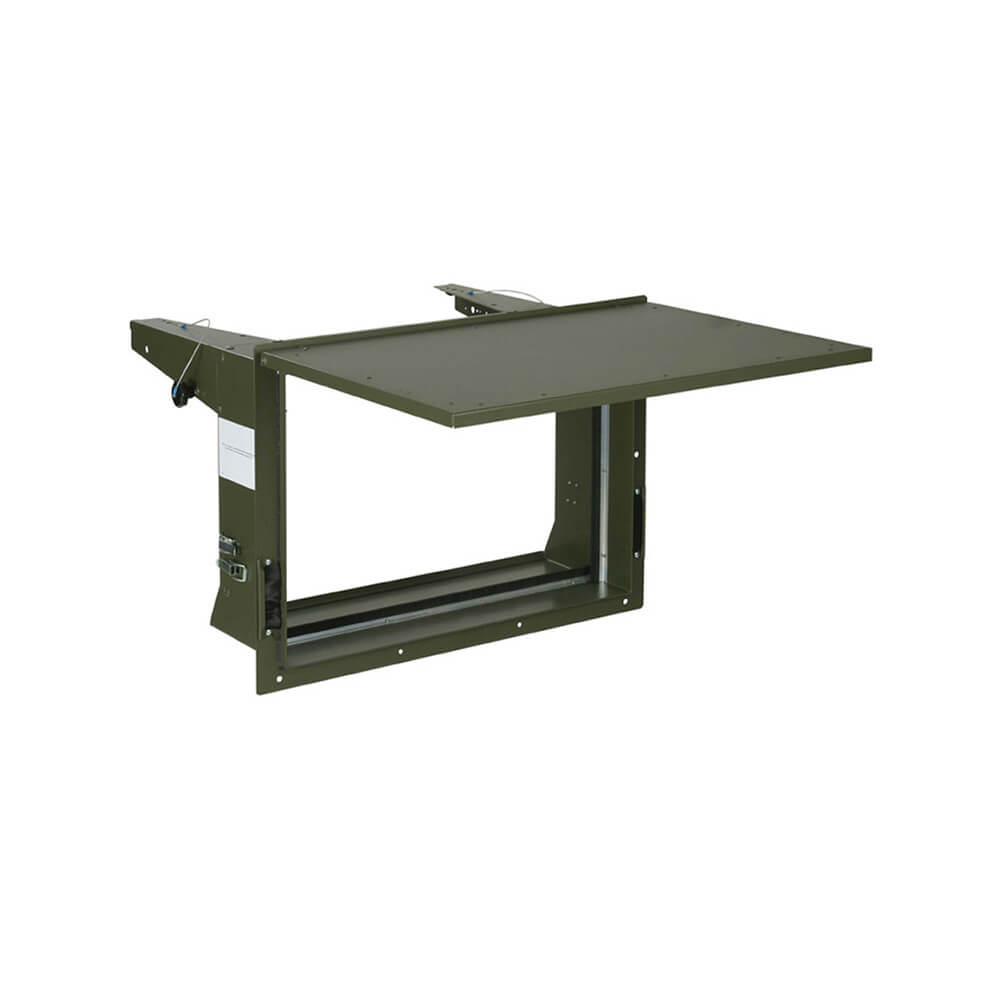

Dantherm AC-M5 trap door
|

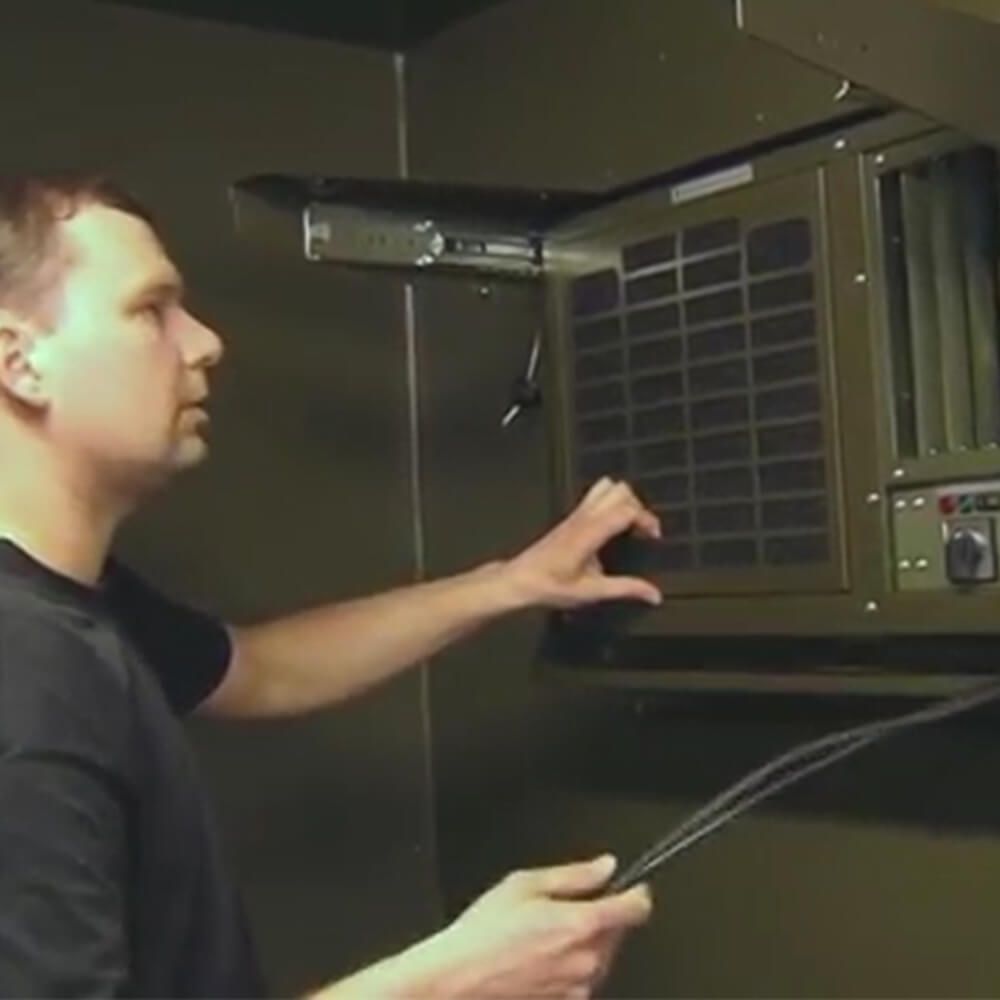

How to mount the Dantherm AC-M5 container cooler
|

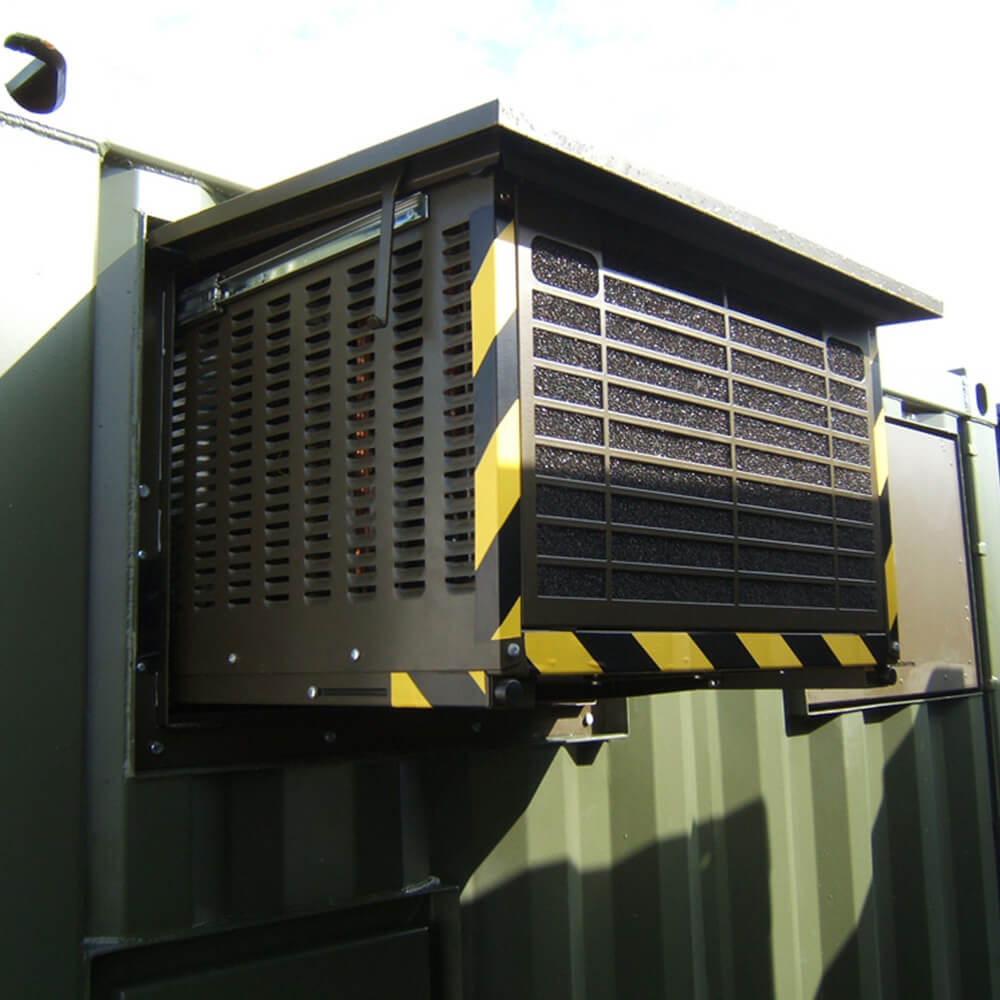

Dantherm AC-M5 installation
|
Key features
- Manufactured from hot dip galvanized and powder coated steel sheet
- Top finish painting is standard NATO green, RAL 6014
- Air-tight boundary to ambient environment
- Delivers cooling in ambient temperatures up to +60°C
- Scroll compressor for high degree of reliability and low noise
- Two-speed selector for the internal fan
- “VENT-only” option for ventilation without cooling
- Stores inside the container during transportation
- Chosen as the NATO standard, conforming to all NATO requirements and norms
- All units have unique NATO stock numbers (NSN)
Product Specifications
| Specifications | Units | AC-M5 MKI (50 Hz) |
|---|---|---|
| Registered NSN number | - | Yes |
| Operating temperature range, cooling | °C | +20 – +60 |
| Operating temperature range, heating | °C | -32 – +20 |
| Air flow | m3/h | 900 |
| Sound level, fan-speed 1 & 2 @ 1m | dB(A) | 52/59 |
| Protection class | IPX4 | |
| Refrigerant | R134a | |
| Nominal cooling capacity | kW | 4.7 |
| Heating capacity (optional) | kW | 2 |
| Power supply | V/Hz | 230/1ph/50 |
| Max. running current, cooling/heating | A | 9.8/9.3 |
| Locked rotor amperage (LRA) | A | 47 |
| Max. power consumption cooling/heating | W | 2,300 |
| Hose connection | Ømm | N/A |
| Product size (h x l x w) | mm | 482 x 755 x 666 |
| Weight | kg | 79 |
Product Specifications (US)
| Specifications | Units | AC-M5 MKI (60 Hz) |
|---|---|---|
| Registered NSN number | Yes | |
| Operating temperature range, cooling | °F | +68 to +122 |
| Operating temperature range, heating | °F | -26 to +68 |
| Air flow, internal, step I/II | SCFM | 262/604 |
| Airflow, fresh air intake, step I/II | SCFM | 23/37 |
| Airflow, external | SCFM | 919 |
| Sound level, fan-speed 1 & 2 @ 3.3 feet | dB(A) | 49/63 |
| Protection class | NEMA | 3S |
| Refrigerant (GWP 1430) | type/lbs | R134a/3.1 |
| Max. Cooling capacity | BTU | 16.72 |
| Cooling capacity @ 131/131°F 30% r.h. | BTU | 15.696 |
| Cooling capacity @ 95/95°F 30% r.h. | BTU | 12.283 |
| Heating capacity (optional | BTU | 60.824 |
| Power supply | V/Hz | 230/1ph/60 |
| Power supply plug | Schuko plug | |
| Max. running current, cooling/heating | A | 12/9.2 |
| Locked rotor amperage (LRA) | A | 56 |
| Generator requirement (with 300% start allowance) | kVA | 4 |
| Max. power consumption cooling/heating | W | 2.4 |
| Filter material | PPI 15 | |
| Product size (h x l x w) | " | 19 x 29.7 x 26.2 |
| Weight net/with trap door system | lbs | 163 |
Suitable for:
- Camps and field hospitals
- Military and aerospace
