Dantherm AC 7000 – air-conditioner
When in need of temporary small-scale cooling, an efficient and easily implemented solution is required. The AC 7000 mobile water-cooled air-conditioner can deliver efficient cooling in a matter of minutes with no cooling knowledge or special training required to install the unit.
View our range of air cooling units and air conditioning units suitable for all types of application and commercial or industrial purpose on any scale.

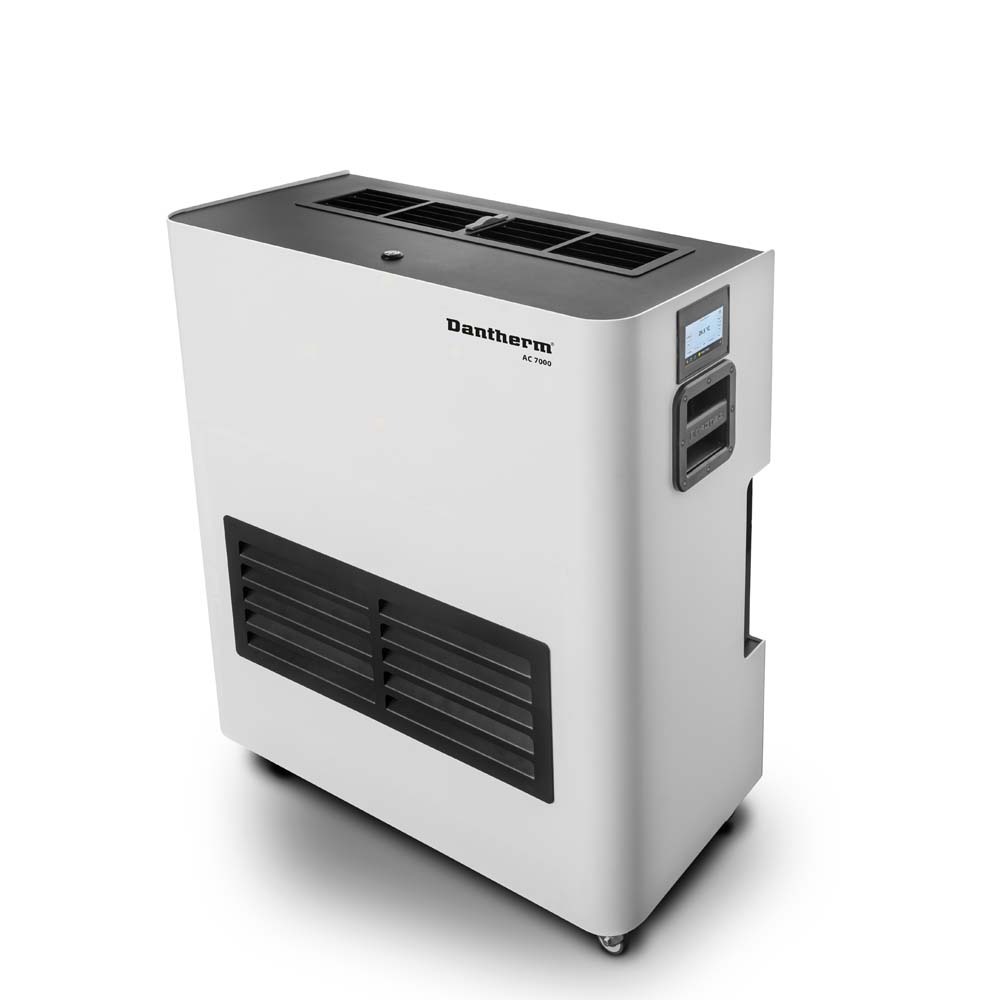

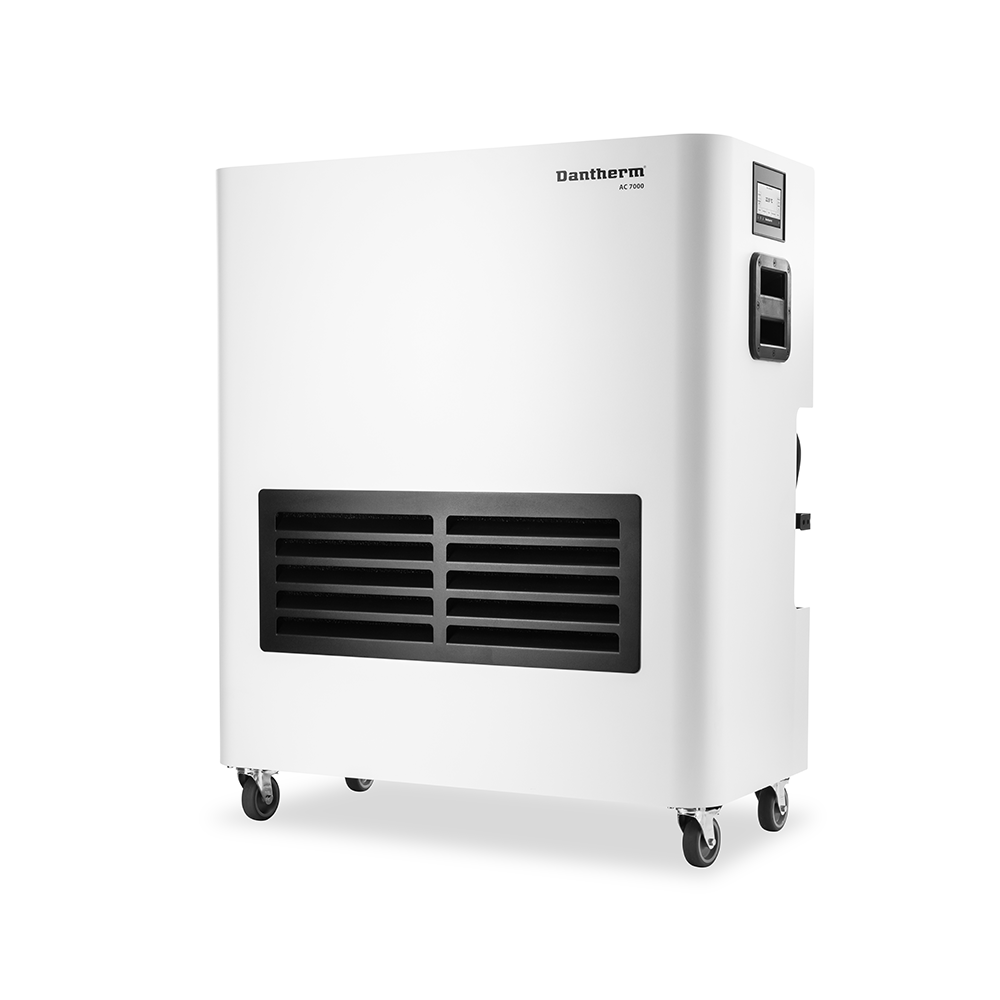

Dantherm AC 7000 air conditioner
|

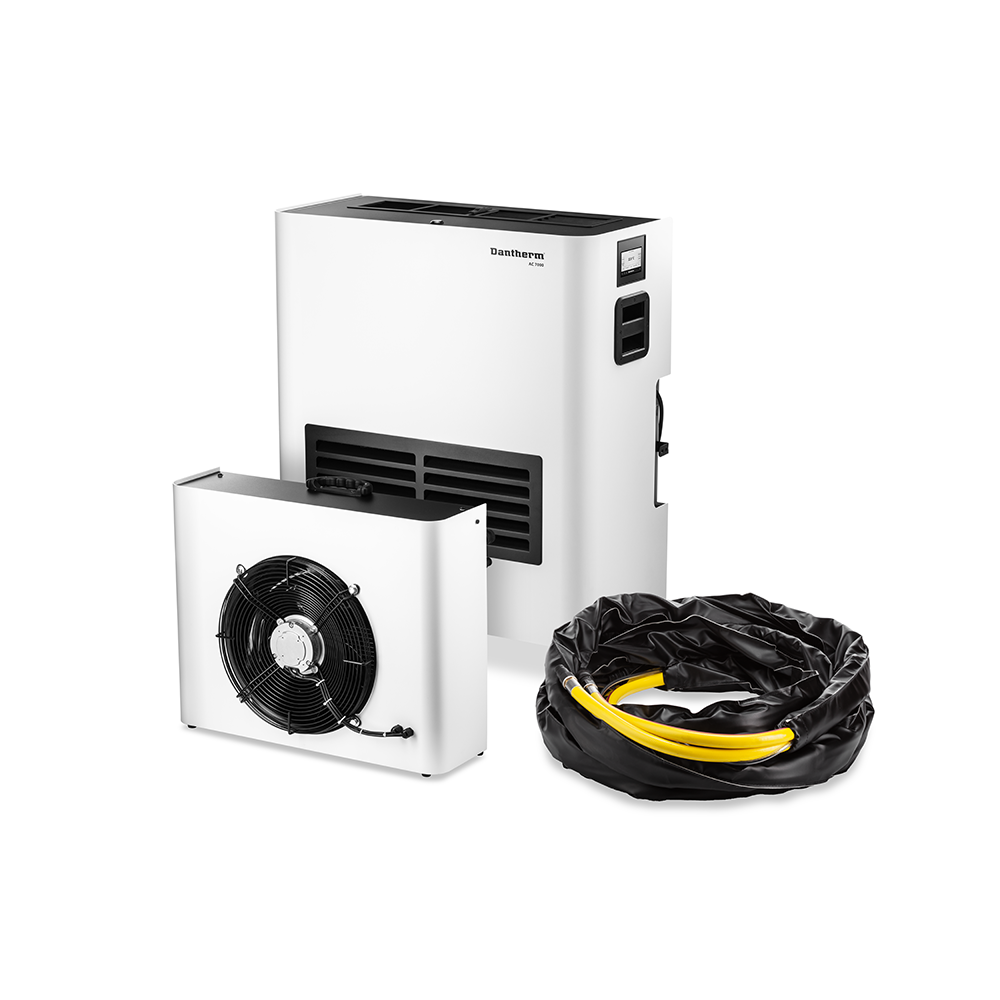

Dantherm AC 7000 air conditioner with hex
|

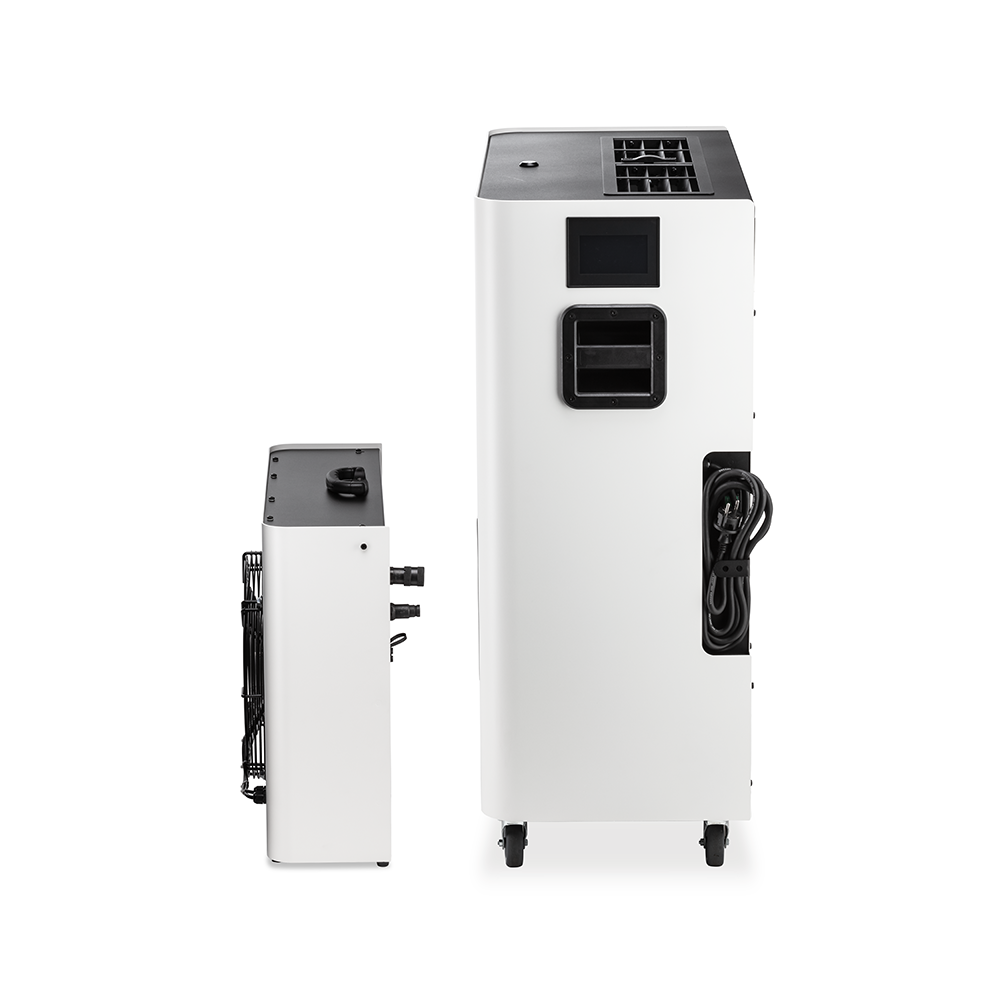

Dantherm AC 7000 air conditioner side view
|

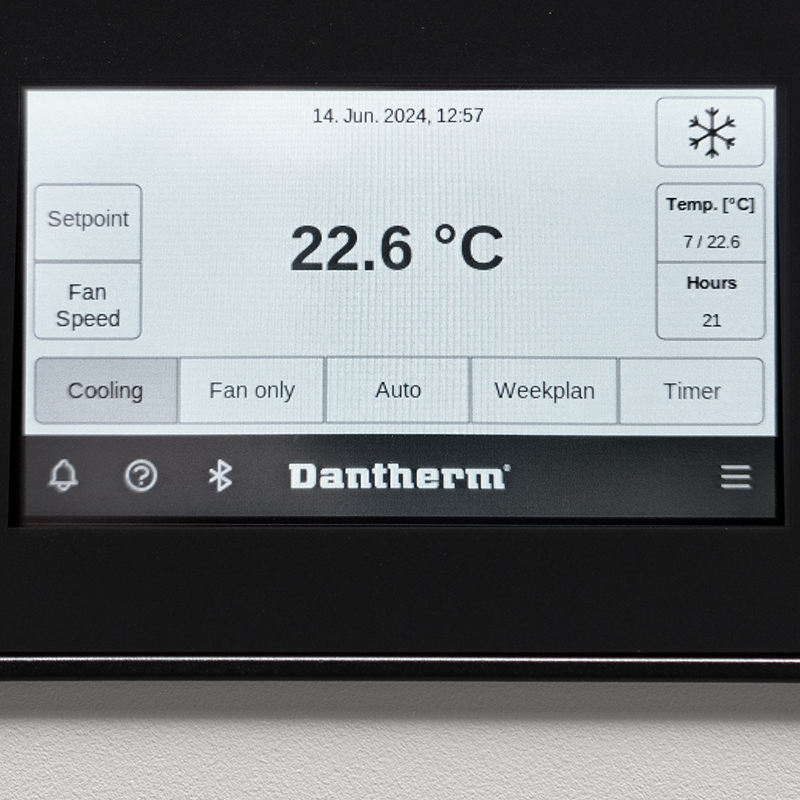

Dantherm AC 7000 control panel
|

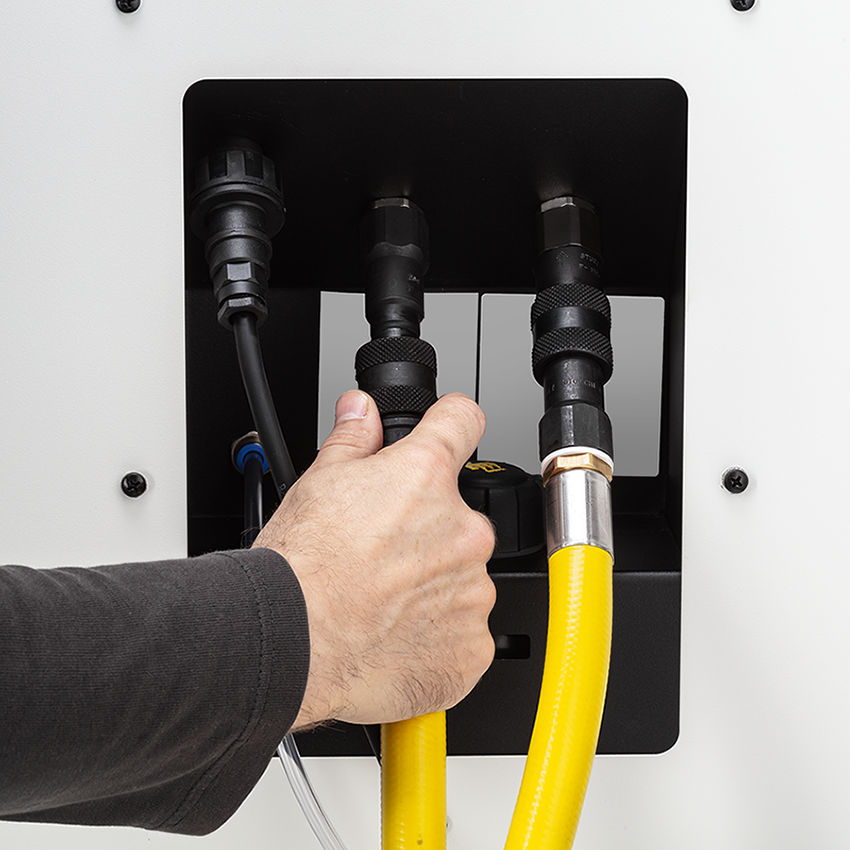

Dantherm AC 7000 connections
|

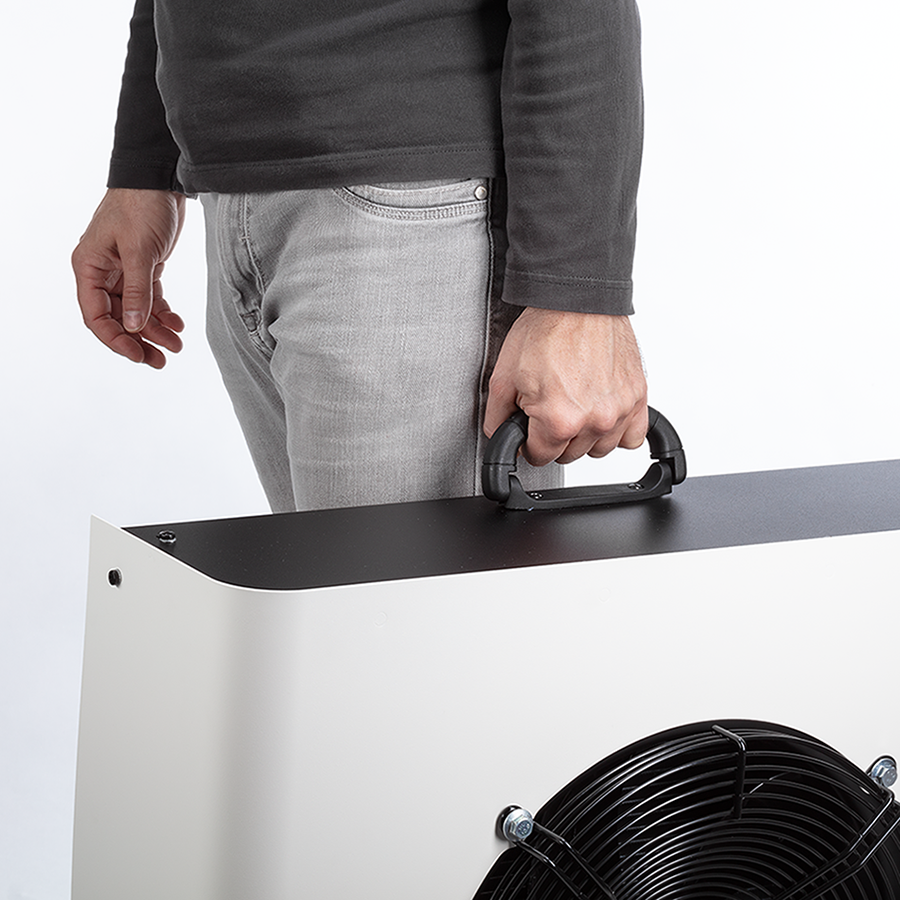

Dantherm AC 7000 handle
|

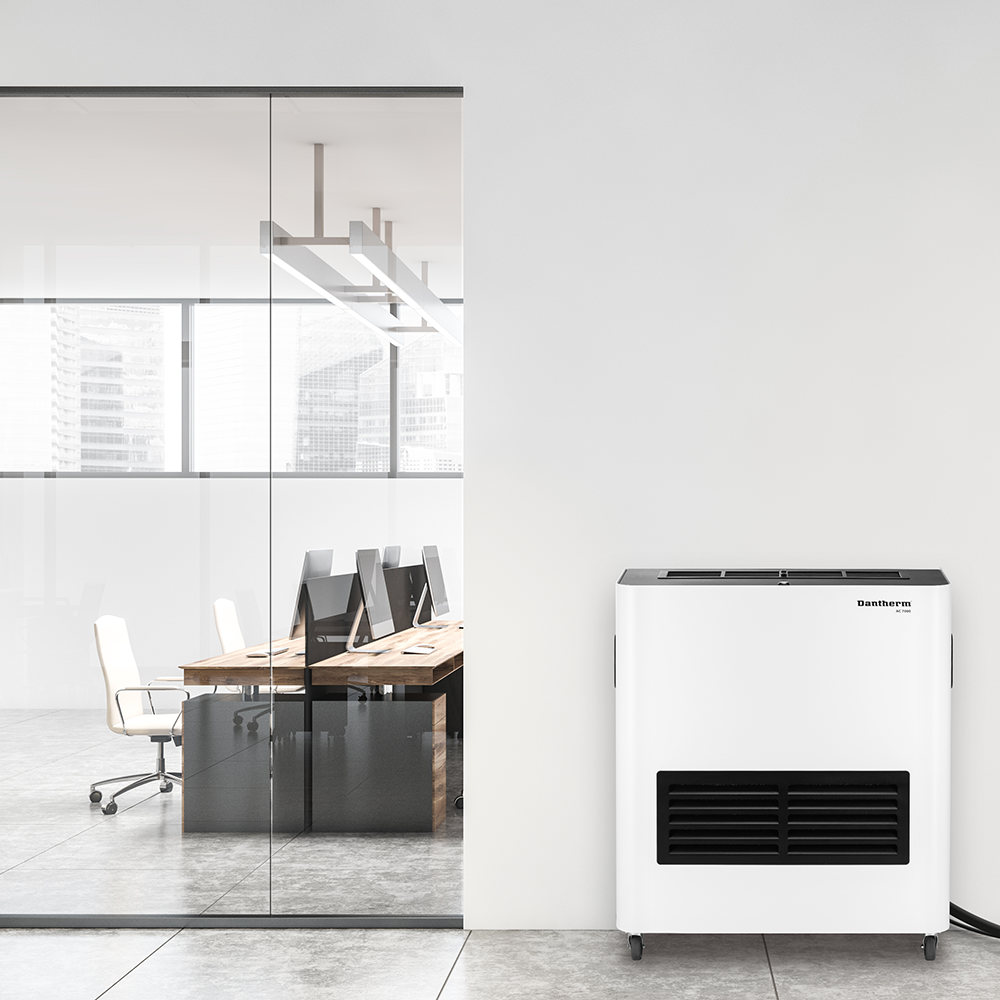

Dantherm AC 7000 air conditioner in an office
|
Key features
- Sturdy metal construction
- High-efficiency cooling circuit
- Can be installed without prior training
- Quick-connect cooling line connectors
- Indoor unit with step-less variable fan speed and adjustable grille
- Up to 30 metre installation distance between indoor and outdoor units
- Slim water and glycol hose connection eliminates need for large air ducts
The AC 7000 absorbs the heat into a refrigerant cooling system. From there, the heat is transferred to the self-containing chilled water/glycol system. It is then pumped through to the outdoor unit where the water is cooled and the heat dissipates.
The indoor unit is connected to the outdoor unit via two quick-connect, self-sealing flexible hoses. These hoses are supplied in 10m lengths and can be connected to a maximum length of 30m.
Product specifications
| Specifications | Units | AC 7000 |
|---|---|---|
| Cooling capacity at 25°C | kW | 6.5 |
| Cooling capacity at 25°C | Btu/h | 22.178 |
| Max. cooling capacity | kW | 7 |
| Max. cooling capacity | Btu/h | 23.884 |
| Air flow min. | m³/h | 800 |
| Air flow max. | m³/h | 1,450 |
| Operating temperature range | °C | -5 – +45 |
| Power supply | V/Hz | 230/1ph/50 |
| Power input | W | 2,950 |
| Nominal current | A | 9 |
| Recommended fusing | A | 13 |
| Refrigerant | Type/g | R454C/840 |
| GWP factor | 148 | |
| Sound level @1m | dB(A) | 62 |
| Protection class otdoor/indoor unit | IP54/IP44 | |
| Cooling medium (30% glycol/water mixture) of the outdoor unit | 10.5 litres of water / 4.5 litres of glycol | |
| Product size - internal unit (l x w x h) | mm | 400 x 880 x 1025 |
| Product size - external unit (l x w x h) | mm | 250 x 700 x 580 |
| Weight | kg | 114 |
Suitable for:
- Commercial buildings
- Data centers and telecoms
- Events and festivals
- Industrial, factories and production
- Leisure and recreation
- Rental companies
- Transport and logistics
- Warehouses and storage
