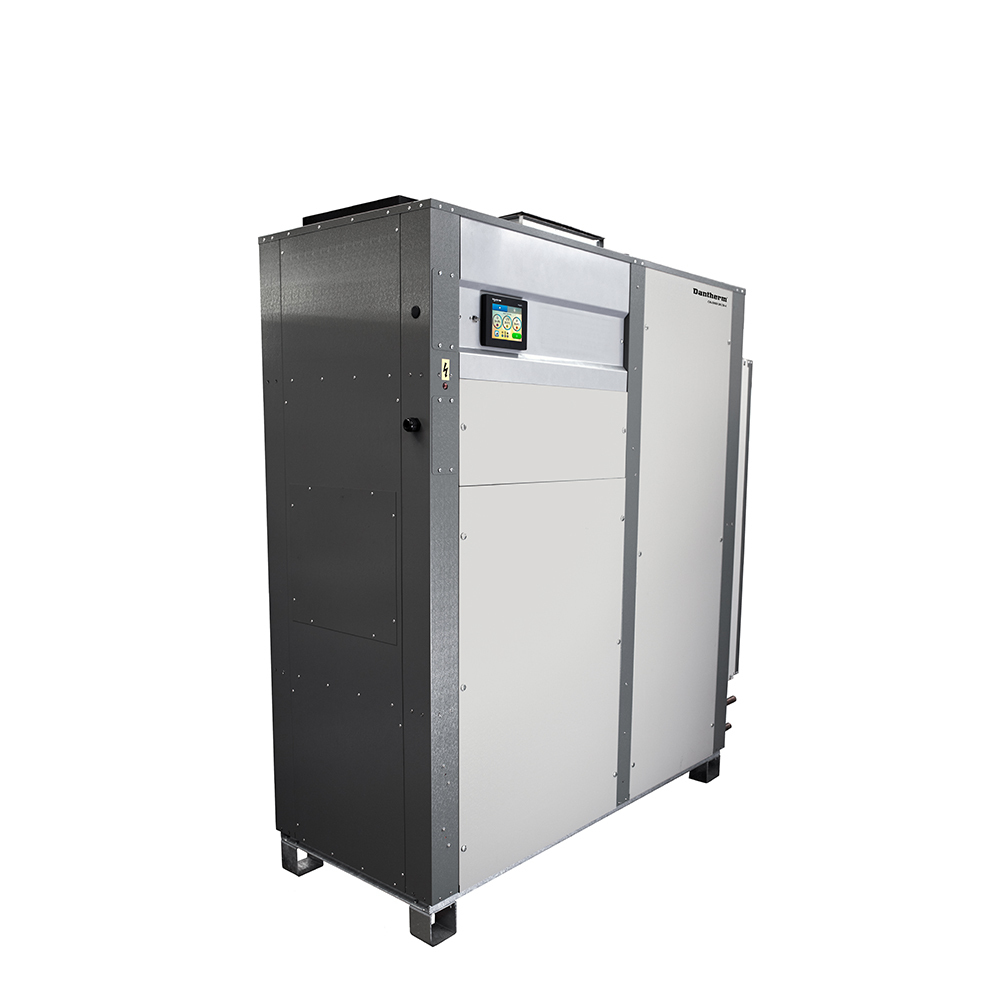

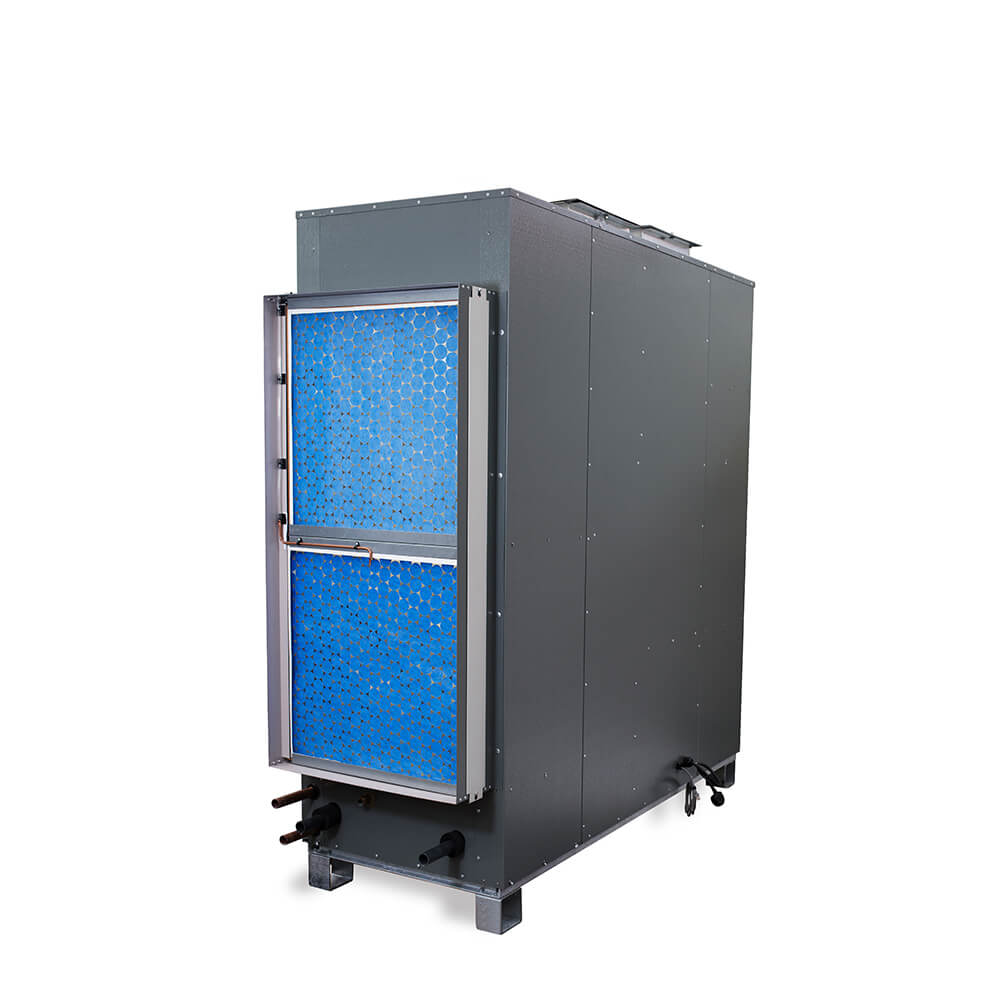

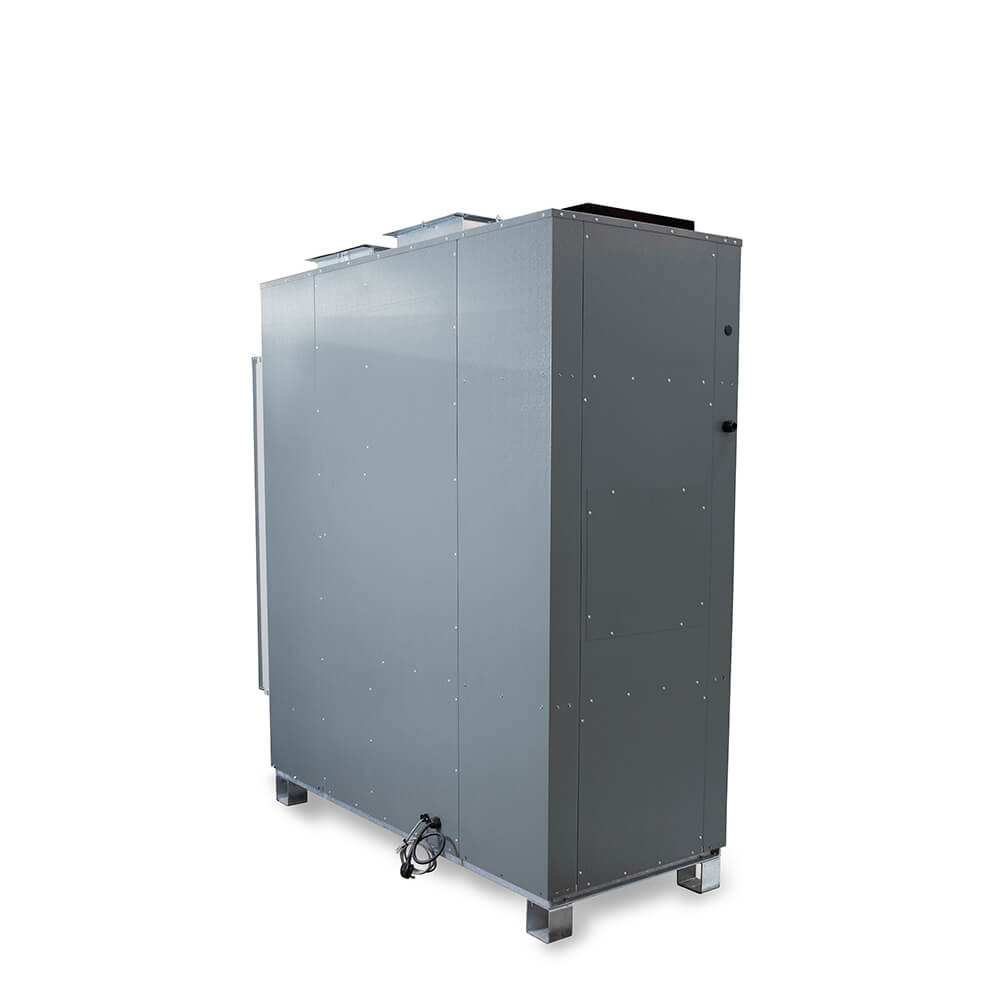

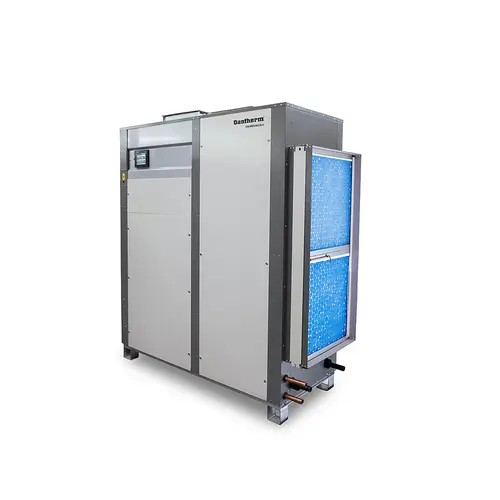

Calorex Delta series – swimming pool air handling units
Delta 2-4-6-8-10-12-14-16 swimming pool air handling
The sophisticated Delta air handling units incorporate hybrid heat pump and fresh air dehumidification technology. With dynamic heat recovery to swimming pool water and air using a heat pump, a Delta solution is the ultimate choice for a commercial or public indoor swimming pool.
Interested?
Key features
-
Dynamic heat pump heat recovery to pool and air
-
Self-regulating fresh air control with heat recovery
-
Automatic control of exhaust air volume to match pool usage
-
Free-cooling (Delta 1-2)
-
Free-cooling and heat pump air cooling (Delta 4-16)
-
Integral LPHW heat exchangers for pool and air
-
Controllable rpm EC/inverter fans in all models
-

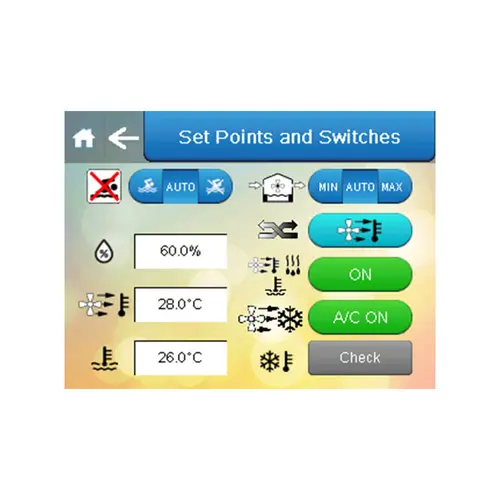

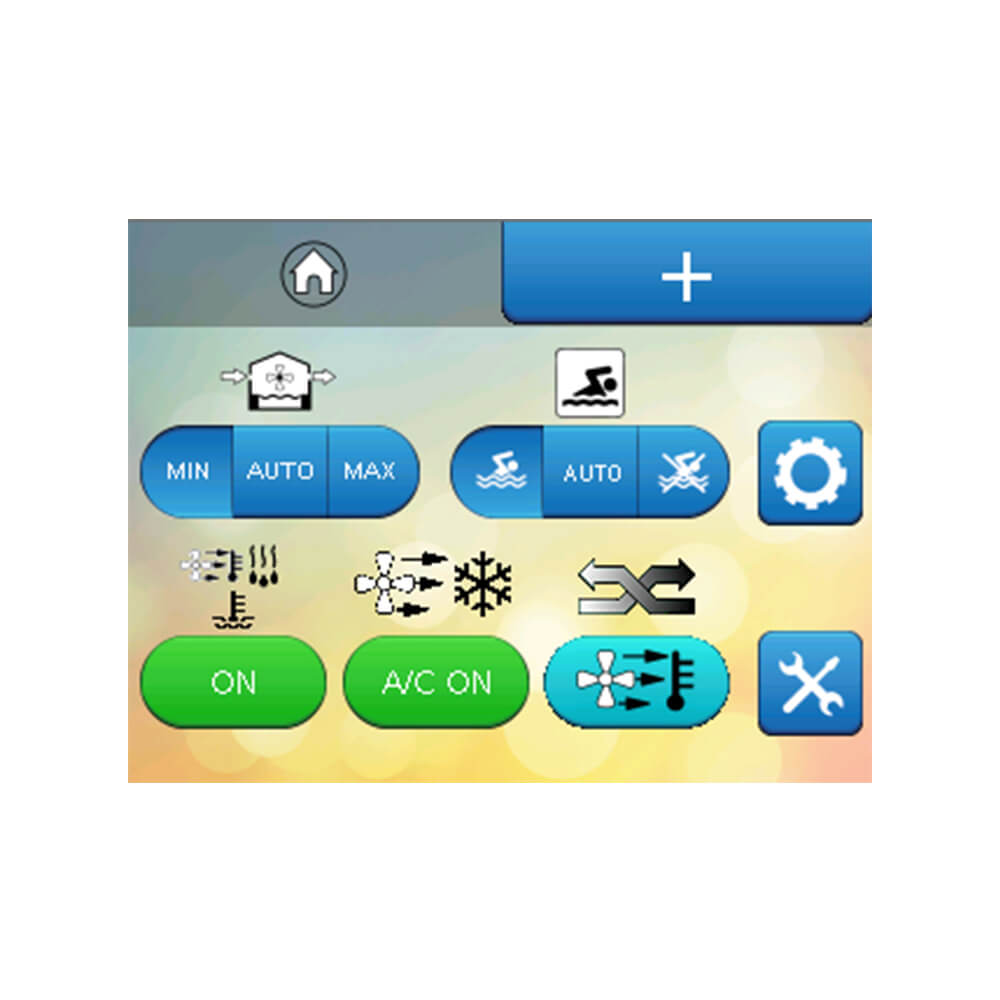

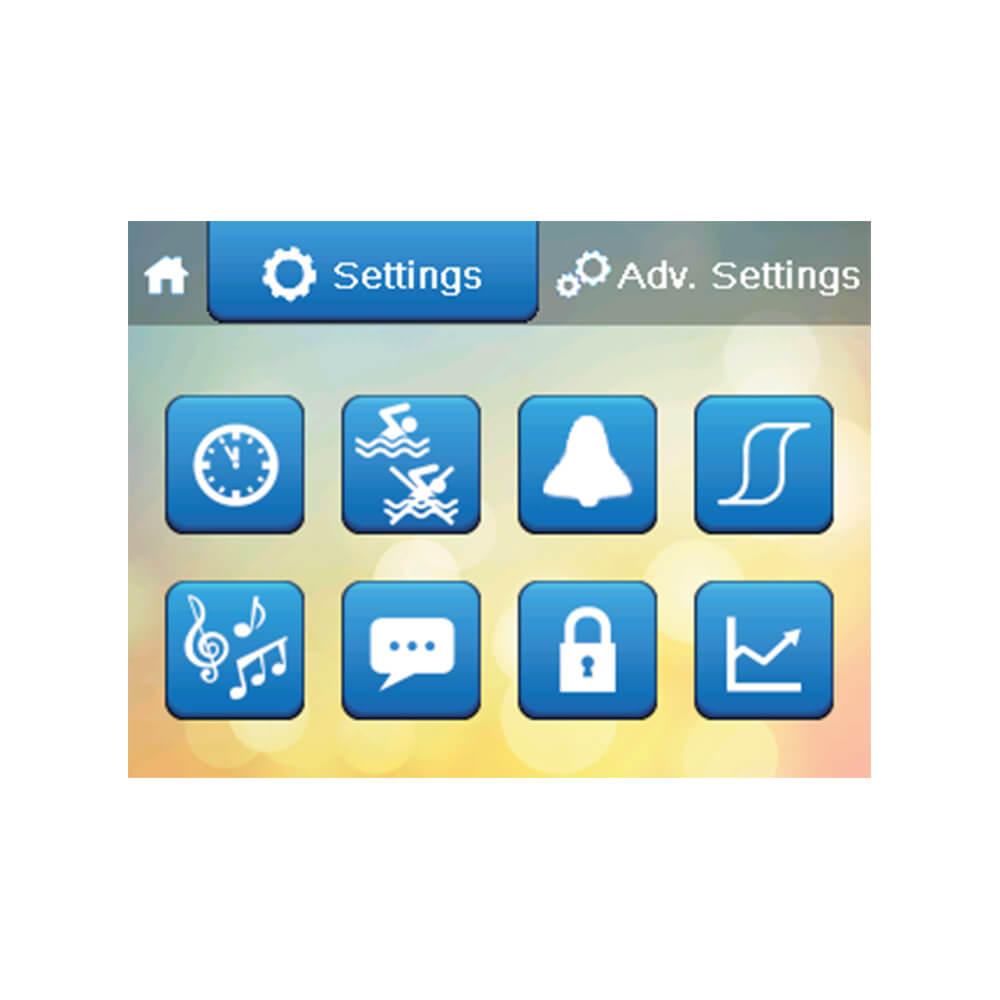

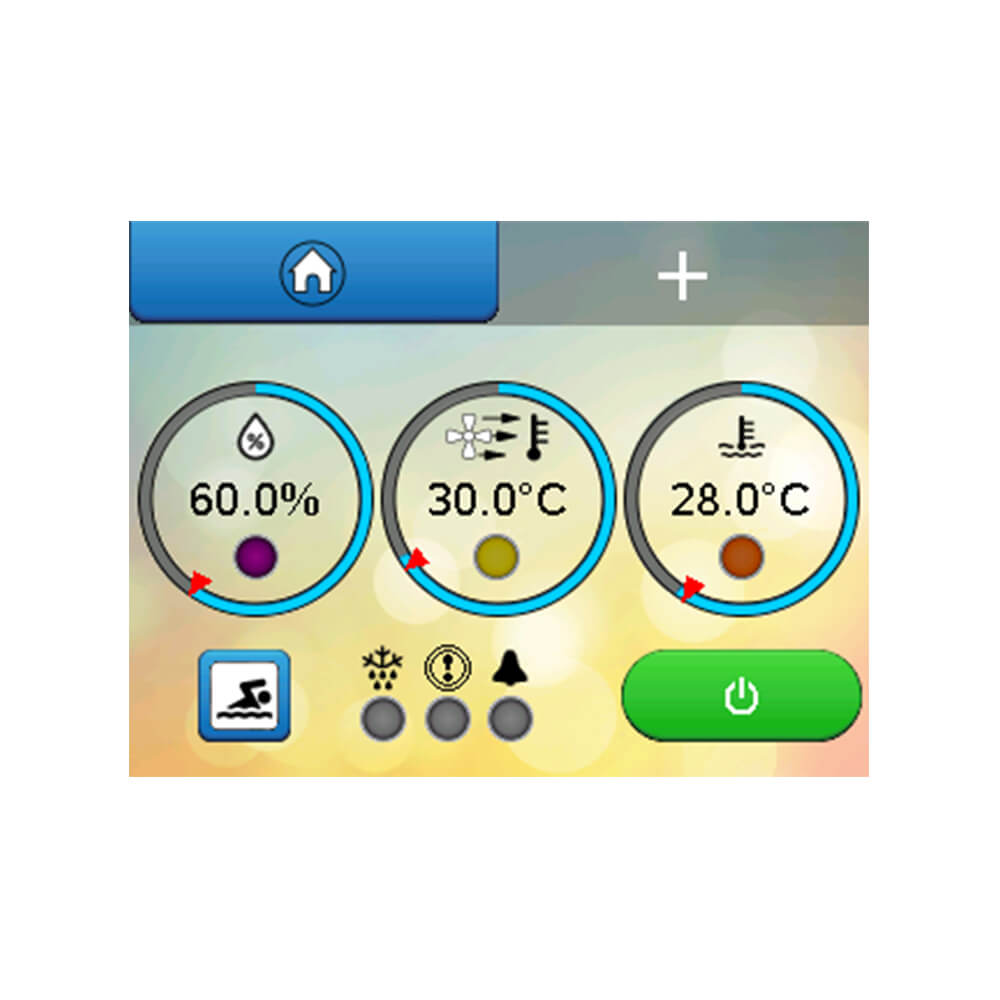

PLC control with 5.7" touchscreen user interface
-
Remote monitoring/control
-
The minimum security update period for Delta products is zero months
Remote monitoring/control
-
Screen mirroring to Android/iOS mobile devices using third-party app
-
Screen mirroring to web browser with ActiveX
-
BMS interfaces for Modbus, BACnet IP and BACnet MS/TP
-
Wired remote control interfaces
Options
-
Delta 2-6 single or three phase
-
Delta 8-16 three phase only
-
Upgraded LPHW heat exchanger for air heating
-
Left-hand or right-hand orientation (Delta 4-16)
-
Top, side or bottom supply fan outlet
-
Front or rear supply fan outlet (Delta 14-16)
-
Rear exhaust and fresh air connections (Delta 14-16)
-
Connection for RCU (Delta 16)
Product specifications
| Specifications | Units | DT 2 |
|---|---|---|
| Nominal recirculation air flow |
m³/h
|
2,600
|
| Exhaust/fresh air flow (stepped control) |
m³/h
|
130-1,300
|
| Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air |
l/h
|
10.9
|
| Heat to air | ||
| Via heat pump (Mode B) |
kW
|
4.9
|
| Via standard LPHW @ 80°C |
kW
|
22
|
| Via upgraded LPHW @ 55°C |
kW
|
19
|
| Total Mode B + standard LPHW |
kW
|
26.9
|
| Heat to pool water | ||
| Via heat pump (Mode A) |
kW
|
5.5
|
| Via LPHW @ 80°C |
kW
|
23
|
| Via LPHW @ 55°C |
kW
|
11
|
| Total Mode A + LPHW |
kW
|
28.5
|
| Cooling duty | ||
| Total |
kW
|
0
|
| Sensible |
kW
|
0
|
| Nominal power consumed |
kW
|
2.9
|
| R407c gas weight/CO2 equivalent |
kg/t
|
3.0/5.32
|
| Width |
mm
|
1,740
|
| Depth |
mm
|
654
|
| Height |
mm
|
1,685
|
| Weight |
kg
|
310
|
Nominal recirculation air flow
2,600
m³/h
Exhaust/fresh air flow (stepped control)
130-1,300
m³/h
Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air
10.9
l/h
Heat to air
Via heat pump (Mode B)
4.9
kW
Via standard LPHW @ 80°C
22
kW
Via upgraded LPHW @ 55°C
19
kW
Total Mode B + standard LPHW
26.9
kW
Heat to pool water
Via heat pump (Mode A)
5.5
kW
Via LPHW @ 80°C
23
kW
Via LPHW @ 55°C
11
kW
Total Mode A + LPHW
28.5
kW
Cooling duty
Total
kW
Sensible
kW
Nominal power consumed
2.9
kW
R407c gas weight/CO2 equivalent
3.0/5.32
kg/t
Width
1,740
mm
Depth
654
mm
Height
1,685
mm
Weight
310
kg
| Specifications | Units | DT 4 |
|---|---|---|
| Nominal recirculation air flow |
m³/h
|
3,000
|
| Exhaust/fresh air flow (stepped control) |
m³/h
|
150-1,500
|
| Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air |
l/h
|
12.5
|
| Heat to air | ||
| Via heat pump (Mode B) |
kW
|
5.1
|
| Via standard LPHW @ 80°C |
kW
|
25
|
| Via upgraded LPHW @ 55°C |
kW
|
21
|
| Total Mode B + standard LPHW |
kW
|
30.1
|
| Heat to pool water | ||
| Via heat pump (Mode A) |
kW
|
5.8
|
| Via LPHW @ 80°C |
kW
|
33
|
| Via LPHW @ 55°C |
kW
|
16
|
| Total Mode A + LPHW |
kW
|
38.8
|
| Cooling duty | ||
| Total |
kW
|
-4.2
|
| Sensible |
kW
|
-2.9
|
| Nominal power consumed |
kW
|
2.9
|
| R407c gas weight/CO2 equivalent |
kg/t
|
6.0/10.64
|
| Width |
mm
|
1,840
|
| Depth |
mm
|
704
|
| Height |
mm
|
1,970
|
| Weight |
kg
|
350
|
Nominal recirculation air flow
3,000
m³/h
Exhaust/fresh air flow (stepped control)
150-1,500
m³/h
Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air
12.5
l/h
Heat to air
Via heat pump (Mode B)
5.1
kW
Via standard LPHW @ 80°C
25
kW
Via upgraded LPHW @ 55°C
21
kW
Total Mode B + standard LPHW
30.1
kW
Heat to pool water
Via heat pump (Mode A)
5.8
kW
Via LPHW @ 80°C
33
kW
Via LPHW @ 55°C
16
kW
Total Mode A + LPHW
38.8
kW
Cooling duty
Total
-4.2
kW
Sensible
-2.9
kW
Nominal power consumed
2.9
kW
R407c gas weight/CO2 equivalent
6.0/10.64
kg/t
Width
1,840
mm
Depth
704
mm
Height
1,970
mm
Weight
350
kg
| Specifications | Units | DT 6 |
|---|---|---|
| Nominal recirculation air flow |
m³/h
|
4,000
|
| Exhaust/fresh air flow (stepped control) |
m³/h
|
200-2,000
|
| Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air |
l/h
|
16.6
|
| Heat to air | ||
| Via heat pump (Mode B) |
kW
|
6.6
|
| Via standard LPHW @ 80°C |
kW
|
30
|
| Via upgraded LPHW @ 55°C |
kW
|
26
|
| Total Mode B + standard LPHW |
kW
|
36.6
|
| Heat to pool water | ||
| Via heat pump (Mode A) |
kW
|
8.0
|
| Via LPHW @ 80°C |
kW
|
33
|
| Via LPHW @ 55°C |
kW
|
16
|
| Total Mode A + LPHW |
kW
|
41.0
|
| Cooling duty | ||
| Total |
kW
|
-5.5
|
| Sensible |
kW
|
-3.9
|
| Nominal power consumed |
kW
|
3.4
|
| R407c gas weight/CO2 equivalent |
kg/t
|
7.8/13.84
|
| Width |
mm
|
1,840
|
| Depth |
mm
|
704
|
| Height |
mm
|
1,970
|
| Weight |
kg
|
360
|
Nominal recirculation air flow
4,000
m³/h
Exhaust/fresh air flow (stepped control)
200-2,000
m³/h
Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air
16.6
l/h
Heat to air
Via heat pump (Mode B)
6.6
kW
Via standard LPHW @ 80°C
30
kW
Via upgraded LPHW @ 55°C
26
kW
Total Mode B + standard LPHW
36.6
kW
Heat to pool water
Via heat pump (Mode A)
8.0
kW
Via LPHW @ 80°C
33
kW
Via LPHW @ 55°C
16
kW
Total Mode A + LPHW
41.0
kW
Cooling duty
Total
-5.5
kW
Sensible
-3.9
kW
Nominal power consumed
3.4
kW
R407c gas weight/CO2 equivalent
7.8/13.84
kg/t
Width
1,840
mm
Depth
704
mm
Height
1,970
mm
Weight
360
kg
| Specifications | Units | DT 8 |
|---|---|---|
| Nominal recirculation air flow |
m³/h
|
5,000
|
| Exhaust/fresh air flow (stepped control) |
m³/h
|
250-2,500
|
| Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air |
l/h
|
20.8
|
| Heat to air | ||
| Via heat pump (Mode B) |
kW
|
8.0
|
| Via standard LPHW @ 80°C |
kW
|
35
|
| Via upgraded LPHW @ 55°C |
kW
|
30
|
| Total Mode B + standard LPHW |
kW
|
43.0
|
| Heat to pool water | ||
| Via heat pump (Mode A) |
kW
|
10.0
|
| Via LPHW @ 80°C |
kW
|
33
|
| Via LPHW @ 55°C |
kW
|
16
|
| Total Mode A + LPHW |
kW
|
43.0
|
| Cooling duty | ||
| Total |
kW
|
-6.7
|
| Sensible |
kW
|
-4.7
|
| Nominal power consumed |
kW
|
4.4
|
| R407c gas weight/CO2 equivalent |
kg/t
|
7.8/13.84
|
| Width |
mm
|
1,840
|
| Depth |
mm
|
704
|
| Height |
mm
|
1,970
|
| Weight |
kg
|
370
|
Nominal recirculation air flow
5,000
m³/h
Exhaust/fresh air flow (stepped control)
250-2,500
m³/h
Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air
20.8
l/h
Heat to air
Via heat pump (Mode B)
8.0
kW
Via standard LPHW @ 80°C
35
kW
Via upgraded LPHW @ 55°C
30
kW
Total Mode B + standard LPHW
43.0
kW
Heat to pool water
Via heat pump (Mode A)
10.0
kW
Via LPHW @ 80°C
33
kW
Via LPHW @ 55°C
16
kW
Total Mode A + LPHW
43.0
kW
Cooling duty
Total
-6.7
kW
Sensible
-4.7
kW
Nominal power consumed
4.4
kW
R407c gas weight/CO2 equivalent
7.8/13.84
kg/t
Width
1,840
mm
Depth
704
mm
Height
1,970
mm
Weight
370
kg
| Specifications | Units | DT 10 |
|---|---|---|
| Nominal recirculation air flow |
m³/h
|
6,000
|
| Exhaust/fresh air flow (stepped control) |
m³/h
|
300-3,000
|
| Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air |
l/h
|
25.0
|
| Heat to air | ||
| Via heat pump (Mode B) |
kW
|
10.0
|
| Via standard LPHW @ 80°C |
kW
|
38
|
| Via upgraded LPHW @ 55°C |
kW
|
32
|
| Total Mode B + standard LPHW |
kW
|
48.0
|
| Heat to pool water | ||
| Via heat pump (Mode A) |
kW
|
12.5
|
| Via LPHW @ 80°C |
kW
|
40
|
| Via LPHW @ 55°C |
kW
|
20
|
| Total Mode A + LPHW |
kW
|
52.5
|
| Cooling duty | ||
| Total |
kW
|
-8.4
|
| Sensible |
kW
|
-5.9
|
| Nominal power consumed |
kW
|
5.9
|
| R407c gas weight/CO2 equivalent |
kg/t
|
9.0/15.97
|
| Width |
mm
|
1,840
|
| Depth |
mm
|
854
|
| Height |
mm
|
1,970
|
| Weight |
kg
|
410
|
Nominal recirculation air flow
6,000
m³/h
Exhaust/fresh air flow (stepped control)
300-3,000
m³/h
Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air
25.0
l/h
Heat to air
Via heat pump (Mode B)
10.0
kW
Via standard LPHW @ 80°C
38
kW
Via upgraded LPHW @ 55°C
32
kW
Total Mode B + standard LPHW
48.0
kW
Heat to pool water
Via heat pump (Mode A)
12.5
kW
Via LPHW @ 80°C
40
kW
Via LPHW @ 55°C
20
kW
Total Mode A + LPHW
52.5
kW
Cooling duty
Total
-8.4
kW
Sensible
-5.9
kW
Nominal power consumed
5.9
kW
R407c gas weight/CO2 equivalent
9.0/15.97
kg/t
Width
1,840
mm
Depth
854
mm
Height
1,970
mm
Weight
410
kg
| Specifications | Units | DT 12 |
|---|---|---|
| Nominal recirculation air flow |
m³/h
|
7,000
|
| Exhaust/fresh air flow (stepped control) |
m³/h
|
350-3,500
|
| Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air |
l/h
|
29.2
|
| Heat to air | ||
| Via heat pump (Mode B) |
kW
|
12.1
|
| Via standard LPHW @ 80°C |
kW
|
42
|
| Via upgraded LPHW @ 55°C |
kW
|
36
|
| Total Mode B + standard LPHW |
kW
|
54.1
|
| Heat to pool water | ||
| Via heat pump (Mode A) |
kW
|
15.0
|
| Via LPHW @ 80°C |
kW
|
40
|
| Via LPHW @ 55°C |
kW
|
20
|
| Total Mode A + LPHW |
kW
|
55.0
|
| Cooling duty | ||
| Total |
kW
|
-10.1
|
| Sensible |
kW
|
-7.1
|
| Nominal power consumed |
kW
|
7.4
|
| R407c gas weight/CO2 equivalent |
kg/t
|
8.0/14.19
|
| Width |
mm
|
1,840
|
| Depth |
mm
|
854
|
| Height |
mm
|
1,970
|
| Weight |
kg
|
460
|
Nominal recirculation air flow
7,000
m³/h
Exhaust/fresh air flow (stepped control)
350-3,500
m³/h
Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air
29.2
l/h
Heat to air
Via heat pump (Mode B)
12.1
kW
Via standard LPHW @ 80°C
42
kW
Via upgraded LPHW @ 55°C
36
kW
Total Mode B + standard LPHW
54.1
kW
Heat to pool water
Via heat pump (Mode A)
15.0
kW
Via LPHW @ 80°C
40
kW
Via LPHW @ 55°C
20
kW
Total Mode A + LPHW
55.0
kW
Cooling duty
Total
-10.1
kW
Sensible
-7.1
kW
Nominal power consumed
7.4
kW
R407c gas weight/CO2 equivalent
8.0/14.19
kg/t
Width
1,840
mm
Depth
854
mm
Height
1,970
mm
Weight
460
kg
| Specifications | Units | DT 14 |
|---|---|---|
| Nominal recirculation air flow |
m³/h
|
10,000
|
| Exhaust/fresh air flow (stepped control) |
m³/h
|
670-6,700
|
| Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air |
l/h
|
56.5
|
| Heat to air | ||
| Via heat pump (Mode B) |
kW
|
30.0
|
| Via standard LPHW @ 80°C |
kW
|
85
|
| Via upgraded LPHW @ 55°C |
kW
|
72
|
| Total Mode B + standard LPHW |
kW
|
115.0
|
| Heat to pool water | ||
| Via heat pump (Mode A) |
kW
|
35.0
|
| Via LPHW @ 80°C |
kW
|
65
|
| Via LPHW @ 55°C |
kW
|
32
|
| Total Mode A + LPHW |
kW
|
100.0
|
| Cooling duty | ||
| Total |
kW
|
-23.0
|
| Sensible |
kW
|
-13.0
|
| Nominal power consumed |
kW
|
12.3
|
| R407c gas weight/CO2 equivalent |
kg/t
|
21.5/38.14
|
| Width |
mm
|
2,860
|
| Depth |
mm
|
1,126
|
| Height |
mm
|
2,120
|
| Weight |
kg
|
954
|
Nominal recirculation air flow
10,000
m³/h
Exhaust/fresh air flow (stepped control)
670-6,700
m³/h
Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air
56.5
l/h
Heat to air
Via heat pump (Mode B)
30.0
kW
Via standard LPHW @ 80°C
85
kW
Via upgraded LPHW @ 55°C
72
kW
Total Mode B + standard LPHW
115.0
kW
Heat to pool water
Via heat pump (Mode A)
35.0
kW
Via LPHW @ 80°C
65
kW
Via LPHW @ 55°C
32
kW
Total Mode A + LPHW
100.0
kW
Cooling duty
Total
-23.0
kW
Sensible
-13.0
kW
Nominal power consumed
12.3
kW
R407c gas weight/CO2 equivalent
21.5/38.14
kg/t
Width
2,860
mm
Depth
1,126
mm
Height
2,120
mm
Weight
954
kg
| Specifications | Units | DT 16 |
|---|---|---|
| Nominal recirculation air flow |
m³/h
|
12,000
|
| Exhaust/fresh air flow (stepped control) |
m³/h
|
850-8,000
|
| Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air |
l/h
|
62.4
|
| Heat to air | ||
| Via heat pump (Mode B) |
kW
|
35.0
|
| Via standard LPHW @ 80°C |
kW
|
90
|
| Via upgraded LPHW @ 55°C |
kW
|
77
|
| Total Mode B + standard LPHW |
kW
|
125.0
|
| Heat to pool water | ||
| Via heat pump (Mode A) |
kW
|
43.0
|
| Via LPHW @ 80°C |
kW
|
65
|
| Via LPHW @ 55°C |
kW
|
32
|
| Total Mode A + LPHW |
kW
|
108.0
|
| Cooling duty | ||
| Total |
kW
|
-28.0
|
| Sensible |
kW
|
-15.0
|
| Nominal power consumed |
kW
|
17.0
|
| R407c gas weight/CO2 equivalent |
kg/t
|
21.5/38.14
|
| Width |
mm
|
2,860
|
| Depth |
mm
|
1,126
|
| Height |
mm
|
2,120
|
| Weight |
kg
|
1,020
|
Nominal recirculation air flow
12,000
m³/h
Exhaust/fresh air flow (stepped control)
850-8,000
m³/h
Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air
62.4
l/h
Heat to air
Via heat pump (Mode B)
35.0
kW
Via standard LPHW @ 80°C
90
kW
Via upgraded LPHW @ 55°C
77
kW
Total Mode B + standard LPHW
125.0
kW
Heat to pool water
Via heat pump (Mode A)
43.0
kW
Via LPHW @ 80°C
65
kW
Via LPHW @ 55°C
32
kW
Total Mode A + LPHW
108.0
kW
Cooling duty
Total
-28.0
kW
Sensible
-15.0
kW
Nominal power consumed
17.0
kW
R407c gas weight/CO2 equivalent
21.5/38.14
kg/t
Width
2,860
mm
Depth
1,126
mm
Height
2,120
mm
Weight
1,020
kg
Suitable for:
Useful downloads
Looking to buy?
Get in touch and we will connect you with the right office or dealer.
Looking for spares?
The direct route to spare parts for your equipment.
Looking for servicing?
Contact us for help in finding the right service professional near you.
Related products
Swimming pool and commercial
The DanX HP air handling unit combines the strengths of a heat pump system with a system that dehumidifies using outdoor air.
AA/AW 600-900-1200-1500
The Variheat range are sophisticated air handling units incorporating heat pump dehumidification technology.
Swimming pool and commercial
The DanX XD is a very effective ventilation system that uses outdoor air to provide dehumidification using a double heat exchanger that delivers up to a 95% heat recovery.
Featured insights
Read this case study on how we transformed the efficiency of an old DanX unit on a modest budget.
Ian Furmidge
- 7 min read
Inquire about this product
Complete your details below and the right person from our expert team will get back to you.
For service and spare parts inquiries please include serial number and product type in the Message field.
Thank you for your inquiry. We will be in touch with you as soon as possible.
