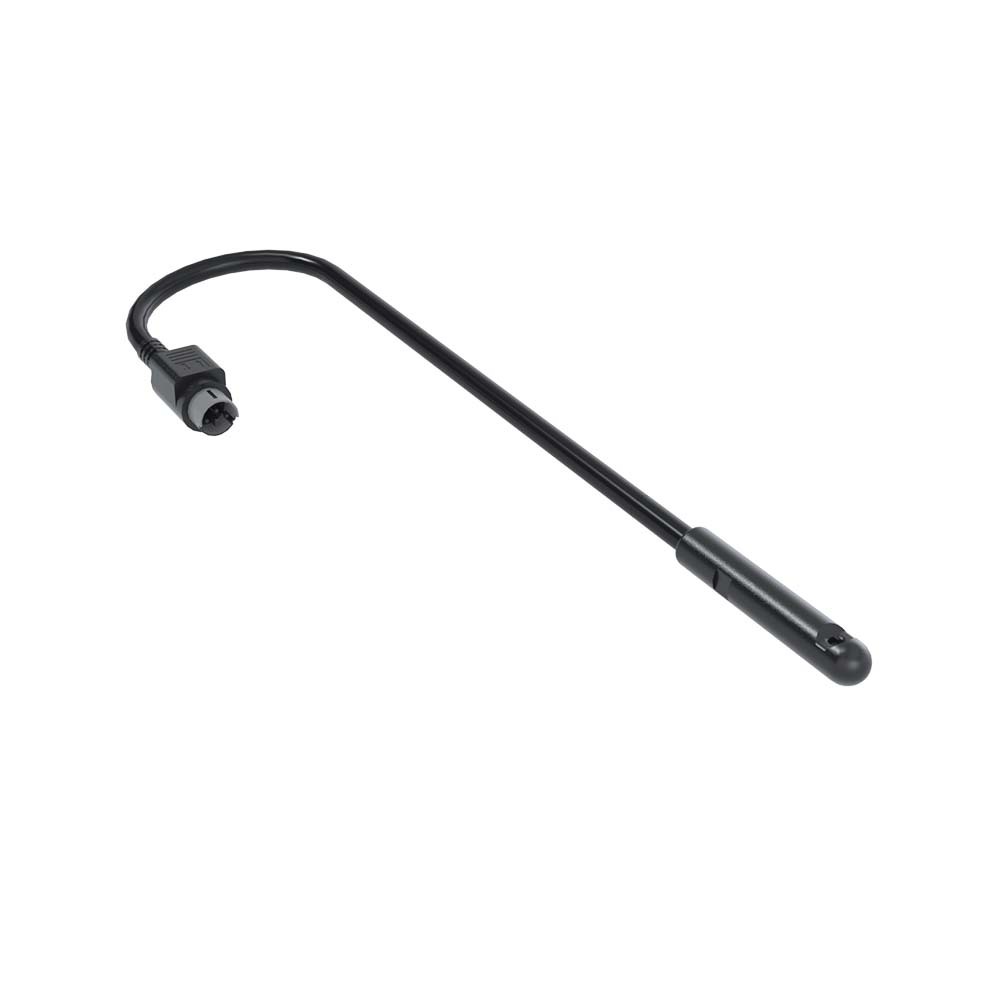

Simplify Sensor Probe – Relative Humidity/Temperature
Remote monitoring control system
The Simplify Sensor Probe is a humidity and temperature sensor with a unique precision of +/- 2.0 % in the range from 0-100% RH and HSH +/- 0.2°C deviation on the temperature measurements.
The opening of the Simplify Sensor Probe, from where the probe measures is IP67 protected (the probe is dust tight and it is submersible in water <1m up to 30 mins) giving ideal protection in harsh environments.
The diameter of the probe is only 8mm, minimising the size of the repair work required post-drying. The Simplify Sensor Probe comes with different lengths of cable – 24cm, 300cm, and 2000cm.
¿Le interesa?
Applications
-
Restoration processes after water damages
-
Monitoring buildings in the construction phase
-
Climate analysis of indoor climate
-
The Simplify Sensor Probe can be used in air and materials such as wood, concrete where RH% measuring is required
Características principales
-
High accuracy
-
Slim design Ø8mm
-
IP67
-
Rugged design
-
Combined humidity and temperature measurement
Installation
-
The Simplify Sensor Probe is part of the Simplify solution. It is connected to the Simplify Sensor Box to enable measuring temperature and humidity data
-
The Simplify Sensor Box is automatically powered ON, when probe is connected
-
The Simplify Sensor Probe is connected to the Simplify Sensor Box via a mini DIN connector
-
Probe can be used in free air or inserted into materials where relative humidity and temperature must be measured
Especificaciones del producto
Voltage
3.3
VDC
Current
1.5
mA
Power
5
mW
RH range
0 -100
%RH
Tolerance RH
+/- 2
%RH
Resolution RH
0.01
%RH
Temperature range
-40 - +100
°C
Tolerance Temp
+/- 0.2
°C
Resolution Temp
0.01
°C
Protection class (Probe tip)
IP67
